2008 PEUGEOT 1007 Owners Manual

3
52
4 - Access to the rear seats
If necessary, detach the seat belt
from the handle and position it along
the door pillar.
Lift the control A with one hand
and guide the movement of the
seat forwards with your other
hand (keeping the control in the
raised position).
The driver has a courtesy handle

B , located on the inner side of the
passenger seat, to enable him to tilt
the seat to allow a child into the rear,
for example.
When it is put back in place, the seat
returns to its initial position. 5 - Head restraint height and
angle adjustment
To raise the head restraint, pull it
upwards.
To lower it, it is necessary to push
simultaneously:
- the button, located on the left guide at the base of the head
restraint frame,
- the head restraint downwards.
No person or object should
prevent the seat from return-
ing to its initial position; the
return to this position is nec-
essary in order for it to be
secured. The head restraint is fi tted with a
frame which has notches which
prevent it from lowering; this is an
impact safety device.
Never drive with the head
restraints removed; they must
be in place and correctly
adjusted.

The adjustment is correct
when the upper edge of
the head restraint is level
with the top of the head. To adjust the angle of the head
restraint, tilt it.
To remove it, press the lug and pull
it upwards.

3
53
6 - Storage drawer
Your vehicle has a storage drawer
under each seat.
To open it, lift it and pull.
To remove it, bring it to the end of its
travel, press the ends of the slides
and lift it, then pull it fully.
To put it back in place, at the end
of its travel, press on the top of the
drawer to secure it. 7 - Placing the passenger seat in
the table position
Use one of the two red controls at the
base, on each side of the seat.
To place the seat in the table position,
lift this control with one hand and
guide the seat back to the table
position with your other hand.
To return the seat to its upright
position, carry out exactly the
same operations in reverse order
(always raise the red control).
As a safety precaution, a
passenger sitting in the rear
of the vehicle must not place
his feet on the front seat
when placed in the table
position.
Do not place objects weigh-
ing more than 1 kg in the
drawers.

3
54
REAR SEATS
Seat back angle adjustment
Tilt the control C and adjust the angle
to the comfort or loading position.
Release the control to lock. Folding/Placing in the
"fully folded" position
Place the head restraint in the low
position.
Position the seat belt buckle as close
as possible to the strap return.

Move the seat as far back as
possible using the bar A or the
handle B .
Fold the seat back onto the seat
cushion tilting control C fully.

Note: you can lock the seat back in
this position by pressing on it.
Push the control D upwards to
release the rear feet.
Place the seat in the "fully folded"
position.
When driving, the seat is retained in
this position by the side strut.
Table position
Place the head restraint in the low
position.
Fold the seat back onto the seat
cushion tilting control
C fully.

Note: you can lock the seat back in
this position by pressing on it.
Forwards-backwards adjustment
Lift the bar
A and slide the seat
forwards or backwards.
From the boot, you can press the red
handle B and slide the seat forwards
or backwards.
This manoeuvre makes folding of the
seat when loading the boot easier.

3
55
Never drive with the head
restraints removed, they
must be in place and correctly
adjusted.
Locked Released
In order to ensure that the
seat covers have a long
service life, do not leave
the seat in the table or "fully
folded" position after loading.
Avoid placing luggage on the seats
when they are in the table position.
REAR HEAD RESTRAINTS
The rear head restraints can be
removed and have two positions;
- high, position for use
- low, storage position
Repositioning the seat
Press the control D upwards to check
that the rear feet are released.
Tilt the folded seat rearwards.

The rear feet are secured automatically.
Check that the seat is secured
correctly.
Raise the seat back, releasing it fi rst
by pulling the control C . To raise a head restraint, pull it
upwards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
To refi t it, engage the head restraint
rods in the holes taking care to remain
in the centreline of the seat back.

3
56
SEAT MODULARITY AND THE VARIOUS SEAT CONFIGURATIONS
The design of your vehicle and of its
seats offers several confi gurations.
Examples of various arrangements
combining convenience and con-
viviality:
It is imperative that the
various operations which
lead to modifi cation of the
existing confi guration are
carried out when stationary.

3
57

3
58

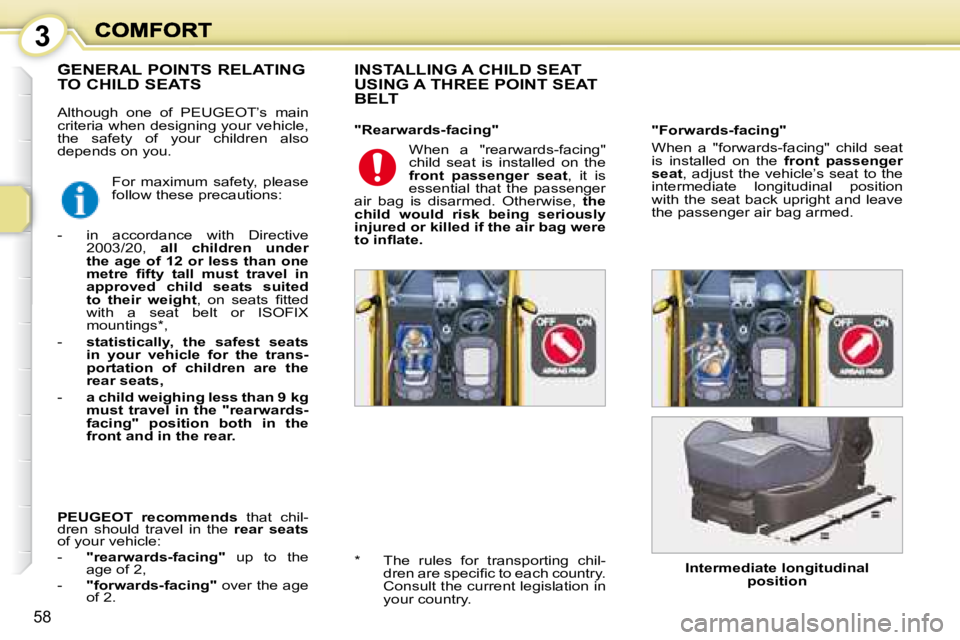

Although one of PEUGEOT’s main
criteria when designing your vehicle,
the safety of your children also
depends on you. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
Intermediate longitudinal position
* The rules for transporting chil-
dren are specifi c to each country.
Consult the current legislation in
your country.
GENERAL POINTS RELATING TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle’s seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
"Rearwards-facing"
When a "rearwards-facing"
child seat is installed on the

front passenger seat , it is
essential that the passenger
air bag is disarmed. Otherwise, the
child would risk being seriously
injured or killed if the air bag were
to infl ate.
For maximum safety, please
follow these precautions:
- in accordance with Directive 2003/20, all children under
the age of 12 or less than one
metre fi fty tall must travel in
approved child seats suited
to their weight , on seats fi tted
with a seat belt or ISOFIX
mountings * ,
- statistically, the safest seats
in your vehicle for the trans-
portation of children are the
rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the age
of 2.

3
61
ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a booster seat which has a back,
fi tted with a seat belt guide at
shoulder level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun,
with the windows closed,
- the keys within reach of children inside the vehicle.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air
bag were to infl ate.
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harness
keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
For optimum installation of the
"forward facing" child seat, ensure
that the back of the child seat is in
contact with the back of the vehicle’s
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be
removed, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
