2008 PEUGEOT 1007 Owners Manual

FAMILIARISATION Ring A Lights off.
Ring B Windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park

AUTO. Automatic wipe.

 Single wipe.

A. Wash-wipe. Rear wiper

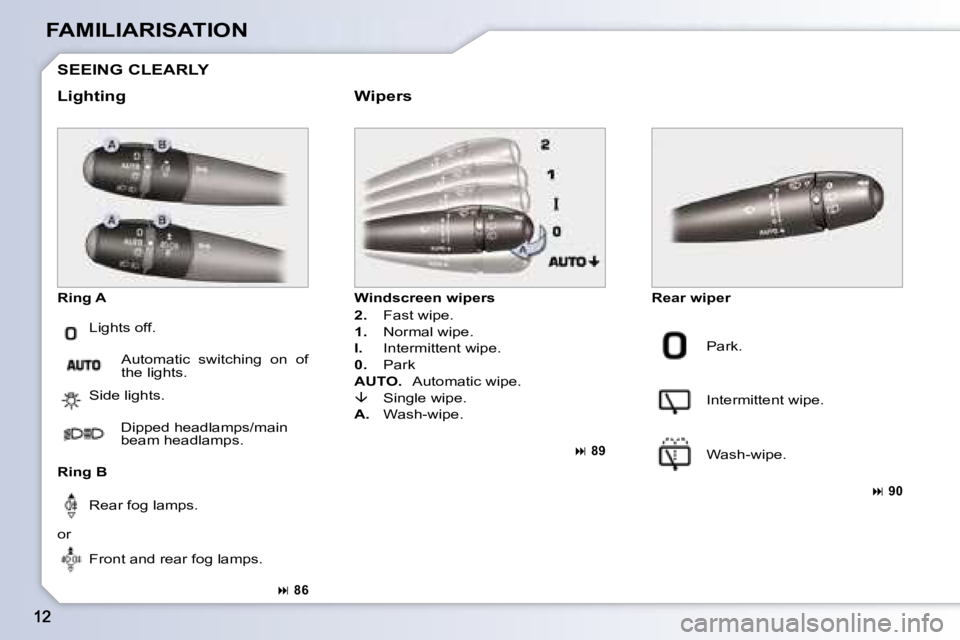

SEEING CLEARLY
Lighting Wipers
Side lights. Dipped headlamps/main
beam headlamps.
Rear fog lamps.
or Front and rear fog lamps.

 86
Park.
Intermittent wipe.
Wash-wipe.

 90
Automatic switching on of
the lights.

 89

–

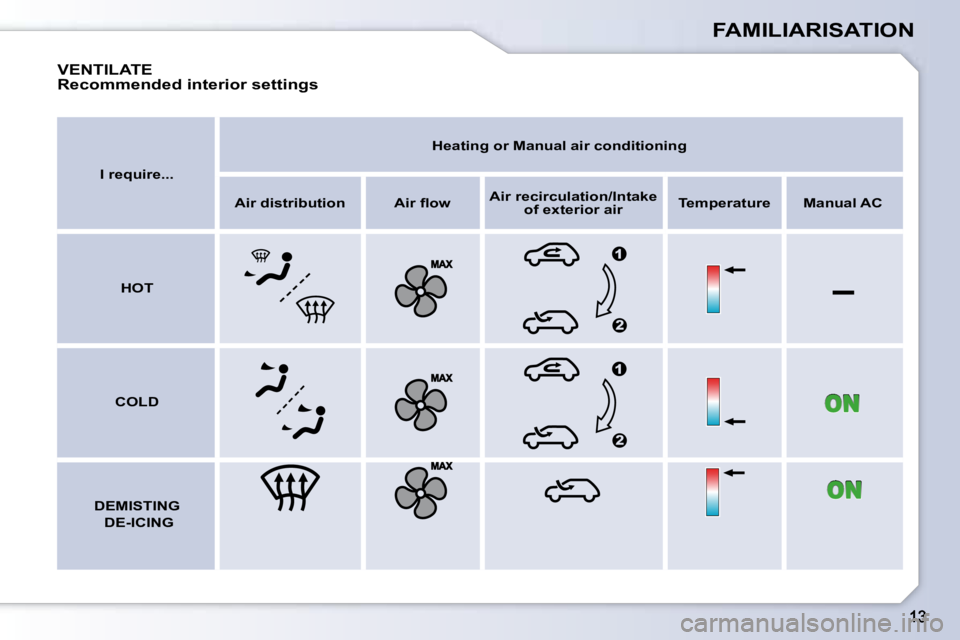

FAMILIARISATION

I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation/Intake
of exterior air
Temperature Manual AC

HOT

COLD

DEMISTING
DE-ICING
VENTILATE
Recommended interior settings

FAMILIARISATION
MONITORING
Warning lights Controls

1. When the ignition is on, the or-
ange and red warning lights
come on.

2. When the engine is running, these
warning lights should switch off.
If warning lights remain on, refer to
the page concerned. Lighting of the indicator light indicates
the status of the corresponding
function.

A. Deactivation of the visual and
audible rear parking assistance.

 110
B. Central Locking/Unlocking

 79
C. Deactivation of the ESP/ASR
systems.

 95
D. Deactivation of the interior
alarm.

 76

 20
Instrument panel

A. When the ignition is on, the fuel
gauge needle should rise.

B. When the engine is running, its
associated low level warning
light should switch off.

C. When the ignition is on, the oil
level indicator should display
"OIL OK" for a few seconds.
If the levels are not correct, top up
the corresponding level.

 18

FAMILIARISATION

1. Opening of the glove box.

2. Insertion of the key.

3. Selection of the "OFF" position.

4. Removal of the key keeping the
switch in this position.
1. Stop position.

2. Ignition position.

3. Starting position.

A. Driver's seat belt not fastened
or unfastened warning light, lit in
red.

B. Passenger seat belt not fastened
or unfastened warning light.
1 : front.
2 : rear right.
3 : rear left.

 96
C. Passenger air bag warning light;
lit if the air bag is disarmed.

D. Air bags warning light; off after
the ignition is switched on.

 99
KEEPING YOUR PASSENGERS SAFE
Seat belts and air bags Disarming the front
passenger air bag Ignition switch
STARTING

 99

FAMILIARISATION
DRIVING SAFELY
Speed limiter Cruise control

1. Speed limiter mode Selection/
Off.

2. Decreasing of the programmed
value.

3. Increasing of the programmed
value.

4. Speed limiter On/Off.
1. Cruise control mode Selection/
Off.

2. Decreasing of the programmed
value.

3. Increasing of the programmed
value.

4. Cruise control On/Off.
In order to be programmed or
activated, the vehicle speed must
be above 25 mph (40 km/h), with
at least fourth gear engaged on the
manual gearbox (second gear for the
"2 Tronic" gearbox). Display on the instrument panel
The cruise control or speed limiter
mode appears on the instrument
panel when it is selected.

Cruise control

Speed limiter
The values must be set with the
engine running.

 107

 105

FAMILIARISATION
DRIVING SAFELY
"2 Tronic" gearbox Display on the instrument panel
The gear or the mode selected
appears on the instrument panel
display.
Normal driving
Two driving modes are offered:
- sequential mode for manual
changing of the gears by the
driver,
- automatic mode for automatic
management of the gears by the
gearbox. In automatic mode, you
can take control at any time by
using the steering wheel con-
trols, when overtaking for exam-
ple ( auto sequential mode).

 102
This fi ve-speed piloted manual
gearbox offers a choice between the
comfort of fully automatic operation
or the pleasure of manual gear
changing.

1. Gear lever.

2. "-" steering wheel control.

3. "+" steering wheel control.
N: neutral.

R: reverse.

1 2 3 4 5: gears engaged.

Auto: automatic mode. Moving off

Select position N and press
the brake pedal fi rmly while
starting the engine.
Engage fi rst gear (position M or A ) or
reverse (position R ) using the gear
lever 1 .

1
18
PETROL MANUAL GEARBOX AND "2 TRONIC" GEARBOX INSTRUMENT PANELS

1. Trip distance recorder zero
reset and total/trip distance
recorder display button.

2. Emission control system
warning light.

3. Service warning light.

4. Anti-lock braking system (ABS)
warning light.

5. Electronic stability control
(ESP/ASR) warning light.

6. Handbrake, brake fl uid level
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.

8. Engine oil pressure warning light.

9. Punctured wheel warning light.

10. Battery charge warning light.

11. Left direction indicator.

12. Fuel gauge.

13. Low fuel level warning light.

14. Central STOP warning light.

15. Speedometer.
16. Speed limiter/cruise control
indicator light.

17. Service indicator, engine oil
level gauge and total/trip
distance recorder.

18. "2 Tronic" gearbox indicator.

19. Foot on brake warning light
("2 Tronic" gearbox).

20. Rev counter.

21. Right direction indicator.

22. Dipped headlamps indicator light.

23. Main beam headlamps indicator
light.

24. Front fog lamps indicator light.

25. Rear fog lamp indicator light.

26. Door open warning light.

27. Seat belt not fastened warning
light.

28. Passenger air bag disarmed
warning light.

29. Front, steering column, side and
curtain air bags warning light.

30. Lighting rheostat button.

1
19
DIESEL MANUAL GEARBOX INSTRUMENT PANEL

1. Trip distance recorder zero
reset and total/trip distance
recorder display button.

2. Emission control system
warning light.

3. Service warning light.

4. Anti-lock braking system (ABS)
warning light.

5. Electronic stability control
(ESP/ASR) warning light.

6. Handbrake, brake fl uid level
and electronic brake force
distribution warning light.
7. Maximum coolant temperature
warning light.

8. Engine oil pressure warning light.

9. Punctured wheel warning light.

10. Battery charge warning light.

11. Left direction indicator.

12. Fuel gauge.

13. Low fuel level warning light.

14. Central STOP warning light.

15. Speedometer.
16. Diesel engine pre-heat warning
light.

17. Water in diesel fi lter warning
light.

18. Speed limiter/cruise control
indicator light.

19. Service indicator, engine oil
level gauge and total/trip
distance recorder.

20. Rev counter.

21. Right direction indicator.

22. Dipped headlamps indicator light.

23. Main beam headlamps indicator
light.

24. Front fog lamps indicator light.

25. Rear fog lamp indicator light.

26. Door open warning light.

27. Seat belt not fastened warning
light.

28. Passenger air bag disarmed
warning light.

29. Front, steering column, side and
curtain air bags warning light.

30. Lighting rheostat button.
