2008 PEUGEOT 1007 Owners Manual

3
59

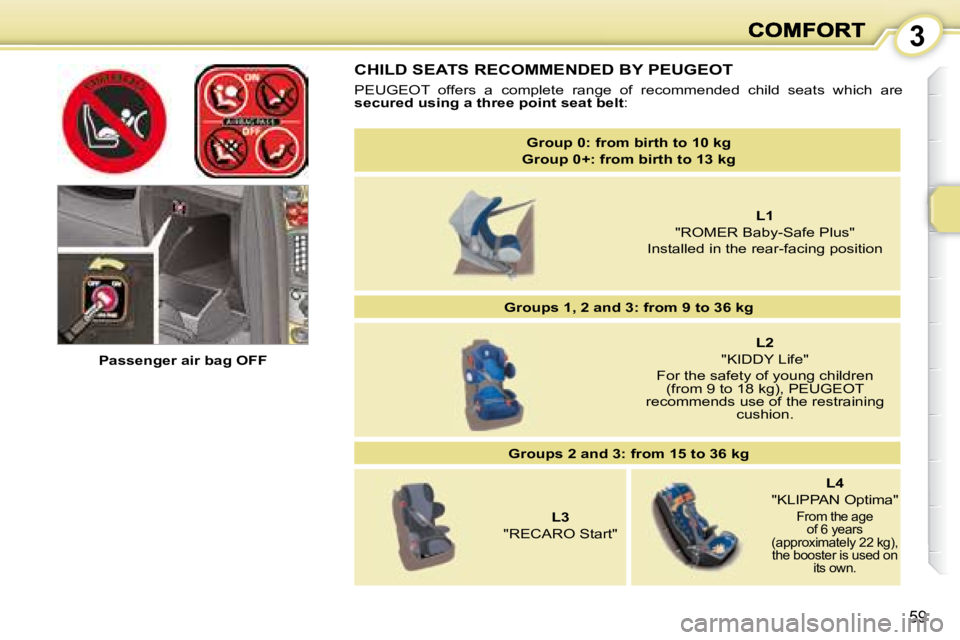

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :
Passenger air bag OFF
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg

L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.

3
60

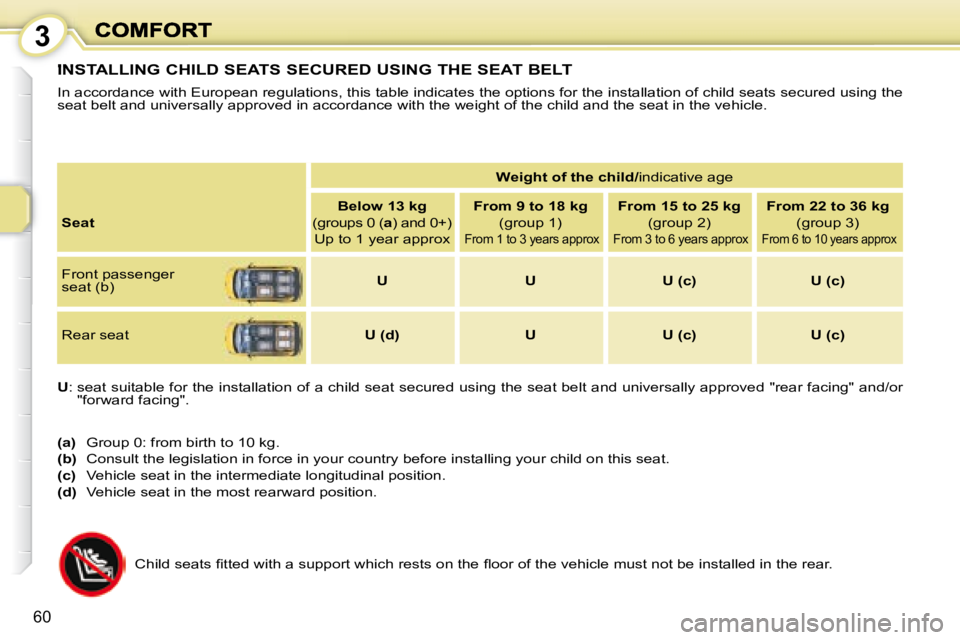

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved in accordance with the weig ht of the child and the seat in the vehicle.

U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
Child seats fi tted with a support which rests on the fl oor of the vehicle must not be installed in the rear.

Weight of the child/ indicative age

Seat
Below 13 kg
(groups 0 ( a ) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx

From 15 to 25 kg
(group 2)
From 3 to 6 years approx

From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger
seat (b)
U U U (c) U (c)
Rear seat U (d) U U (c) U (c)
(a) Group 0: from birth to 10 kg.
(b) Consult the legislation in force in your country before insta lling your child on this seat.
(c) Vehicle seat in the intermediate longitudinal position.
(d) Vehicle seat in the most rearward position.

3
62
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation .
The seats * , represented below,
are fi tted with regulation ISOFIX
mountings: These are three rings for each seat: This ISOFIX mounting system
guarantees you fast, reliable and
safe fi tting of the child seat in your
vehicle.
The ISOFIX child seats are fi tted
with two locks which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located
between the vehicle seat back
and cushion, indicated by
a label,
- an upper ring B , referred to as
the TOP TETHER , indicated by
a label. To attach this strap, raise the
vehicle seat’s head restraint
then pass the hook between
its rods. Then fi x the hook
on the upper ring B and tighten the
upper strap.
The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
Child seats fi tted with a support which
rests on the fl oor of the vehicle must
not be installed in the rear
* According to version.

3
63
This child seat can also be used on seats which are not fi tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer’s installation guide.

ISOFIX RÖMER Duo Plus (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR
VEHICLE

3
64
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seat s, the child seat’s ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation
of an I sofi x U niversal seat,
" F orward facing" and secured
using the "Top Tether" upper
strap.
* The ISOFIX infant car seat is fi xed to the lower rings of an
ISOFIX seat and occupies the
two rear seats.

IL-SU: seat suitable for the installation
an I sofi x S emi- U niversal seat
which is:
- "rear facing" fi tted with a "Top Tether" upper strap,
- an infant car seat which is secured using the "Top Tether" upper strap.
Child seats fi tted with a support which rests on the fl oor of the vehicle must not be installed on the rear seats.

Weight of the child /indicative age

Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg
(group 1)
From 1 to 3 years approx

Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child seats
which can be installed on the rear seats IL-SU IL-SU IL-SU
IUF
IL-SU
For the securing of the "Top Tether"
upper strap, refer to the "Isofi x Mountings"
section.

3
65
"CAMELEO" INTERIOR
The Cameleo concept is based
on a range of very different kits
which enable you to transform the
passenger compartment into one
which is unique and attractive.
They consist of the following 18 items:
- two coverings 1 on the fascia,
- four trims 2 for the side and centre
vents,
- two trims 3 for the door panels,
- four trims 4 for the seat cushions, - four trims
5 for the seat backs,
- two trims 6 for the rear side
storage compartment covers. For safety reasons, you must
not drive until you have installed
a kit completely.
Kits consisting of four vent trims are
also available.
The removal and fi tting of the items
in this kit does not require any tools.

3
66
1 - Fascia coverings
Removal

 Pull one of the four corners of
the old fascia covering to detach
the velcro.
Fitting

 Position the new covering fl at on
the fascia.

 Press on the four corners to
attach the velcro securely. 2 - Vent trims
Removal

 Turn an eighth of a turn to remove
the old trim.
Fitting

 Position the new trim on the
vent.

 Turn an eighth of a turn to the
notch to fi x the new trim. 3 - Door panel trims
Removal

 Pull at the two notches to unclip
it fully.

 Remove the old trim.
Fitting

 Position the new trim on the door
starting at the top.

 Press on the edges to clip it
securely.

3
67
4 - Seat cushion trims Fitting

 Position the new trim on the seat
cushion or on the seat back.

 Engage the zip pull, located at
the base of the seat cushion or
seat back.

 Guide the zip pull along the three
sides of the seat cushion or seat
back.

 Position the velcro on the last
side of the seat cushion or seat
back trim.

On the rear seats, take care to
position the velcro correctly so
that the ISOFIX mountings are not
covered.

 Fold down the zip pull tab in
the seat cushion or seat back
location. 6 - Rear side storage
compartment cover trims
Removal

 Remove the tab from the zip pull,
located at the base of the seat
cushion or seat back.

 Guide the zip pull along the three
sides of the seat cushion or seat
back.

 Remove the zip pull.

 Pull on the last side to detach the
velcro, then remove the old seat
cushion or seat back trim.
Removal

 Open the cover to 45°.

 Unclip the lug located under the
cover.

 Remove the old cover trim.
Refi tting

 Open the cover to 45°.

 Position the new trim on the cover
by means of the two notches.

 Tilt the trim on the cover.

 Clip the lug located under the
cover.
Some Cameleo seat trims
can be dry cleaned. Please
ask a PEUGEOT dealer for
details.
5 - Seat back trims
Follow these instructions starting,
for each seat, with the complete
seat cushion removal and fi tting
operations, then repeat them for the
seat back.
