2008 PEUGEOT 1007 Owners Manual

9
130
TOWING A TRAILER, CARAVAN, BOAT, etc.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
your vehicle and that the fi tting of the
towbar is entrusted to a PEUGEOT
dealer.
If the towbar is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted us-
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer’s instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-
ing vehicle to more signifi cant stress
and its driver must be particularly
careful.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.
Cooling: Towing a trailer on a slope
increases the temperature of the
coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and
the outside temperature.
In all cases, pay attention to the cool-
ant temperature.
In certain cases of particularly ardu-
ous use (towing the maximum load
on a steep gradient in high tempera-
tures), switching off the air condition-
ing permits the recovery of engine
power and therefore an increase in
the towing capacity.
If the warning light comes on, stop
the vehicle and switch off the engine
as soon as possible.

Tyres: Check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pres-
sures.

Braking: Towing increases the brak-
ing distance.

Lights: Check the electrical signal-
ling on the trailer.

Side wind: Take into account the in-
creased sensitivity to side wind.
FITTING ROOF BARS
When fi tting transverse or longitudinal
roof bars, use the accessories recom-
mended by PEUGEOT and follow the
manufacturer’s fi tting instructions.
For further information, contact a
PEUGEOT dealer.

Maximum authorised weight on
the roof bars: 60 kg
Please refer to national legislation in
order to comply with the regulations
concerning the transportation of objects
which are longer than the vehicle.
Driving advice

Distribution of loads: Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.

9
131
ACCESSORIESFOR YOUR 1007
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the Network.
They all benefi t from PEUGEOT’s
recommendation.
These accessories and parts, having
been tested and approved for reli-
ability and safety, are all adapted to
your PEUGEOT vehicle. The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a
failure of your vehicle’s electronic
system.
Please note this specifi c warning.
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning trian-
gle and spare bulbs available in the
vehicle.

"Protection": anti-theft
alarm, engraved windows,
wheel anti-theft devices,
system which assists with
the identifi cation of a stolen
vehicle, fi rst aid kit, warn-
ing triangle, high visibility
safety jacket, fog lamps kit,
snow chains, non-skid cov-
ers, audible rear parking
assistance.

"Touring": central arm-
rest, storage under the rear
shelf, mats * , boot tray, sun
blinds.
For leisure pursuits: roof
bars, transportation ac-
cessories (bicycle carrier,
ski carrier), roof box, child
seats and booster cushions, audio/
telephone console, cool box.

"In-Car Technology": hands-
free kits, satellite navigation sys-
tems, CD changer, DVD player,
multimedia, audio equipment,
speakers, auxiliary audio socket
permitting the connection of a
portable MP3 player (compat-
ible with RD4), USB Box.

"Styling": seat covers, al-
loy wheels, wheel trims,
spoiler, styling strips, door
spoilers, sill protectors,
aluminium footrest, rear si-
lencer, exhaust tail pipe.

"Universal": windscreen
wash fl uid, interior and ex-
terior cleaning and mainte-
nance products. You can obtain "Van" conver-
sion kits for conversion from
a private vehicle to a van.
You can obtain other
"Cameleo" customising kits
from PEUGEOT dealers.
You will be offered either a
complete kit, like the original kit, or a
partial kit consisting of the vent trims
only.
Should you need to change one or
more elements of the Cameleo kit of
your vehicle, due to damage..., you
will be offered replacement elements
from the exchange kits available at
that time.
This product range offered by PEUGEOT
Accessories is structured around 5 catego-
ries: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.

* To prevent jamming under the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of an- other.
Trailer towbar which must be fi tted by
the PEUGEOT network.

1010
132
ENGINES AND GEARBOXES
* Draining by gravity with oil fi ller cap open.
MODELS:
Model codes:
KM...
KFVC NFUC NFUC/P

PETROL ENGINES
1.4 litre
(75 bhp)
1.6 litre 16V
(110 bhp)
Cubic capacity (cm 3
) 1 360 1 587
Bore x stroke (mm) 75 x 77 78.5 x 82
EU standard maximum power (kW) 54 80
Maximum power engine speed (rpm) 5 400 5 800
EU standard maximum torque (Nm) 118 147
Maximum torque engine speed (rpm) 3 400 4 000
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

Gearboxes Manual
(5-speed) Manual
(5-speed) "2 Tronic"
(5-speed)

Oil capacities (in litres)
Engine (with cartridge replacement) 3.15 * 3.35 * 3.35 *
Gearbox-Final drive 2 2 -

1010
133
ENGINES AND GEARBOXES

MODELS:
Model codes:
KM...
8HZC 9HZC

DIESEL ENGINES
1.4 litre Turbo HDI
(70 bhp)
1.6 litre Turbo HDI 16V
(110 bhp)
Cubic capacity (cm 3
) 1 398 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3
EU standard maximum power (kW) 50 80
Maximum power engine speed (rpm) 4 000 4 000
EU standard maximum torque (Nm) 160 240
Maximum torque engine speed (rpm) 2 000 1 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
Particle emission fi lter No Yes

Gearboxes Manual
(5-speed) Manual
(5-speed)

Oil capacities (in litres)
Engine (with cartridge replacement) 3.8 * 3.75 *
Gearbox-Final drive 1.9 1.9
* Draining by gravity with oil fi ller cap open.

1010
134
Fuel consumption indications correct at time of printing.
The consumption values were established in accordance with EC Directive 80/1268/CEE (as amended). They may vary
depending on the style of driving, traffi c conditions, weat her conditions, the load in the vehicle, the maintenance o f the vehicle
and the use of the accessories.

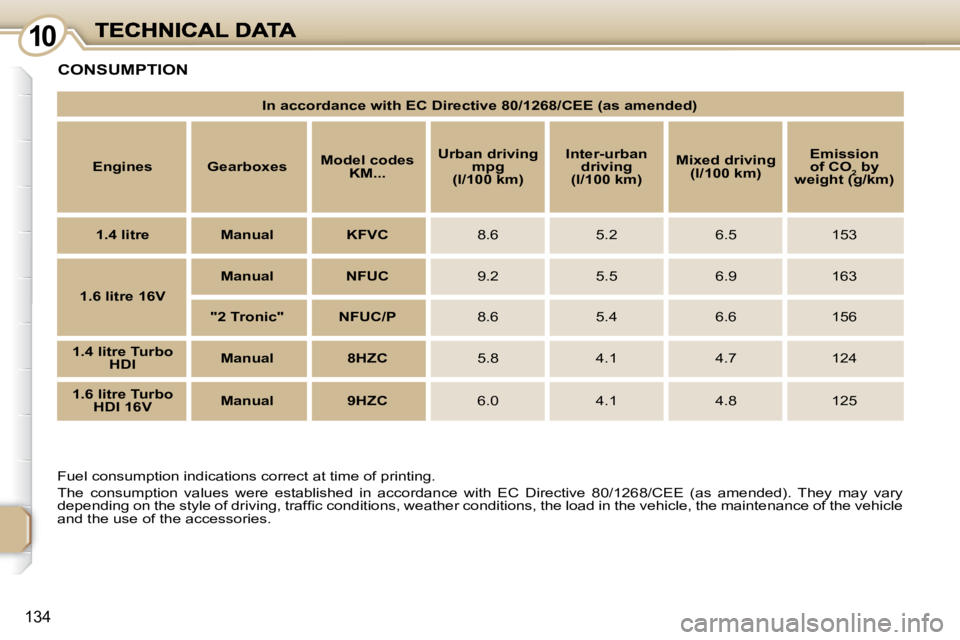

CONSUMPTION

In accordance with EC Directive 80/1268/CEE (as amended)

Engines Gearboxes
Model codes
KM...
Urban driving
mpg
(l/100 km)
Inter-urban
driving
(l/100 km)
Mixed driving
(l/100 km)
Emission
of CO 2 by
weight (g/km)

1.4 litre Manual KFVC 8.6 5.2 6.5 153

1.6 litre 16V
Manual NFUC 9.2 5.5 6.9 163

"2 Tronic" NFUC/P 8.6 5.4 6.6 156

1.4 litre Turbo
HDI
Manual 8HZC 5.8 4.1 4.7 124

1.6 litre Turbo
HDI 16V
Manual 9HZC 6.0 4.1 4.8 125

1010
135

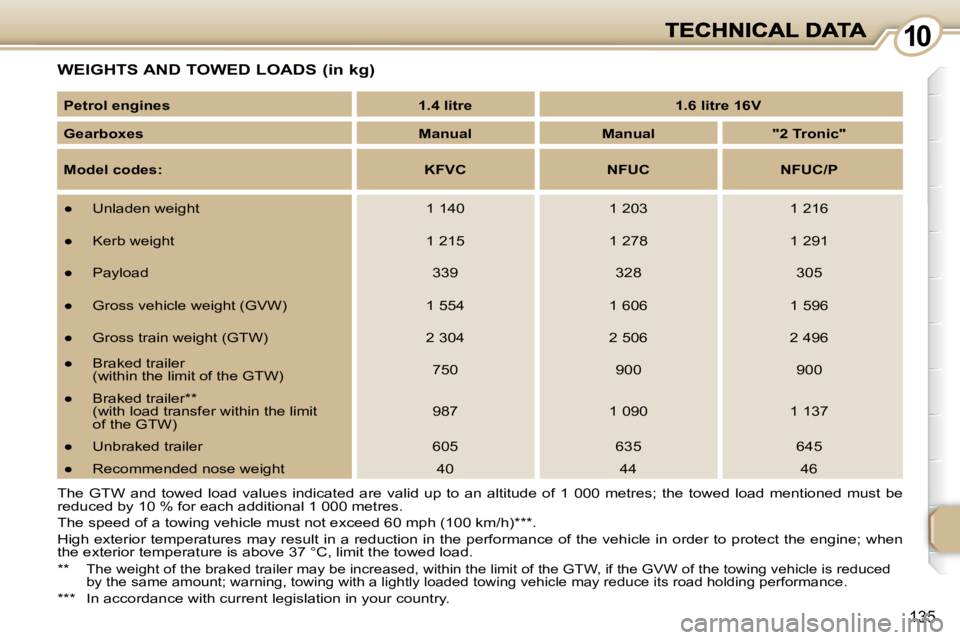

WEIGHTS AND TOWED LOADS (in kg)
The GTW and towed load values indicated are valid up to an altitude of 1 000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) *** .
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed loa d.
**
The weight of the braked trailer may be increased, within th e limit of the GTW, if the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may reduce its road holding performance.
*** In accordance with current legislation in your country.

Petrol engines 1.4 litre 1.6 litre 16V

Gearboxes
Manual Manual "2 Tronic"

Model codes:
KFVC NFUC NFUC/P

1010
136
WEIGHTS AND TOWED LOADS (in kg)
The GTW and towed load values indicated are valid up to an altitude of 1 000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) *** .
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed loa d.

Diesel engines 1.4 litre Turbo HDI 1.6 litre Turbo HDI 16V

Gearboxes
Manual Manual

Model codes: KM... 8HZC 9HZC

1010
137
DIMENSIONS (in mm)
