Page 1003 of 5121
BRC-62
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000003766879
PRECAUTIONS FOR DIAGNOSIS
If steering angle sensor, steering system parts, suspension system parts, ABS actuator and electric unit (con-
trol unit) or tires have been replaced, or if wheel alignment has been adjusted, be sure to adjust neutral posi-
tion of steering angle sensor before driving. Refer to BRC-66, "
ADJUSTMENT OF STEERING ANGLE
SENSOR NEUTRAL POSITION : Description".
Page 1007 of 5121
![NISSAN TEANA 2008 Service Manual BRC-66
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description NISSAN TEANA 2008 Service Manual BRC-66
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description](/manual-img/5/57391/w960_57391-1006.png)
BRC-66
< BASIC INSPECTION >[VDC/TCS/ABS]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000003766881
After replacing the ABS actuator and electric unit (control unit), perform the neutral position adjustment for the
steering angle sensor.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000003766882
1.PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR
Perform the neutral position adjustment for the steering angle sensor.
>> Refer to BRC-66, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Spe-
cial Repair Requirement".
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Description
INFOID:0000000003766883
When doing work that applies to the list below, make sure to adjust neutral position of steering angle sensor
before running vehicle.
×: Required –: Not required
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Re-
pair Requirement
INFOID:0000000003766884
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-III.
(Adjustment cannot be done without CONSULT-III.)
1.ALIGN THE VEHICLE STATUS
Stop the vehicle with front wheels in straight-ahead position.
>> GO TO 2.
2.PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR
1. On the CONSULT-III screen, touch "WORK SUPPORT" and “ST ANG SEN ADJUSTMENT" in order.
2. Touch “START”.
Situation Adjustment of steering angle sensor neutral position
Removing/Installing ABS actuator and electric unit (control unit) —
Replacing ABS actuator and electric unit (control unit)×
Removing/Installing steering angle sensor×
Replacing steering angle sensor×
Removing/Installing steering components×
Replacing steering components×
Removing/Installing suspension components×
Replacing suspension components×
Change tires to new ones—
Tire rotation—
Adjusting wheel alignment×
Page 1008 of 5121
![NISSAN TEANA 2008 Service Manual INSPECTION AND ADJUSTMENT
BRC-67
< BASIC INSPECTION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
CAUTION:
Do not touch steering wheel while adjusting steering angle sensor.
3. After approximately 1 NISSAN TEANA 2008 Service Manual INSPECTION AND ADJUSTMENT
BRC-67
< BASIC INSPECTION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
CAUTION:
Do not touch steering wheel while adjusting steering angle sensor.
3. After approximately 1](/manual-img/5/57391/w960_57391-1007.png)
INSPECTION AND ADJUSTMENT
BRC-67
< BASIC INSPECTION >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
CAUTION:
Do not touch steering wheel while adjusting steering angle sensor.
3. After approximately 10 seconds, touch “END”.
NOTE:
After approximately 60 seconds, it ends automatically.
4. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to perform above operation.
>> GO TO 3.
3.CHECK DATA MONITOR
1. Run the vehicle with front wheels in straight-ahead position, then stop.
2. Select “STR ANGLE SIG” in “DATA MONITOR” and check steering angle sensor signal.
Is the steering angle within the specified range?
YES >> GO TO 4.
NO >> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1.
4.ERASE THE SELF-DIAGNOSIS MEMORY
Erase the self-diagnosis memories of the ABS actuator and electric unit (control unit) and ECM.
ABS actuator and electric unit (control unit): Refer to BRC-80, "
CONSULT-III Function".
ECM: Refer to EC-113, "
CONSULT-III Function".
Are the memories erased?
YES >> INSPECTION END
NO >> Check the items indicated by the self-diagnosis. STR ANGLE SIG : 0±2.5°
Page 1009 of 5121
BRC-68
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
VDC
FUNCTION DIAGNOSIS
VDC
System DiagramINFOID:0000000003766885
System DescriptionINFOID:0000000003766886
Vehicle Dynamics Control system detects driver′s steering operation amount and brake pedal travel from
steering angle sensor and pressure sensor. Using information from yaw rate/side G sensor and wheel sen-
sor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle driving stabil-
ity by controlling brake application to 4 wheels and engine output.
During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.
Electrical system diagnosis by CONSULT-III is available.
JSFIA0259GB
Page 1010 of 5121
VDC
BRC-69
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

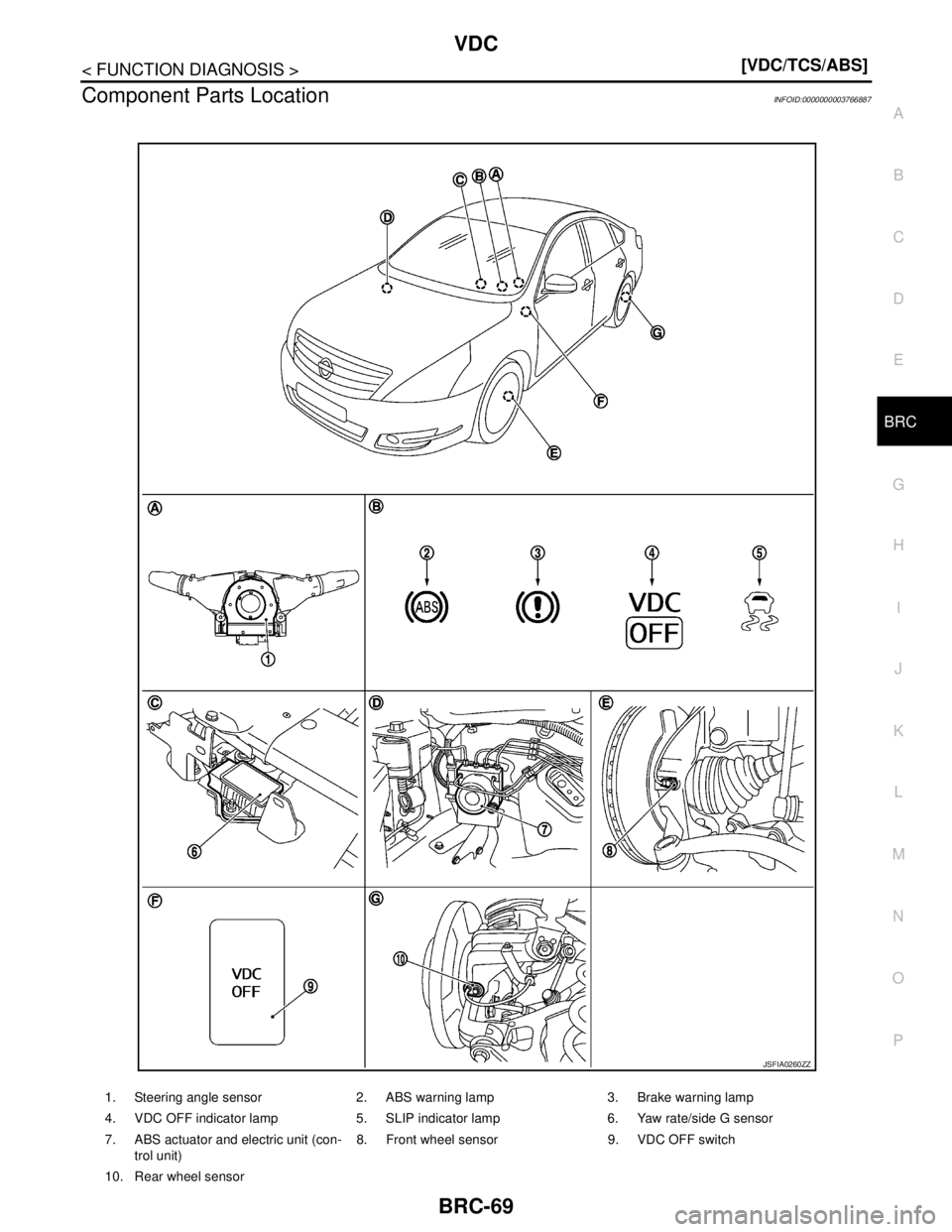

Component Parts LocationINFOID:0000000003766887
1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP indicator lamp 6. Yaw rate/side G sensor
7. ABS actuator and electric unit (con-
trol unit)8. Front wheel sensor 9. VDC OFF switch
10. Rear wheel sensor
JSFIA0260ZZ
Page 1011 of 5121
BRC-70
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
VDC
Component Description
INFOID:0000000003766888
A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E. Steering knuckle F. Instrument driver lower panel
G. Rear axle
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-94, "
Description"Motor
Actuator relay (main relay)BRC-106, "
Description"
Solenoid valveBRC-101, "Description"
Pressure sensorBRC-108, "Description"
VDC switch-over valve (USV1, USV2)BRC-118, "Description"
VDC switch-over valve (HSV1, HSV2)BRC-120, "Description"
Wheel sensorBRC-85, "Description"
Yaw rate/side G sensorBRC-113, "Description"
Steering angle sensorBRC-110, "Description"
VDC OFF switchBRC-126, "Description"
ABS warning lampBRC-128, "Description"
Brake warning lampBRC-129, "Description"
VDC OFF indicator lampBRC-130, "Description"
SLIP indicator lampBRC-131, "Description"
Page 1012 of 5121
![NISSAN TEANA 2008 Service Manual TCS
BRC-71
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
TCS
System DiagramINFOID:0000000003767312
System DescriptionINFOID:0000000003766890
Traction Control System is a funct NISSAN TEANA 2008 Service Manual TCS
BRC-71
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
TCS
System DiagramINFOID:0000000003767312
System DescriptionINFOID:0000000003766890
Traction Control System is a funct](/manual-img/5/57391/w960_57391-1011.png)
TCS
BRC-71
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
TCS
System DiagramINFOID:0000000003767312
System DescriptionINFOID:0000000003766890
Traction Control System is a function that electronically controls engine torque, brake fluid pressure and
CVT shift position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals
from 4 wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.
During TCS operation, TCS informs driver of system operation by flashing SLIP indicator lamp.
Electrical system diagnosis by CONSULT-III is available.
JSFIA0259GB
Page 1013 of 5121
BRC-72
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
TCS

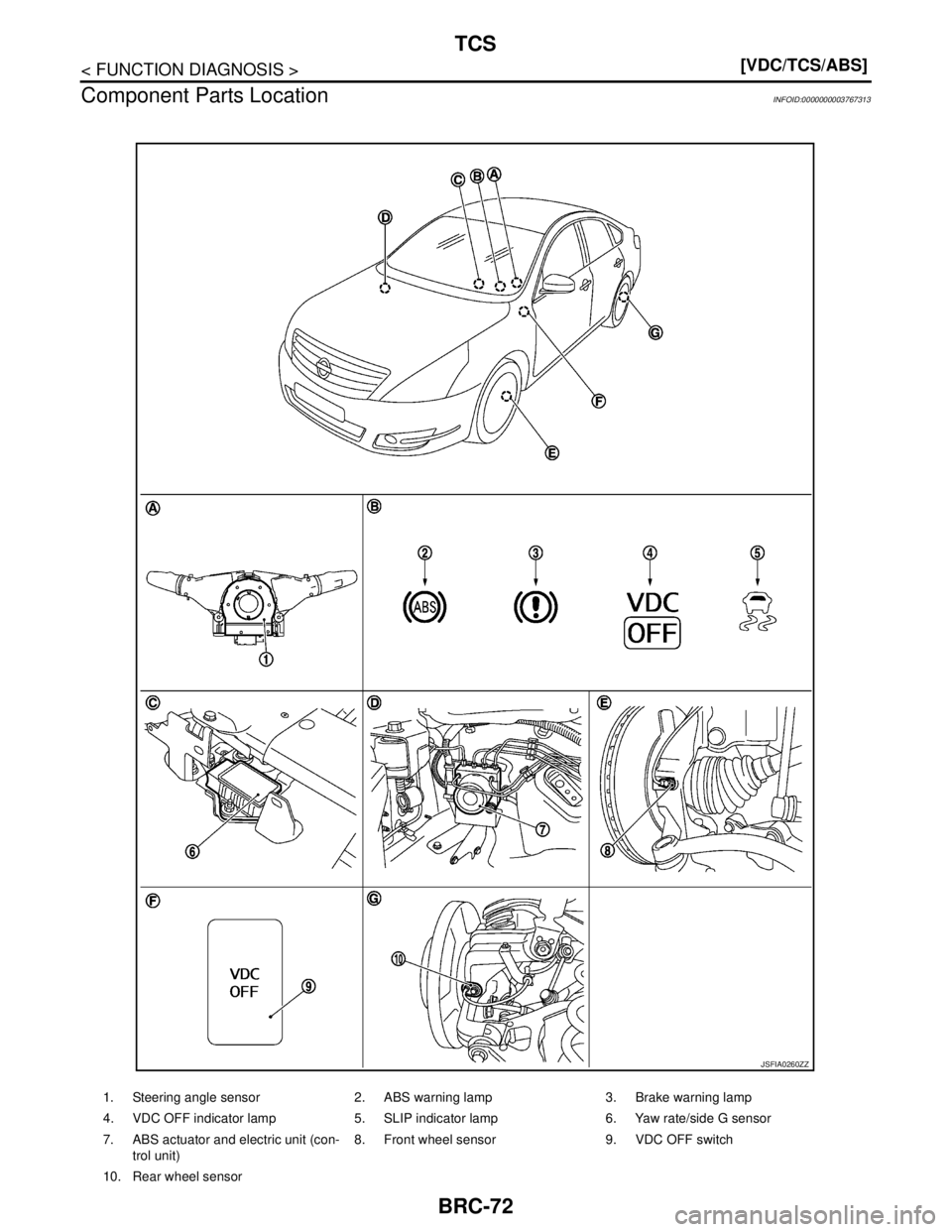

Component Parts Location
INFOID:0000000003767313
1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP indicator lamp 6. Yaw rate/side G sensor
7. ABS actuator and electric unit (con-
trol unit)8. Front wheel sensor 9. VDC OFF switch
10. Rear wheel sensor
JSFIA0260ZZ
