2008 MERCEDES-BENZ GL450 Owner's Manual

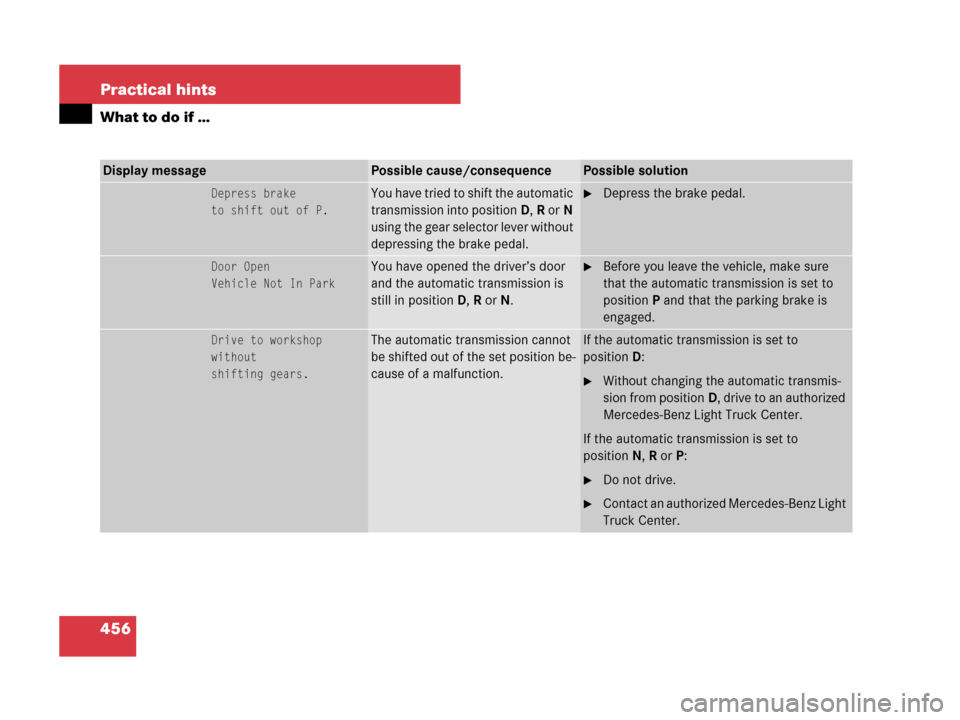

456 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Depress brake
to shift out of P.You have tried to shift the automatic
transmission into positionD,R orN
using the gear selector lever without
depressing the brake pedal.Depress the brake pedal.
Door Open
Vehicle Not In ParkYou have opened the driver’s door
and the automatic transmission is
still in positionD,R orN.Before you leave the vehicle, make sure
that the automatic transmission is set to
positionP and that the parking brake is
engaged.
Drive to workshop
without
shifting gears.The automatic transmission cannot
be shifted out of the set position be-
cause of a malfunction.If the automatic transmission is set to
positionD:
Without changing the automatic transmis-
sion from positionD, drive to an authorized
Mercedes-Benz Light Truck Center.
If the automatic transmission is set to
positionN,R orP:
Do not drive.
Contact an authorized Mercedes-Benz Light
Truck Center.
164.boo Seite 456 Freitag, 30. März 2007 12:54 12

457 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
ESPInoperative
See Operator’s ManualIn addition, the yellow ESP® warning
lampv comes on.
The ESP
® has detected a malfunc-
tion and switched off.
The ABS may still be operational.
Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of an accident.
In addition, the yellow ESP® warning
lampv comes on.
The ESP
® or the ESP® display is
malfunctioning.
Continue driving with added caution.
Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of an accident.
In addition, the yellow ESP® warning
lampv comes on.
The ESP
® is deactivated because of
a malfunction or interrupted power
supply.
Continue driving with added caution.
Contact an authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
164.boo Seite 457 Freitag, 30. März 2007 12:54 12

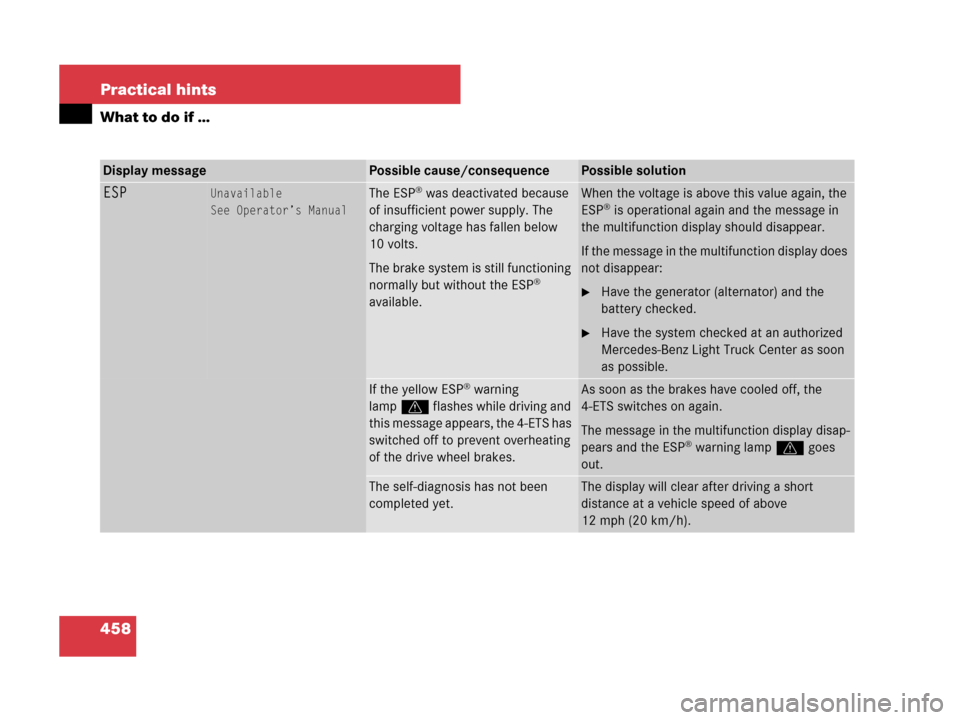

458 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
ESPUnavailable
See Operator’s ManualThe ESP® was deactivated because
of insufficient power supply. The
charging voltage has fallen below
10 volts.
The brake system is still functioning
normally but without the ESP
®
available.
When the voltage is above this value again, the
ESP® is operational again and the message in
the multifunction display should disappear.
If the message in the multifunction display does
not disappear:
Have the generator (alternator) and the
battery checked.
Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
If the yellow ESP® warning
lampv flashes while driving and
this message appears, the 4-ETS has
switched off to prevent overheating
of the drive wheel brakes.As soon as the brakes have cooled off, the
4-ETS switches on again.
The message in the multifunction display disap-
pears and the ESP
® warning lampv goes
out.
The self-diagnosis has not been
completed yet.The display will clear after driving a short
distance at a vehicle speed of above
12 mph (20 km/h).
164.boo Seite 458 Freitag, 30. März 2007 12:54 12

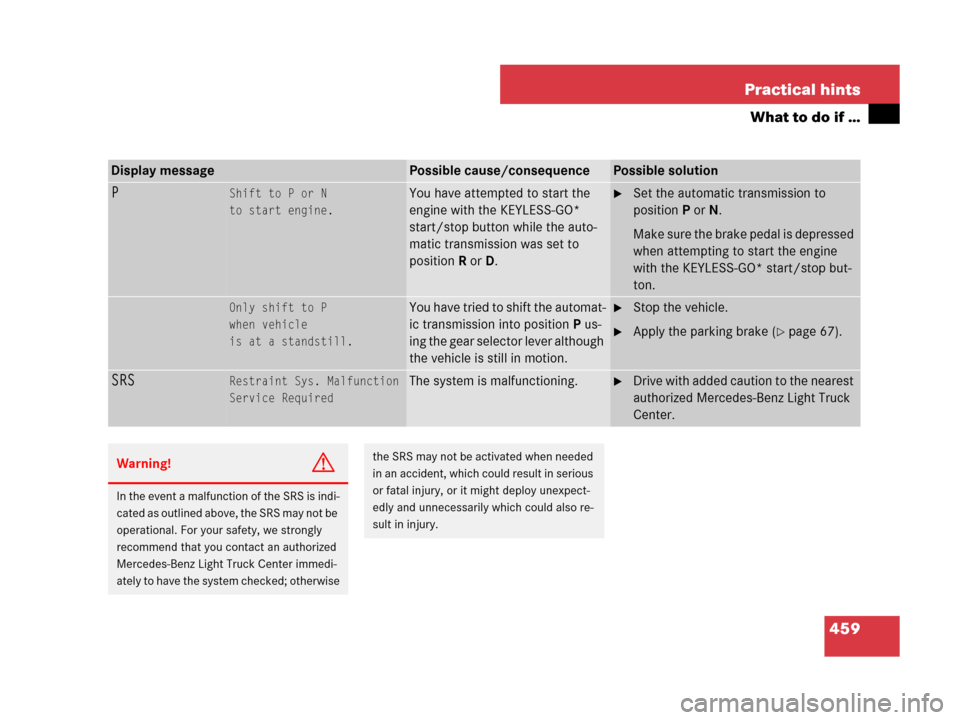

459 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
PShift to P or N
to start engine.You have attempted to start the
engine with the KEYLESS-GO*
start/stop button while the auto-
matic transmission was set to
positionR orD.Set the automatic transmission to
positionP orN.
Make sure the brake pedal is depressed
when attempting to start the engine
with the KEYLESS-GO* start/stop but-
ton.
Only shift to P
when vehicle
is at a standstill.You have tried to shift the automat-
ic transmission into positionP us-
ing the gear selector lever although
the vehicle is still in motion.Stop the vehicle.
Apply the parking brake (page 67).
SRSRestraint Sys. Malfunction
Service RequiredThe system is malfunctioning.Drive with added caution to the nearest
authorized Mercedes-Benz Light Truck
Center.
Warning!G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Light Truck Center immedi-
ately to have the system checked; otherwise
the SRS may not be activated when needed
in an accident, which could result in serious
or fatal injury, or it might deploy unexpect-
edly and unnecessarily which could also re-
sult in injury.
164.boo Seite 459 Freitag, 30. März 2007 12:54 12

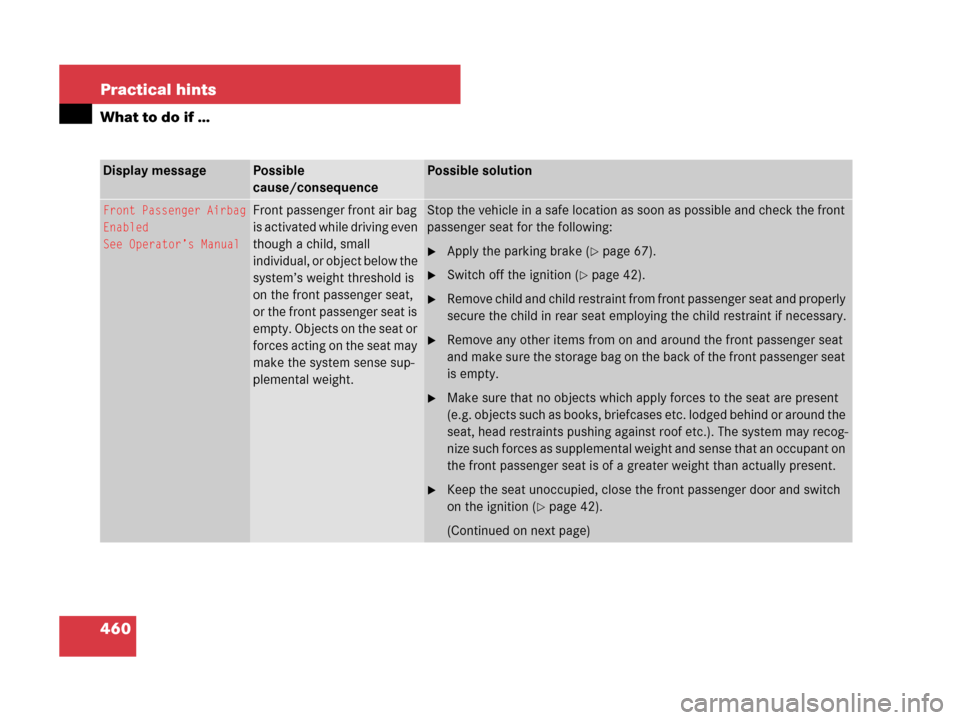

460 Practical hints
What to do if …
Display messagePossible
cause/consequencePossible solution
Front Passenger Airbag
Enabled
See Operator’s ManualFront passenger front air bag
is activated while driving even
though a child, small
individual, or object below the
system’s weight threshold is
on the front passenger seat,
or the front passenger seat is
empty. Objects on the seat or
forces acting on the seat may
make the system sense sup-
plemental weight.Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Apply the parking brake (page 67).
Switch off the ignition (page 42).
Remove child and child restraint from front passenger seat and properly
secure the child in rear seat employing the child restraint if necessary.
Remove any other items from on and around the front passenger seat
and make sure the storage bag on the back of the front passenger seat
is empty.
Make sure that no objects which apply forces to the seat are present
(e.g. objects such as books, briefcases etc. lodged behind or around the
seat, head restraints pushing against roof etc.). The system may recog-
nize such forces as supplemental weight and sense that an occupant on
the front passenger seat is of a greater weight than actually present.
Keep the seat unoccupied, close the front passenger door and switch
on the ignition (
page 42).
(Continued on next page)
164.boo Seite 460 Freitag, 30. März 2007 12:54 12

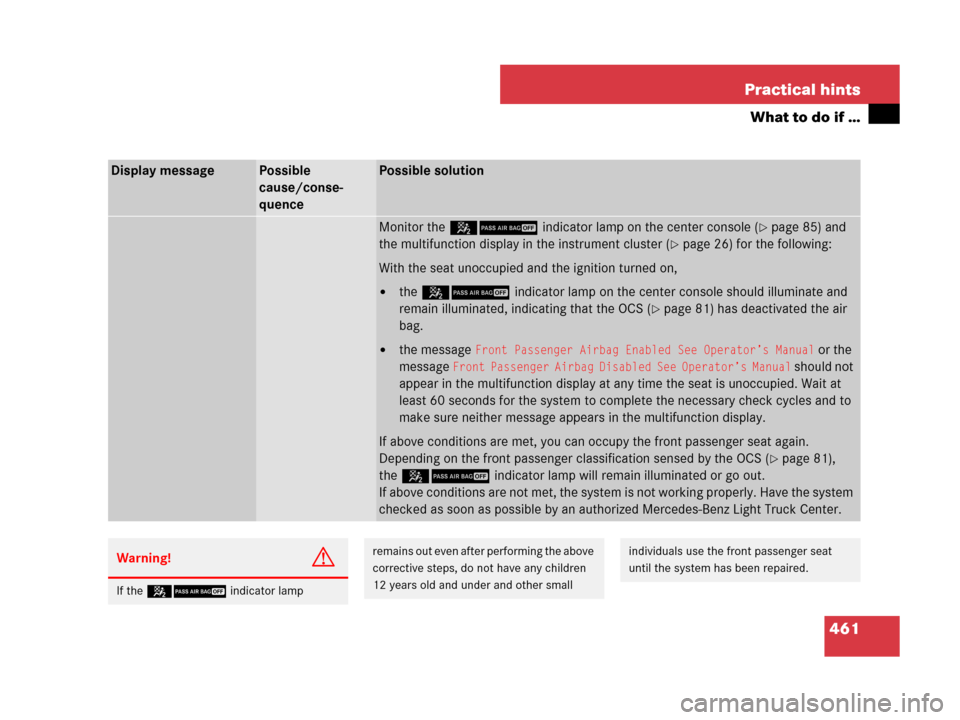

461 Practical hints
What to do if …
Display messagePossible
cause/conse-
quencePossible solution
Monitor the 59indicator lamp on the center console (page 85) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the air
bag.

the message Front Passenger Airbag Enabled See Operator’s Manual or the
message
Front Passenger Airbag Disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at
least 60 seconds for the system to complete the necessary check cycles and to
make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Light Truck Center.
Warning!G
If the 59indicator lamp
remains out even after performing the above
corrective steps, do not have any children
12 years old and under and other smallindividuals use the front passenger seat
until the system has been repaired.
164.boo Seite 461 Freitag, 30. März 2007 12:54 12

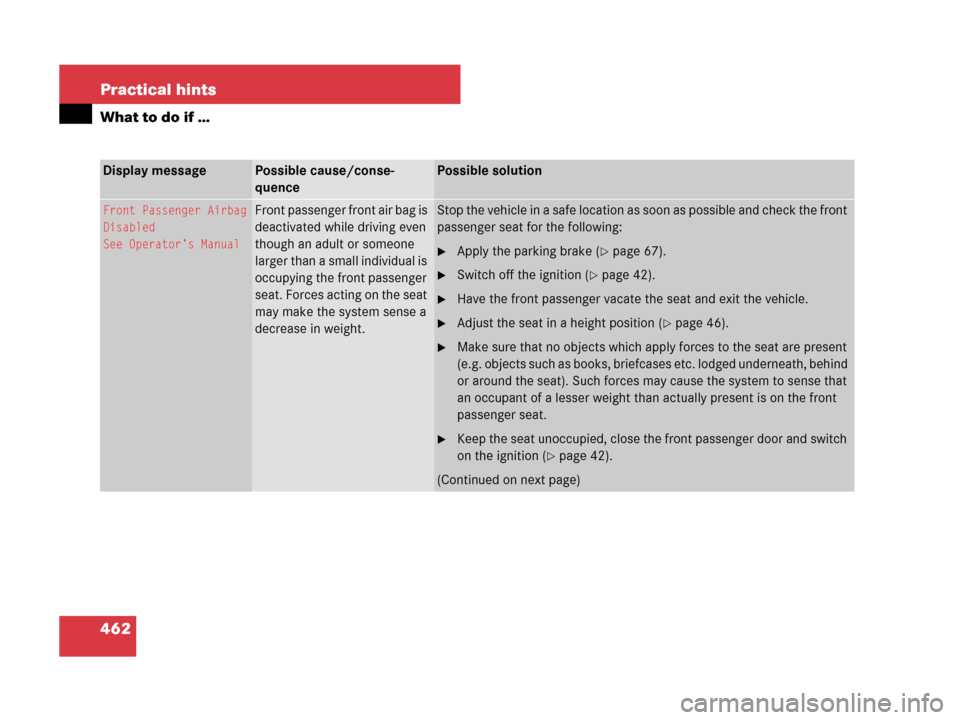

462 Practical hints
What to do if …
Display messagePossible cause/conse-
quencePossible solution
Front Passenger Airbag
Disabled
See Operator’s ManualFront passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the front passenger
seat. Forces acting on the seat
may make the system sense a
decrease in weight.Stop the vehicle in a safe location as soon as possible and check the front
passenger seat for the following:
Apply the parking brake (page 67).
Switch off the ignition (page 42).
Have the front passenger vacate the seat and exit the vehicle.
Adjust the seat in a height position (page 46).
Make sure that no objects which apply forces to the seat are present
(e.g. objects such as books, briefcases etc. lodged underneath, behind
or around the seat). Such forces may cause the system to sense that
an occupant of a lesser weight than actually present is on the front
passenger seat.
Keep the seat unoccupied, close the front passenger door and switch
on the ignition (
page 42).
(Continued on next page)
164.boo Seite 462 Freitag, 30. März 2007 12:54 12

463 Practical hints
What to do if …
Display messagePossible
cause/conse-
quencePossible solution
Monitor the 59indicator lamp on the center console (page 85) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 81) has deactivated the air
bag.

the message Front Passenger Airbag Enabled See Operator’s Manual or the
message
Front Passenger Airbag Disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at
least 60 seconds for the system to complete the necessary check cycles and to
make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 81),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Light Truck Center.
Warning!G
If the 59indicator lamp
remains illuminated with an adult occupant
on the front passenger seat even after per-
forming the above corrective steps, do nothave any passenger use the front passenger
seat until the system has been repaired.
164.boo Seite 463 Freitag, 30. März 2007 12:54 12
