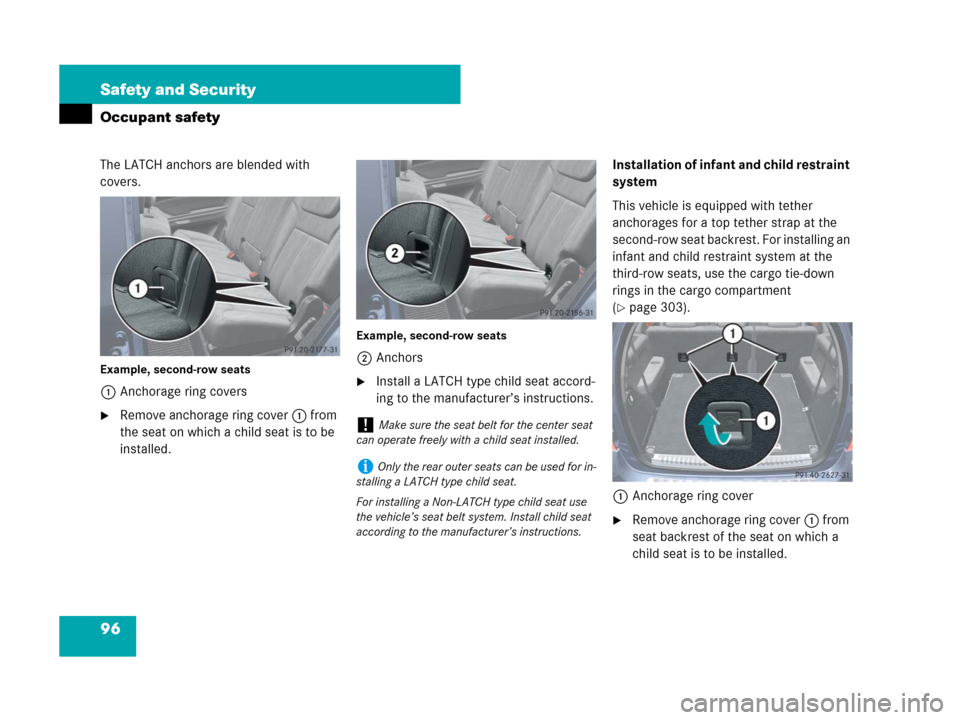

96 Safety and Security
Occupant safety
The LATCH anchors are blended with
covers.
Example, second-row seats
1Anchorage ring covers
Remove anchorage ring cover1 from
the seat on which a child seat is to be
installed.
Example, second-row seats
2Anchors
Install a LATCH type child seat accord-
ing to the manufacturer’s instructions.Installation of infant and child restraint
system
This vehicle is equipped with tether
anchorages for a top tether strap at the
second-row seat backrest. For installing an
infant and child restraint system at the
third-row seats, use the cargo tie-down
rings in the cargo compartment
(
page 303).
1Anchorage ring cover
Remove anchorage ring cover1 from
seat backrest of the seat on which a
child seat is to be installed.
!Make sure the seat belt for the center seat
can operate freely with a child seat installed.
iOnly the rear outer seats can be used for in-
stalling a LATCH type child seat.
For installing a Non-LATCH type child seat use
the vehicle’s seat belt system. Install child seat
according to the manufacturer’s instructions.
164.boo Seite 96 Freitag, 30. März 2007 12:54 12

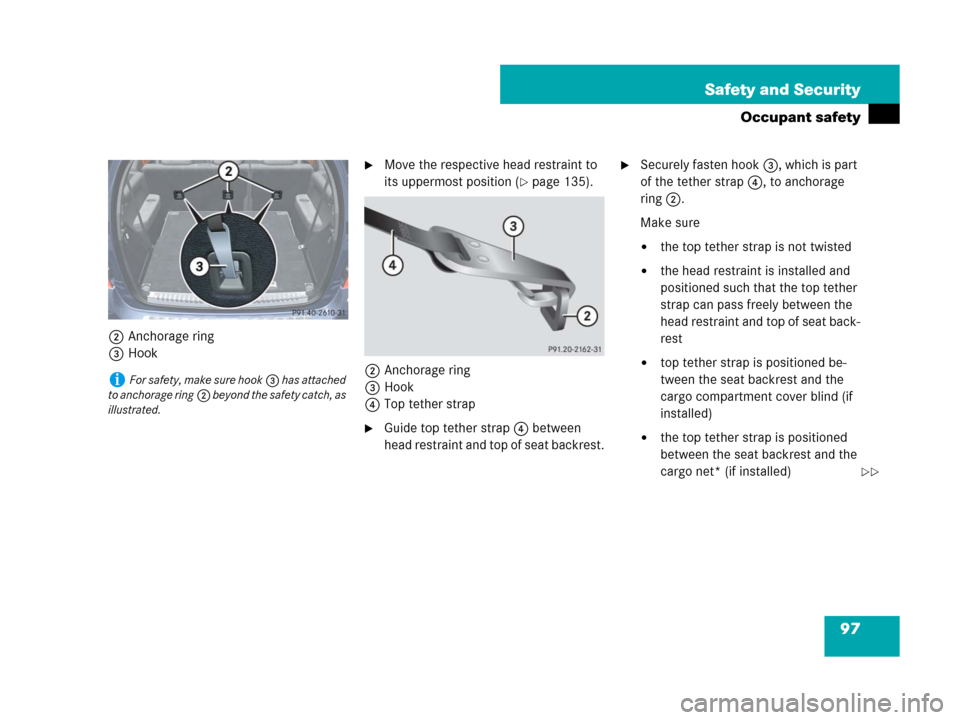

97 Safety and Security
Occupant safety
2Anchorage ring
3Hook
Move the respective head restraint to
its uppermost position (
page 135).
2Anchorage ring
3Hook
4Top tether strap
Guide top tether strap4 between
head restraint and top of seat backrest.
Securely fasten hook3, which is part
of the tether strap4, to anchorage
ring2.
Make sure

the top tether strap is not twisted

the head restraint is installed and
positioned such that the top tether
strap can pass freely between the
head restraint and top of seat back-
rest

top tether strap is positioned be-
tween the seat backrest and the
cargo compartment cover blind (if
installed)

the top tether strap is positioned
between the seat backrest and the
cargo net* (if installed)
iFor safety, make sure hook3 has attached
to anchorage ring2 beyond the safety catch, as
illustrated.

164.boo Seite 97 Freitag, 30. März 2007 12:54 12

98 Safety and Security
Occupant safety
Lower the head restraint if necessary
(
page 135).
Make sure the top tether strap can
pass freely between the head restraint
and top of seat backrest.
Install the child restraint system and
tighten the top tether strap according
to the child restraint manufacturer’s in-
structions.
Blocking of rear door window operation
With the override switch you can disable
the rear side window switches in the rear
door panels.The override switch is located on the
driver’s door control panel.
1Override switch
For more information on power windows,
see “Power windows” (
page 246).
Warning!G
After installing top tether straps, make sure
that the seat backrests are in an upright po-
sition and are properly locked. Check for
secure locking by pushing and pulling on the
seat backrests. If a seat backrest is not
properly locked, the seat backrest could
fold. The child seat would no longer be prop-
erly supported or positioned to provide its
intended benefit.
Warning!G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children could otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.

164.boo Seite 98 Freitag, 30. März 2007 12:54 12

99 Safety and Security
Occupant safety
Disabling
Press override switch1 until it engag-
es.
The switch engages in the recessed
position.
The rear door windows can no longer
be operated using the switches located
in the rear doors.
Enabling
Press override switch1 once more.
The switch disengages from its
recessed position back to its original
position.
The rear door windows can again be
operated using the switches located in
the rear doors.
iOperating the rear door windows using the
switches located on the door control panel of the
driver’s door is still possible.
164.boo Seite 99 Freitag, 30. März 2007 12:54 12

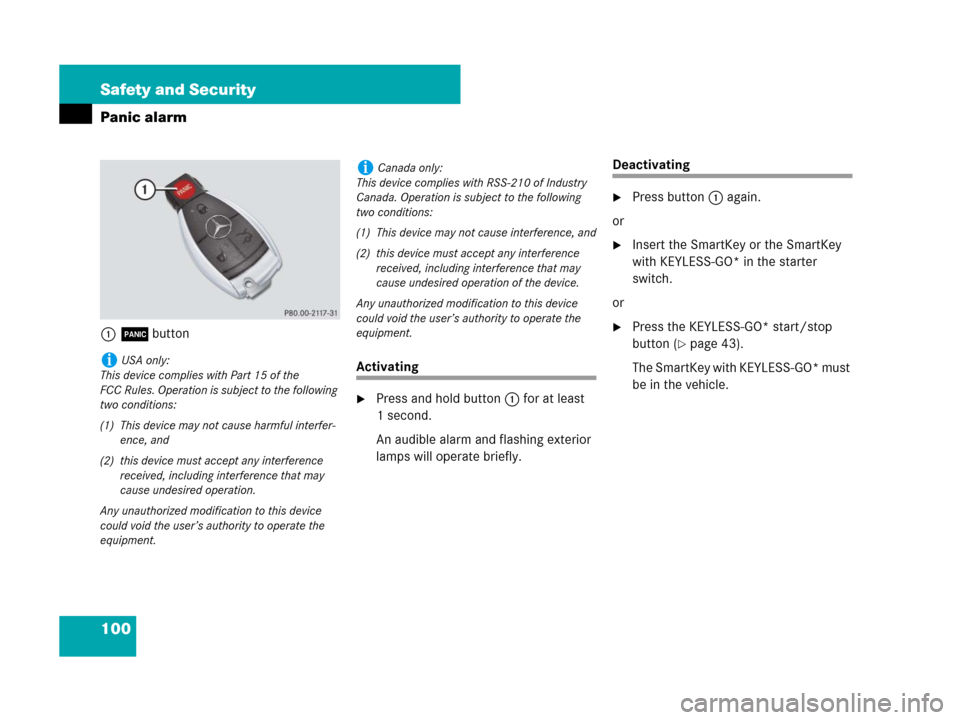

100 Safety and Security
Panic alarm
1Âbutton
Activating
Press and hold button1 for at least
1 second.
An audible alarm and flashing exterior
lamps will operate briefly.
Deactivating
Press button1 again.
or
Insert the SmartKey or the SmartKey
with KEYLESS-GO* in the starter
switch.
or
Press the KEYLESS-GO* start/stop
button (
page 43).
The SmartKey with KEYLESS-GO* must
be in the vehicle.
iUSA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
164.boo Seite 100 Freitag, 30. März 2007 12:54 12

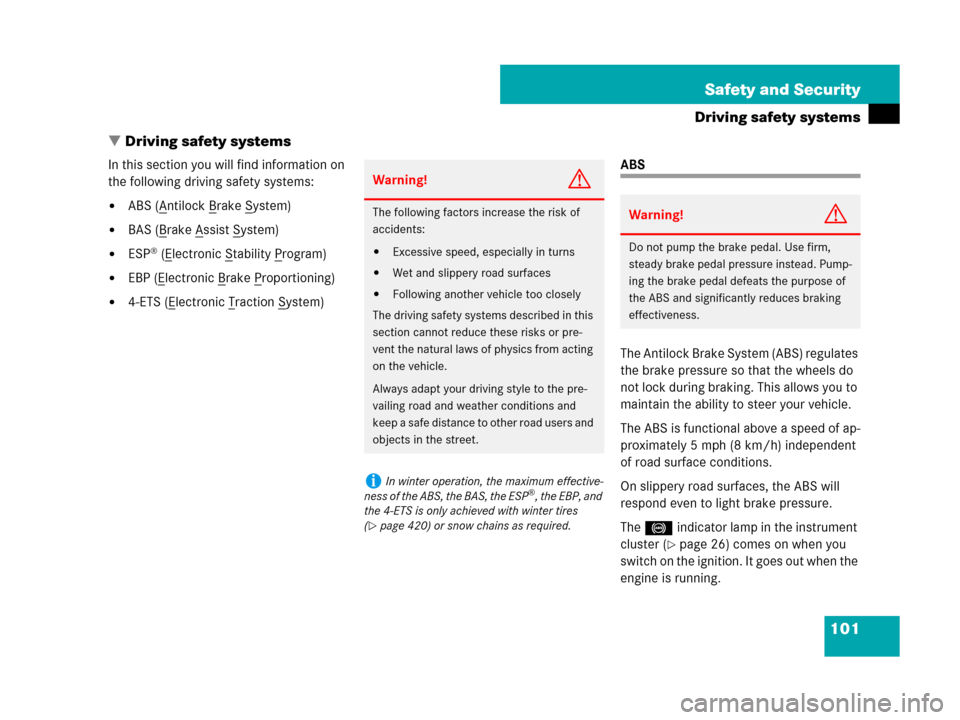

101 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (Antilock Brake System)

BAS (Brake Assist System)

ESP® (Electronic Stability Program)

EBP (Electronic Brake Proportioning)

4-ETS (Electronic Traction System)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will
respond even to light brake pressure.
The -indicator lamp in the instrument
cluster (
page 26) comes on when you
switch on the ignition. It goes out when the
engine is running.
Warning!G
The following factors increase the risk of
accidents:

Excessive speed, especially in turns

Wet and slippery road surfaces

Following another vehicle too closely
The driving safety systems described in this
section cannot reduce these risks or pre-
vent the natural laws of physics from acting
on the vehicle.
Always adapt your driving style to the pre-
vailing road and weather conditions and
keep a safe distance to other road users and
objects in the street.
iIn winter operation, the maximum effective-
ness of the ABS, the BAS, the ESP®, the EBP, and
the 4-ETS is only achieved with winter tires
(
page 420) or snow chains as required.
Warning!G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.
164.boo Seite 101 Freitag, 30. März 2007 12:54 12

102 Safety and Security
Driving safety systems
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.
Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and ability to steer
the vehicle.
The pulsating brake pedal can be an
indication of hazardous road conditions
and functions as a reminder to take extra
care while driving.Emergency brake maneuver
Keep continuous full pressure on the
brake pedal.
Off-road – ABS
With the off-road driving program switched
on (
page 277), or with the transmission
in LOW RANGE* mode (
page 201), the
ABS designed for off-road use is automati-
cally activated.
When applying the brakes at speeds below
approximately 18 mph (30 km/h), the
front wheels are locked cyclically to short-
en the braking distance (dig-in effect). This
affects steering the vehicle.
For more information, see “Practical hints”
(
page 435).
Warning!G
When the ABS is malfunctioning, the BAS,
the ESP®, and the 4-ETS are also switched
off. The basic driving and braking functions
are still available.
When the ABS is malfunctioning, the wheels
may lock during hard braking, reducing
steering capability and extending the brak-
ing distance.
Warning!G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction
afforded. The ABS cannot prevent acci-
dents, including those resulting from
excessive speed in turns, following another
vehicle too closely, or hydroplaning. Only a
safe, attentive, and skillful driver can pre-
vent accidents. The capabilities of an ABS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
164.boo Seite 102 Freitag, 30. März 2007 12:54 12

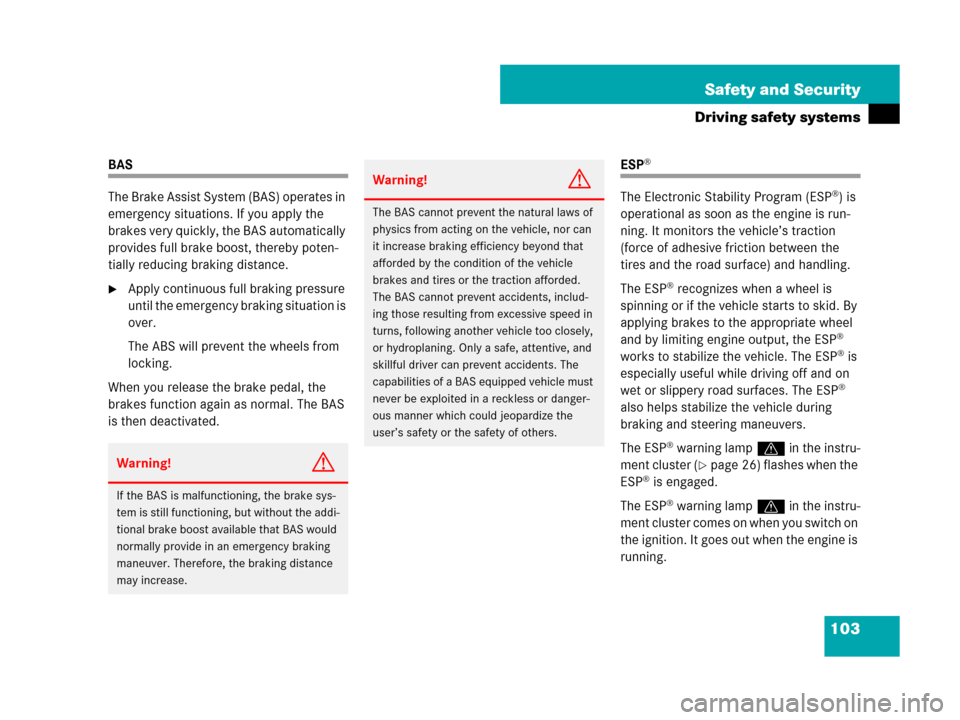

103 Safety and Security
Driving safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing braking distance.
Apply continuous full braking pressure
until the emergency braking situation is
over.
The ABS will prevent the wheels from
locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
ESP®
The Electronic Stability Program (ESP®) is
operational as soon as the engine is run-
ning. It monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying brakes to the appropriate wheel
and by limiting engine output, the ESP
®
works to stabilize the vehicle. The ESP® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP
®
also helps stabilize the vehicle during
braking and steering maneuvers.
The ESP
® warning lampv in the instru-
ment cluster (
page 26) flashes when the
ESP® is engaged.
The ESP
® warning lampv in the instru-
ment cluster comes on when you switch on
the ignition. It goes out when the engine is
running.
Warning!G
If the BAS is malfunctioning, the brake sys-
tem is still functioning, but without the addi-
tional brake boost available that BAS would
normally provide in an emergency braking
maneuver. Therefore, the braking distance
may increase.
Warning!G
The BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that
afforded by the condition of the vehicle
brakes and tires or the traction afforded.
The BAS cannot prevent accidents, includ-
ing those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The
capabilities of a BAS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the
user’s safety or the safety of others.
164.boo Seite 103 Freitag, 30. März 2007 12:54 12
