2008 MERCEDES-BENZ GL450 Owner's Manual

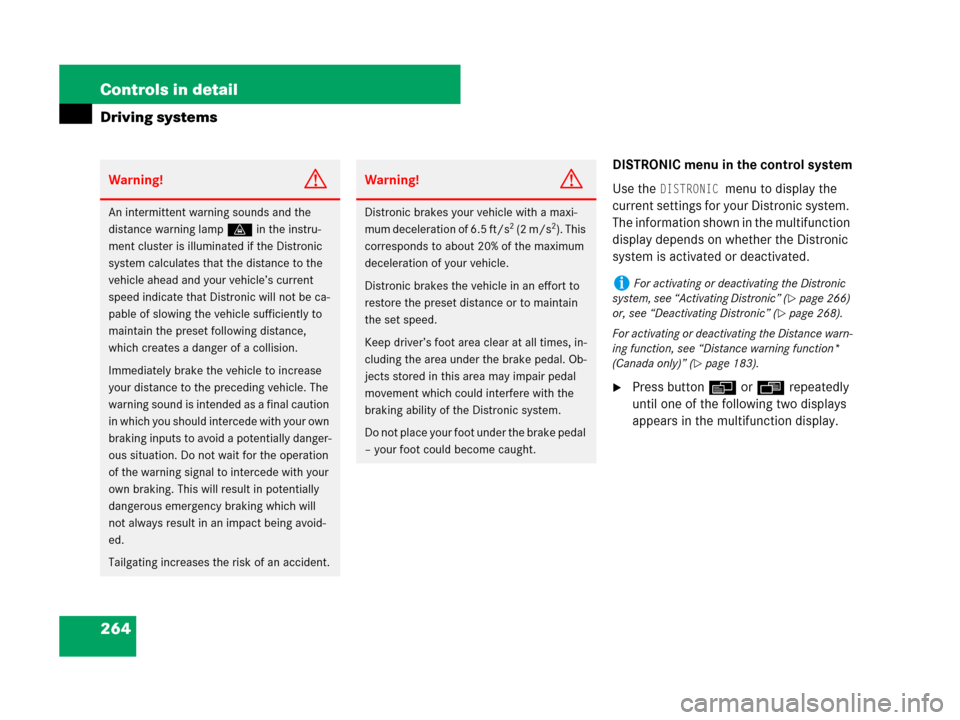

264 Controls in detail
Driving systems
DISTRONIC menu in the control system
Use the
DISTRONIC menu to display the
current settings for your Distronic system.
The information shown in the multifunction
display depends on whether the Distronic
system is activated or deactivated.
Press buttonè orÿ repeatedly
until one of the following two displays
appears in the multifunction display.
Warning!G
An intermittent warning sounds and the
distance warning lampl in the instru-
ment cluster is illuminated if the Distronic
system calculates that the distance to the
vehicle ahead and your vehicle’s current
speed indicate that Distronic will not be ca-
pable of slowing the vehicle sufficiently to
maintain the preset following distance,
which creates a danger of a collision.
Immediately brake the vehicle to increase
your distance to the preceding vehicle. The
warning sound is intended as a final caution
in which you should intercede with your own
braking inputs to avoid a potentially danger-
ous situation. Do not wait for the operation
of the warning signal to intercede with your
own braking. This will result in potentially
dangerous emergency braking which will
not always result in an impact being avoid-
ed.
Tailgating increases the risk of an accident.
Warning!G
Distronic brakes your vehicle with a maxi-
mum deceleration of 6.5 ft/s2 (2 m/s2). This
corresponds to about 20% of the maximum
deceleration of your vehicle.
Distronic brakes the vehicle in an effort to
restore the preset distance or to maintain
the set speed.
Keep driver’s foot area clear at all times, in-
cluding the area under the brake pedal. Ob-
jects stored in this area may impair pedal
movement which could interfere with the
braking ability of the Distronic system.
Do not place your foot under the brake pedal
– your foot could become caught.
iFor activating or deactivating the Distronic
system, see “Activating Distronic” (
page 266)
or, see “Deactivating Distronic” (
page 268).
For activating or deactivating the Distance warn-
ing function, see “Distance warning function*
(Canada only)” (
page 183).
164.boo Seite 264 Freitag, 30. März 2007 12:54 12

265 Controls in detail
Driving systems
Distronic activated
When you turn Distronic on, you will see
the set speed in the multifunction display
for about 5 seconds. When Distronic is
activated, the following display appears in
the multifunction display.
1Distronic activated
2Set vehicle speedDistronic deactivated
When Distronic is deactivated, you will see
the standard Distronic display in the multi-
function display.
1Preceding vehicle, if detected
2Actual distance to the preceding vehi-
cle
3Preset distance threshold to the pre-
ceding vehicle
4Your vehicle
Cruise control lever
The Distronic system is operated by means
of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column.1Setting current or higher speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
2Setting current or lower speed
Adjustment in 1 mph increments (to
the resistance point) or 5 mph
increments (past the resistance point)
(Canada: 1 km/h or 10 km/h)
3Deactivating Distronic
4Activating Distronic or resuming to last
set speed
164.boo Seite 265 Freitag, 30. März 2007 12:54 12

266 Controls in detail
Driving systems
Activating Distronic
You can activate Distronic when the vehi-
cle speed is between 20 mph (30 km/h)
and 110 mph (180 km/h).
When Distronic is activated the standard
display in the multifunction display will
show a message such as
DISTRONIC 55 MPH.
If Distronic has not been activated after
pressing the cruise control lever, you will
see the message
DISTRONIC Off in the
multifunction display.
In the following cases you cannot activate
Distronic:

up to 2 minutes after starting the
engine

when you brake

when you have set the parking brake

when the automatic transmission is set
to positionP, R, or N

if the ESP® is switched off

if the ESP® has switched off due to a
malfunction
Setting the current speed
Accelerate or decelerate to the desired
speed.
Briefly lift the cruise control lever in
direction of arrow1 or depress in
direction of arrow2 (
page 265).
Distronic is activated and the current
speed is set.
The currently set speed appears in the
status indicator of the multifunction
display:

USA only:
DTR XXX Miles

Canada only:
DTR XXX km/h
Remove your foot from the accelerator
pedal.Setting a higher speed
iIf you do not take your foot off of the accel-
erator pedal and continue to accelerate past the
set speed, the following message will appear in
the multifunction display:
DISTRONIC Override
The distance to a slower moving vehicle in front
of you will not be set. Your vehicle speed will
then be determined only by the accelerator
pedal position.
Warning!G
If you increase the set vehicle speed, keep in
mind that it may take a brief moment until
the vehicle has reached the set speed.
Increase the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected acceleration of the vehicle
could cause an accident and/or serious in-
jury to you and others.
164.boo Seite 266 Freitag, 30. März 2007 12:54 12

267 Controls in detail
Driving systems
You can increase the set speed in two
ways.
Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly lift the cruise control lever up to
the resistance point in direction of
arrow1 (
page 265).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 1 mph (Canada: 1 km/h).
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly lift the cruise control lever up
past the resistance point in direction of
arrow1 (
page 265).
Release the cruise control lever.
The vehicle speed increases in incre-
ments of 5 mph (Canada: 10 km/h).
Setting a lower speedYou can reduce the set speed in two ways.
Adjustment in 1 mph (Canada: 1 km/h)
increments
Briefly press the cruise control lever
down to the resistance point in direc-
tion of arrow2 (
page 265).
Release the cruise control lever.
The vehicle speed decreases in incre-
ments of 1 mph (Canada: 1 km/h).
iThe set value is increased in 1 mph
(Canada: 1 km/h) increments each time you lift
the cruise control lever up to the resistance
point.
iThe set value is increased in 5 mph
(Canada: 10 km/h) increments each time you lift
the cruise control lever up past the resistance
point.
iThe new speed is set and the vehicle will
accelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
If you decrease the set vehicle speed, keep
in mind that it may take a brief moment until
the vehicle has reached the set speed.
Decelerate the set vehicle speed to a value
that the prevailing road conditions and legal
speed limits permit. Otherwise, sudden and
unexpected deceleration of the vehicle
could cause an accident and/or serious in-
jury to you and others.
iWhen you use the cruise control lever to
decelerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
iThe set value is decreased in 1 mph
(Canada: 1 km/h) increments each time you
press the cruise control lever down to the resis-
tance point.
164.boo Seite 267 Freitag, 30. März 2007 12:54 12

268 Controls in detail
Driving systems
Adjustment in 5 mph
(Canada: 10 km/h) increments
Briefly press the cruise control lever
down past the resistance point in direc-
tion of arrow2 (
page 265).
Release the cruise control lever.
The vehicle set speed decreases in
increments of 5 mph
(Canada: 10 km/h).Setting to last stored speed
(“Resume” function)
Briefly pull the cruise control lever in
direction of arrow4 (
page 265).
The Distronic resumes to the last set
speed.
Remove your foot from the accelerator
pedal.
The last set speed or, if no speed is stored,
the current set speed appears in the
multifunction display for approximately
5 seconds.Deactivating Distronic
There are several ways to deactivate the
Distronic system:
Step on the brake pedal.
or
Briefly tip the cruise control lever in
direction of arrow3 (
page 265).
Distronic will be deactivated. The last set
speed will be stored in memory.
iThe set speed value is decreased in 5 mph
(Canada: 10 km/h) increments each time you
press the cruise control lever down past the
resistance point.
iThe new speed is set and the vehicle will
decelerate. Keep in mind that it may take a brief
moment until the vehicle has reached the set
speed.
Warning!G
The set speed stored in memory should only
be set again if prevailing road conditions
permit. Possible acceleration or decelera-
tion differences arising from returning to the
preset speed could cause an accident
and/or serious injury to you and others.
iThe following message appears in the multi-
function display for approximately 5 seconds:
DISTRONIC Off.
The last stored set speed is deleted when the
engine is turned off.
164.boo Seite 268 Freitag, 30. März 2007 12:54 12

269 Controls in detail
Driving systems
Setting the following distance in
Distronic
You can set the specified following
distance for Distronic by varying the time
setting between 1.0 and 2.0 seconds. Us-
ing this time setting and the current speed
of your vehicle, Distronic calculates and
sets the required following distance to the
preceding vehicle. The set distance will be
shown in the multifunction display
(
page 265).
The distance setting switch for the time
setting is located on the cruise control le-
ver on the left-hand side of the steering
column.
iThe Distronic switches off automatically
when

you step on the brake pedal

you depress the parking brake pedal
In this case, the Distronic speed segments in the
speedometer (
page 263) will go out.

the vehicle speed falls below 20 mph
(30 km/h)

the ESP® is in operation

the ESP® is switched off with the ESP®
switch (
page 105)

the ESP® has switched off due to a
malfunction (
page 441)

you set the automatic transmission toN
while driving
The Distronic speed segments in the
speedometer (
page 263) will go out and an
acoustic warning will sound.
Warning!G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of 20 mph (30 km/h)
by operation of the system. At that time the
driver must apply the brakes in order to
reduce vehicle speed further or bring it to a
stop.
!Setting the automatic transmission toN
while driving cancels the Distronic. However, the
automatic transmission should not be set toN
while driving except to coast when the vehicle is
in danger of skidding (e.g. on icy roads).
iDepressing the accelerator pedal does not
deactivate the Distronic. After a brief accelera-
tion (e.g. for passing), the Distronic will resume
the last set speed.
Warning!G
It is up to the driver to exercise discretion to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.
164.boo Seite 269 Freitag, 30. März 2007 12:54 12

270 Controls in detail
Driving systems
1Distance setting switch
2To decrease distance
3To increase distance
Increasing distance
Increasing the distance setting tells
Distronic to maintain a greater following
distance to the preceding vehicle.
Turn distance setting switch1 in
direction of arrow3.Decreasing distance
Decreasing the distance setting tells
Distronic to maintain a smaller following
distance to the preceding vehicle.
Turn distance setting switch1 in
direction of arrow2.
Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations. Braking
will deactivate the Distronic system.
Warning!G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at your
set distance).
This means that:

Your vehicle can pass another vehicle
after you have changed lanes.

While in a sharp turn or if the preceding
vehicle is in a sharp turn, Distronic could
lose sight of the preceding vehicle. Your
vehicle could then accelerate to the
previously selected speed.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:

a stopped vehicle in a traffic jam

a disabled vehicle

an oncoming vehicle
The driver must always be alert, observe all
traffic and intercede as required by means
of steering or braking the vehicle.
Warning!G
Distronic should not be used in snowy or icy
road conditions.
164.boo Seite 270 Freitag, 30. März 2007 12:54 12

271 Controls in detail
Driving systems
The most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grille), especially at times of snow
and ice or heavy rain. In such a case,
Distronic will switch off, and the message
DISTRONIC Currently Unavailable – See
Operator’s Manual
appears in the multi-
function display.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 430).Turns and bends
In turns or bends, Distronic may not detect
a moving vehicle in front, or it may detect
one too soon. This may cause your vehicle
to brake late or unexpectedly.Offset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by Distronic. There will be insuffi-
cient distance to the vehicle ahead.
iIf the message DISTRONIC Available
Again
appears during driving the dirt (e.g.
slush) has dissolved; Distronic works again, if
you reactivate it (
page 266).
164.boo Seite 271 Freitag, 30. März 2007 12:54 12
