2008 Lexus ES350 Owner's Manual

415
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0708)
Tires and wheelsType A
Ti r e s i z eP215/55R17 93V
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
When driving at high speeds above 100 mph
(160 km/h), in countries where such speeds are
permitted by law, add 4.3 psi (30 kPa, 0.3 kgf/
cm
2 or bar) to the front tires and rear tires.
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Towing a trailer
Front:
32 psi (220 kPa, 2.1 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.1 kgf/cm
2 or bar)
Spare:
32 psi (220 kPa, 2.1 kgf/cm
2 or bar)
Wheel size17 × 7J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

416
6-1. Specifications
ES350_U_(L/O_0708)Ty p e B
Ti r e s i z eP215/55R17 93V,
T155/70D17 110M (spare)
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions
Front:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)*
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
*:When driving at high speeds above 100 mph (160 km/h), in countries where such
speeds are permitted by law, add 4.3 psi
(30 kPa, 0.3 kgf/cm
2 or bar) to the front
tires and rear tires. Never exceed the max-
imum cold tire inflation pressure indicated
on the tire sidewall.
Towing a trailer Front:
32 psi (220 kPa, 2.1 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.1 kgf/cm
2 or bar)
Wheel size17 × 7J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

417
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0708)
Light bulbs
*: If equipped
A: D4S discharge bulbs
B: H7 halogen bulbs
C: HB3 halogen bulbs
D: HB4 halogen bulbs
E: Wedge base bulbs (amber)
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam) Discharge bulbs
*
Halogen bulbs*
D4SH735
55AB
Headlights (high beam)900560C
Front fog lights900651D
Front turn signal lights21E
Parking lights and front side
marker lights5F
Tr u n k l i g h t5G
Rear side marker lights1943.8F
Stop/tail lights744321 /5F
Tail lights74435F
Rear turn signal lights21E
Back-up lights92116F
Outer foot lights5F
InteriorVanity lights8F
Door courtesy lights5F

418
6-1. Specifications
ES350_U_(L/O_0708)
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If 91 rating gasoline cannot be obtained, you may use unleaded gasoline with an
octane rating as low as 87 (Research Octane Number 91).
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

419
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0708)
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
t h a n 8 7.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

420
6-1. Specifications
ES350_U_(L/O_0708)
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Use of unleaded gasoline with an octane rating lower than 91 may result in engine
knocking. Persistent knocking can lead to engine damage and should be cor-
rected by refueling with higher octane unleaded gasoline.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

421
6-1. Specifications
6
Vehicle specifications
ES350_U_(L/O_0708)

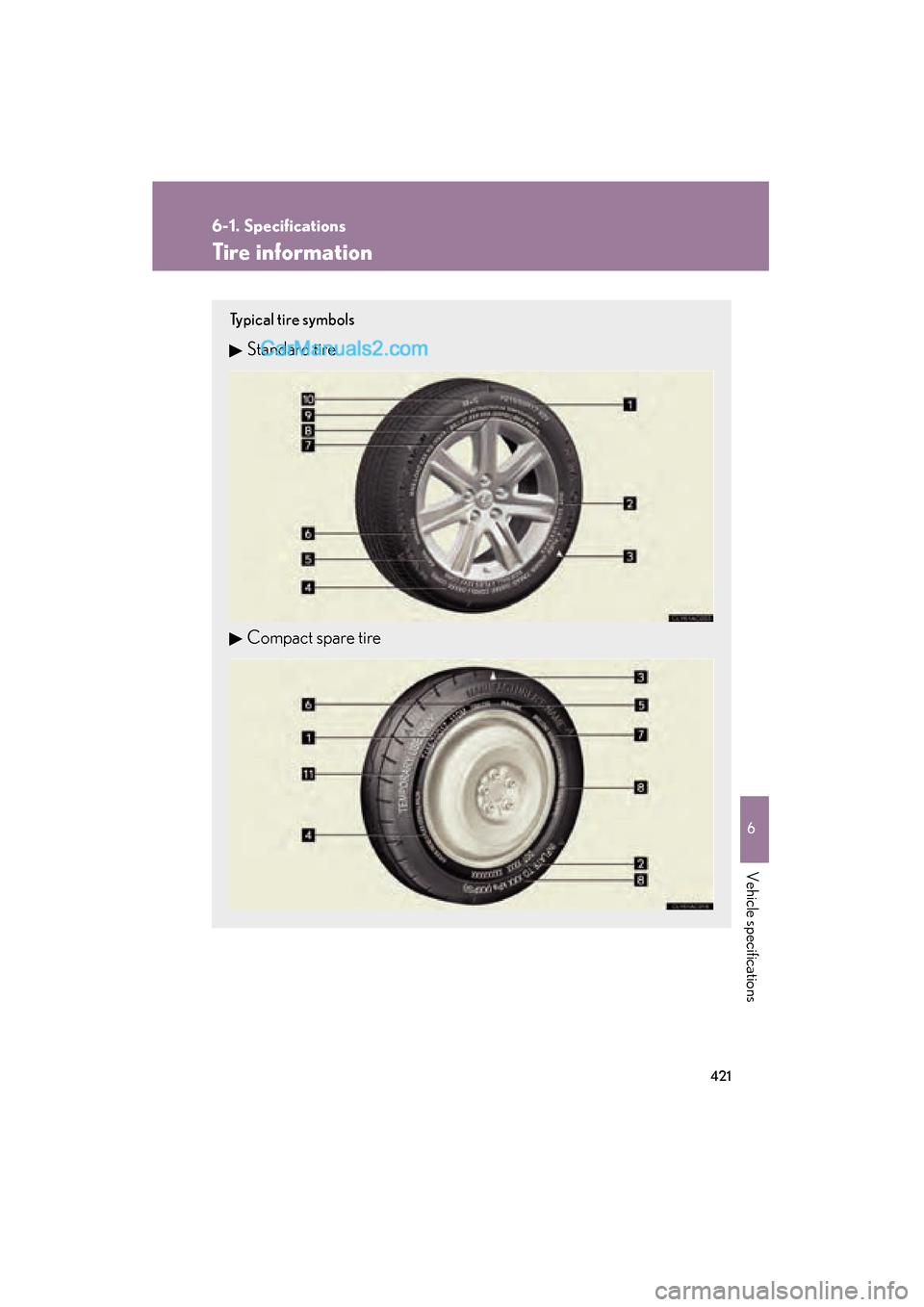

Tire information
Typical tire symbols
Standard tire
Compact spare tire

422
6-1. Specifications
ES350_U_(L/O_0708)
Tire size (→ P. 4 2 3 )
DOT and Tire Identification Number (TIN) (→ P. 4 2 3 )
Location of treadwear indicators (→ P. 4 2 4 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the tire. A
tube type tire has a tube inside the ti re and the tube maintains the air pres-
sure.
Load limit at maximum cold tire inflation pressure ( →P. 4 2 6 )
Maximum cold tire inflation pressure (→ P. 4 2 6 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.
Summer tire or all season tire (→ P. 321)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.
TEMPORARY USE ONLY (→ P. 390)
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded into its sidewall. This tire is designed for temporary emer-
gency use only.
