2008 Lexus ES350 Owner's Manual

247
3
Interior features
ES350_U_(L/O_0708)
3-4. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the door s are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights (→P. 2 4 9 )
Front interior lights ( →P. 2 4 9 )
Rear personal lights (→ P. 2 4 9 )
Rear interior lights
Door courtesy lighting
Shift lever lighting
This light turns on or off depending on the darkness of the surroundings
when the “ENGINE START STOP” switch is in ACCESSORY or IGNI-
TION ON mode.
Front foot well lighting
Outer foot lights

248
3-4. Using the interior lights
ES350_U_(L/O_0708)
■To prevent the battery from being discharged
If the following lights remain ON when the door is not fully closed and the DOOR
switch is ON, the lights will go off automatically after 20 minutes.
●Interior lights
●Front personal lights
●Front foot well lighting
●Rear door courtesy lighting
■Customization that can be configured at Lexus dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
→P. 4 3 3 )

249
3-4. Using the interior lights
3
Interior features
ES350_U_(L/O_0708)
Front interior lightsDoor position OFF/ON
The illuminated entry system is
activated when the switch is not
in the locked position (the door
position is on).
ON/OFF
Personal lightsFront ON/OFF
As for front personal lights, the
illuminated entry system is acti-
vated even if the switch is in the
off position when the DOOR
switch of the interior light is on.
Rear
Front interior lights and personal lights

250
ES350_U_(L/O_0708)
3-5. Using the storage features
List of storage features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Glove box
Overhead console
Cup holders
Console box
Auxiliary box
Glove box

251
3-5. Using the storage features
3
Interior features
ES350_U_(L/O_0708)
Console boxTo open, press the button.
To close, pull up the lever.
■Glove box light
The glove box light turns on when the tail lights are turned on.
■Trunk opener main switch
The trunk opener main switch located in the glove box. ( → P. 4 1 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

252
3-5. Using the storage features
ES350_U_(L/O_0708)
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are turned on.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
The tray slides forward/backward and can be
removed.
Console box

253
3-5. Using the storage features
3
Interior features
ES350_U_(L/O_0708)

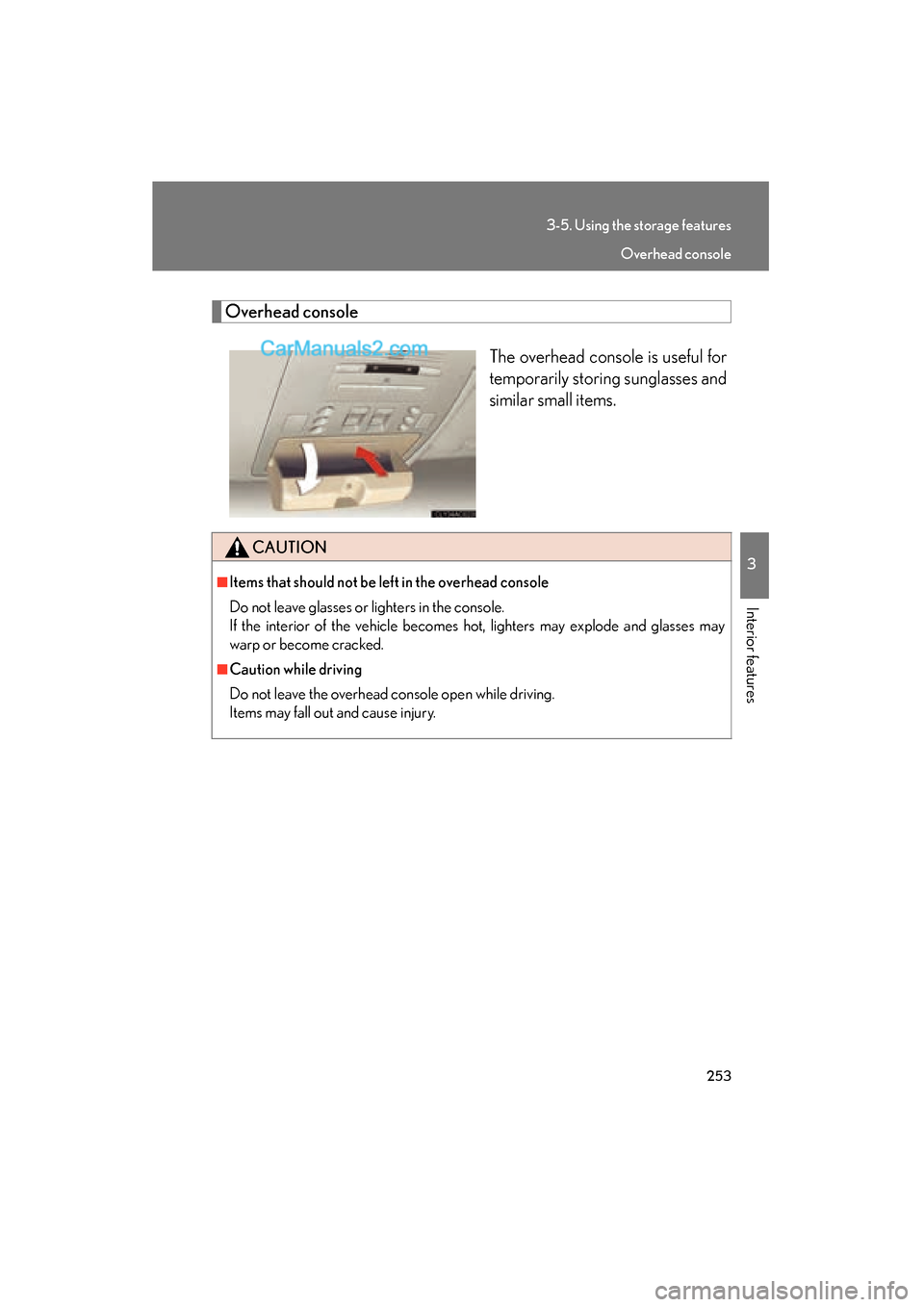

Overhead consoleThe overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses may
warp or become cracked.
■Caution while driving
Do not leave the overhead console open while driving.
Items may fall out and cause injury.
Overhead console

254
3-5. Using the storage features
ES350_U_(L/O_0708)

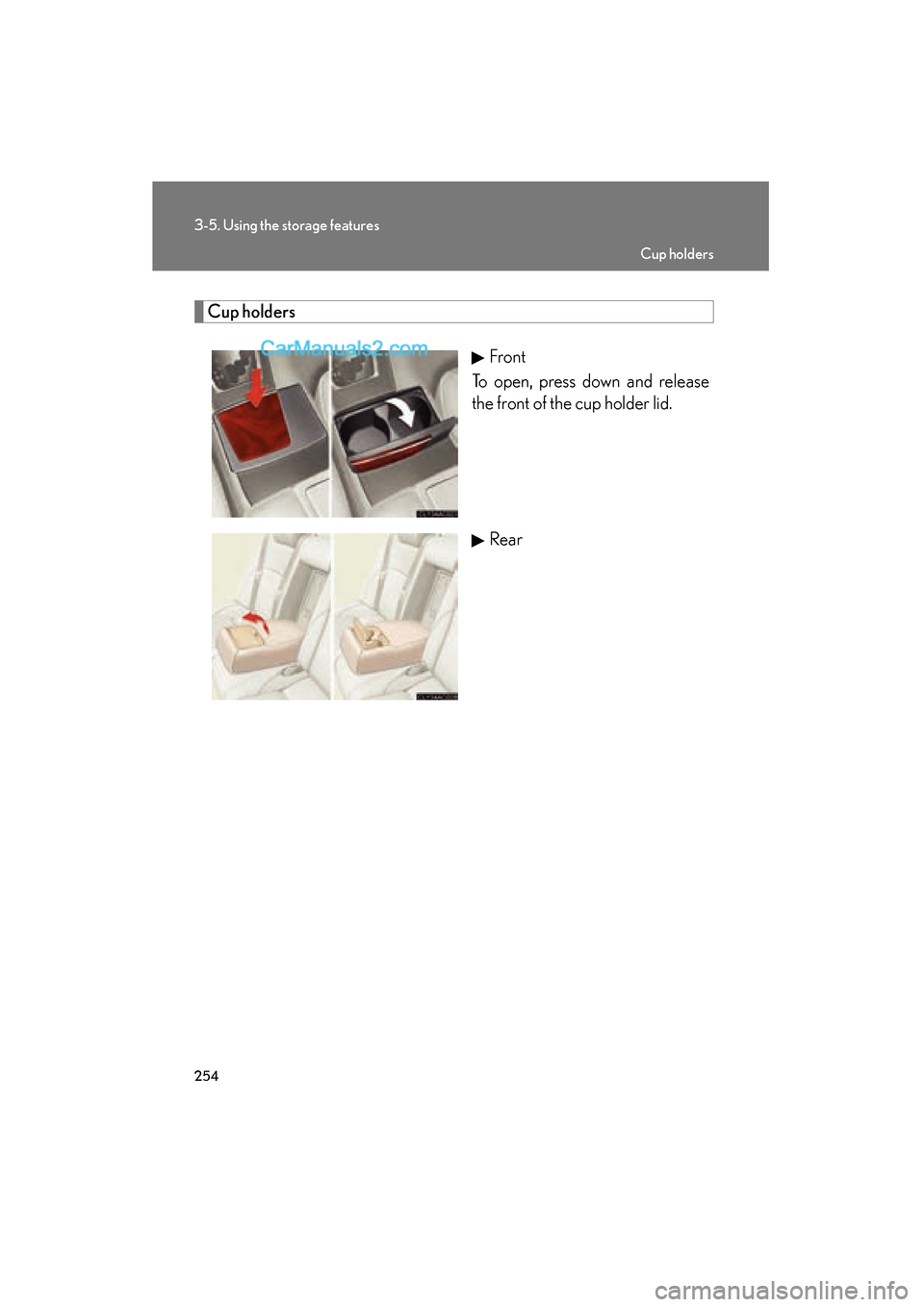

Cup holdersFront
To open, press down and release
the front of the cup holder lid.
Rear
Cup holders
