2008 Lexus ES350 Owner's Manual

255
3-5. Using the storage features
3
Interior features
ES350_U_(L/O_0708)
■Using the cup holder (front) to store small items
■The cup holder (front) can be adjustable to the size of the cups or drink-cans
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Remove the holder.
Change the holder position.
Cup holders

256
3-5. Using the storage features
ES350_U_(L/O_0708)

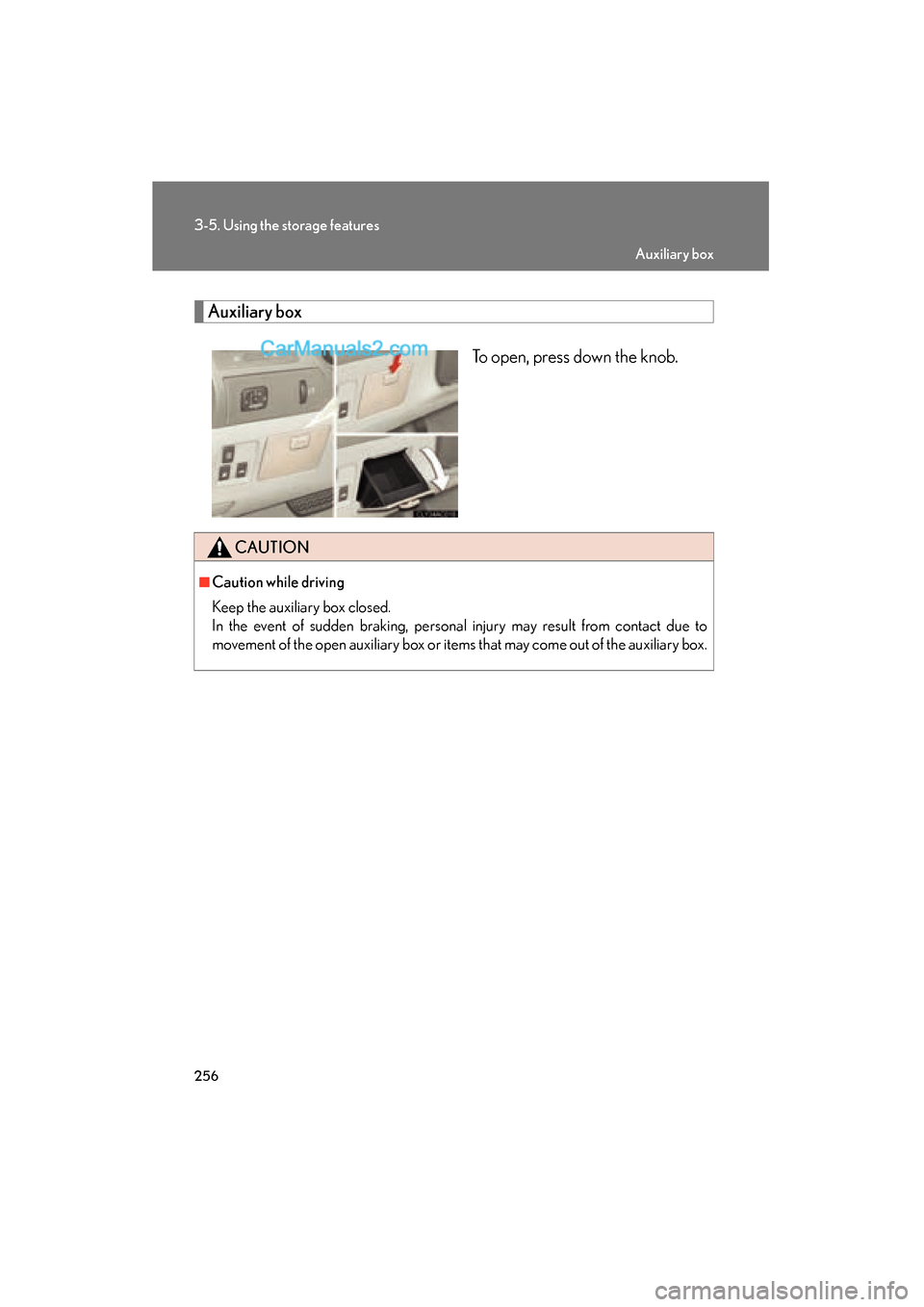

Auxiliary boxTo open, press down the knob.
CAUTION
■Caution while driving
Keep the auxiliary box closed.
In the event of sudden braking, personal injury may result from contact due to
movement of the open auxiliary box or items that may come out of the auxiliary box.
Auxiliary box

257
3
Interior features
ES350_U_(L/O_0708)
3-6. Other interior features

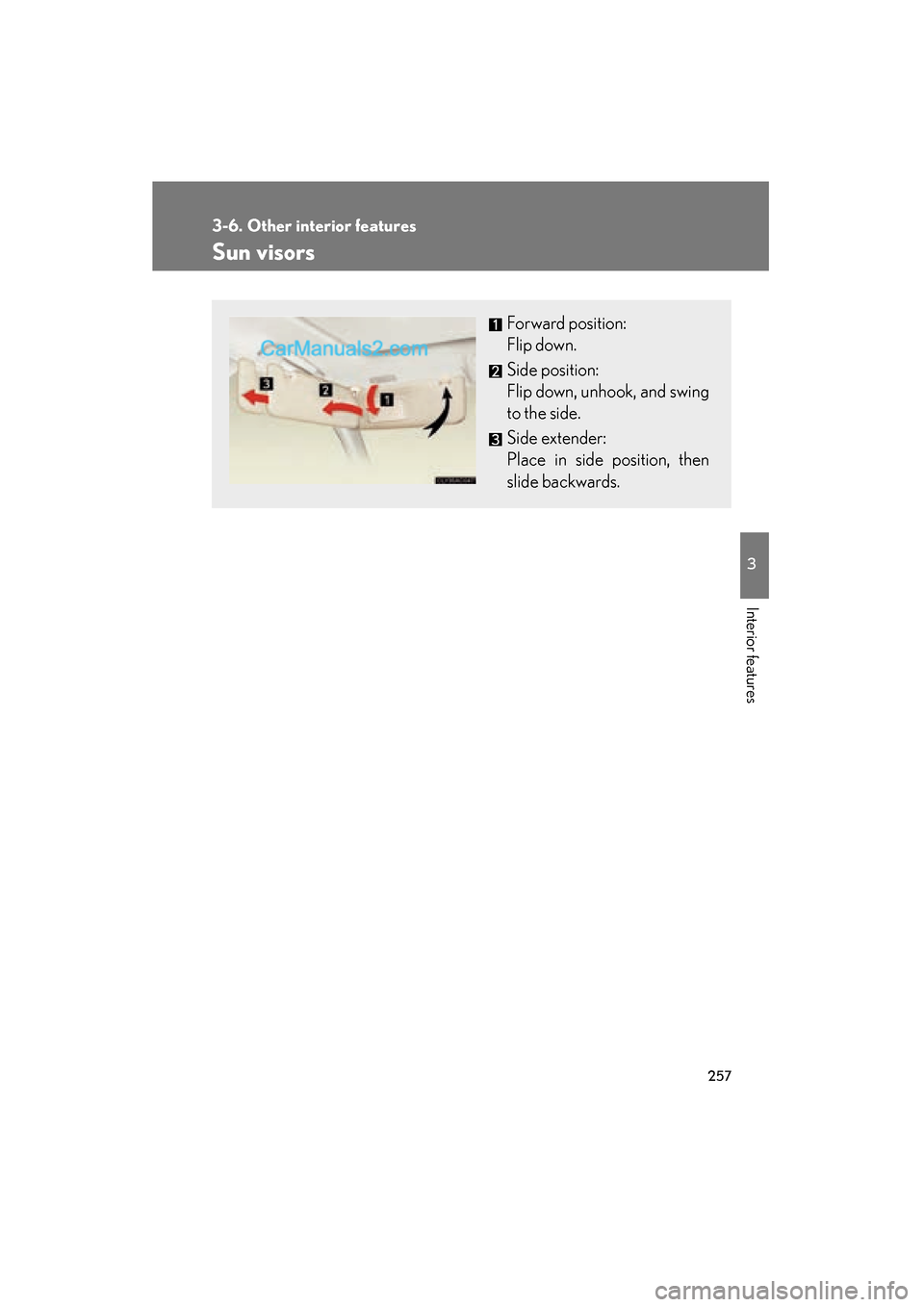

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and swing
to the side.
Side extender:
Place in side position, then
slide backwards.

258
3-6. Other interior features
ES350_U_(L/O_0708)

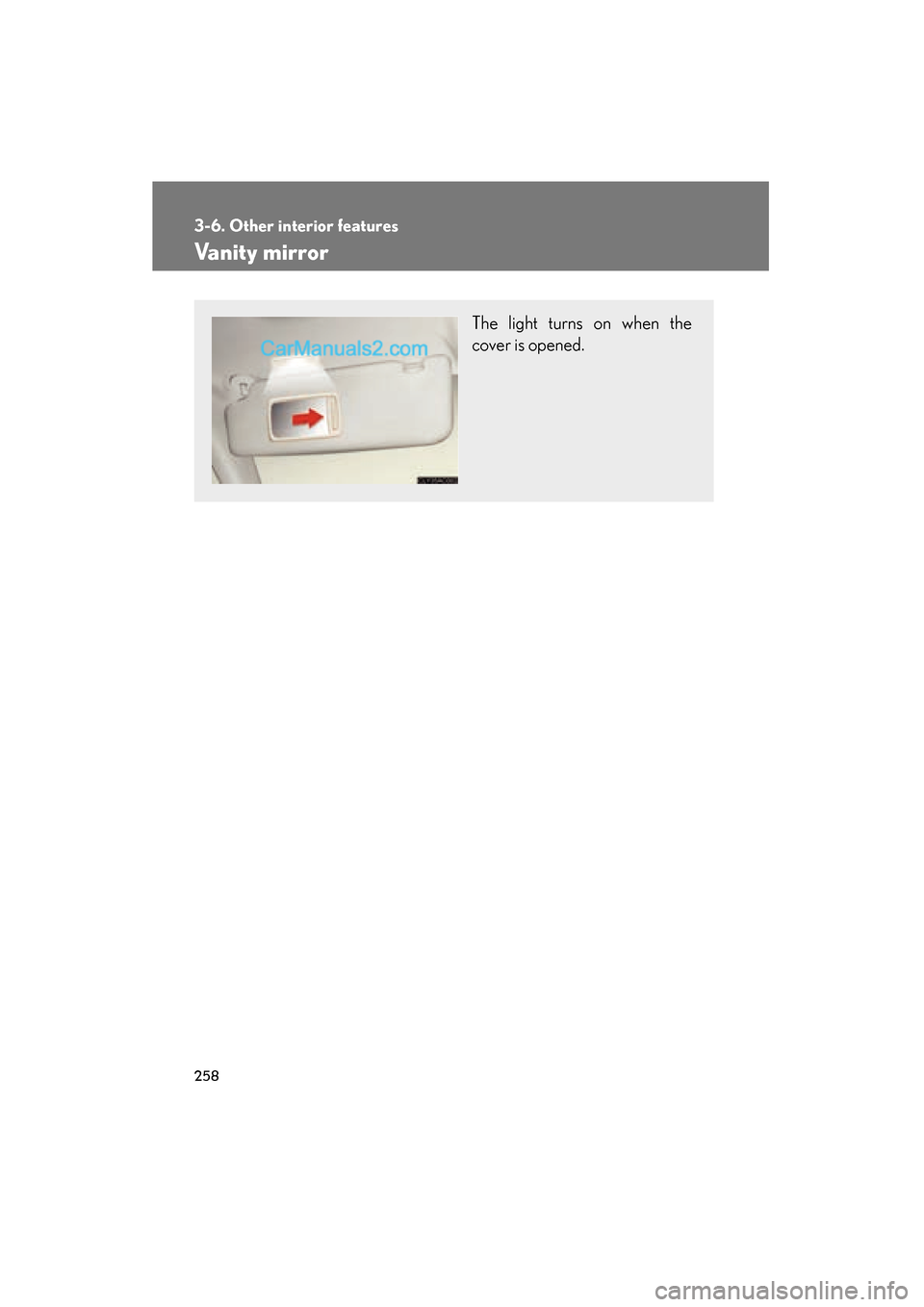

Vanity mirror
The light turns on when the
cover is opened.

259
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Without navigation systemAdjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
With navigation system

260
3-6. Other interior features
ES350_U_(L/O_0708)

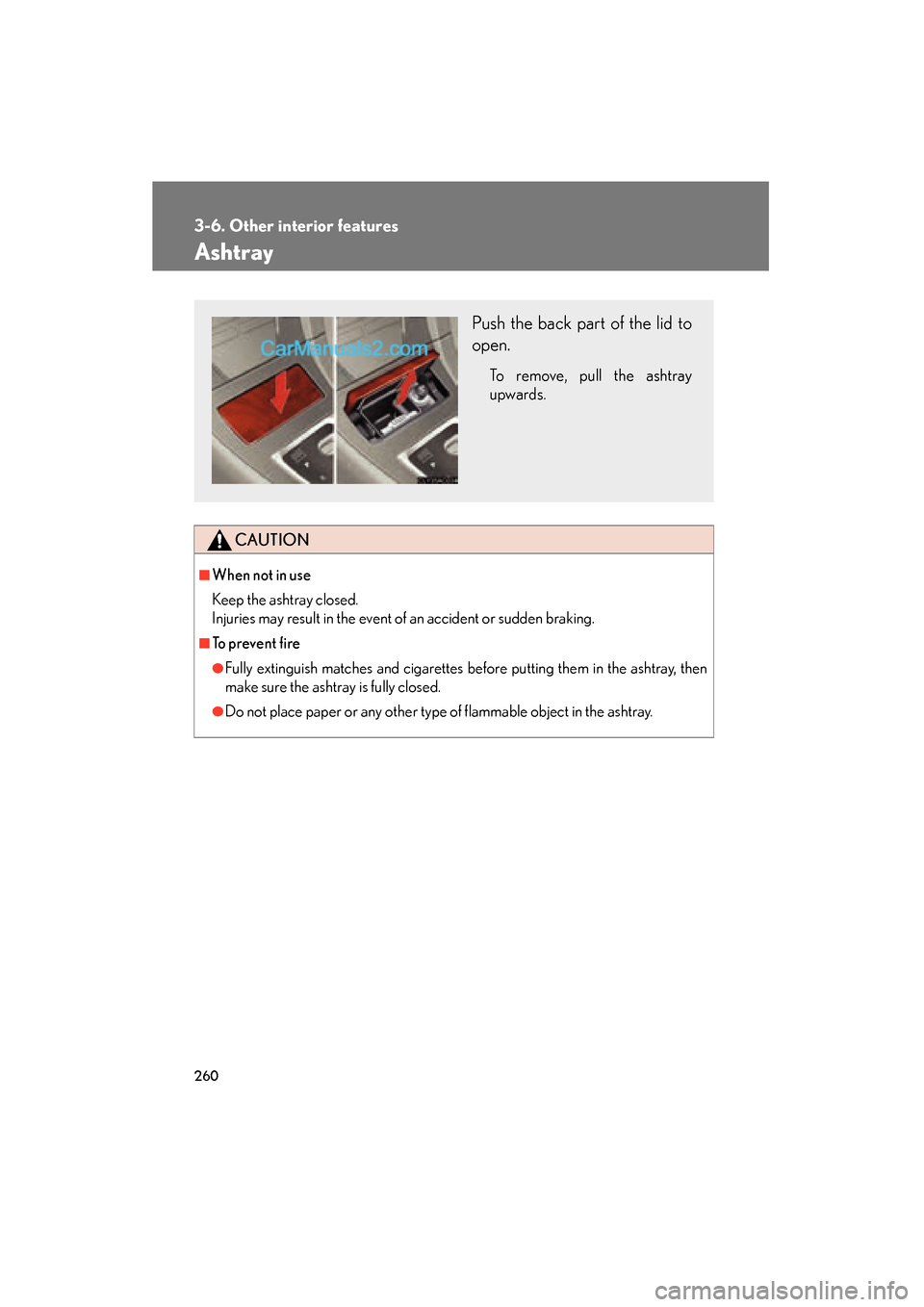

Ashtray
CAUTION
■When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.
■To prevent fire
●Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
●Do not place paper or any other type of flammable object in the ashtray.
Push the back part of the lid to
open.
To remove, pull the ashtray
upwards.

261
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)
Cigarette lighter
■The cigarette lighter can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
CAUTION
■To avoid burns or fires
●Do not touch the metal parts of the cigarette lighter.
●Do not hold the cigarette lighter down. It could overheat and cause a fire.
●Do not insert anything other than the cigarette lighter into the outlet.
Push the back part of the lid to
open, and push the cigarette
lighter down.
The cigarette lighter will pop up
when it is ready for use.

262
3-6. Other interior features
ES350_U_(L/O_0708)
Power outlet
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.
