2-1. Driving procedures
2
When driving
ES350_U_(L/O_0708)
CAUTION
■Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and odor-
less. Inhaling exhaust gases may lead to death or a serious health hazard.
●If the vehicle is in a poorly ventilated area, stop the engine. In a closed area, such
as a garage, exhaust gases may collect and enter the vehicle. This may lead to
death or a serious health hazard.
●The exhaust should be checked occasionally. If there is a hole or crack caused by
corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehi-
cle inspected and repaired by your Lexus dealer. Failure to do so may allow
exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
■When taking a nap in the vehicle
Always turn the engine off. Otherwise, you may accidentally move the shift lever or
depress the accelerator pedal, which could cause an accident or fire due to engine
overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust
gases may collect and enter the vehicle, leading to death or a serious health hazard.
■When braking the vehicle
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
●If the power brake assist function does not operate, do not follow other vehicles
closely and avoid downhills or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
●Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted brakes.
●The brake system consists of 2 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer.
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.

121
2-1. Driving procedures
2
When driving
ES350_U_(L/O_0708)

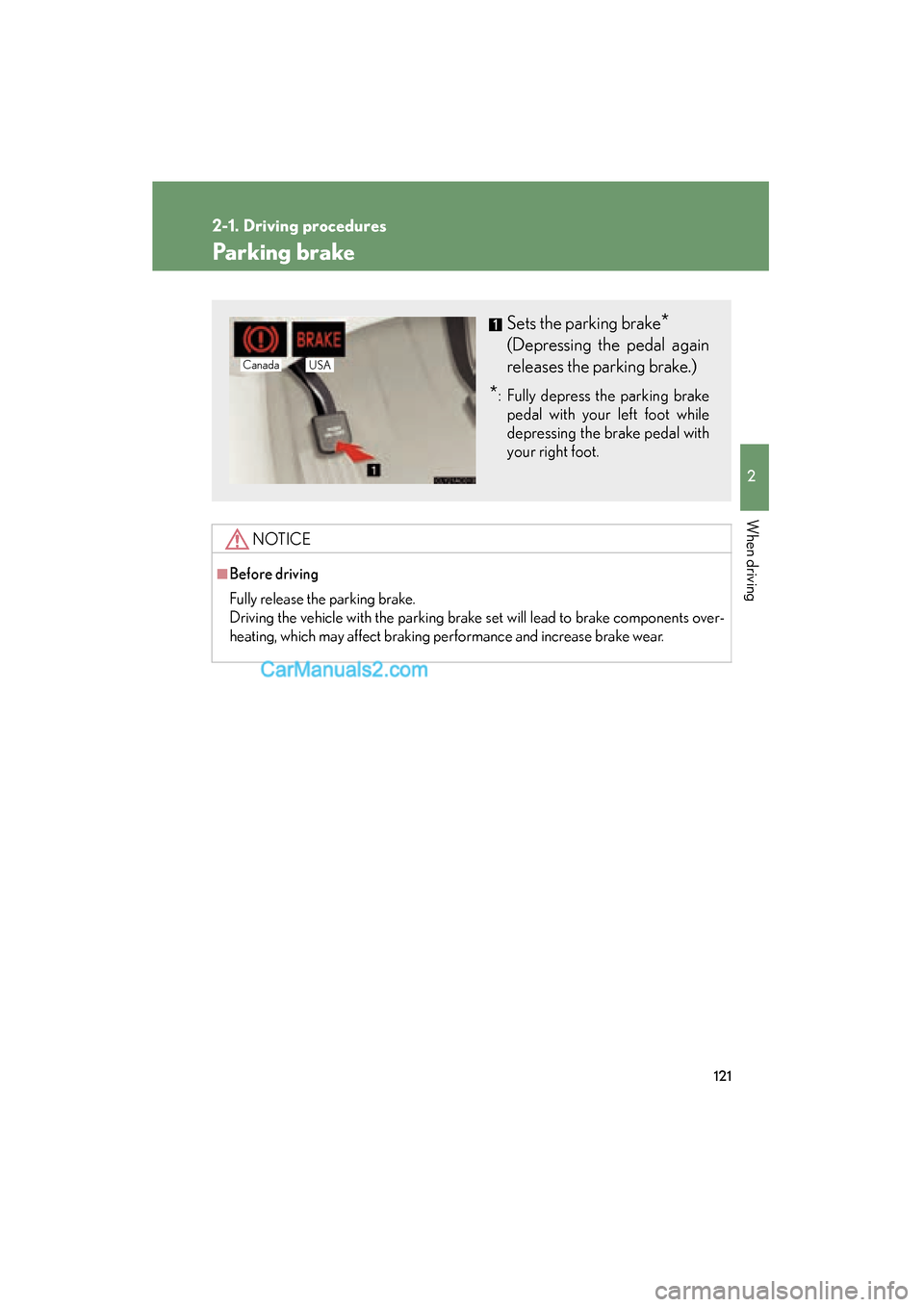

Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking brakepedal with your left foot while
depressing the brake pedal with
your right foot.
Canada USA

123
2-2. Instrument cluster
2
When driving
ES350_U_(L/O_0708)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Brighter
Darker
When the headlight switch is
turned to ON, the brightness will
be reduced slightly unless the con-
trol dial is turned fully up.
Odometer and trip meter
●Odometer
Displays the total distance the vehicle has been driven.
●Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
Engine coolant temperature gauge
Displays the engine coolant temperature.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (H). In
this case, immediately stop the vehicle in a safe place, and check the engine after
it has cooled completely. ( →P. 4 0 3 )

178
2-5. Driving information
ES350_U_(L/O_0708)●
Avoid sudden braking as you may sk id, resulting in jackknifing and loss
of control. This is especially true on wet or slippery surfaces.
● Avoid jerky starts or sudden acceleration.
● Avoid jerky steering and sharp turns, and slow down before making a
turn.
● Note that when making a turn, the trailer wheels will be closer than the
vehicle wheels to the inside of the turn. Compensate by making a
larger than normal turning radius.
● Crosswinds and rough roads will adversely affect handling of your
vehicle and trailer, causing sway. Periodically check the rear to prepare
for being passed by large trucks or buses, which may cause your vehi-
cle and trailer to sway. If swaying occurs, firmly grip the steering wheel,
reduce speed immediately but gradually, and steer straight ahead.
Never increase speed. If you make no extreme correction with the
steering or brakes, your vehicle and trailer will stabilize.
● Take care when passing other vehicles. Passing requires considerable
distance. After passing a vehicle, do not forget the length of your
trailer, and be sure you have plenty of room before changing lanes.
● In order to maintain efficient engine braking and electrical charging
performance, do not use overdrive. Transmission shift range position
must be in “4”, in the “S” mode.
● Due to the added load of the trailer, your vehicle's engine may over-
heat on hot days (at temperatures over 85°F [30°C]) when driving up
a long or steep grade. If the engine coolant temperature gauge indi-
cates overheating, immediately turn off the air conditioning (if in use),
pull your vehicle off the road and stop in a safe spot. See “If you vehicle
overheats”. ( →P. 403)

263
3-6. Other interior features
3
Interior features
ES350_U_(L/O_0708)
Seat heaters and ventilators (if equipped)
■The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to 0. The indicator light turns off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
Heats the seats
The indicator light (orange)
comes on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Left front seat Right front seat

404
5-2. Steps to take in an emergency
ES350_U_(L/O_0708)
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●Keep hands and clothing away from the fan and other belts while the engine is
running.
●Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.
Install the reservoir cap.
Make sure that the engine cool-
ant reservoir hose is positioned
as shown in the illustration.
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP7

445
Alphabetical index
ES350_U_(L/O_0708)
Brake assist .............................................. 157
Break-in tips ............................................. 107
CareExterior ................................................... 282
Interior..................................................... 285
Seat belts ............................................... 286
Cargo capacity ....................................... 163
Cargo hooks ...........................................270
CD changer ............................................. 199
CD player.................................................. 199
Chains......................................................... 169
Child restraint system Booster seats, definition.................... 93
Booster seats, installation ..................97
Convertible seats, definition ........... 93
Convertible seats, installation .........97
Front passenger occupant
classification system ........................ 88
Infant seats, definition ......................... 93
Infant seats, installation........................97
Installing CRS with lower
anchorages ........................................ 100
Installing CRS with seatbelts ...........97
Installing CRS with top straps ........ 101
Child safety
Airbag precautions ............................. 83
Battery precautions................ 314, 402
Child restraint system ........................ 93
Child-protectors................................... 38
How your child should wear the seatbelt ........................................... 53
Installing child restraints .................... 96
Moon roof precautions ..................... 66 Power window lock switch ..............60
Power window precautions ............ 62
Removed electronic key battery
precautions........................................333
Seat belt comfort guide .......................51
Seat belt extender precautions......55
Seat belt precautions .......................... 54
Seat heater precautions.................. 263
Trunk precautions................................. 42
Child-protectors ......................................38
Cigarette lighter..................................... 261
Cleaning
Exterior....................................................282
Interior .................................................... 285
Seat belts ............................................... 286
Clock ......................................................... 259
Compass .................................................. 277
Condenser ..............................................309
Console box ............................................ 251
Cooling system
Engine overheating.......................... 403
Cornering assist sensors ......................151
Cruise control Cruise control....................................... 139
Dynamic radar cruise control........142
Cup holders ............................................ 254
Curtain shield airbags.............................77
Customizable features .......................433
Daytime running light system ........... 133
Defogger Rear window ......................................... 189
Side mirror.............................................. 189
Dimension............................................... 408
Dinghy towing ......................................... 180
C
D

446
Alphabetical index
ES350_U_(L/O_0708)
DisplayDynamic radar crui se control ....... 142
Trip information .................................... 129
Warning message............................. 373
Do-it-yourself maintenance ............. 294
Door courtesy lights Door courtesy lights..........................247
Wattage.................................................... 417
Doors Door glasses ........................................... 60
Door lock................................. 22, 34, 37
Side mirrors ............................................. 58
Driver's seat belt reminder light ..... 364
Driving Break-in tips ...........................................107
Correct posture .................................... 75
Procedures ............................................ 106
Winter driving tips............................... 167
Driving position memory ...................... 44
Electronic key If the electronic key does not
operate properly ............................398
Emergency, in case of
If the electronic key does not operate properly ............................398
If the engine will not start ............... 394
If the shift lever cannot be shifted from P ...................................396
If the vehicle has discharged
battery ................................................. 400
If the warning buzzer sounds ...... 362
If the warning light turns on .......... 362 If the warning message is
displayed .............................................373
If you have a flat tire ........................ 384
If you lose your keys .........................397
If you think something is wrong .................................................. 358
If your vehicle becomes stuck .... 405
If your vehicle needs to be towed ................................................... 352
If your vehicle overheats................ 403
Engine Compartment ....................................... 301
Engine switch .......................................... 114
Hood ....................................................... 298
How to start the engine ..................... 114
Identification number ...................... 409
If the engine will not start ............... 394
Ignition switch ......................................... 114
Overheating ........................................ 403
Engine compartment cover ............. 302
Engine coolant Capacity .................................................. 412
Checking............................................... 307
Preparing and checking
before winter...................................... 167
Engine coolant temperature
gauge ....................................................... 122
Engine immobilizer system ................. 70
Engine oil Capacity .................................................... 411
Checking............................................... 303
Preparing and checking
before winter...................................... 167
Engine oil maintenance data ........... 306
Event data recorder ............................ 360
E
