TABLE OF CONTENTSIndex
ES350_U_(L/O_0708)
2
1-1. Key information ........................... 20Keys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk .................. 22
Smart access system with push-button start .......................... 22
Wireless remote control .............. 34
Doors.................................................... 37
Trunk...................................................... 41
1-3. Adjustable components (seats, mirrors,
steering wheel) .......................... 43
Front seats .......................................... 43
Driving position memory ............. 44
Seat position memory ................... 47
Head restraints................................. 49
Seat belts ........................................... 50
Steering wheel.................................. 56
Anti-glare inside rear view mirror ................................................ 57
Outside rear view mirrors .......... 58
1-4. Opening and closing the windows and moon roof .......... 60
Power windows................................ 60
Moon roof .......................................... 63 1-5. Refueling ........................................ 67
Opening the fuel tank cap........... 67
1-6. Theft deterrent system............... 70 Engine immobilizer system ......... 70
Alarm.................................................... 72
Theft prevention labels (for USA) ......................................... 74
1-7. Safety information ....................... 75 Correct driving posture ............... 75
SRS airbags ....................................... 77
Front passenger occupant classification system ................... 88
Child restraint systems ................. 93
Installing child restraints ............... 96
2-1. Driving procedures................... 106 Driving the vehicle ........................ 106
Engine (ignition) switch ................ 114
Automatic Transmission .............. 117
Turn signal lever............................. 120
Parking brake ................................... 121
2-2. Instrument cluster ..................... 122 Gauges and meters ..................... 122
Indicators and warning lights ... 124
Multi-information display........... 128
1Before driving
2When driving
Before driving1
19
ES350_U_(L/O_0708)
1-1. Key information ............... 20Keys .............................................. 20
1-2. Opening, closing and locking the doors and
trunk ............................... 22
Smart access system with push-button start .................... 22
Wireless remote control ......... 34
Doors ............................................ 37
Trunk .............................................. 41
1-3. Adjustable components (seats, mirrors,
steering wheel) .............. 43
Front seats ................................... 43
Driving position memory ........ 44
Seat position memory.............. 47
Head restraints .......................... 49
Seat belts .................................... 50
Steering wheel........................... 56
Anti-glare inside rear view mirror ......................................... 57
Outside rear view mirrors ..... 58 1-4. Opening and closing the
windows and
moon roof ....................... 60
Power windows .......................... 60
Moon roof ................................... 63
1-5. Refueling .......................... 67 Opening the fuel tank cap ...... 67
1-6. Theft deterrent system............................. 70
Engine immobilizer system ........................................ 70
Alarm............................................ 72
Theft prevention labels (for USA) ................................... 74
1-7. Safety information........... 75 Correct driving posture ......... 75
SRS airbags ................................ 77
Front passenger occupant classification system.............. 88
Child restraint systems ........... 93
Installing child restraints......... 96
38
1-2. Opening, closing and locking the doors and trunk
ES350_U_(L/O_0708)
Locking the front doors from the outside without a keyThe door cannot be locked if the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
Depending on the position of the electronic key, the key may not be detected
correctly and the door may be locked.
Rear door child-protector lock
The door cannot be opened
from inside the vehicle when the
locks are set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
Automatic door locking and unlocking systems
The following functions can be set or cancelled:
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of P locks all doors.
Shift position linked door
unlocking functionShifting the shift lever to P unlocks all doors.
Speed linked door locking
functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver's door linked door
unlocking functionAll doors are unlocked when the driver's door is
opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
40
1-2. Opening, closing and locking the doors and trunk
ES350_U_(L/O_0708)
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 3 9 8 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed. (Customizable fea-
tures →P. 4 3 3 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle while driving.
●Set the rear door child protector locks when children are seated in the rear seat.
42
1-2. Opening, closing and locking the doors and trunk
ES350_U_(L/O_0708)
■Trunk handle
■Internal trunk release lever
■Trunk light
The trunk light turns on when the trunk is opened.
CAUTION
■Caution while driving
Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
■When children are in the vehicle
Never leave children unattended in the vehicle as they may lock themselves in the
vehicle or trunk, which could cause the child to overheat or suffocate, resulting in
death or serious injury.
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.
52
1-3. Adjustable components (seats, mirrors, steering wheel)
ES350_U_(L/O_0708)
Pre-collision seat belts (front seats of vehicles with pre-collision system)
When the pre-collision sensor detects an obstacle and determines that a
collision is unavoidable, the seat belts lessen collision injury by retracting
the slack in the front seat belts before the collision, thus restraining the
driver and passenger at an earlier stage.
The seat belts will also operate in the event of sudden braking. ( →P. 1 6 0 )
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( →P. 9 6 )
■Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (→P. 5 0 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking or a collision.
54
1-3. Adjustable components (seats, mirrors, steering wheel)
ES350_U_(L/O_0708)
CAUTION
■Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of sud-
den braking or an accident.
Failing to do so may cause death or severe injury.
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
●Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Seat belt pretensioners
Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, which prevents the sensor from detecting the
passenger's weight properly. As a result, the seat belt pretensioner for the front pas-
senger's seat may not activate in the event of a collision.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there's no obvious damage.

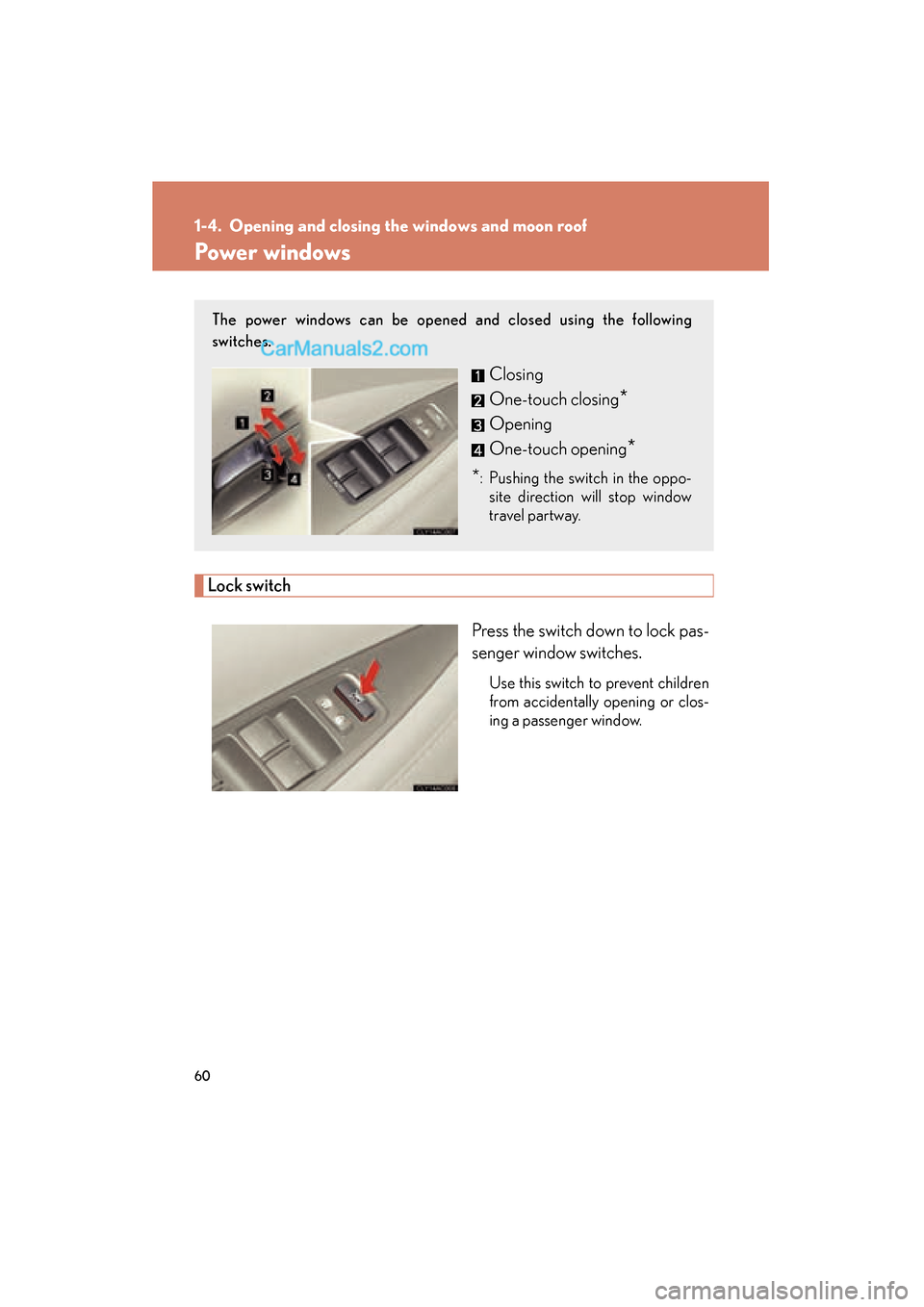

60
ES350_U_(L/O_0708)
1-4. Opening and closing the windows and moon roof
Power windows
Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the oppo-site direction will stop window
travel partway.
