Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
(▲) Engine provided for some versions/markets only
FUEL FEED/IGNITION
Fuel feed/ignition
1.48V(▲)-1.416V
Multipoint phased sequential electronic injection,
integrated with ignition,
returnless system1.3 Multijet - 1.9 Multijet
Electronically controlled Multijet “Common Rail”
direct injection, with turbo
and intercooler
TRANSMISSION
Gearbox
Clutch
Drive1.4
16V
Five or six forward gears plus reverse
with synchronisers for forward gears
Self-adjusting external hydraulic control
with pedal without loadless stroke
Fr
ont
1.48V(▲)-1.3 Multijet - 1.9 Multijet
Five forward gears plus reverse
with synchronisers for forward gears
Self-adjusting external hydraulic control
with pedal without loadless stroke
Fr
ont
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 192

193
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
BRAKES
Service brakes:– front
– rear
Parking brake
IMPORTANT Water, ice and salt sprinkled on roads can deposit on the brake discs and reduce the braking efficiency when braking for
the first time.1.4
8V(▲)-1.416V- 1.3 Multijet 70HP
Self-ventilating discs (257 mm x 22mm)
Drum (203 mm)
Controlled by hand lever, acting
on rear brakes
SUSPENSIONS
Front
Rear1.4
8V(▲)-1.416V- 1.3 Multijet - 1.9 Multijet
Mc Pherson independent wheels
Semi-independent wheels connected by crank axle
STEERING
Type
Minimum steering
cycle m
(
▲) Engine provided for some versions/markets only1.4
8V(▲)-1.416V- 1.3 Multijet - 1.9 Multijet
Rack and pinion with electric power steering
10.0
1.3 Multijet 90HP - 1.9 Multijet
Self-ventilating discs (284 mm x 22mm)
Drum (228 mm)
Controlled by hand lever, acting on
rear brakes
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 193

199
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
PERFORMANCE
With mechanical gearbox
Top speed after initial car use in km/h.
1.48V(▲)1.416V1.3 Multijet 70HP 1.3 Multijet 90HP 1.9 Multijet
163 175 159 173 179
(
▲) Engine provided for some versions/markets only
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 199

200
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
1.48V(▲)-1.416V
1155
500
940
805
1655
1000
400
75
601.3 Multijet
1200
500
940
805
1700
1000
400
75
601.9 Multijet
1275
500
1000
805
1775
1100
500
75
60
WEIGHTS
Weights (kg)
Unladen weight (with all liquids,
fuel tank filled to 90 % and
without optional equipment):
Carrying capacity (*)
including the driver:
Maximum admitted
loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply
with these limits.
(
▲) Engine provided for some versions/markets only
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 200

201
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
1.9 Multijet
litres
–
–
47
5 - 7
6.0
–
–
2.85
3.0
1.98
0.45
1.5kg
–
–
–
–
–
–
–
2.54
2.65
1.8
–
–litres
–
–
47
5 - 7
6.5
–
–
4.2
4.4
1.65
0.45
1.5kg
–
–
–
–
–
–
–
3.75
3.9
1.5
–
– 1.416V1.48V(▲)
litres
47
5 - 7
–
–
4.5
2.5
2.7
–
–
1.65
0.45
1.5 litres
47
5 - 7
–
–
4.5
2.4
2.6
–
–
1.65
0.45
1.5kg
–
–
–
–
–
2.2
2.35
–
–
1.5
–
– kg
–
–
–
–
–
2.1
2.25
–
–
1.5
–
–1.3 Multijet
CAPACITIES
Fuel tank:
including a reserve of:
Fuel tank: including a reserve of:
Engine cooling
system:
Engine sump:
Engine sump and filter:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Hydraulic brake circuit
Windscreen/rear window
washer fluid reservoir
(▲) Engine provided for some versions/markets only
(❐) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLU UP
and demineralised water.
Specified fuels
Original products
Unleaded petrol with no
less than 95 R.O.N.
(EN228 Specification)
Diesel fuel for motor vehicles
(EN590 specifications)
50-50 mixture of demineralised
water and PARAFLU UP
(❐)
SELENIA 20K
SELENIA WR
TUTELA CAR TECHNYX
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL
SC 35
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 201

202
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use
Lubricants
for engines
running on petrol
Lubricants for
engines running
on diesel
To ensure the proper operation of the Multijet versions with DPF only use genuine lubricant. In an emergency, if the genuine product is
not available, top up with at most 0.5 l and drive to a Lancia Dealership as soon as possible.
If genuine SAE 5W-40 products cannot be used, lubricants with minimal performance ACEA A3 for petrol engines and ACEA B4 for
diesel engines are admissible; in this case, optimal performance of the engine is not guaranteed. Using products with lower characteristics
than ACEA A3 and ACEA B4 could cause damage to the engine not covered by the guarantee.
When the car is to be used under particularly harsh climate conditions, ask a Lancia Dealership for the appropriate product from the Se-
leniarange.Quality characteristics of fluids and lubricants
for the proper operation of the car
Synthetic base lubricants SAE 10W-40 grade,
FIAT 9.55535-G2qualification or ACEA A3,
AP SL specifications;
Synthetic base lubricants SAE 5W-40 grade
FIAT 9.55535-N2qualification.Genuine fluids and
lubricants
SELENIA 20K
SELENIA WRReplacement
interval
According to
Service Schedule
According to
Service Schedule
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 202

204
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
STARTING
AND
DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS

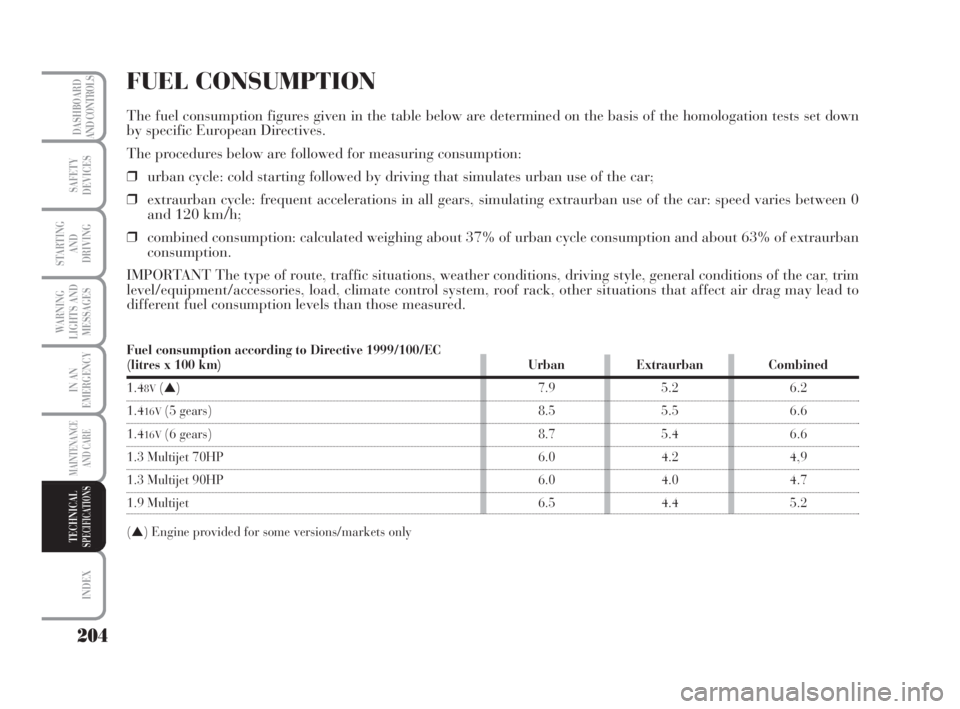

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the homologation tests set down
by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extraurban cycle: frequent accelerations in all gears, simulating extraurban use of the car: speed varies between 0
and 120 km/h;
❒combined consumption: calculated weighing about 37% of urban cycle consumption and about 63% of extraurban
consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim
level/equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to
different fuel consumption levels than those measured.
Fuel consumption according to Directive 1999/100/EC(litres x 100 km) Urban Extraurban Combined
1.48V(▲) 7.9 5.2 6.2
1.416V(5 gears) 8.5 5.5 6.6
1.416V(6 gears) 8.7 5.4 6.6
1.3 Multijet 70HP 6.0 4.2 4,9
1.3 Multijet 90HP 6.0 4.0 4.7
1.9 Multijet 6.5 4.4 5.2
(
▲) Engine provided for some versions/markets only
187-205 MUSA 3ed GB 12-11-2007 11:40 Pagina 204
