Air bag system components
• The SRS air bag consists of the fol-lowing components;
1. Driver's air bag module
2. Passenger's air bag module
3. Side air bag module
4. Curtain air bag module
5. Front impact sensors
6. Side impact sensors
7. SRS air bag control module
8. Driver's seat position sensor
9. Occupant Classification System (Front passenger's seat only)
10. "PASSENGER AIR BAG OFF" indicator (Front passenger's seat
only)
11. Driver's and front passenger's safety belt buckle sensors
12. Retractor Pre-tensioner Assemblies
13. SRS "AIR BAG" warning light
• A diagnostic system that continually monitors the system operation.
• An indicator light to warn you of a pos- sible problem with the system.
• Emergency power backup in case your car’s electrical system is disconnected
in a crash. The SRS uses a collection of sensors to
gather information about the driver’s seat
position, the driver’s and front passen-
ger’s safety belt usage and impact sever-
ity.
The driver’s seat position sensor, which
is installed on the seat track, determines
if the seat is fore or aft of a reference
position. Similarly, the safety belt usage
sensors determine if the driver and front
passenger’s safety belts are fastened.
These sensors provide the ability to con-
trol the SRS deployment based on how
close the driver’s seat is to the steering
wheel, how close the passenger’s seat is
to the instrument panel, whether or not
the safety belts are fastened, and the
severity of the impact.
(Continued)
• If your vehicle has been subject-
ed to flood conditions (e.g.
soaked carpeting/standing water
on the floor of the vehicle, etc.) or
if your vehicle has become flood
damaged in any way, do not
attempt to start the vehicle or put
the key in the ignition before di s-
connecting the battery.
Disregarding thi s precaution may
cause air bag deployment, which
could result in serious per sonal
injury or death. If your vehicle i s
subjected to flooded condition s,
before starting the vehicle, have
the vehicle towed to an author-
ized Kia dealer for in spection and
necessary repair s.

Knowing your vehicle
563
The advanced SRS offers the ability to
control the air bag inflation with two lev-
els. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, seating
position (only driver) and safety belt
usage, the SRSCM (SRS Control
Module) controls the air bag inflation.
Failure to properly wear safety belts
can increase the risk or severity of
injury in an accident.
Additionally, your SRS is equipped with
an occupant classification system in the
front passenger’s seat. The occupant
classification system detects the pres-
ence of a passenger in the front passen-
ger’s seat and will turn off the front pas-
senger’s air bag under certain conditions.
For more detail, see “Occupant
Classification System” later in this sec-
tion.
CAUTION
If the seat position sensor is not
working properly, the SRS air bag warning light ( ) on the in stru-
ment panel will illuminate even if there is no malfunction of the SRSair bag system, because the SRS airbag warning light i s connected with
the seat position sensor. If the SRS
air bag warning light doe s not illu-
minate when the ignition key is turned to the "ON" po sition, if it
remains illuminated after blinking for approximately 6 seconds, or if it
illuminates while the vehicle is
being driven, have an authorized Kia dealer inspect the seat position sensor and the advanced SRS airbag system as soon as possible.
AIR
BAG
WARNING
• Modification to the seat structure
can adver sely affect the s eat
position sensor and cause the air
bag to deploy at a different level
than should be provided.
• Failure to properly wear safety
belts can increas e the risk or
severity of injury by causing the
air bags to deploy at a different
level than should be provided.
• Do not place any object s under-
neath the driver’ s seats which
could damage the seat position
sensor.
• Do not place any object s that may
cause magnetic fields near the
front seat. These may cause a
malfunction of the seat position
sensor.

357
Knowing your vehicle
Driver’s air bag
The driver’s air bag is stored in the cen-
ter of the steering wheel.
HLZ206
OGH026021
WARNING
• Ignoring the SRS indicator light
(air bag indicator and pa ssenger
air bag off indicator) can re sult in
serious or fatal injury if the air
bags occupant classification sys-
tem or pretensioner s do not work
properly. Have your car checked
by a dealer as soon as possible if
the SRS warning light alerts you
to a potential problem.
• Sitting improperly or out of po si-
tion can re sult in serious or fatal
injury in a crash. All occupants
should sit upright in their seats
with their feet on the floor until
the vehicle i s parked and the igni-
tion key i s removed.
WARNING
• You must always sit as far back
from the steering wheel air bag as
possible (chest at least 250 mm
(10 inches) away from the steer-
ing wheel), while still maintaining
a comfortable seating po sition for
good vehicle control, in order to
reduce the ri sk of injury or death
in a collision.
• Never place objects over the air bag storage compartments or
between the air bag s and your-
self. Due to the speed and force of
the air bag inflation, such objects
could hit your body at high speed
and cause severe bodily injury
and even death.
• Do not put stickers or ornaments
on the s teering wheel cover.
Thes e may interfere with the
deployment of the air bag.

Knowing your vehicle
583
Front passenger’s air bag
Front passenger’s air bag is stored in the
instrument panel on the glove box.
Since you cannot know which air bags
will deploy or from what direction, never
put any objects or ornaments on the
instrument panel.
Occupant classification system
The occupant classification system
detects the presence of a passenger in
the front passenger's seat and will turn off
the front passenger's air bag under cer-
tain conditions.
The occupant classification system is
designed to detect the presence of a
properly-seated occupant and determine
if the front passenger's air bag should be
enabled (may inflate) or not.
Main components of occupant cla ssi-
fication system
• A detection device located within the
front passenger seat cushion.
• Electronic system to determine whether passenger air bag systems
(both front passenger’s front and side
air bag only) should be activated or
deactivated.
• A warning light located on the instru- ment panel which illuminates the
words "PASSENGER AIR BAG OFF"
passenger air bag system is deactivat-
ed.
• The instrument panel air bag warning light is interconnected with the occu-
pant classification system.
5GHN3001
0GH026257
HLZ2121

359
Knowing your vehicle
If there is no passenger in the front pas-
senger seat or if the passenger in the
front passenger's seat is very small,
(such as a child), the front PASSENGER
AIR BAG OFF indicator may go ON.
When this indicator is ON, the front pas-
senger's air bag will not deploy.
The front passenger’s side air bag will
not deploy if the front seat is unoccupied.
The front passenger’s side air bag may
deploy if the front seat is occupied by a
small occupant.Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the seat
cushion, with the person's legs comfort-
ably extended, feet on the floor, and
wearing the safety belt properly) for the
most effective protection by the air bag
and the safety belt.
• The OCS may not function properly if
the passenger takes actions which can
defeat the detection system. These
include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or center console.
(3) Sitting towards the sides or the front of the seat.
(4) Putting legs on the dashboard or rest- ing them on other locations which
reduce the passenger weight on the
front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back. • The "PASSENGER AIR BAG OFF"
indicator illuminates after the ignition
key is turned to the "ON" position or
after the engine is started. If the front
passenger seat is unoccupied or is
occupied by very small person, or is
occupied by someone who is improp-
erly seated, the "PASSENGER AIR
BAG OFF" indicator will remain illumi-
nated. If the front passenger seat is
occupied by someone of adult size and
body shape, the "PASSENGER AIR
BAG OFF" indicator will turn off after 6
seconds.
• If the "PASSENGER AIR BAG OFF" indicator illuminates, the front passen-
ger's air bag will not deploy.
The front passenger’s side air bag will
not deploy if the front seat is unoccu-
pied.
The front passenger’s side air bag may
deploy if the front seat is occupied by a
small occupant.
• If the "PASSENGER AIR BAG OFF" indicator is not illuminated, the front
passenger front air bag and front pas-
senger side air bag may deploy in
either a side or frontal collision.
OGH036367N
The location of OCS warning indicator

Knowing your vehicle
603
Condition and operation in the front passenger occupant
cla ssification system
Condition detected by
the occupant classifi- cation system
1. Adult *
1
2. Child*2or child
restraint system
3. Unoccupied Off
On
OnOff
Off
Off
Activated
Deactivated
Deactivated
"PASSENGER AIR
BAG OFF" indicator lightAIR BAG
warning light Front passenger
front air bag
Indicator/Warning light
Device
*1The system detects a person who is generally adult size as an adult, thus allowing the pas-
senger air bag to deploy. When a smaller adult sits in the front passenger seat, the system
may detect their body shape as that of a child, thus preventing air bag deployment.
*
2When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her body shape or seating
position, thus permitting air bag deployment.
CAUTION
If the "PASSENGER AIR BAG OFF" indicator illuminate s or blinks continu-
ously when a per son of adult size sits in the front passenger's seat, it could
be because that per son isn't sitting properly in the seat. If this happens, turn
the vehicle off, make sure the seat back is not reclined, have the passenger center on the seat cushion, with legs comfortably extended, and the safety
belt properly po sitioned. Restart the vehicle and have the per son remain in
this position long enough to allow the system to detect the person and acti-
vate the passenger air bag.
CAUTION
If the occupant cla ssification sys-
tem is not working properly, the air bag warning light ( ) on theins trument panel will illuminate
because the passenger’ s air bag is
connected with the occupant cla s-
sification system. If there is a mal-
function of the occupant cla ssifica-
tion system, the "Passenger Air bag
Off" indicator will not illuminate and the front passenger's air bag will deploy in frontal crashes even ifthere is child or no occupant in the front passenger's seat.
Have an authorized Kia dealer inspect the occupant cla ssification
system with the SRS air bag system as soon as possible if any of follow-
ing occur;
• The SRS air bag warning light does not illuminate when the igni-tion key i s turned to "ON" po si-
tion.
(Continued)
AIR
BAG

361
Knowing your vehicle

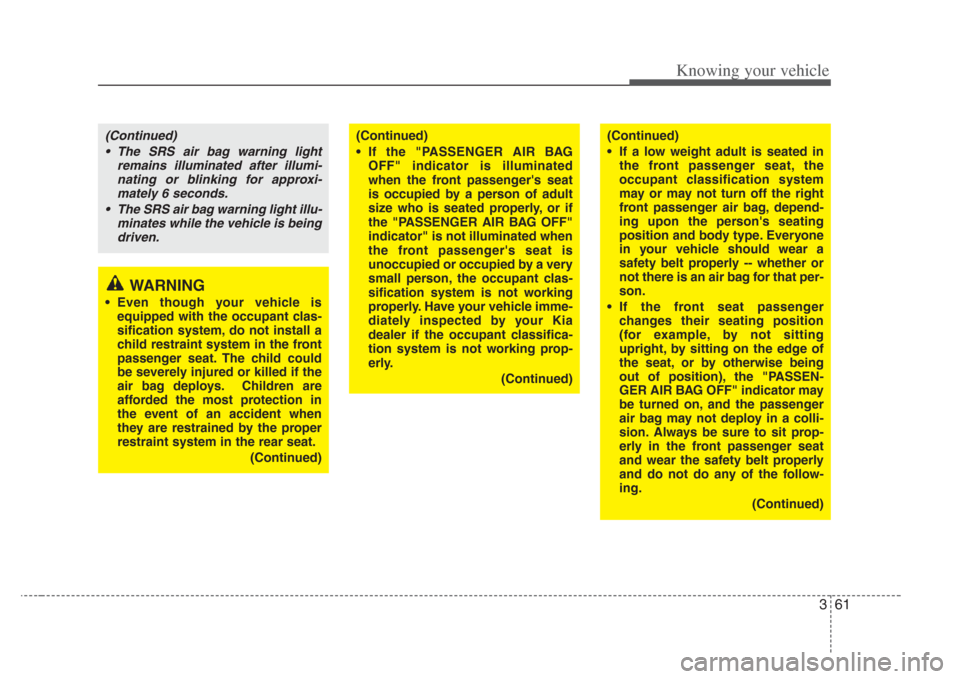

WARNING
• Even though your vehicle isequipped with the occupant cla s-
sification system, do not install a
child restraint system in the front
passenger seat. The child could
be severely injured or killed if the
air bag deploys. Children are
afforded the mo st protection in
the event of an accident when
they are restrained by the proper
restraint system in the rear seat.
(Continued)
(Continued)
• If the "PASSENGER AIR BAGOFF" indicator is illuminated
when the front pa ssenger's seat
is occupied by a per son of adult
size who is seated properly, or if
the "PASSENGER AIR BAG OFF"
indicator" is not illuminated when
the front passenger's seat is
unoccupied or occupied by a very
small per son, the occupant cla s-
sification system is not working
properly. Have your vehicle imme-
diately ins pected by your Kia
dealer if the occupant cla ssifica-
tion system is not working prop-
erly.
(Continued)(Continued)
• If a low weight adult is seated in
the front passenger seat, the
occupant classification system
may or may not turn off the right
front passenger air bag, depend-
ing upon the per son's seating
position and body type. Everyone
in your vehicle should wear a
safety belt properly -- whether or
not there i s an air bag for that per-
son.
• If the front s eat passenger
changes their s eating pos ition
(for example, by not s itting
upright, by sitting on the edge of
the seat, or by otherwi se being
out of position), the "PASSEN-
GER AIR BAG OFF" indicator may
be turned on, and the pa ssenger
air bag may not deploy in a colli-
sion. Always be sure to sit prop-
erly in the front pa ssenger seat
and wear the safety belt properly
and do not do any of the follow-
ing.
(Continued)(Continued)• The SRS air bag warning light remains illuminated after illumi-nating or blinking for approxi-mately 6 seconds.
• The SRS air bag warning light illu- minates while the vehicle is beingdriven.

Knowing your vehicle
623
1KMN3663
1KMN3664
1KMN3665
1KMN3666
- Never sit with hips shifted
towards the front of the seat.
- Never lean on the center con- sole.
- Never sit on one s ide of the front
passenger seat. -Alway
s sit in a proper s eating
pos ition.
- Never place feet on the da
sh-
board.
(Continued)
1KMN3661
1KMN3662
- Never put a heavy load in thefront passenger seat.
- Never excessively recline the front passenger seatback.
(Continued)
