2008 KIA Amanti Owner's Manual

331
Knowing your vehicle
Load limiter
When the pre-tentioner activates, if the
system senses excessive seat belt ten-
sion on the driver or passenger’s seat
belt, the load limiter inside the pre-ten-
sioner will release some of the pressure
on the affected seat belt.
WARNING
When the pre-tensioner seat belts
are activated and the air bag i s
deployed, a loud nois e may be
heard and fine dus t, which may
appear to be smoke, may be visible
in the passenger compartment and
are not toxic.
Although, it is harmless, the fine
dust may cause skin irritation and
should not be breathed for pro-
longed period s.Wash your hands
and face thoroughly after an acci-
dent in which the air bag s and/or
pre-tensioner seat belts were acti-
vated.
WARNING
• Because the sensor that activates the SRS air bag i s connected with
pre-tensioner seat belt, the SRS
air bag warning light on the
instrument panel will blink or illu-
minate for approximately 6 sec-
onds after the ignition key ha s
been turned to the “ON” po sition,
then the light should go off.
• If the pre-tensioner seat belt is
not working properly, thi s warn-
ing light will illuminate even if
there is no malfunction of SRS air
bag system. If the SRS air bag
warning light doe s not illuminate
when the ignition key i s turned to
“ON” , or if it remains illuminated
after blinking or illuminating for
approximately 6 seconds, or if it
illuminates while the vehicle is
being driven, pleas e have an
authorized Kia dealer inspect the
pre-tensioner seat belt or SRS air
bag system as soon as possible.
WARNING
• Pre-tensioners are des igned to
operate once. After activation,
pre-tensioner seat belts must be
replaced. All seat belts, of any
type, should always be replaced
after they have been worn during
a collision.
• Do not attempt to ins pect or
replace the pre-tens ioner seat
belts your self. This mu st be done
by an authorized Kia dealer.
WARNING
The pre-tensioner seat belt assem-
bly mechanisms become hot during
activation. Do not touch the pre-ten-
sioner seat belt assembly for sever-
al minutes after they have been acti-
vated.

Knowing your vehicle
323

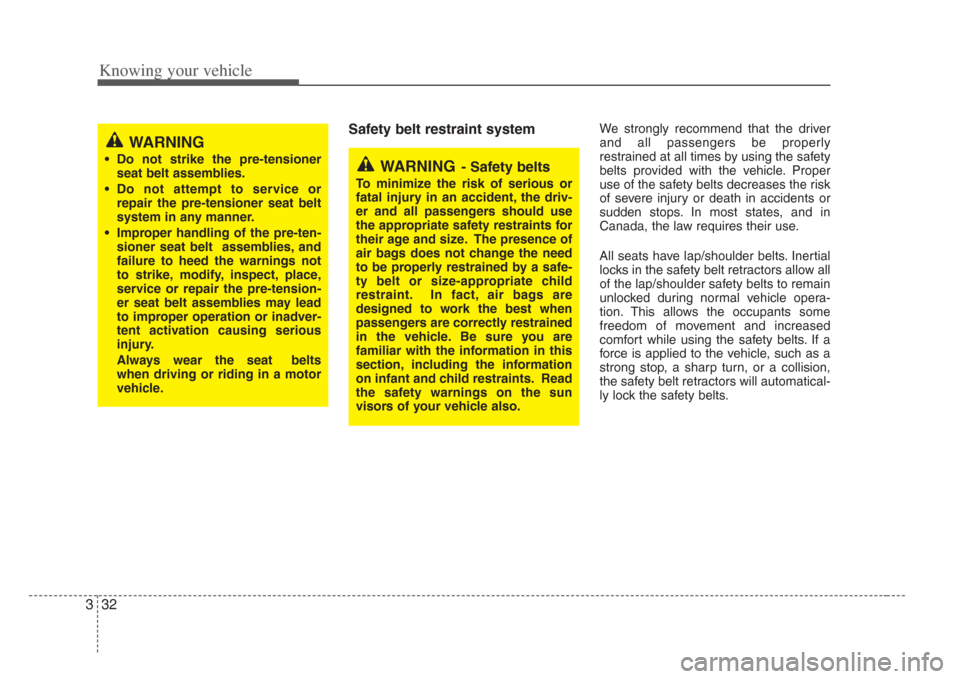

Safety belt restraint system We strongly recommend that the driver
and all passengers be properly
restrained at all times by using the safety
belts provided with the vehicle. Proper
use of the safety belts decreases the risk
of severe injury or death in accidents or
sudden stops. In most states, and in
Canada, the law requires their use.
All seats have lap/shoulder belts. Inertial
locks in the safety belt retractors allow all
of the lap/shoulder safety belts to remain
unlocked during normal vehicle opera-
tion. This allows the occupants some
freedom of movement and increased
comfort while using the safety belts. If a
force is applied to the vehicle, such as a
strong stop, a sharp turn, or a collision,
the safety belt retractors will automatical-
ly lock the safety belts.
WARNING
• Do not strike the pre-tensioner
seat belt assemblies.
• Do not attempt to s ervice or
repair the pre-tensioner seat belt
system in any manner.
• Improper handling of the pre-ten- sioner seat belt assemblies, and
failure to heed the warning s not
to strike, modify, inspect, place,
service or repair the pre-tension-
er seat belt assemblies may lead
to improper operation or inadver-
tent activation caus ing serious
injury.
Always wear the seat belts
when driving or riding in a motor
vehicle.WARNING- Safety belts
To minimize the risk of serious or
fatal injury in an accident, the driv-
er and all passenger s should use
the appropriate safety restraints for
their age and size. The presence of
air bags does not change the need
to be properly restrained by a safe-
ty belt or s ize-appropriate child
res traint. In fact, air bags are
designed to work the be st when
passenger s are correctly re strained
in the vehicle. Be s ure you are
familiar with the information in this
section, including the information
on infant and child re straints. Read
the safety warnings on the sun
visor s of your vehicle also.

333
Knowing your vehicle

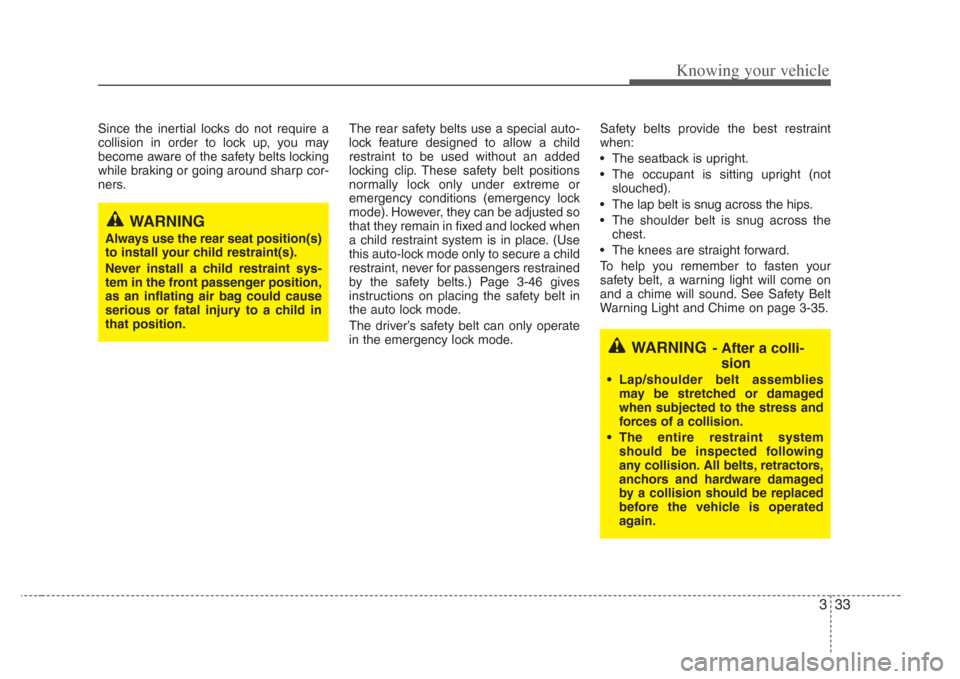

Since the inertial locks do not require a
collision in order to lock up, you may
become aware of the safety belts locking
while braking or going around sharp cor-
ners.The rear safety belts use a special auto-
lock feature designed to allow a child
restraint to be used without an added
locking clip. These safety belt positions
normally lock only under extreme or
emergency conditions (emergency lock
mode). However, they can be adjusted so
that they remain in fixed and locked when
a child restraint system is in place. (Use
this auto-lock mode only to secure a child
restraint, never for passengers restrained
by the safety belts.) Page 3-46 gives
instructions on placing the safety belt in
the auto lock mode.
The driver’s safety belt can only operate
in the emergency lock mode.Safety belts provide the best restraint
when:
• The seatback is upright.
• The occupant is sitting upright (not
slouched).
• The lap belt is snug across the hips.
• The shoulder belt is snug across the chest.
• The knees are straight forward.
To help you remember to fasten your
safety belt, a warning light will come on
and a chime will sound. See Safety Belt
Warning Light and Chime on page 3-35.
WARNING
Always u se the rear seat position(s)
to install your child restraint(s).
Never install a child restraint sys-
tem in the front passenger position,
as an inflating air bag could cau se
serious or fatal injury to a child in
that position.
WARNING- After a colli- sion
• Lap/s houlder belt assemblies
may be s tretched or damaged
when subjected to the stress and
force s of a collision.
• The entire res traint system
s hould be ins pected following
any collision. All belts, retractor s,
anchor s and hardware damaged
by a collision should be replaced
before the vehicle is operated
again.

Knowing your vehicle
343

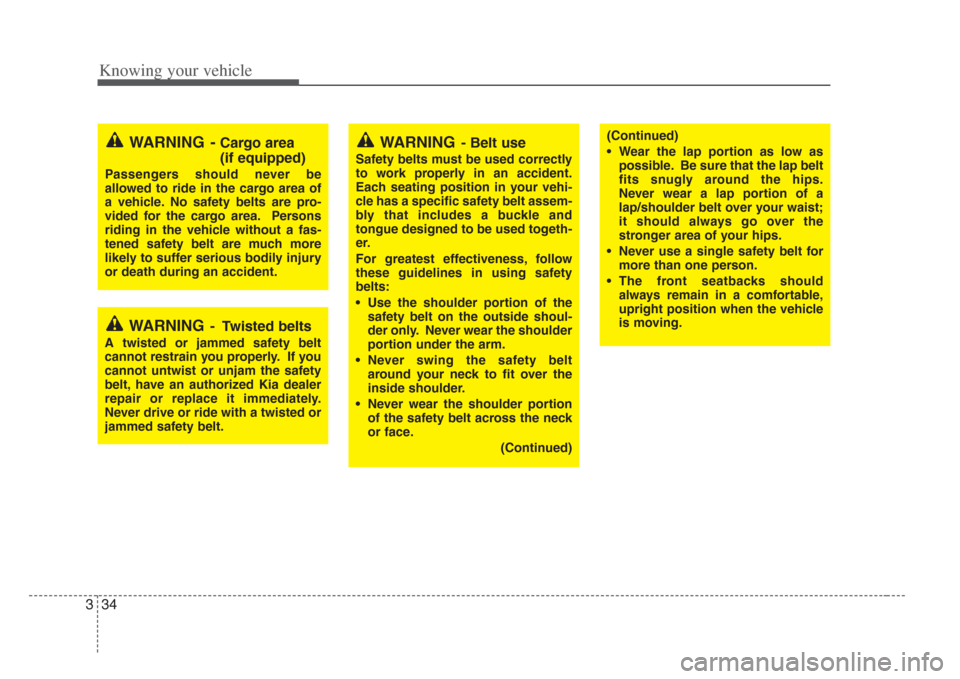

WARNING - Cargo area
(if equipped)
Passenger s should never be
allowed to ride in the cargo area of
a vehicle. No safety belt s are pro-
vided for the cargo area. Per sons
riding in the vehicle without a fa s-
tened safety belt are much more
likely to suffer serious bodily injury
or death during an accident.
WARNING- Twisted belts
A twisted or jammed safety belt
cannot restrain you properly. If you
cannot untwi st or unjam the safety
belt, have an authorized Kia dealer
repair or replace it immediately.
Never drive or ride with a twisted or
jammed safety belt.
WARNING- Belt use
Safety belts mu st be used correctly
to work properly in an accident.
Each seating po sition in your vehi-
cle has a specific safety belt assem-
bly that includes a buckle and
tongue designed to be used togeth-
er.
For greatest effectiveness, follow
thes e guidelines in using safety
belts:
•U se the shoulder portion of the
safety belt on the out side shoul-
der only. Never wear the shoulder
portion under the arm.
• Never swing the s afety belt
around your neck to fit over the
inside shoulder.
• Never wear the shoulder portion of the safety belt across the neck
or face.
(Continued)
(Continued)
• Wear the lap portion a s low as
possible. Be sure that the lap belt
fits snugly around the hips .
Never wear a lap portion of a
lap/shoulder belt over your wai st;
it should always go over the
stronger area of your hip s.
• Never use a single safety belt for
more than one per son.
• The front s eatbacks should
always remain in a comfortable,
upright po sition when the vehicle
is moving.

335
Knowing your vehicle
Safety belt warning light and
chime
If the driver's lap/shoulder belt is not fas-
tened when the key is turned ON or if it is
unfastened after the key is turned ON,
safety belt warning light blinks until the
belt is fastened.
If the driver's lap/shoulder belt is not fas-
tened when the key is turned ON or if it is
unfastened after the key is turned ON,
safety belt warning chime sounds for
approximately 6 seconds.
1GQA2083
WARNING- Safety beltcare
• A damaged belt may not give you
the protection you need in an
accident.
•In spect your safety belt s periodi-
cally for excessive wear or dam-
age. Pull out each belt fully and
look for fraying, cut s, burns or
other damage. Pull the safety belt
out and let it retract a number of
times . Make sure that the
lap/shoulder belts return smooth-
ly and easily into the retractor.
• Check the latches to make sure they latch and releas e without
interference or delay.
• Never close the door s on any part
of the lap or shoulder belt.
• Any belt not in good condition or in good working order should be
promptly replaced.
CAUTION
Never close the door s on any part
of the lap or shoulder belt. It can
damage the safety belt or buckle which could increase the risk ofinjury in case of an accident.

Knowing your vehicle
363

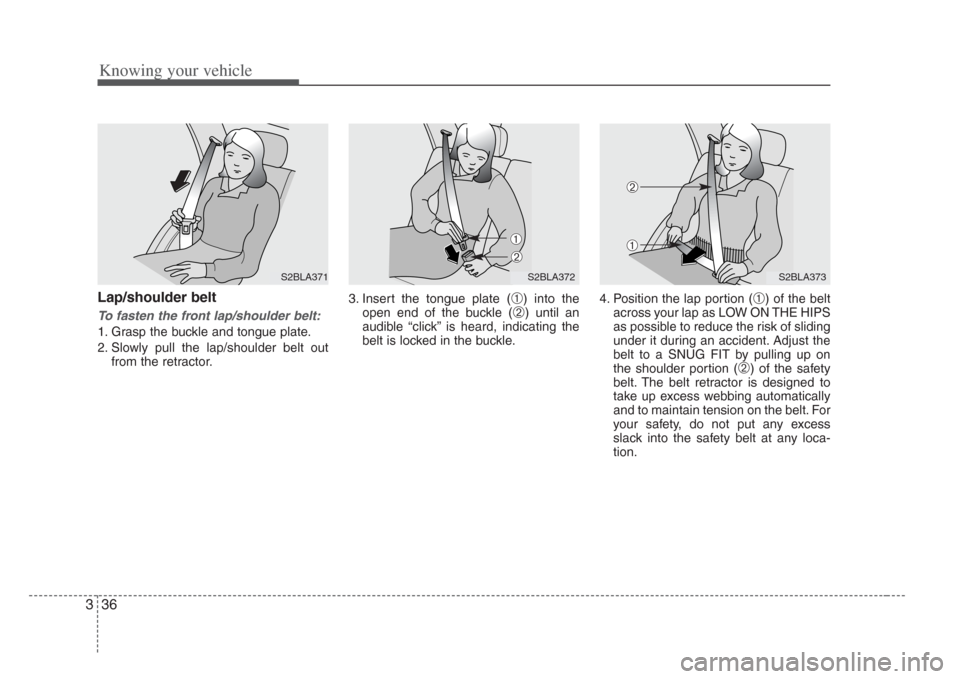

Lap/shoulder belt
To f asten the front lap/shoulder belt:
1. Grasp the buckle and tongue plate.
2. Slowly pull the lap/shoulder belt out
from the retractor. 3. Insert the tongue plate (
➀) into the
open end of the buckle (
➁) until an
audible “click” is heard, indicating the
belt is locked in the buckle. 4. Position the lap portion (
➀) of the belt
across your lap as LOW ON THE HIPS
as possible to reduce the risk of sliding
under it during an accident. Adjust the
belt to a SNUG FIT by pulling up on
the shoulder portion (
➁) of the safety
belt. The belt retractor is designed to
take up excess webbing automatically
and to maintain tension on the belt. For
your safety, do not put any excess
slack into the safety belt at any loca-
tion.
S2BLA371S2BLA372S2BLA373
➀
➁
➀
➁

337
Knowing your vehicle

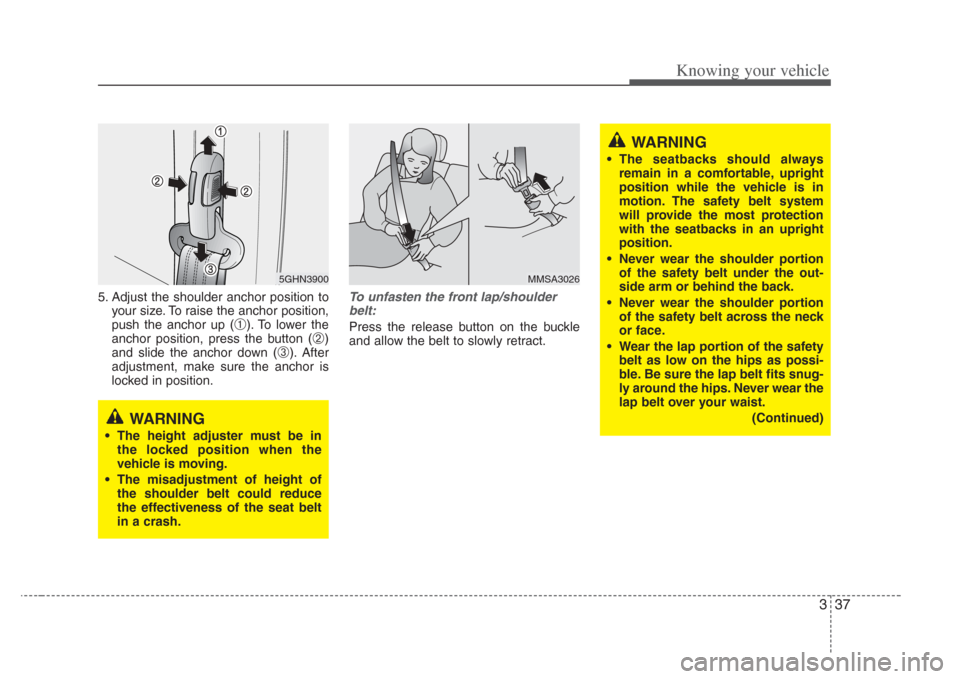

5. Adjust the shoulder anchor position toyour size. To raise the anchor position,
push the anchor up (
➀). To lower the
anchor position, press the button (
➁)
and slide the anchor down (
➂). After
adjustment, make sure the anchor is
locked in position.
To unfasten the front lap/shoulder belt:
Press the release button on the buckle
and allow the belt to slowly retract.
MMSA30265GHN3900
WARNING
• The height adju ster must be in
the locked pos ition when the
vehicle is moving.
• The misadjustment of height of the shoulder belt could reduce
the effectiveness of the seat belt
in a crash.
WARNING
• The seatbacks should always
remain in a comfortable, upright
position while the vehicle is in
motion. The safety belt system
will provide the most protection
with the seatbacks in an upright
position.
• Never wear the shoulder portion of the safety belt under the out-
side arm or behind the back.
• Never wear the shoulder portion of the safety belt across the neck
or face.
• Wear the lap portion of the safety
belt as low on the hips a s possi-
ble. Be sure the lap belt fits snug-
ly around the hip s. Never wear the
lap belt over your wai st.
(Continued)

Knowing your vehicle
383

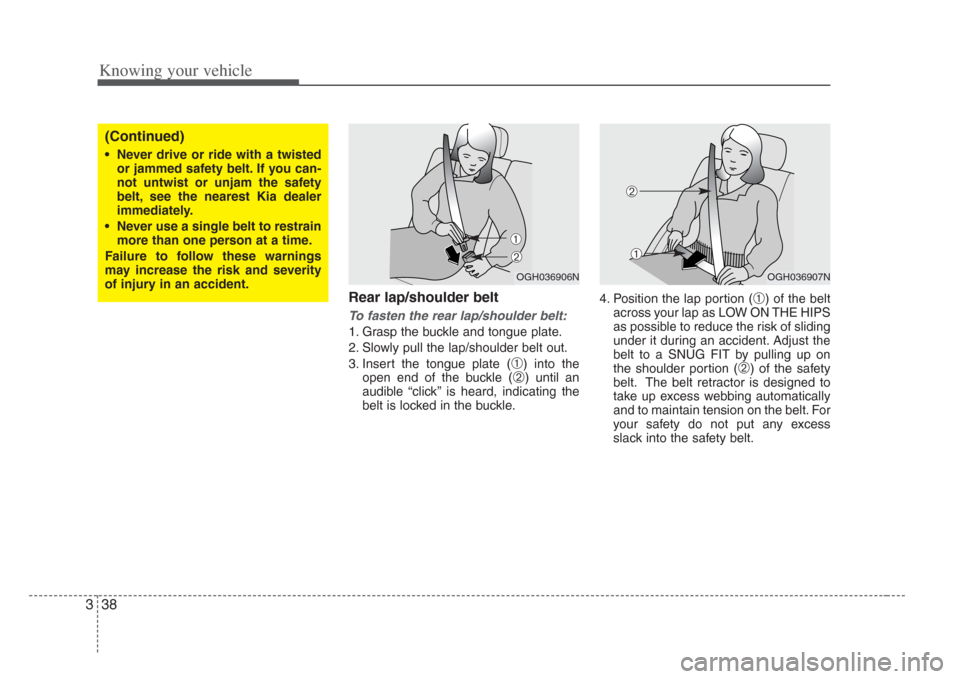

Rear lap/shoulder belt
To f asten the rear lap/ shoulder belt:
1. Grasp the buckle and tongue plate.
2. Slowly pull the lap/shoulder belt out.
3. Insert the tongue plate (
➀) into the
open end of the buckle (
➁) until an
audible “click’’ is heard, indicating the
belt is locked in the buckle. 4. Position the lap portion (
➀) of the belt
across your lap as LOW ON THE HIPS
as possible to reduce the risk of sliding
under it during an accident. Adjust the
belt to a SNUG FIT by pulling up on
the shoulder portion (
➁) of the safety
belt. The belt retractor is designed to
take up excess webbing automatically
and to maintain tension on the belt. For
your safety do not put any excess
slack into the safety belt.
(Continued)
• Never drive or ride with a twi sted
or jammed safety belt. If you can-
not untwist or unjam the safety
belt, see the nearest Kia dealer
immediately.
• Never use a single belt to restrain more than one per son at a time.
Failure to follow thes e warnings
may increase the risk and severity
of injury in an accident.
OGH036906NOGH036907N
➀
➁➀
➁
