2008 KIA Amanti Owner's Manual

Maintenance
147
BRAKES
Checking brake fluid level
Check the fluid level in the reservoir peri-
odically. The fluid level should be
between MAX and MIN marks on the
side of the reservoir.
Before removing the reservoir cap and
adding brake fluid, clean the area around
the reservoir cap thoroughly to prevent
brake fluid contamination.If the level is low, add fluid to the MAX
level. The level will fall with accumulated
mileage. This is a normal condition asso-
ciated with the wear of the brake pads. If
the fluid level is excessively low, have the
brake system checked by an Authorized
Kia Dealer.
Use only the specified brake fluid. (Refer
to “Recommended Lubricants” later inthis section.)
Never mix different types of fluid.
WARNING
When changing and adding brake
fluid, handle it carefully. Do not let it
come in contact with your eye s.If
brake fluid should come in contact
with your eyes, immediately flush
them with a large quantity of fre sh
tap water. Have your eye s examined
by a doctor as soon as possible.
WARNING
In the event the brake s ystem
requires frequent additions of fluid,
the vehicle should be inspected by
an Authorized Kia Dealer.
CAUTION
Do not allow brake fluid to contact the vehicle' s body paint, a s paint
damage will res ult. Brake fluid,
which has been exposed to open air for an extended time should never
be used as its quality cannot be guaranteed. It should be thrown
out. Don't put in the wrong kind of fluid. For example, just a few dropsof mineral-bas ed oil,such as
engine oil, in your brake system can damage brake system parts.
OGH057013

715
Maintenance
POWER STEERING
Checking the power steering fluid
level
With the vehicle on level ground, check
the fluid level in the power steering reser-
voir periodically. The fluid should be
between MAX and MIN marks on the
level gauge attached to the cap.
Before adding power steering fluid, thor-
oughly clean the area around the reser-
voir cap to prevent power steering fluid
contamination.
If the level is low, add fluid to the MAX
level. In the event the power steering system
requires frequent addition of fluid, the
vehicle should be inspected by an
Authorized Kia Dealer.
✽
NOTICE
 To avoid damage to the power steer-
ing pump, do not operate the vehicle
for prolonged periods with a low
power steering fluid level.
 Never start the engine when the reser- voir tank is empty.
 When adding fluid, be careful that dirt does not get into the tank.
 Too little fluid can make the steering wheel heavier or strange noise can be
generated.
 The use of the non-specified fluid could reduce the effectiveness of the
power steering wheel and cause dam-
age to it.
Use only the specified power steering
fluid. (Refer to "RecommendedLubricants" later in this section.)
Power steering hose
Check the connections for oil leaks,
severe damage and the twists in the
power steering hose before driving.
OGH076421N

Maintenance
167
AUTOMATIC TRANSAXLE
Checking the automatic transaxle
fluid level
The automatic transaxle fluid level
should be checked regularly.
Keep the vehicle on the level ground with
the parking brake applied and check the
fluid level according to the following pro-
cedure.
1. Place the selector lever in N (Neutral)position and confirm the engine is run-
ning at normal idle speed. 2. After the transaxle is warmed up suffi-
ciently (fluid temperature 70~80°C
(158~176°F), for example by 10 min-
utes usual driving, shift the selector
lever through all positions then place
the selector lever in “N (Neutral) or P
(Park)” position.
3. Confirm that the fluid level is in “HOT”range on the level gauge. If the fluid
level is lower, add the specified fluid
from the fill hole. If the fluid level is
higher, drain the fluid from the drain
hole.
4. If the fluid level is checked in cold con- dition (fluid temperature 20~30°C
(68~86°F) add the fluid to “COLD” line
and then recheck the fluid level
according to the above step 2.
OVQ056002OGH057008

717
Maintenance
✽NOTICE
“COLD” scale is for reference only and
should NOT be used to determine
transaxle fluid level.
New automatic transaxle fluid should be
red. The red dye is added so the assem-
bly plant can identify it as automatic
transaxle fluid and distinguish it from
engine oil or antifreeze. The red dye,
which is not an indicator of fluid quality, is
not permanent. As the vehicle is driven,
the automatic transaxle fluid will begin to
look darker. The color may eventually
appear light brown.
✽NOTICE
Have an Authorized Kia dealer change
the automatic transaxle fluid according
to the Scheduled Maintenance at the
beginning of this section.CAUTION
• Low fluid level causes transaxle
slippage. Overfilling can caus e
foaming, loss of fluid and transaxle malfunction.
• The use of a non- specified fluid
could result in transaxle malfunc- tion.
WARNING- Parking brake
To avoid sudden movement of the
vehicle, apply parking brake and
depress the brake pedal before
moving the shift lever.
WARNING - Transaxle fluid
The transaxle fluid level should be
checked when the engine i s at nor-
mal operating temperature. This
means that the engine, radiator,
radiator hose and exhaust system
etc., are very hot. Exercise great
care not to burn your self during this
procedure.

Maintenance
187
LUBRICANTS AND FLUIDS
Checking the washer fluid level
The reservoir is translucent so that you
can check the level with a quick visual
inspection.
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold cli-
mates to prevent freezing.
Body lubrication
All moving points of the body, such as
door hinges, hood hinges, and locks,
should be lubricated each time the
engine oil is changed. Use a non-freez-
ing lubricant on locks during cold weath-
er.
Make sure the engine hood secondary
latch keeps the hood from opening when
the primary latch is released.WARNING
• Do not use radiator coolant or
antifreeze in the was her fluid
reservoir.
• Radiator coolant can s everely
obscure visibility when sprayed
on the wind shield and may cau se
loss of vehicle control or damage
to paint and body trim.
•Wind shield Washer fluid agents
contain some amounts of alcohol
and can be flammable under cer-
tain circumstances. Do not allow
sparks or flame to contact the
washer fluid or the wa sher fluid
reservoir. Damage to the vehicle
or it's occupants could occur.
•Wind shield washer fluid is poi-
sonous to humans and animals.
Do not drink and avoid contacting
windshield washer fluid. Seriou s
injury or death could occur.
OGH057500

719
Maintenance
AIR CLEANER
Element replacement
Have the air cleaner element checked
and replaced in accordance with the
maintenance schedule.The climate control air filter located
between the evaporator core and blower
filters the air coming into the vehicle.
If dust or other pollutants accumulate in
the filter for a period of time, the air flow
from the air vents may be decreased and
the dust intake may increase. Therefore
the air filter should be replaced at the
intervals shown in the maintenance
schedule. If the vehicle is operated in
dusty or sandy areas, replace the filter
more often than the recommended inter-
vals.
CLIMATE CONTROL AIR FILTER (IF EQUIPPED)
OGH056911N
Evaporator core
Blower
Outside air
Recirculated air
Climate control air filter
Inside
vehicle
CAUTION
• Do not drive with the air cleaner
removed; thi s will result in exces-
sive engine wear.
• Driving without an air cleaner encourages backfiring, which
could cause a fire in the engine compartment.
• When removing the air cleaner element, be careful that du st or
dirt does not enter the air intake, or damage may result.
OGH057009

Maintenance
207

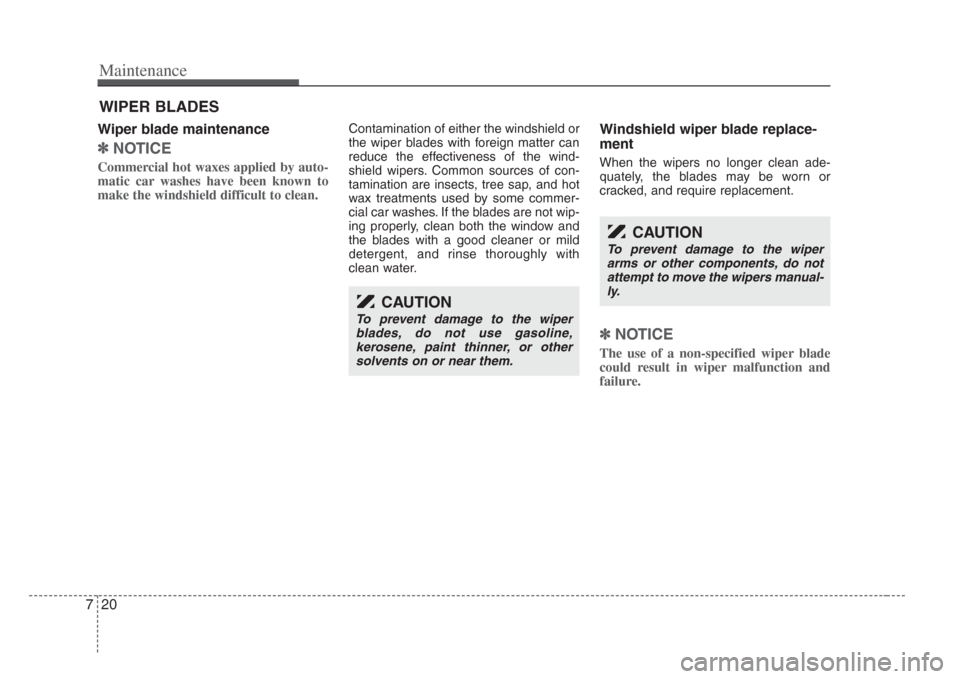

WIPER BLADES
Wiper blade maintenance
✽NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the wind-
shield wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.Windshield wiper blade replace-
ment
When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
✽NOTICE
The use of a non-specified wiper blade
could result in wiper malfunction and
failure.
CAUTION
To prevent damage to the wiper
blades , do not us e gasoline,
keros ene, paint thinner, or other
solvents on or near them.
CAUTION
To prevent damage to the wiper arms or other components, do notattempt to move the wiper s manual-
ly.

721
Maintenance
1. Raise the wiper arm and turn the wiperblade assembly to expose the plastic
locking clip.
✽NOTICE
Do not allow the wiper arm to fall
against the windshield, since it may chip
or crack the windshield.
2. Compress the clip and slide the blade
assembly downward. 3. Lift it off the arm.
4. Install the blade assembly in the
reverse order of removal.
1JBA70371JBA70381LDA5023
