2008 INFINITI QX56 lock

DLN-234
< PRECAUTION >[REAR FINAL DRIVE: R230]
PRECAUTIONS
5. When the repair work is completed, return the ignition switch to the
″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of a ll control units using CONSULT-III.
Precaution for Servicing Rear Final DriveINFOID:0000000001604452
• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic
operations.
• Check for the correct installation status prior to re moval or disassembly. When matching marks are required,
be certain they do not interfere with the function of the parts they are applied to.
• Overhaul should be done in a clean work area, a dust proof area is recommended.
• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from
entering into the unit during disassembly or assembly.
• Always use shop paper for cleaning the inside of components.
• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.
• Check appearance of the disassembled parts for dam age, deformation, and abnormal wear. Replace them
with new ones if necessary.
• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.
• Clean and flush the parts sufficiently and blow them dry.
• Be careful not to damage sliding surfaces and mating surfaces.
• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and
foreign materials from the application and mating surfaces.
• In principle, tighten nuts or bolts gradually in severa l steps working diagonally from inside to outside. If a
tightening sequence is specified, observe it.
• During assembly, observe the specified tightening torque.
• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.
Revision: March 2010 2008 QX56

PREPARATIONDLN-235
< PREPARATION > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000004921753
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool name Description
KV40104000
(—)
Flange wrench Removing and installing drive pinion lock nut
a: 85 mm (3.35 in) dia.
b: 65 mm (2.56 in) dia.
ST33081000
(—)
Adapter Installing differential carrier side bearings
a: 43 mm (1.69 in) dia.
b: 33.5 mm (1.319 in) dia.
ST15310000
(—)
Oil seal drift Installing front oil seal
a: 96 mm (3.78 in) dia.
b: 84 mm (3.31 in) dia.
ST30621000
(—)
Drift Installing drive pinion front and rear bearing
races
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.
ST30022000
(—)
Drift Installing drive pinion bearing
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.
ST35325000
(—)
Drift bar Installing drive pinion front and rear bearing
races
NT659
NT431
ZZA0908D
NT073
ZZA0920D
ZZA1140D
Revision: March 2010
2008 QX56

FRONT OIL SEALDLN-243
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
ON-VEHICLE REPAIR
FRONT OIL SEAL
Removal and InstallationINFOID:0000000001604459
REMOVAL
1. Remove the drive shafts from the rear final drive assembly. Refer to RAX-10, "Removal and Installation".
2. Remove the side flanges and side oil seals. Refer to DLN-245, "
Removal and Installation".
3. Remove the rear propeller shaft. Refer to DLN-194, "
Removal and Installation".
4. Measure the total preload torque. Refer to DLN-268, "
Inspection and Adjustment".
NOTE:
Record the total preload torque measurement.
5. Remove the drive pinion lock nut using Tool.
6. Put matching marks on the companion flange and drive pinion using paint.
CAUTION:
Use paint to make the matching marks. Do not damage the
companion flange or drive pinion.
7. Remove the companion flange using suitable tool.
8. Remove the front oil seal using Tool.
INSTALLATION
Tool number : KV40104000 ( — )
SDIA1142E
SDIA1054E
Tool number : KV381054S0 (J-34286)
SDIA0485E
Revision: March 2010 2008 QX56

DLN-244
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
FRONT OIL SEAL
1. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly until it becomes flush
with the gear carrier using Tool.
CAUTION:
• Do not reuse front oil seal.
• Do not incline the new front oil seal when installing.
• Apply multi-purpose grease to the lips of the new front oilseal.
2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using Tool A, and check
the total preload torque using Tool B.
• The total preload torque should be within the total preloadtorque specification. When not replacing the collapsible
spacer, it should also be equal to the measurement taken dur-
ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).
• If the total preload torque is low, tighten the drive pinion lock nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-
load torque is met.
CAUTION:
• Do not reuse drive pinion lock nut.
• Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut.
• Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to DLN-251, "
Disassembly and Assembly".
• Do not loosen drive pinion lock nu t to adjust the total preload torque. If the total preload torque
exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to
DLN-251, "
Disassembly and Assembly".
• After adjustment, rotate drive pinion back and fo rth 2 to 3 times to check for unusual noise, rota-
tion malfunction, and other malfunctions.
4. Installation of the remaining components is in the reverse order of removal. CAUTION:
Check the differential gear oil level after installation. Refer to DLN-242, "
Checking Differential Gear
Oil".
Tool number : ST15310000 ( — )
PDIA0565E
Tool number A: KV40104000 ( — )
B: ST3127S000 (J-25765-A)
Total preload torque: Refer to DLN-268, "
Inspection
and Adjustment".
WDIA0380E
Revision: March 2010 2008 QX56

DLN-252
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
ASSEMBLY INSPECTION AND ADJUSTMENT
• Drain the differential gear oil before inspection and adjustment. Refer to
DLN-242, "Changing Differential
Gear Oil".
• Remove and install the carrier cover as neces sary for inspection and adjustment. Refer to DLN-247,
"Removal and Installation".
Total Preload Torque
1. Remove the side flanges if necessary. Refer to "Side Flange".
CAUTION:
The side flanges shaft must removed in order to measure total preload torque.
2. Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
3. Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.
4. Measure the total preload torque using Tool.
NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque
• If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion
bearing preload torque first, then adjust the side bearing preload torque.
CAUTION:
Select a side bearing adjusting wash er for right and left individually.
Drive Gear Runout
1. Drive pinion lock nut 2. Companion flange3. Front oil seal
4. Drive pinion front bearing 5. Collapsible spacer6. Drive pinion rear bearing
7. Drive pinion height adjusting washer 8. Drive pinion 9. Gear carrier
10. Drive gear 11. Pinion mate shaft12. Lock pin
13. Pinion mate gear 14. Pinion mate thrust washer 15. Side gear
16. Side gear thrust washer 17. Differential case18. Side bearing
19. Side bearing adjusting washer 20. Bearing cap 21. Carrier cover
22. Filler plug 23. Drain plug24. Side oil seal
Tool number : ST3127S000 (J-25765-A)
Total preload torque:
2.05 - 4.11 N·m (0.21 - 0.42 kg-m, 19 - 36 in-lb)
SPD884
If the total preload torque is greater than specificationOn drive pinion bearings: Replace the collapsible spacer.
On side bearings: Use thinner side b earing adjusting washers by the same
amount on each side. Refer to DLN-268, "
Inspection and Adjust-
ment".
If the total preload torque is less than specification On drive pinion bearings: Tighten the drive pinion lock nut.
On side bearings: Use thicker side b earing adjusting washers by the same
amount on each side. Refer to DLN-268, "
Inspection and Ad-
justment".
Revision: March 2010 2008 QX56

REAR FINAL DRIVEDLN-257
< DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

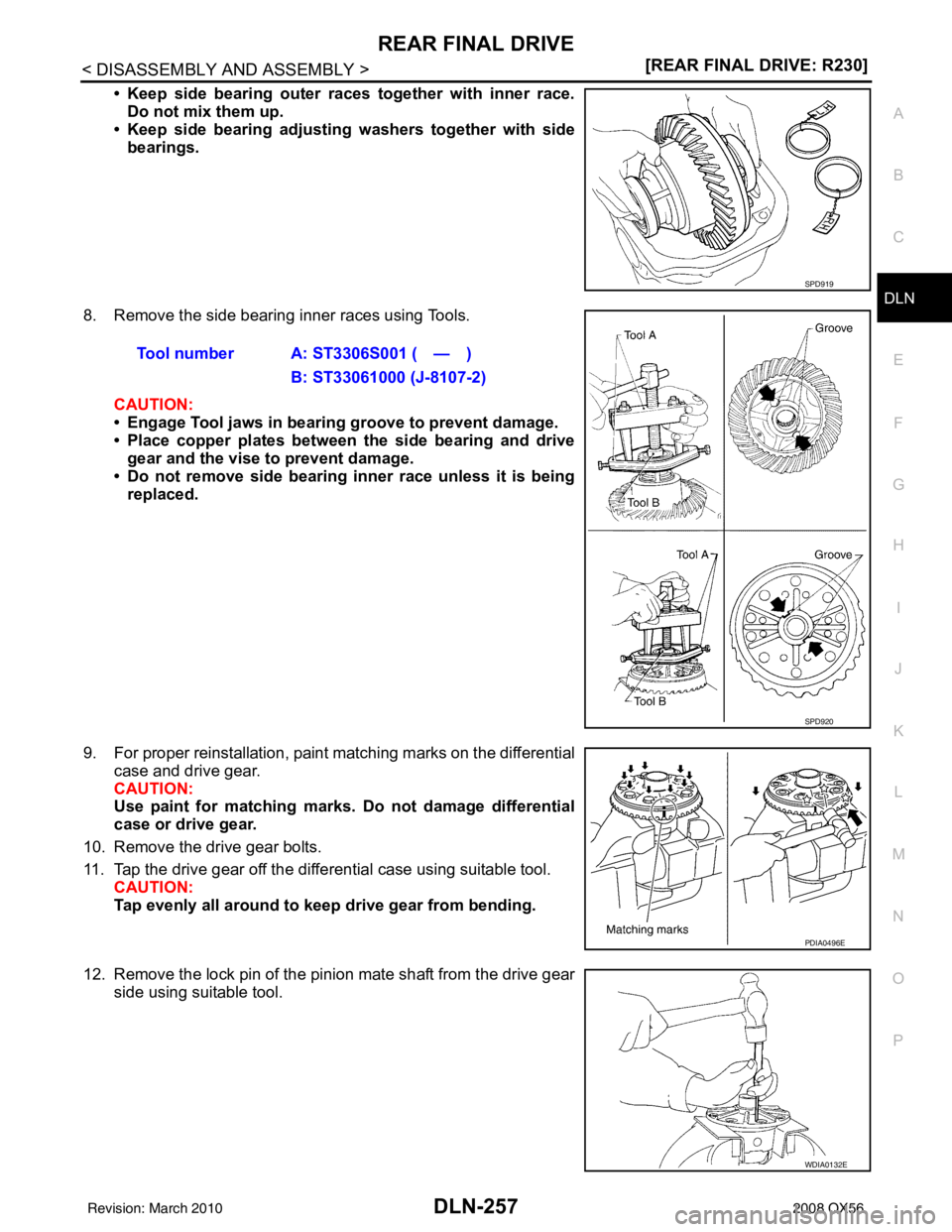

• Keep side bearing outer races together with inner race. Do not mix them up.
• Keep side bearing adjusting washers together with side
bearings.
8. Remove the side bearing inner races using Tools. CAUTION:
• Engage Tool jaws in bearing groove to prevent damage.
• Place copper plates between the side bearing and drive
gear and the vise to prevent damage.
• Do not remove side bearing inner race unless it is being
replaced.
9. For proper reinstallation, paint matching marks on the differential case and drive gear.
CAUTION:
Use paint for matching marks. Do not damage differential
case or drive gear.
10. Remove the drive gear bolts.
11. Tap the drive gear off the differential case using suitable tool. CAUTION:
Tap evenly all around to keep drive gear from bending.
12. Remove the lock pin of the pinion mate shaft from the drive gear side using suitable tool.
SPD919
Tool number A: ST3306S001 ( — )
B: ST33061000 (J-8107-2)
SPD920
PDIA0496E
WDIA0132E
Revision: March 2010 2008 QX56

DLN-258
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE

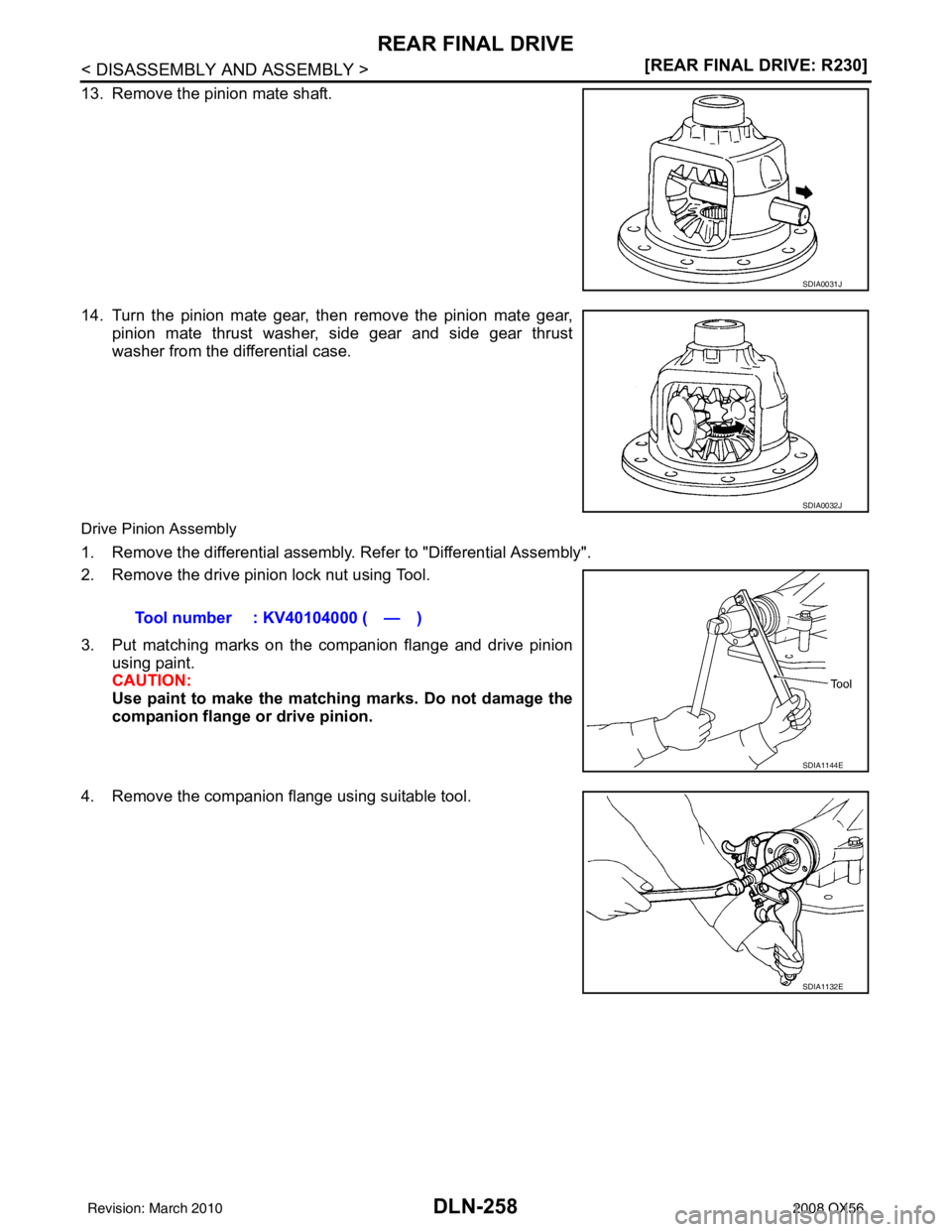

13. Remove the pinion mate shaft.
14. Turn the pinion mate gear, then remove the pinion mate gear,
pinion mate thrust washer, side gear and side gear thrust
washer from the differential case.
Drive Pinion Assembly
1. Remove the differential assembly. Refer to "Differential Assembly".
2. Remove the drive pinion lock nut using Tool.
3. Put matching marks on the companion flange and drive pinion
using paint.
CAUTION:
Use paint to make the matching marks. Do not damage the
companion flange or drive pinion.
4. Remove the companion flange using suitable tool.
SDIA0031J
SDIA0032J
Tool number : KV40104000 ( — )
SDIA1144E
SDIA1132E
Revision: March 2010 2008 QX56

REAR FINAL DRIVEDLN-263
< DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

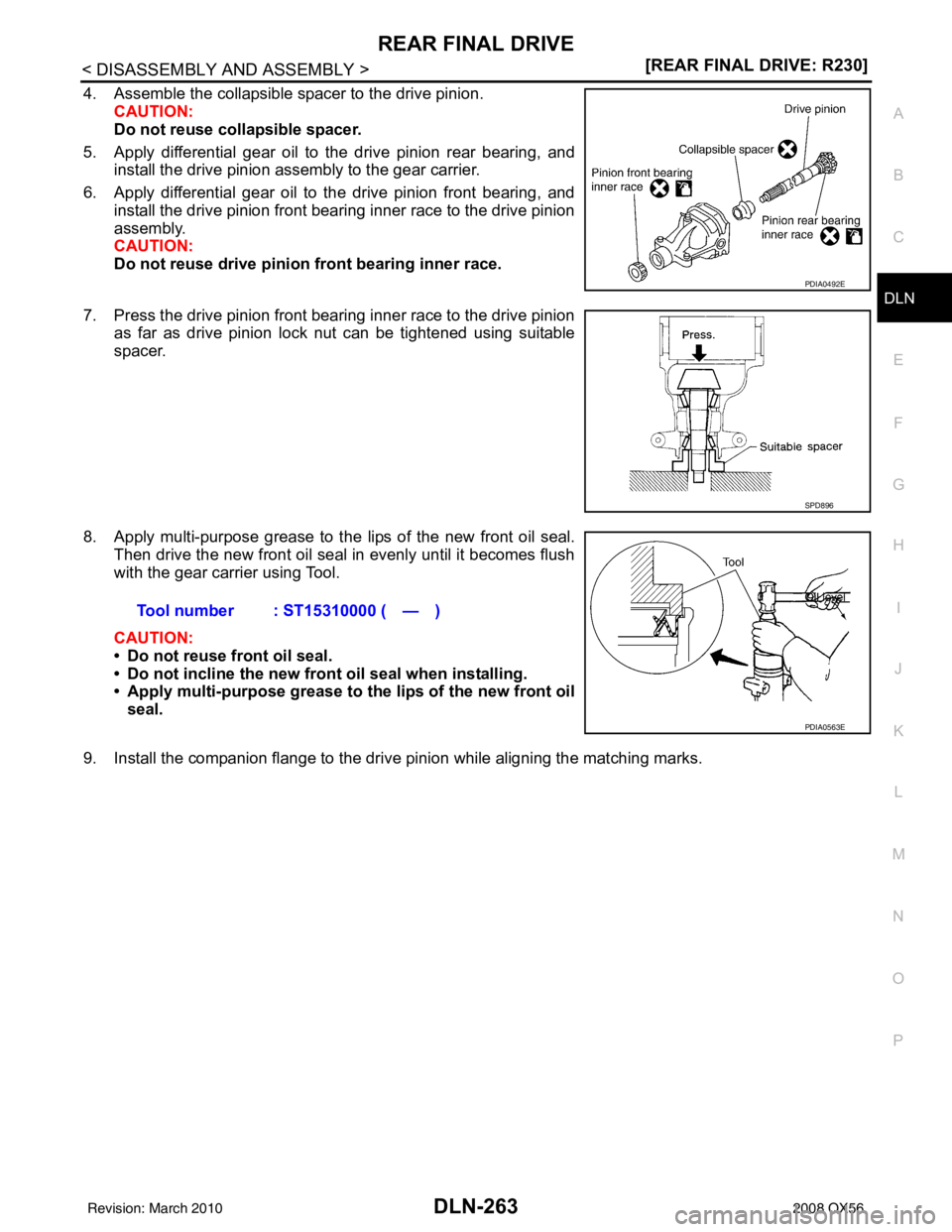

4. Assemble the collapsible spacer to the drive pinion. CAUTION:
Do not reuse collapsible spacer.
5. Apply differential gear oil to the drive pinion rear bearing, and install the drive pinion assembly to the gear carrier.
6. Apply differential gear oil to the drive pinion front bearing, and install the drive pinion front bearing inner race to the drive pinion
assembly.
CAUTION:
Do not reuse drive pinion front bearing inner race.
7. Press the drive pinion front bearing inner race to the drive pinion as far as drive pinion lock nut can be tightened using suitable
spacer.
8. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly until it becomes flush
with the gear carrier using Tool.
CAUTION:
• Do not reuse front oil seal.
• Do not incline the new fron t oil seal when installing.
• Apply multi-purpose grease to the lips of the new front oil
seal.
9. Install the companion flange to the drive pinion while aligning the matching marks.
PDIA0492E
SPD896
Tool number : ST15310000 ( — )
PDIA0563E
Revision: March 2010 2008 QX56
