5.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect “fuel level sensor unit and fuel pump” harness con- nector.
4. Turn ignition switch ON.
5. Check voltage between “fuel level sensor unit and fuel pump”
terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6.CHECK 15A FUSE
1. Turn ignition switch OFF.
2. Disconnect 15A fuse.
3. Check 15A fuse.
OK or NG
OK >> GO TO 7.
NG >> Replace fuse.
7.CHECK FUEL PUMP POWER SUPPLY CIRCUIT-IV
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and “fuel level sensor unit and fuel pump” termi-
nal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, B6
Harness for open or short between IPDM E/R and “fuel level sensor unit and fuel pump”
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1572E
Voltage: Battery voltage should exist for 1 second after ignition switch is turned ON.
PBIB0795E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1802 of 3924
![INFINITI FX35 2008 Service Manual
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and gro INFINITI FX35 2008 Service Manual
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and gro](/manual-img/42/57017/w960_57017-1801.png)
EC-562
< SERVICE INFORMATION >[VQ35DE]
FUEL PUMP
9.CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between “fuel level sensor unit and fuel pump” terminal 3 and ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10.CHECK FUEL PUMP
Refer to EC-1159, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> Replace “fuel level sensor unit and fuel pump”.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17
NG >> Repair or replace harness or connectors.
Component InspectionINFOID:0000000001326448
FUEL PUMP
1. Disconnect “fuel level sensor unit and fuel pump” harness connector.
2. Check resistance between “fuel level sensor unit and fuel pump” terminals 1 and 3.
Removal and InstallationINFOID:0000000001326449
FUEL PUMP
Refer to FL-4.
Continuity should exist.
Resistance: 0.2 - 5.0
Ω [at 25 °C (77 °F)]
SEC918C
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1804 of 3924
EC-564
< SERVICE INFORMATION >[VQ35DE]
ICC BRAKE SWITCH
Wiring Diagram
INFOID:0000000001326452
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1410E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1807 of 3924
![INFINITI FX35 2008 Service Manual
ICC BRAKE SWITCHEC-567
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6.CHECK ICC BRAKE SWITCH INPUT SIGN
AL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harne INFINITI FX35 2008 Service Manual
ICC BRAKE SWITCHEC-567
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6.CHECK ICC BRAKE SWITCH INPUT SIGN
AL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harne](/manual-img/42/57017/w960_57017-1806.png)
ICC BRAKE SWITCHEC-567
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6.CHECK ICC BRAKE SWITCH INPUT SIGN
AL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Check harness continuity between ICC brake hold re lay terminal 3 and ICC brake switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ICC BRAKE SWITCH
Refer to EC-567, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> Replace ICC brake switch.
8.CHECK ICC BRAKE SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brak e hold relay terminal 4 and ECM terminal 108.
Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ICC brake hold relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK ICC BRAKE HOLD RELAY
Refer to EC-567, "
Component Inspection".
OK >> GO TO 11.
NG >> Replace ICC brake fold relay.
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
Component InspectionINFOID:0000000001326454
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector. Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1810 of 3924
EC-570
< SERVICE INFORMATION >[VQ35DE]
IGNITION SIGNAL

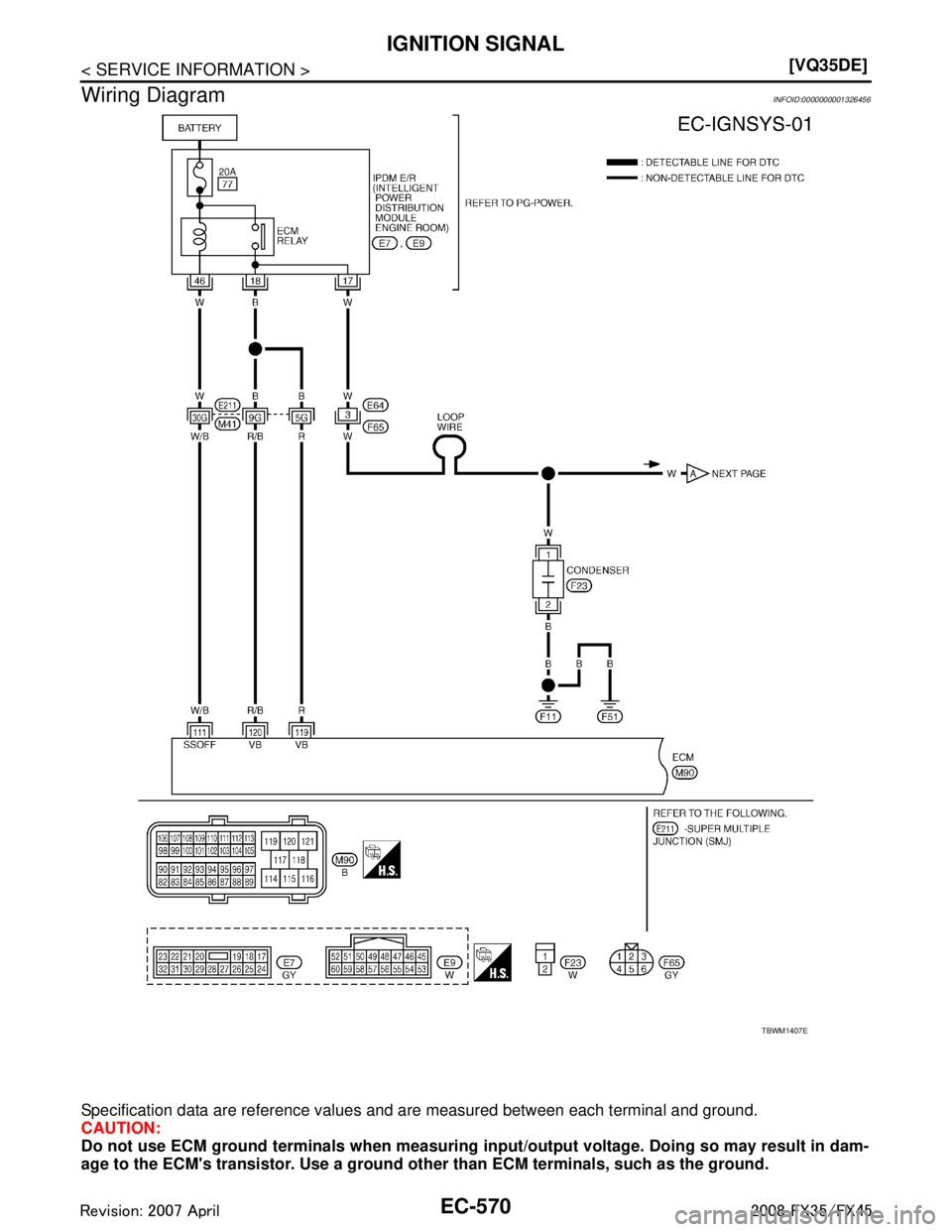

Wiring Diagram
