EC-982
< SERVICE INFORMATION >[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
NG >> Replace fuel filler cap with a genuine one.
5.INSTALL THE PRESSURE PUMP
To locate the EVAP leak, install EVAP service port adapter and pres-
sure pump to EVAP service port (2) securely.
 EVAP canister purge volume control solenoid valve (1)
NOTE:
Improper installation of the EV AP service port adapter to the
EVAP service port may cause leaking.
With CONSULT-III>>GO TO 6.
Without CONSULT-III>>GO TO 7.
6.CHECK FOR EVAP LEAK
With CONSULT-III
1. Turn ignition switch ON.
2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT-III.
3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of
the bar graph.
CAUTION:
 Do not use compressed air or a high pressure pump.
 Do not exceed 4.12 kPa (0.042 kg/cm
2, 0.6 psi) of pressure in the system.
4. Using EVAP leak detector, locate the EVAP leak. For the leak
detector, refer to the instruction manual for more details.
Refer to EC-618, "
Description".
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
7.CHECK FOR EVAP LEAK
Without CONSULT-III
1. Turn ignition switch OFF.
PBIB3238E
SEF916U
SEF200U
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1144
< SERVICE INFORMATION >[VK45DE]
ASCD INDICATOR
ASCD INDICATOR
Component DescriptionINFOID:0000000001327044
ASCD indicator lamp illuminates to indicate ASCD
operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE lamp illuminates when MAIN switch on ASCD steer ing switch is turned ON to indicated that ASCD
system is ready for operation.
SET lamp illuminates when following conditions are met.
 CRUISE lamp is illuminated.
 SET/COAST switch on ASCD steering switch is tur ned ON while vehicle speed is within the range of ASCD
setting.
SET lamp remains lit during ASCD control.
Refer to EC-615
for the ASCD function.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001327045
Specification data are reference value.
MONITOR ITEM CONDITION SPECIFICATION
CRUISE LAMP  Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP  MAIN switch: ON
 When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH) ASCD: Operating ON
ASCD: Not operating OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ASCD INDICATOREC-1145
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

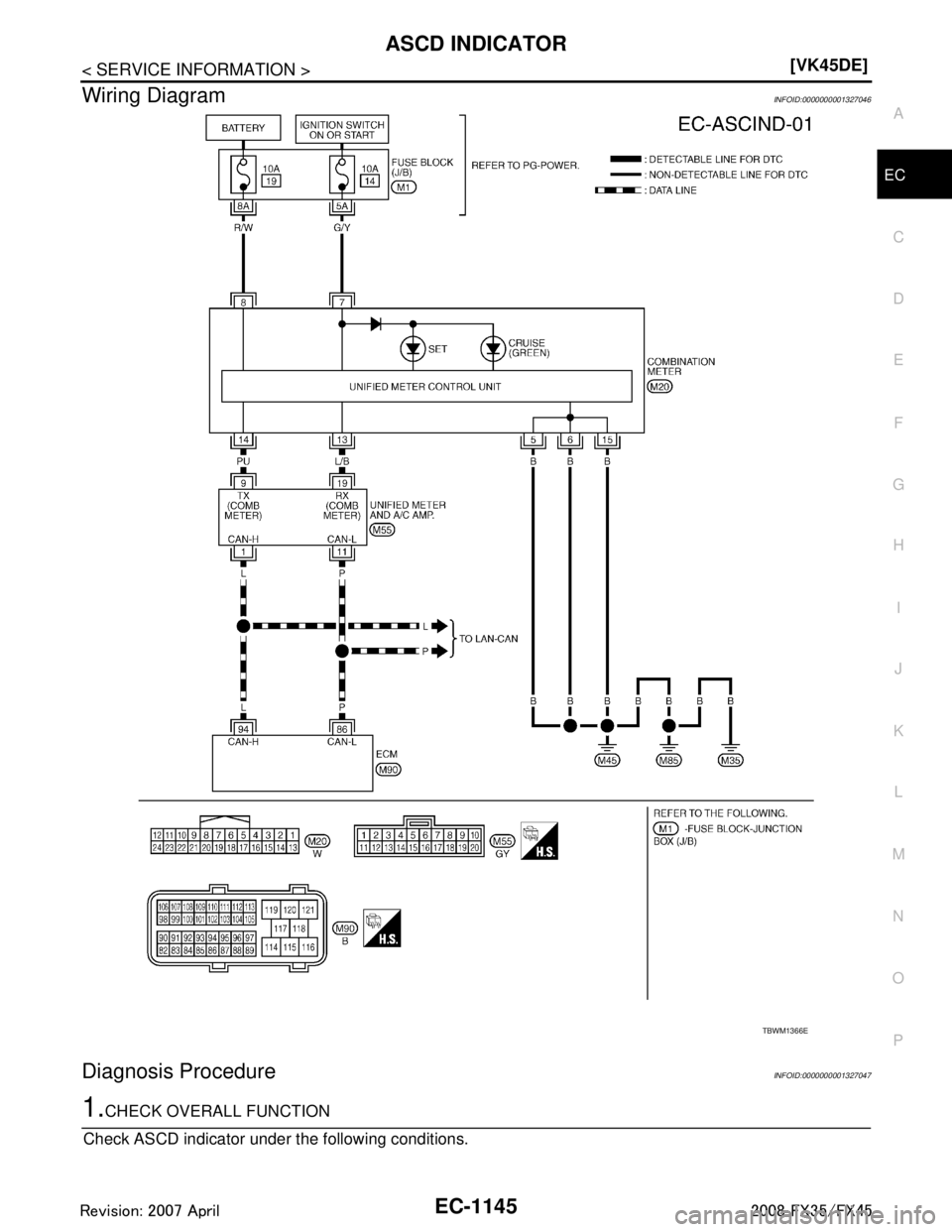

Wiring DiagramINFOID:0000000001327046
Diagnosis ProcedureINFOID:0000000001327047
1.CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
TBWM1366E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1146
< SERVICE INFORMATION >[VK45DE]
ASCD INDICATOR
OK or NG
OK >>
INSPECTION END
NG >> GO TO 2.
2.CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnosis for DTC U1000, U1001. Refer to EC-724
.
3.CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-27, "
CONSULT-III Function (METER/M&A)".
OK or NG
OK >> GO TO 4.
NG >> Go to DI-30, "
DTC [B2202] Meter Communication Circuit".
4.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP  Ignition switch: ON MAIN switch: Pressed at the 1st
time
→ at the 2nd time ON
→ OFF
SET LAMP MAIN switch: ON
 When vehicle speed is be-
tween 40 km/h (25 MPH) and
144 km/h (89 MPH) ASCD: Operating ON
ASCD: Not operating OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-1184
< SERVICE INFORMATION >[VK45DE]
SNOW MODE SWITCH
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2.CHECK SNOW MODE SWIT
ICH OVERALL FUNCTION-II
1. Turn ignition switch ON.
2. Start engine.
3. Check the snow indicator lamp under the following condition.
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
3.CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-27, "
CONSULT-III Function (METER/M&A)".
OK or NG
OK >> GO TO 4.
NG >> Go to DI-26
.
4.CHECK SNOW MODE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect snow mode switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between snow mode switch terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
 10A fuse
 Harness for open or short between snow mode switch and fuse.
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK SNOW MODE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “unified meter and A/C amp.” harness connector.
3. Check harness continuity between snow mode switch terminal 4 and “unified meter and A/C amp.” termi-
nal 12. Refer to Wiring Diagram.
CONDITION INDICATION
Snow mode switch: ON ON
Snow mode switch: OFF OFF
CONDITION INDICATOR LAMP
Snow mode switch: ON Illuminated
Snow mode switch: OFF Not illuminated
Voltage: Battery voltage.
PBIB2562E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SNOW MODE SWITCHEC-1185
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 8.
NG >> Repair or replace ground connections.
8.CHECK SNOW MODE INDICATOR LAMP GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between snow mode switch terminal 2 and ground. Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors.
9.CHECK SNOW MODE SWITCH
Refer to EC-1185, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace snow mode switch.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001327081
SNOW MODE SWITCH
PBIB2195E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

FRONT TIMING CHAIN CASEEM-55
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
16. Remove collared O-ring from front timing chain case (left and
right side).
17. Remove rocker covers (right and left banks). Refer to EM-51, "
Component".
NOTE:
When only timing chain (primary) is removed, rocker cover does not need to be removed.
18. Obtain No. 1 cylinder at TDC of its compression stroke as follows: NOTE:
When timing chain is not removed/installed, this step is not required.
a. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder (engine front side of right bank) are located as shown in the fig-
ure.
 If not, turn crankshaft one revolution (360 degrees) and alignas shown in the figure.
NOTE:
When only timing chain (primary) is removed, rocker cover does
not need to be removed. To make sure that No. 1 cylinder is at
its compression TDC, remove front timing chain case first. Then
check mating marks on camshaft sprockets. Refer to EM-65,
"Removal and Installation".
19. Remove crankshaft pulley as follows:
a. Remove rear cover plate (2WD models) or star ter motor (AWD models) and set ring gear stopper (SST).
Refer to EM-30, "
Component (2WD Models)" (2WD models) or SC-8, "System Description" (AWD mod-
els).
b. Loosen crankshaft pulley bolt and locate bolt seating surface as 10 mm (0.39 in) from its original position.
CAUTION:
Do not remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.
PBIC2631E
KBIA1717J
SEM418G
PBIC1103E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-66
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
 Loosen mounting bolts in reverse order as shown in the figure.
 Use the seal cutter [SST: KV10111100 (J37228)] to cut liquid
gasket for removal.
CAUTION:
Shaft is internally jointed wi th camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
19. Remove collared O-ring from front timing chain case (left and right side).
20. Remove rocker covers (right and left). Refer to EM-51, "
Component".
21. Remove oil pans (lower and upper). Refer to EM-30, "
Component (2WD Models)".
22. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder (engine front side of right bank) are located as shown in the fig-
ure.
 If not, turn crankshaft one revolution (360 degrees) and alignas shown in the figure.
23. Remove crankshaft pulley as follows:
a. Remove rear cover plate (2WD models) or starter motor (AWD models) and set the ring gear stopper (SST). Refer to EM-30, "
Component (2WD Models)" (2WD models) or SC-8, "System Description" (AWD
models).
SEM728G
PBIC2631E
KBIA1717J
SEM418G
