OIL PAN AND OIL STRAINER
ComponentINFOID:0000000001325778
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325779
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove front road wheels and tires.
2. Remove hood assembly. Refer to BL-13, "
Fitting Adjustment".
3. Remove engine cover with power tool. Refer to EM-169, "
Component".
4. Remove front and rear engine undercovers with power tool.
5. Drain engine oil. Refer to LU-24, "
Changing Engine Oil".
CAUTION:
 Perform this step when engine is cold.

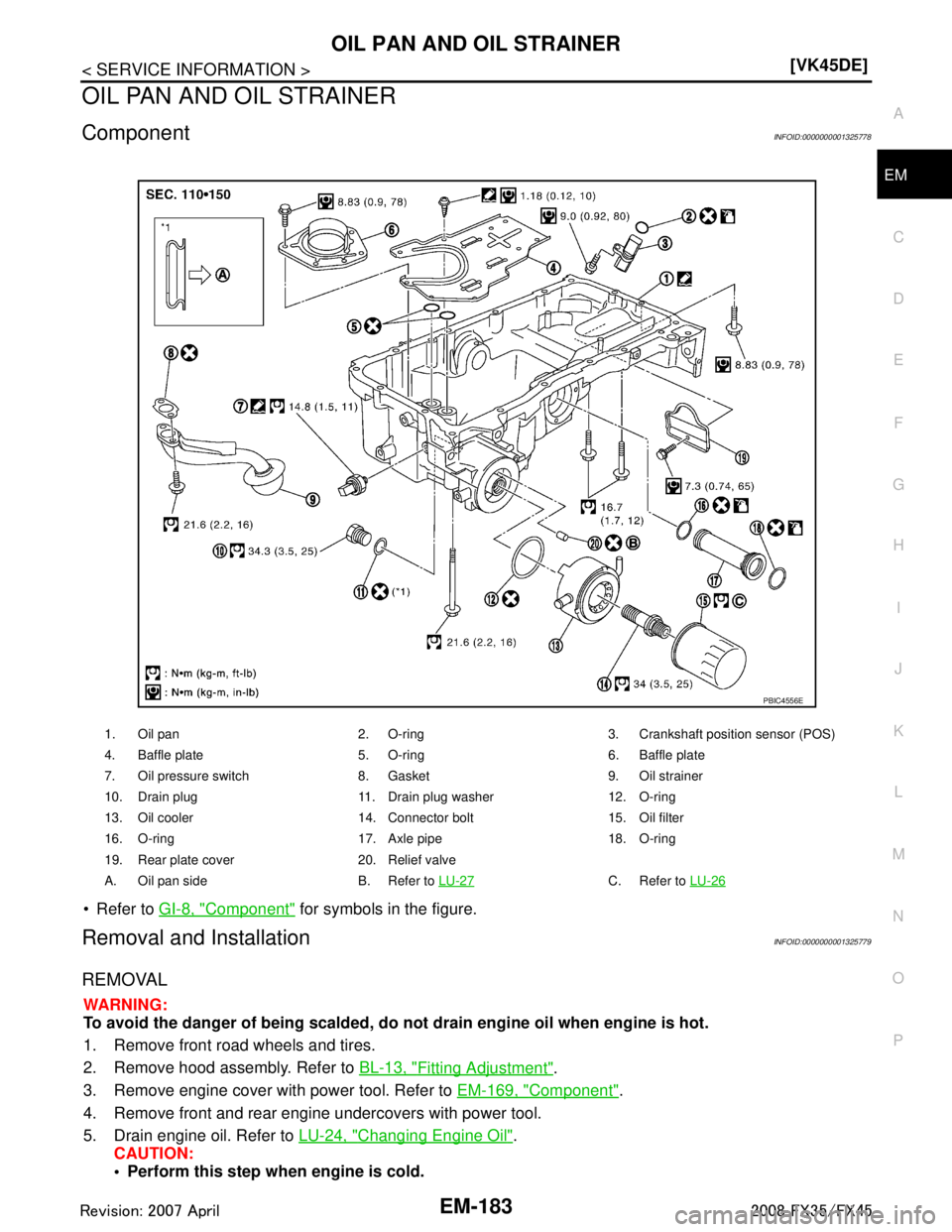

1. Oil pan 2. O-ring 3. Crankshaft position sensor (POS)
4. Baffle plate 5. O-ring 6. Baffle plate
7. Oil pressure switch 8. Gasket 9. Oil strainer
10. Drain plug 11. Drain plug washer 12. O-ring
13. Oil cooler 14. Connector bolt 15. Oil filter
16. O-ring 17. Axle pipe 18. O-ring
19. Rear plate cover 20. Relief valve
A. Oil pan side B. Refer to LU-27
C. Refer to LU-26
PBIC4556E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-184
< SERVICE INFORMATION >[VK45DE]
OIL PAN AND OIL STRAINER
 Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
 Perform this step when engine is cold.
 Do not spill engine coolant on drive belts.
7. Remove drive belts. Refer to EM-170, "
Component".
8. Remove auto tensioner of power steering oil pump belt. Refer to EM-172, "
Drive Belt Auto Tensioner and
Idler Pulley".
9. Remove power steering oil pump with piping connect ed, and temporarily secure it aside with ropes or
equivalent. Refer to PS-27, "
On-Vehicle Inspection and Service".
10. Remove A/C compressor with piping connected, and tem porarily secure it aside with ropes or equivalent.
Refer to ATC-121, "
Component".
11. Remove A/C compressor fitting bolts, and install A/C compressor temporarily on vehicle side with ropes or equivalent.
12. Remove harness of lower side of oil pan.
13. Remove crankshaft position sensor (POS) from transmission. CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble it.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
14. Install engine slinger and hang engine assembly to secure position. Refer to EM-237, "
Component".
15. Remove front suspension member with power tool. Refer to FSU-16, "
Removal and Installation".
16. Remove front final drive assembly. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
17. Remove oil filter. Refer to LU-26, "
Removal and Installation".
18. Disconnect oil cooler water hoses, and remove oil cooler water pipe and oil cooler. Refer to LU-27, "
Com-
ponent".
19. Remove oil pan as the follows:
a. Remove rear plate cover.
b. Remove transmission joint bolts which pierce oil pan. Refer to AT-243, "
Removal and Installation (AWD
Models)".

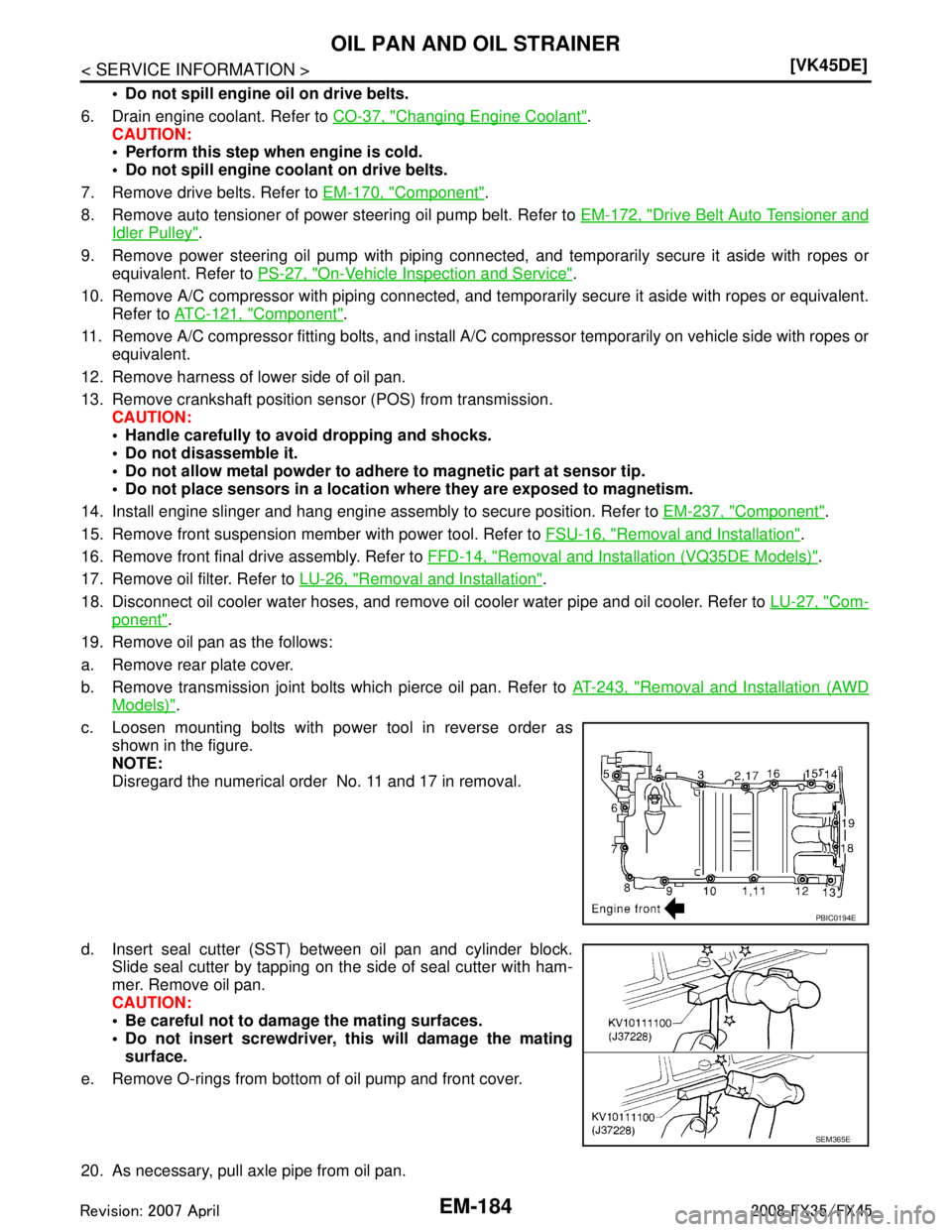

c. Loosen mounting bolts with power tool in reverse order as shown in the figure.
NOTE:
Disregard the numerical order No. 11 and 17 in removal.
d. Insert seal cutter (SST) between oil pan and cylinder block. Slide seal cutter by tapping on the side of seal cutter with ham-
mer. Remove oil pan.
CAUTION:
 Be careful not to damage the mating surfaces.
 Do not insert screwdriver, th is will damage the mating
surface.
e. Remove O-rings from bottom of oil pump and front cover.
20. As necessary, pull axle pipe from oil pan.
PBIC0194E
SEM365E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

IGNITION COILEM-187
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
IGNITION COIL
ComponentINFOID:0000000001325780
Removal and InstallationINFOID:0000000001325781
REMOVAL
1. Remove engine cover with power tool. Refer to
EM-169, "Component".
2. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly. Refer to EM-173, "
Component".
3. Disconnect harness connector from ignition coil.
4. Remove ignition coil. CAUTION:
Do not shock it.
INSTALLATION
Install in the reverse order of removal.

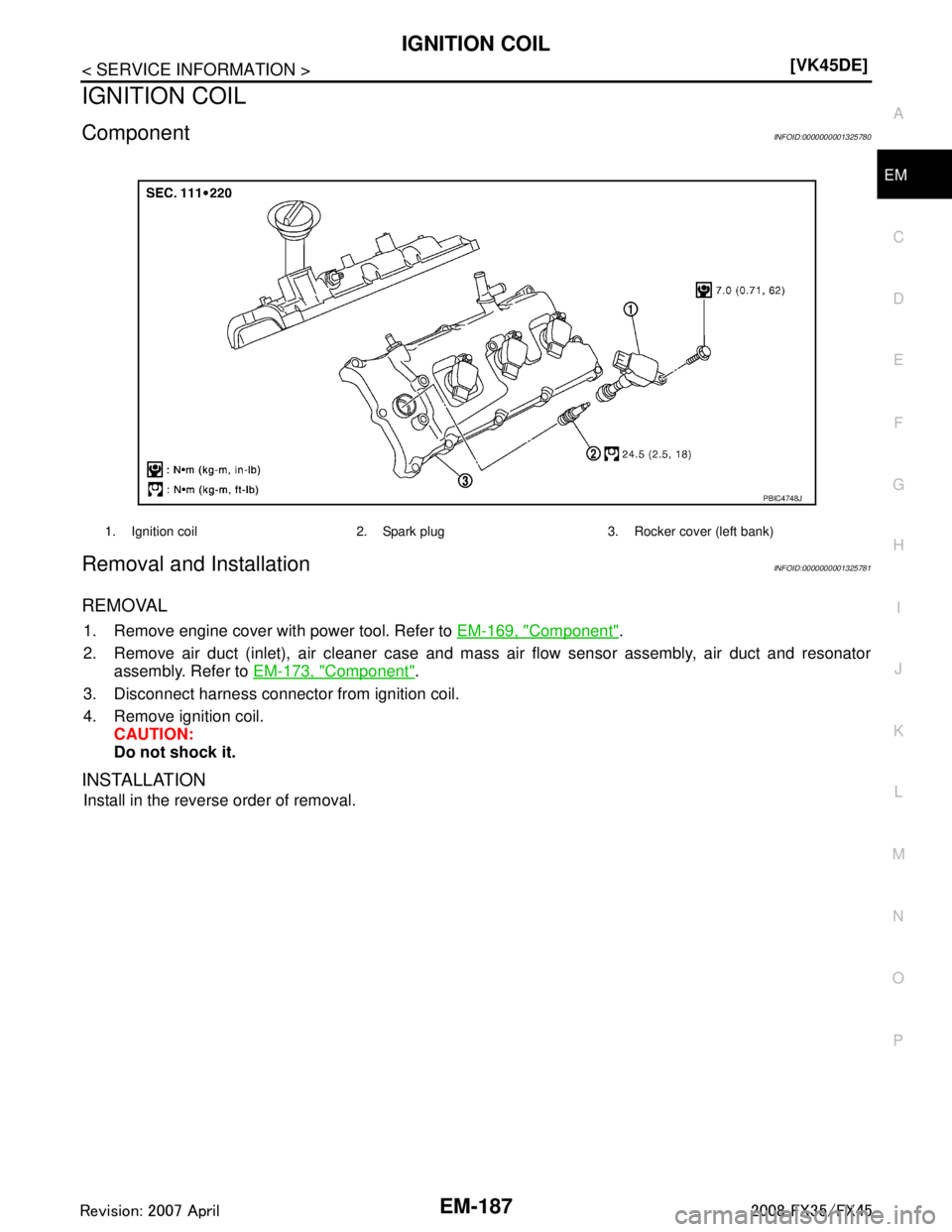

1. Ignition coil 2. Spark plug 3. Rocker cover (left bank)
PBIC4748J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-196
< SERVICE INFORMATION >[VK45DE]
ROCKER COVER
ROCKER COVER
ComponentINFOID:0000000001325786
Removal and InstallationINFOID:0000000001325787
REMOVAL
1. Remove engine cover with power tool. Refer to
EM-169, "Component".
2. Release the fuel pressure. Refer to EC-665, "
Fuel Pressure Check".
3. Refer to the following for incidental works related to left bank.
a. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator
assembly. Refer to EM-173, "
Component".
b. Move harness on upper rocker cover and its peripheral aside.
c. Remove harness brackets from camshaft bracket (No. 6). Refer to EM-211, "
Component".
d. Remove electric throttle control actuator. Refer to EM-175, "
Component".
e. Remove ignition coil. Refer to EM-187, "
Component".
f. Remove PCV hose from PCV valve.
4. Refer to the following for incidental works related to right bank.
a. Move harness on upper rocker cover and its peripheral aside.
b. Remove ignition coil EM-187, "
Component".
c. Remove PCV hose from PCV valve.
5. Remove PCV valves and O-rings from rocker covers (right and left bank), if necessary.
6. Remove oil filler cap and oil catcher from rocker cover (right bank), if necessary.

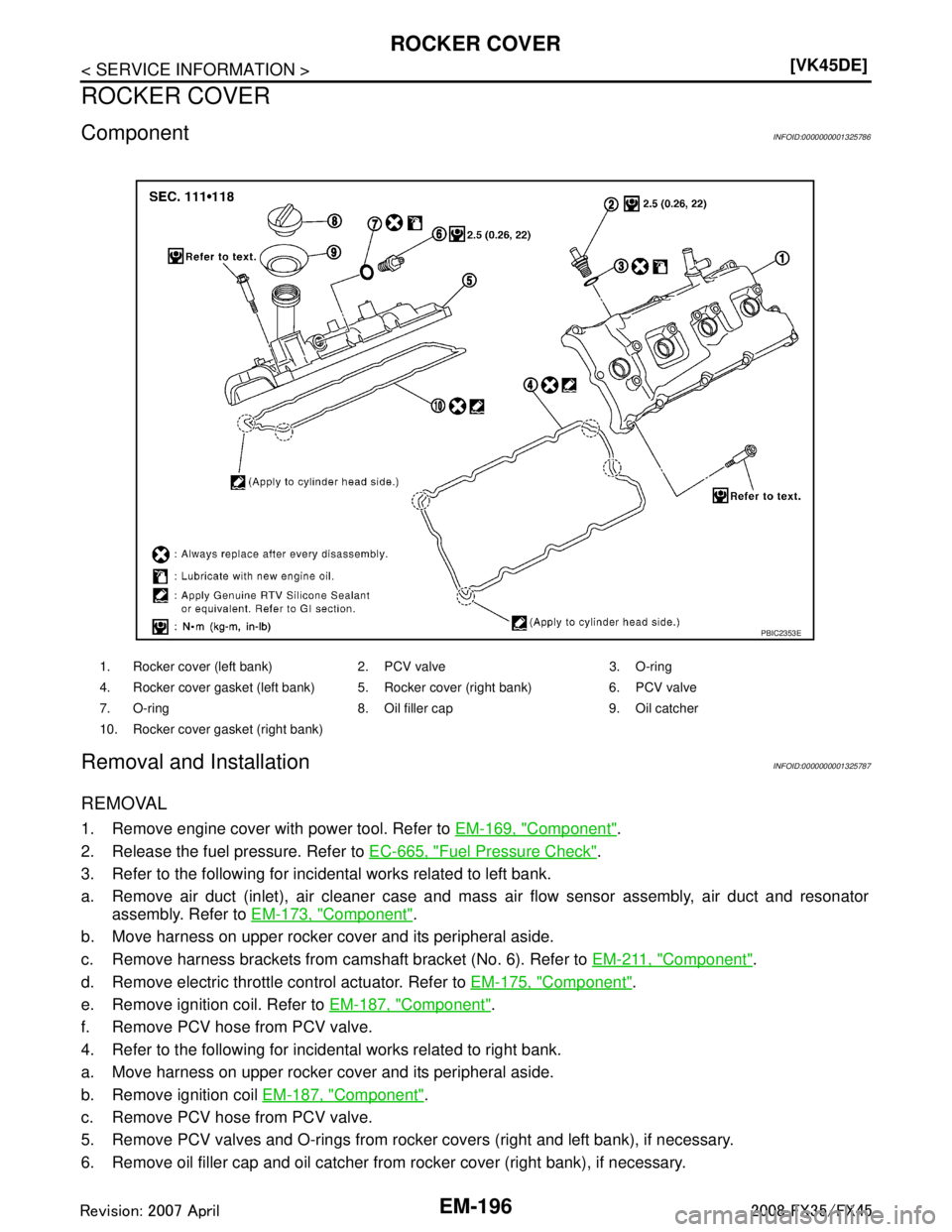

1. Rocker cover (left bank) 2. PCV valve 3. O-ring
4. Rocker cover gasket (left bank) 5. Rocker cover (right bank) 6. PCV valve
7. O-ring 8. Oil filler cap 9. Oil catcher
10. Rocker cover gasket (right bank)
PBIC2353E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-200
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325789
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-237, "Component".
2. Remove the following components and related parts:  Drive belt auto tensioner and idler pulley: Refer to EM-172, "
Drive Belt Auto Tensioner and Idler Pulley".
 Thermostat housing and hoses: Refer to CO-52, "
Component".
 Ignition coil: Refer to EM-187, "
Component".
 Rocker cover: Refer to EM-196, "
Component".
3. If necessary, remove intake valve timing control position sensor (right and left bank) and camshaft position sensor (PHASE) from
intake valve timing control cover and front cover.
CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
4. If necessary, remove intake valve timing control solenoid valve from intake valve timing control cover. CAUTION:
 Handle components and parts caref ully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
7. O-ring 8. Seal ring 9. Intake valve timing control position
sensor (right bank)
10. O-ring 11. Intake valve timing control cover
(right bank)
12.Intake valve timing control position
sensor (left bank)
13. O-ring 14. Intake valve timing control cover (left
bank)15. Seal ring
16. Intake valve timing control solenoid-
valve (left bank) 17. O-ring 18. Oil level gauge
19. Oil level gauge guide 20. O-ring 21. Crankshaft pulley bolt
22. Crankshaft pulley 23. Front oil seal 24. Chain tensioner cover
25. Camshaft position se nsor (PHASE) 26. O-ring 27. Oil pump drive spacer
28. Oil pump assembly 29. Crankshaft sprocket 30. O-ring
31. O-ring 32. Timing chain tension guide
(right bank)33.
Timing chain slack guide
(right bank)
34. Timing chain (right bank) 35. Timing chain (left bank) 36. Chain tensioner (left bank)
37. Chain tensioner (right bank) 38. Timing chain slack guide
(left bank)39.
Timing chain tension guide
(left bank)
40. O-ring
A. Refer to EM-200
PBIC0050E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TIMING CHAINEM-209
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
c. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to intake valve timing control covers as
shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
d. Tighten mounting bolts in numerical order as shown in the fig- ure.
12. Install intake valve timing control position sensor, intake valve timing control solenoid valve and camshaft position sensor (PHASE) to intake valve timing control cover and front cover if removed.
 Be sure to tighten mounting bolts with flanges completely seated.
13. Install oil pan and oil strainer. Refer to EM-183, "
Component".
14. Install crankshaft pulley as follows:
a. Fix crankshaft with ring gear stopper [SST: J-45476].
b. Install crankshaft pulley, taking care not to damage front oil seal.  Install according to dowel pin of oil pump drive spacer.
 Lightly tapping its center with plastic hammer, insert pulley.CAUTION:
Do not tap pulley on the side surface where belt is installed (outer circumference).
c. Apply engine oil onto threaded parts of crankshaft pulley bolt and seating area.
d. Tighten crankshaft pulley bolt.
e. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
f. Further tighten by 90 degrees. (Angle tightening)  Check the tightening angle by referencing to the notches. Theangle between two notches is 90 degrees.
15. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
16. Install in the reverse order of removal after this step. NOTE:
SBIA0375E
PBIC0051E
: 93.1 N·m (9.5 kg-m, 69 ft-lb)
PBIC2346E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CYLINDER HEADEM-227
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
 If the engine speed is out of specified range, check
battery liquid for proper gravity. Check engine speed
again with normal battery gravity.
 If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (valve, valve seat, piston, pi ston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure compression pressure again.
 If some cylinders have low compression pressure, pour small amount of engine oil into the spark plug
hole of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check the piston rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal- functioning. Check valves for damage. Repl ace valve or valve seat accordingly.
 If two adjacent cylinders have respectively low compression pressure and their compression remains low even after the addition of engine oil, cylinder head gaskets are leaking. In such a case, replace cyl-
inder head gaskets.
8. After inspection is completed, install removed parts in the reverse order of removal.
9. Start engine, and make sure that engine runs smoothly.
10. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-666, "
Trouble Diagnosis Introduction".
ComponentINFOID:0000000001325797
Removal and InstallationINFOID:0000000001325798
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-237, "Component".
2. Remove exhaust manifold. Refer to EM-179, "
Component".
3. Remove camshaft. Refer to EM-211, "
Component".

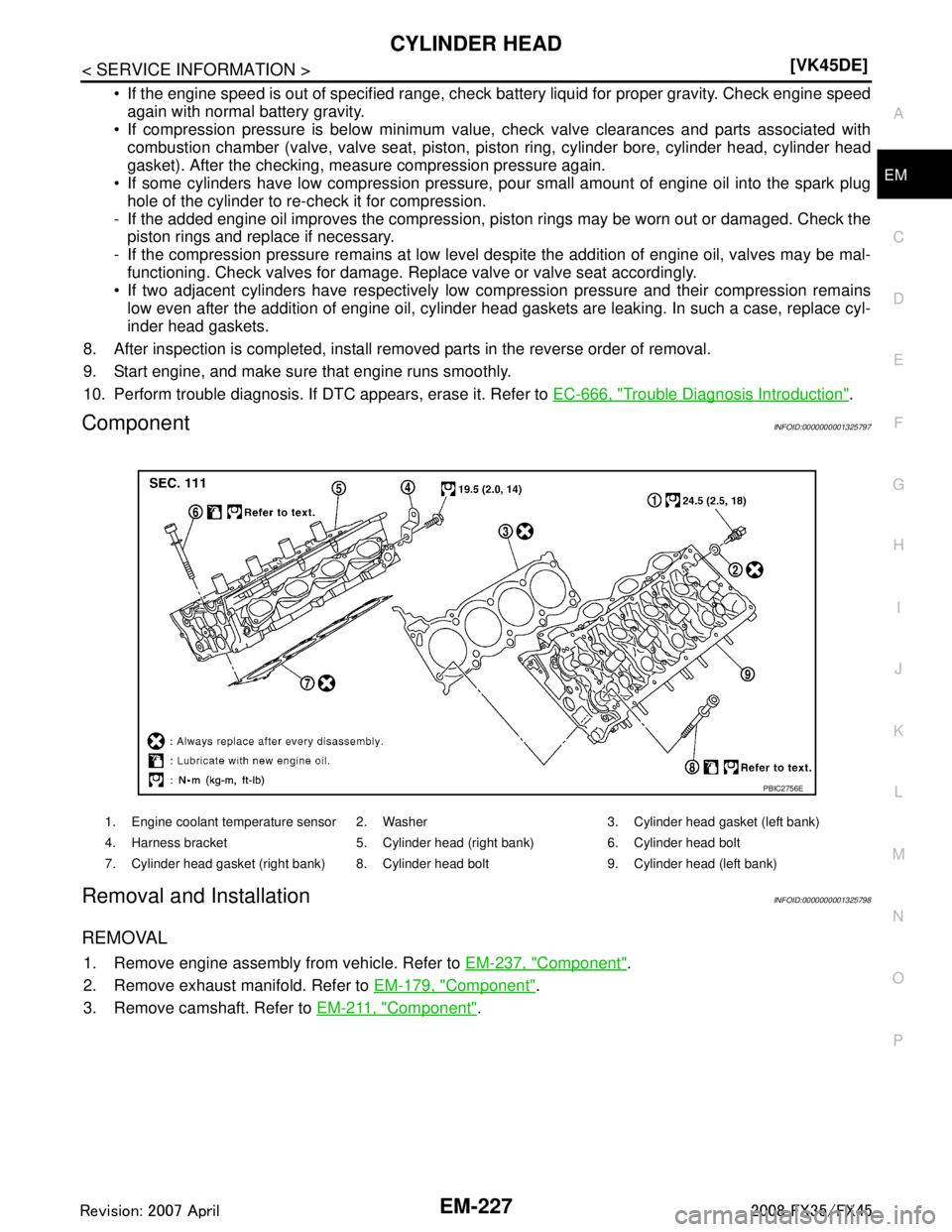

1. Engine coolant temperature sensor 2. Washer 3. Cylinder head gasket (left bank)
4. Harness bracket 5. Cylinder head (right bank) 6. Cylinder head bolt
7. Cylinder head gasket (right bank) 8. Cylinder head bolt 9. Cylinder head (left bank)
PBIC2756E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-238
< SERVICE INFORMATION >[VK45DE]
ENGINE ASSEMBLY
1. Release fuel pressure. Refer to
EC-665, "Fuel Pressure Check".
2. Drain engine coolant from radiator. Refer to CO-37, "
Changing Engine Coolant".
CAUTION:
 Perform this step when engine is cold.
 Do not spill engine coolant on drive belts.
3. Disconnect both battery terminal. Refer to SC-4, "
How to Handle Battery".
4. Remove crankshaft position sensor (POS) from transmission. CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
5. Remove the following parts:  Hood assembly: Refer to BL-13, "
Fitting Adjustment".
 Engine cover: Refer to EM-169
.
 Front and rear engine undercover
 Air duct (inlet), air duct and air cleaner case assembly: Refer to EM-173, "
Component".
 Drive belts: Refer to EM-170, "
Component".
 Radiator and radiator hoses (upper and lower): Refer to CO-40, "
Component".
 Front road wheels and tires
Engine Room LH
1. Disconnect engine room harness from the engine side and set it aside for easier work.
2. Disconnect heater hoses, and install plugs to avoid leakage of engine coolant.
3. Disconnect ground cable from exhaust manifold cover to vehicle.
4. Disconnect vacuum hose between vehicle and engine and set it aside.
5. Discharge refrigerant from A/C circuit. Refer to ATC-120, "
HFC-134a (R-134a) Service Procedure".
6. Remove A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope. Refer to AT C -
121, "Component".
Engine Room RH
1. Disconnect fuel feed hose and EVAP hose. Refer to EM-190, "Component".
CAUTION:
Fit plugs onto disconnected hose to prevent fuel leak.
2. Disconnect engine room harness from the engine side and set it aside for easier work.
3. Disconnect ground cable from exhaust manifold cover to vehicle.
4. Disconnect vacuum hose between vehicle and engine and set it aside.
5. Disconnect reservoir tank of power steering oil pum p from engine, and move it aside for easier work.
CAUTION:
When temporarily securing, keep reservoir tank upright to avoid a fluid leak.
Vehicle Underbody
1. Remove front cross bar. Refer to FSU-5, "On-Vehicle Inspection and Service".
2. Disconnect power steering oil pump from engine. Move it from its location and secure with a rope for eas-
ier work. Refer to PS-29, "
Removal and Installation (VK45DE Models)".
3. Remove A/T fluid cooler tube. Refer to AT-241, "
Removal and Installation (2WD Models)".
4. Remove exhaust front tube and center muffler with power tool. Refer to EX-3, "
Checking Exhaust Sys-
tem".
5. Remove RH and LH transverse link mounting bolts and nuts. Refer to FSU-13, "
Removal and Installation".
6. Disconnect stabilizer connecting rod lower. Refer to FSU-5, "
On-Vehicle Inspection and Service".
7. Remove A/T control rod at control device assembly side. Then temporarily secure it on transmission, so
that it does not sag. Refer to AT-205, "
Control Device Removal and Installation".
8. Remove rear plate cover from oil pan. Then remove bolts fixing drive plate to torque converter. Refer to EM-183, "
Component" and AT-241, "Removal and Installation (2WD Models)".
9. Remove transmission joint bolts which pierce at oil pan lower rear side. Refer to AT-241, "
Removal and
Installation (2WD Models)".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
