2008 INFINITI FX35 sensor

EM-30
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER
Component (2WD Models)INFOID:0000000001325716
Removal and Installation (2WD Models)INFOID:0000000001325717
REMOVAL
CAUTION:
To avoid the danger of being scalded, never
drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then st ep 20. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
Fitting Adjustment".
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. FSU-5, "
On-Vehicle Inspection and Service".
5. Drain engine oil. Refer to LU-7, "
Changing Engine Oil".
CAUTION:
 Perform this step when the engine is cold.
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil pressure switch 11. Bracket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate cover 17. Crankshaft position sensor (POS) 18. Seal rubber
19. Rear cover plate
SBIA0587E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OIL PAN AND OIL STRAINEREM-31
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
 Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
 Perform this step when the engine is cold.
 Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
Component".
8. Remove air hose from air duct to mass air flow sens or side and electric throttle control actuator side.
Refer to EM-17, "
Component".
9. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-7, "
Special Service Tool".
10. Remove front suspension member. Refer to FSU-16, "
Removal and Installation".
11. Remove drive belts. Refer to EM-15, "
Removal and Installation".
12. Remove alternator stay. Refer to SC-19, "
System Description".
13. Remove starter motor. Refer to SC-8, "
System Description".
14. Remove idler pulley and bracket assembly. Refer to EM-64, "
Component".
15. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-12, "
Com-
ponent".
16. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT-241, "
Removal and
Installation (2WD Models)".
17. Remove crankshaft position sensor (POS). CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
18. Remove oil filter, as necessary. Refer to LU-8, "
Removal and Installation".
19. Remove oil cooler, as necessary. Refer to LU-12, "
Component".
20. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan (lower).
CAUTION:
 Be careful not to damage the mating surfaces.
 Do not insert a screwdriver, this will damage the mating
surfaces.
c. Slide the seal cutter by tapping on the side of tool with a ham- mer. Remove oil pan (lower).Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC0782E
SEM960F
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-36
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
Removal and Installation (AWD Models)
INFOID:0000000001325719
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then st ep 24. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
Fitting Adjustment".
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. Refer to FSU-5, "
On-Vehicle Inspection and Service".
5. Drain engine oil. Refer to LU-7, "
Changing Engine Oil".
CAUTION:
 Perform this step when the engine is cold.
 Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
 Perform this step when the engine is cold.
 Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
Component".
8. Remove air hose from air duct to mass air flow s ensor side and electric throttle control actuator side.
Refer to EM-17, "
Component".
9. Remove drive belts. Refer to EM-15, "
Removal and Installation".
10. Remove front drive shaft (LH and RH) and side shaft. Refer to FAX-13, "
On-Vehicle Inspection".
11. Remove side shaft. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
12. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-7, "
Special Service Tool".
13. Remove front suspension member. Refer to FSU-16, "
Removal and Installation".
14. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-112,
"Component (2WD Models)".
15. Remove front propeller shaft. Refer to PR-4, "
On-Vehicle Inspection".
16. Remove oil filter and oil filter bracket. Refer to LU-10, "
Component".
17. Remove alternator stay. Refer to SC-19, "
System Description".
18. Remove idler pulley and bracket. Refer to EM-15, "
Removal and Installation".
19. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-12, "
Com-
ponent".
20. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT-241, "
Removal and
Installation (2WD Models)".
21. Remove front final drive assembly. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
22. Remove starter motor. Refer to SC-8, "
System Description".
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil filter bracket 11. Oil filter bracket gasket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate cover 17. Crankshaft position sensor (POS) 18 O-ring (small)
19. O-ring (large) 20. Axle pipe
Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OIL PAN AND OIL STRAINEREM-37
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
23. Remove crankshaft position sensor (POS).
CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at sensor tip.
 Do not place sensors in a location wh ere they are exposed to magnetism.
24. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan (lower).
c. Slide the seal cutter by tapping on the side of tool with a ham- mer. Remove oil pan (lower).
CAUTION:
 Be careful not to damage the mating surface.
 Do not insert flat-bladed screw driver, this will damage the
mating surface.
25. Remove oil strainer.
26. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT-241, "
Removal and Installation
(2WD Models)".
27. Loosen mounting bolts in the reverse order as shown in the fig- ure with power tool to remove.
 Insert the seal cutter [SST: KV10111100 (J37228)] between oilpan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer. Remove oil pan (upper).
CAUTION:
 Be careful not to damage the mating surfaces.
 Do not insert a screwdriver, this will damage the mating
surfaces.
28. Remove O-rings from bottom of cylinder block and oil pump.
PBIC0782E
SEM960F
PBIC0783E
PBIC1144E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CAMSHAFTEM-83
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

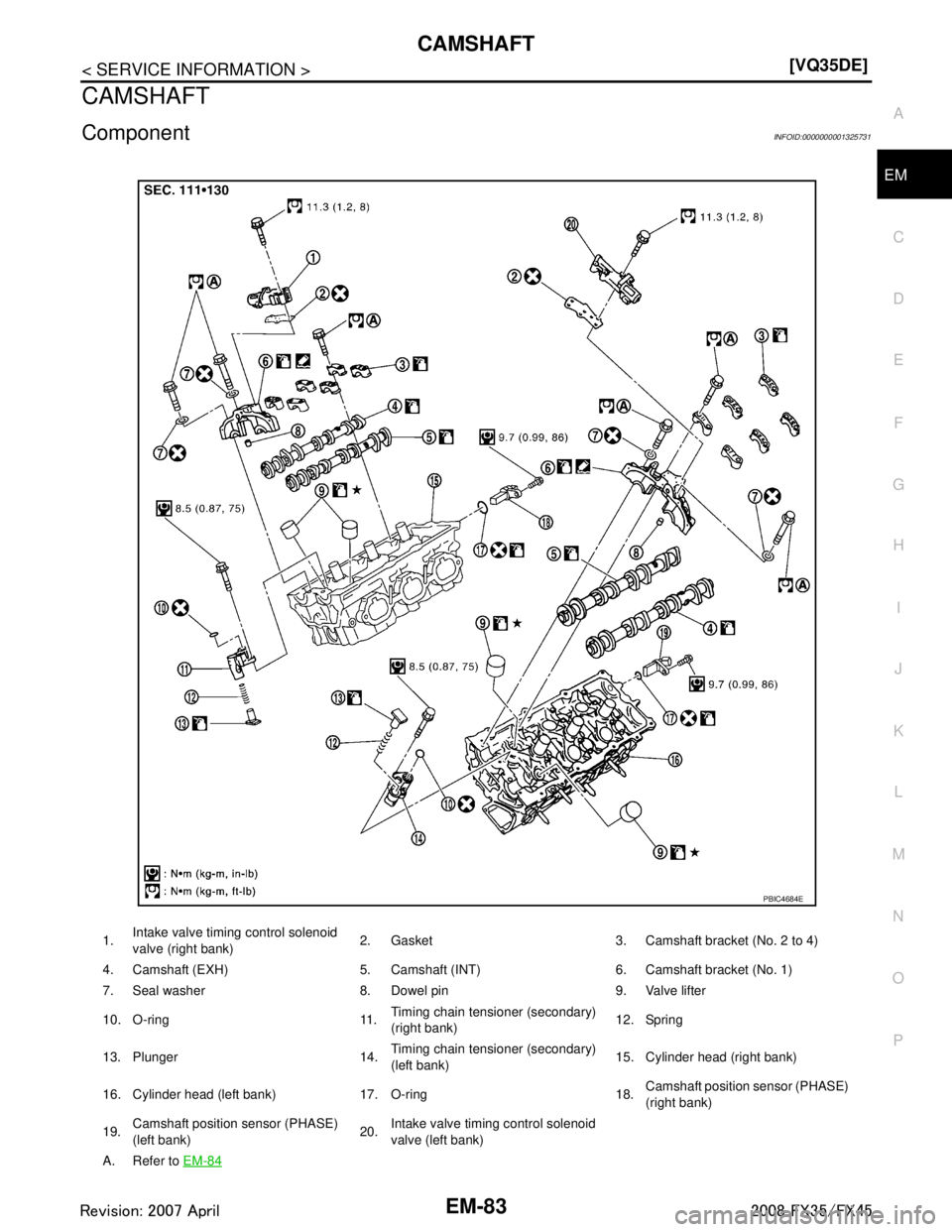

CAMSHAFT
ComponentINFOID:0000000001325731
1.
Intake valve timing control solenoid
valve (right bank)
2. Gasket 3. Camshaft bracket (No. 2 to 4)
4. Camshaft (EXH) 5. Camshaft (INT) 6. Camshaft bracket (No. 1)
7. Seal washer 8. Dowel pin 9. Valve lifter
10. O-ring 11. Timing chain tensioner (secondary)
(right bank)12. Spring
13. Plunger 14. Timing chain tensioner (secondary)
(left bank)
15. Cylinder head (right bank)
16. Cylinder head (left bank) 17. O-ring 18. Camshaft position
sensor (PHASE)
(right bank)
19. Camshaft position sensor (PHASE)
(left bank) 20.
Intake valve timing control solenoid
valve (left bank)
A. Refer to EM-84
PBIC4684E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-84
< SERVICE INFORMATION >[VQ35DE]
CAMSHAFT
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325732
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rear timing chain case. Refer to EM-
64, "Component".
2. Remove camshaft position sensor (PHASE) (right and left banks) from cylinder head back side.
CAUTION:
 Handle carefully to avoid dropping and shocks.
 Do not disassemble.
 Do not allow metal powder to adhere to magnetic part at
sensor tip.
 Do not place sensors in a location where they are
exposed to magnetism.
3. Remove intake valve timing control solenoid valves.  Discard intake valve timing control solenoid valve gaskets anduse new gaskets for installation.
4. Remove camshaft brackets.  Mark camshafts, camshaft brackets and bolts so they are placed in the same position and direction forinstallation.
 Equally loosen camshaft bracket bolts in several steps in reverse order as shown in the figure.
5. Remove camshaft.
KBIA1046E
SEM443GA
PBIC2050E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

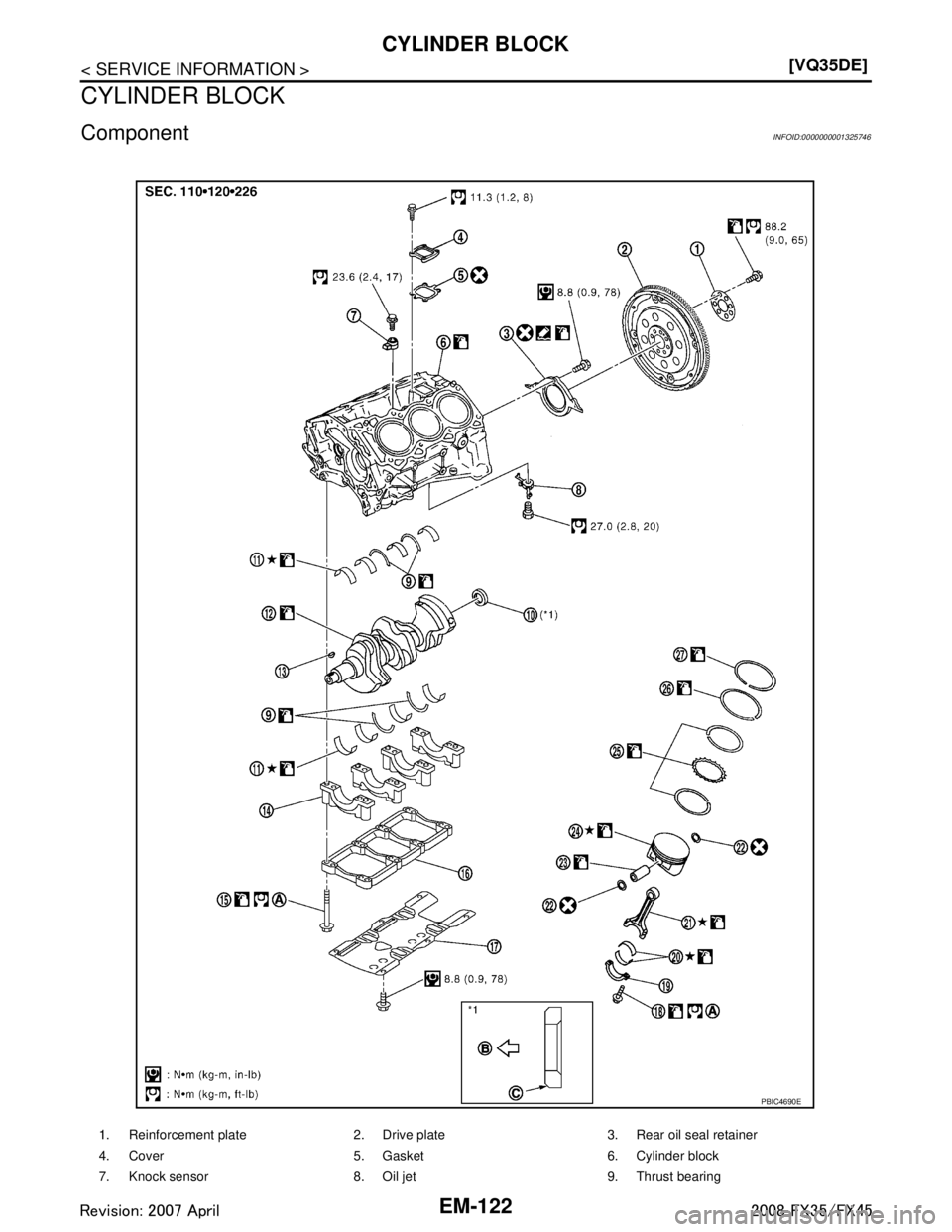

EM-122
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
CYLINDER BLOCK
ComponentINFOID:0000000001325746
1. Reinforcement plate 2. Drive plate 3. Rear oil seal retainer
4. Cover 5. Gasket 6. Cylinder block
7. Knock sensor 8. Oil jet 9. Thrust bearing
PBIC4690E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CYLINDER BLOCKEM-125
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
6. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
7. Remove drive plate with power tool. Fix cr ankshaft with a ring gear stopper [SST: KV1011770 (J44716)],
and remove mounting bolts.
 Loosen mounting bolts in diagonal order.
CAUTION:
 Do not disassemble drive plate.
 Never place drive plate with signal plate facing down.
 When handling signal plate, take care not to damage or
scratch it.
 Handle signal plate in a ma nner that prevents it from
becoming magnetized.
8. Remove the following parts:  Intake manifold collector: Refer to EM-19, "
Component".
 Intake manifold: Refer to EM-24, "
Component".
 Oil pans (lower and upper): Refer to EM-30, "
Component (2WD Models)".
 Front and rear timing chain case: Refer to EM-64, "
Component".
 Cylinder head: Refer to EM-100, "
On-Vehicle Service".
9. Remove knock sensor. CAUTION:
Carefully handle sensor avoiding shocks.
PBIC2610E
SEM760G
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
