FRONT DRIVE SHAFTFAX-15
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
CAUTION:
 If the boot mounting length is outside the standard, it may cause breakage in the boot.
 Be careful not to touch the inside of the bo ot with a tip of a flat-bladed screwdriver.
22. Secure the large and small ends of the boot with new boot bands using the boot band crimping tool [SST: KV40107300
( – )] as shown in the figure.
NOTE:
Secure boot band so that dimension “M” meets the specification
as shown.
23. Secure joint sub-assembly and shaft, and then make sure that they are in the correct position when rotating boot. Install them
with new boot band when boot installation positions become
incorrect.
24. Insert drive shaft to wheel hub and bearing assembly, and then temporarily tighten hub lock nut.
25. Install nuts and bolts to steering knuckle and strut.
26. Install break hose bracket to strut assembly. BR-10, "
Removal and Installation of Front Brake Tube and
Brake Hose".
27. Install wheel sensor to strut assembly. Refer to BRC-52
.
28. Tighten the hub lock nut to the specified torque.
29. Install cotter pin.
30. Install tires to vehicle.
Removal and Installation (Left Side)INFOID:0000000001327516
COMPONENTS
REMOVAL
1. Remove tires from vehicle with power tool. Boot installation length (L) : 136 mm (5.35 in)
RAC1133D
Dimension “M” : 2.0 – 3.0 mm (0.079 – 0.118 in)
DSF0047D
1. Cotter pin 2. Washer 3. Drive shaft
Refer to
GI-8, "
Component", for the symbols in the figure.
PDIA1218E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

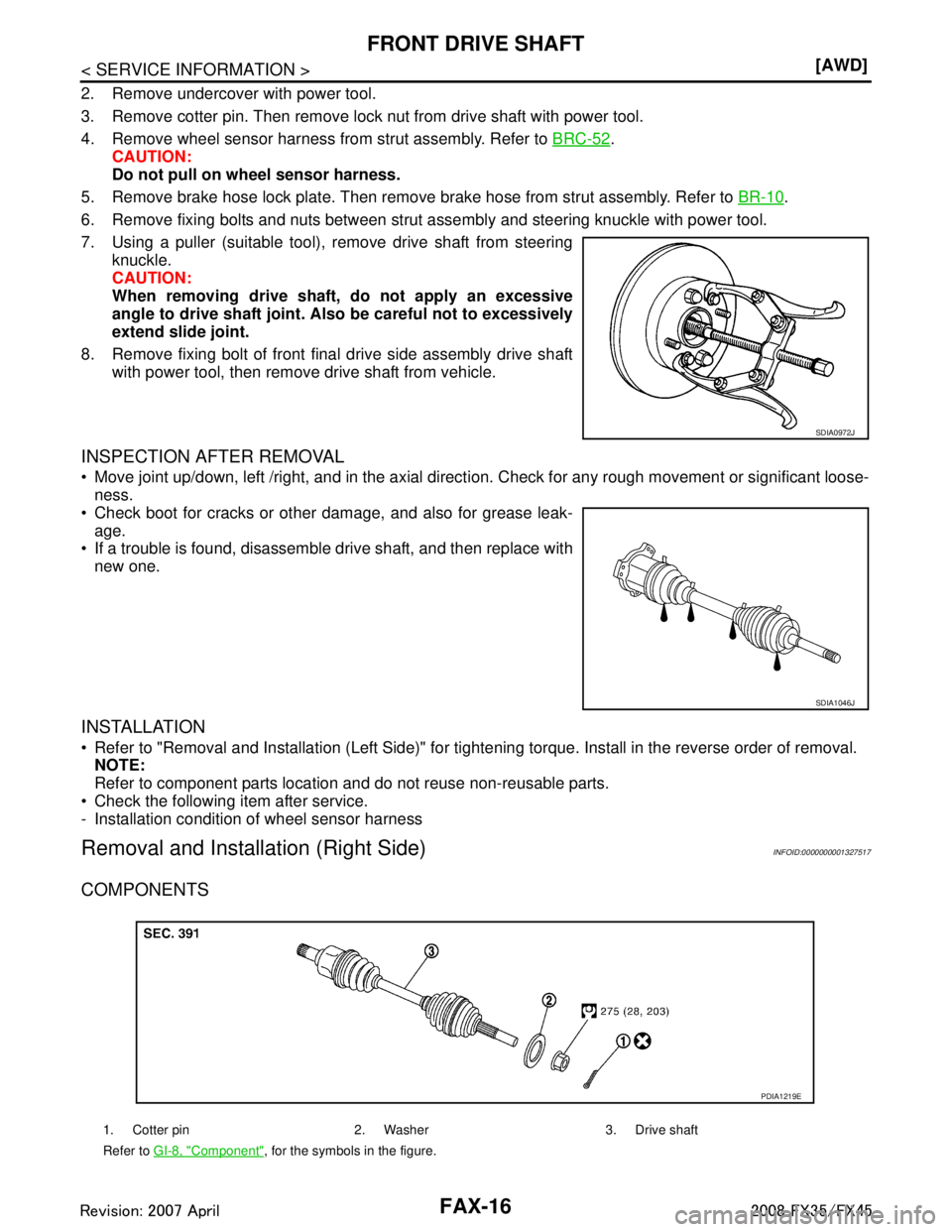

FAX-16
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
4. Remove wheel sensor harness from strut assembly. Refer to
BRC-52
.
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock plate. Then remove brake hose from strut assembly. Refer to BR-10
.
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Al so be careful not to excessively
extend slide joint.
8. Remove fixing bolt of front final drive side assembly drive shaft with power tool, then remove drive shaft from vehicle.
INSPECTION AFTER REMOVAL
 Move joint up/down, left /right, and in the axial direct ion. Check for any rough movement or significant loose-
ness.
 Check boot for cracks or other damage, and also for grease leak- age.
 If a trouble is found, disassemble drive shaft, and then replace with
new one.
INSTALLATION
 Refer to "Removal and Installation (Left Side)" for tight ening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
 Check the following item after service.
- Installation condition of wheel sensor harness
Removal and Installation (Right Side)INFOID:0000000001327517
COMPONENTS
SDIA0972J
SDIA1046J
1. Cotter pin 2. Washer 3. Drive shaft
Refer to GI-8, "
Component", for the symbols in the figure.
PDIA1219E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

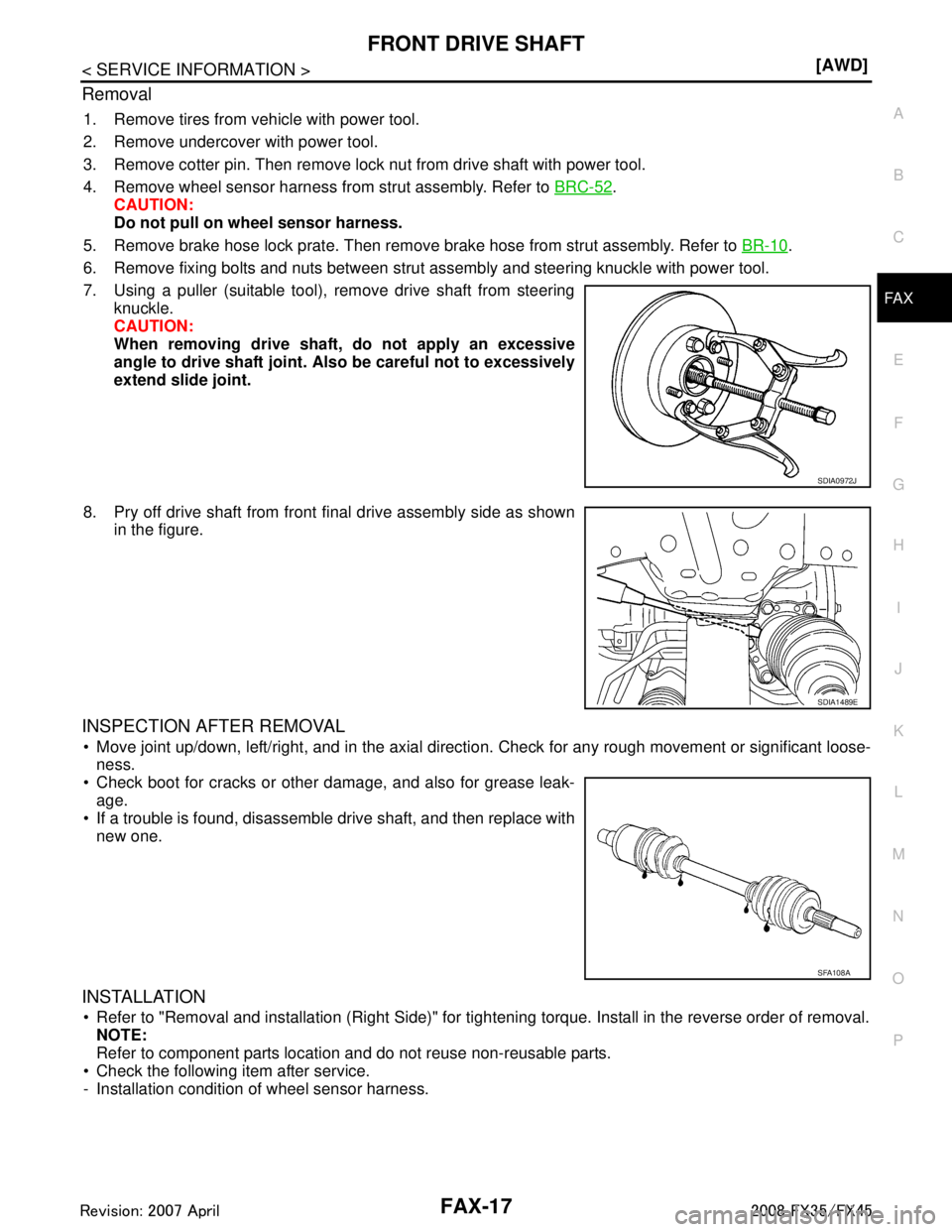

FRONT DRIVE SHAFTFAX-17
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
Removal
1. Remove tires from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
4. Remove wheel sensor harness fr om strut assembly. Refer to BRC-52
.
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock prate. Then remove brake hose from strut assembly. Refer to BR-10
.
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaf t, do not apply an excessive
angle to drive shaft joint. Al so be careful not to excessively
extend slide joint.
8. Pry off drive shaft from front final drive assembly side as shown in the figure.
INSPECTION AFTER REMOVAL
 Move joint up/down, left/right, and in the axial directi on. Check for any rough movement or significant loose-
ness.
 Check boot for cracks or other damage, and also for grease leak- age.
 If a trouble is found, disassemble drive shaft, and then replace with
new one.
INSTALLATION
 Refer to "Removal and installation (Right Side)" for ti ghtening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
 Check the following item after service.
- Installation condition of wheel sensor harness.
SDIA0972J
SDIA1489E
SFA108A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
