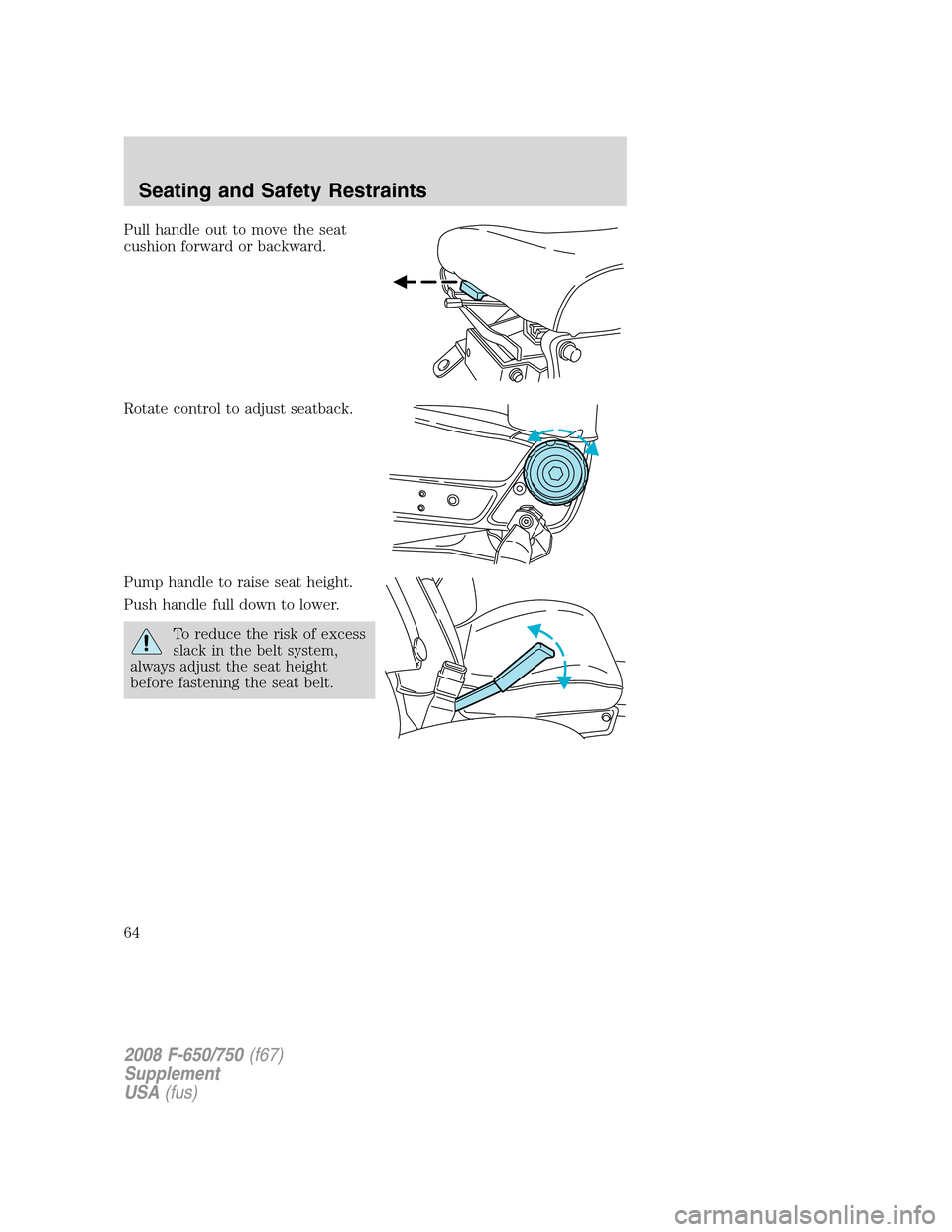

Page 65 of 273
Pull handle out to move the seat
cushion forward or backward.
Rotate control to adjust seatback.
Pump handle to raise seat height.
Push handle full down to lower.
To reduce the risk of excess
slack in the belt system,
always adjust the seat height
before fastening the seat belt.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
64

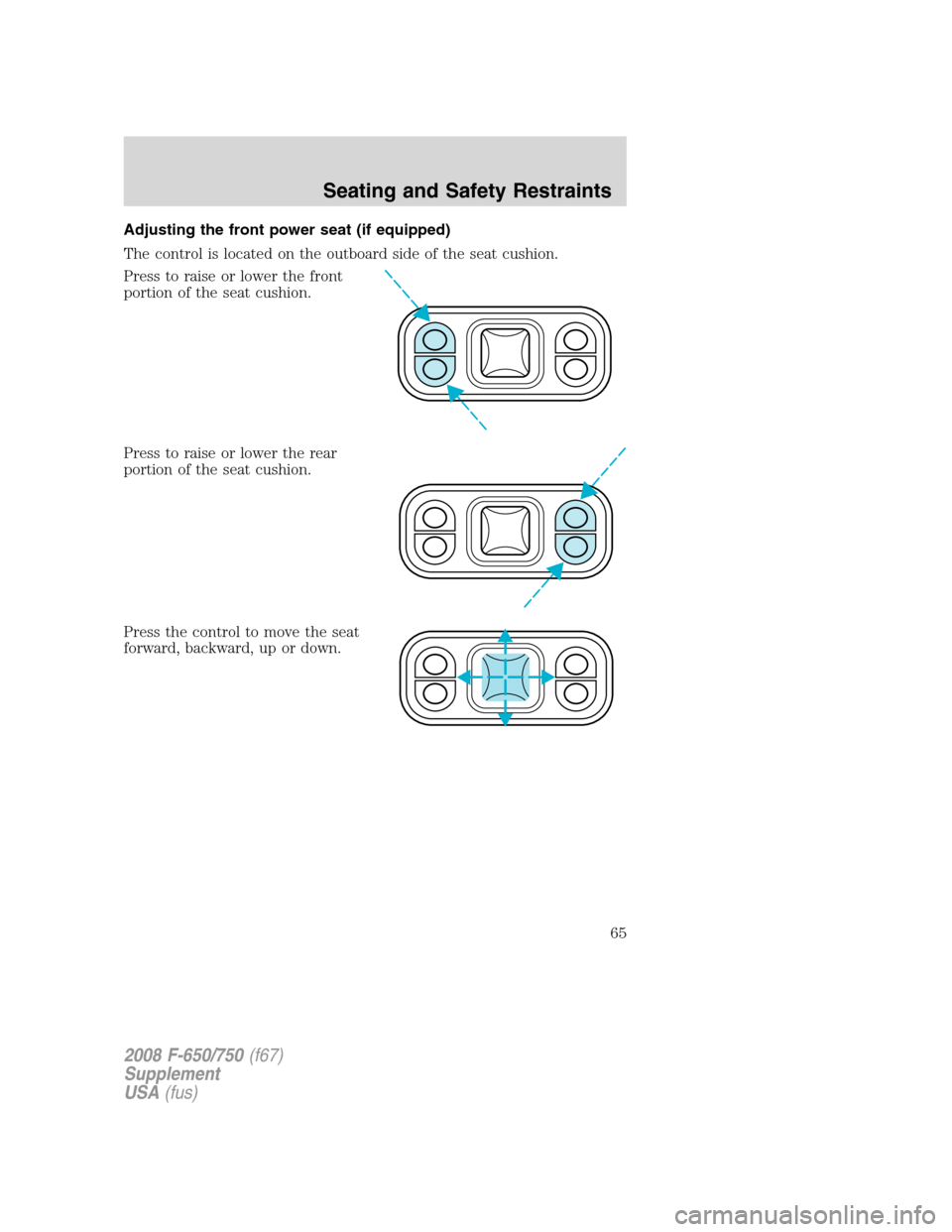

Page 66 of 273
Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
Press to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
65

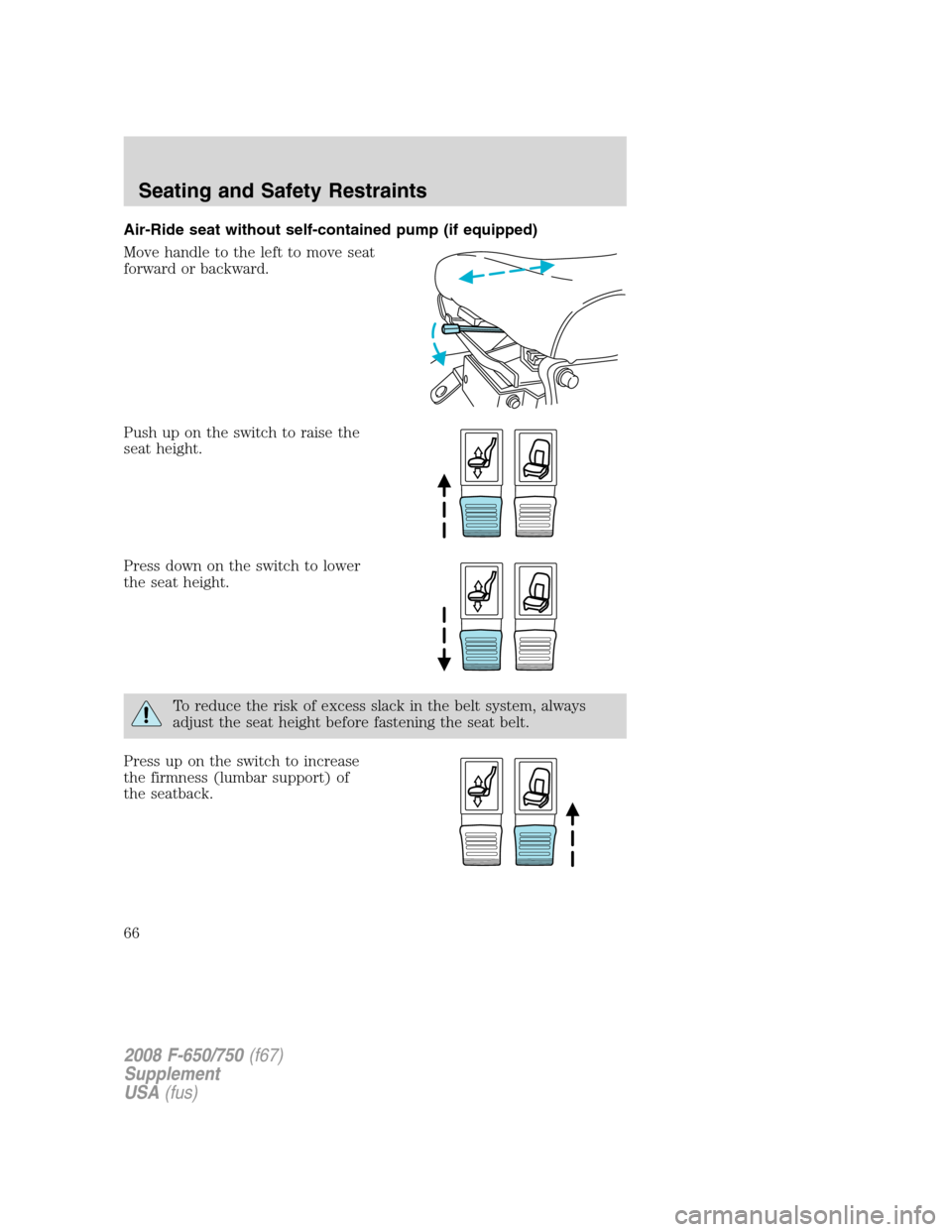

Page 67 of 273
Air-Ride seat without self-contained pump (if equipped)
Move handle to the left to move seat
forward or backward.
Push up on the switch to raise the
seat height.
Press down on the switch to lower
the seat height.
To reduce the risk of excess slack in the belt system, always
adjust the seat height before fastening the seat belt.
Press up on the switch to increase
the firmness (lumbar support) of
the seatback.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
66
Page 68 of 273
Press down on the switch to reduce
the firmness (lumbar support) of
the seatback.
Air-Ride seat with self-contained pump (if equipped)
1.Chugger option:Dampens road vibrations and allows the seat to
move with the driver when unlocked.
To unlock, sit in the seat and slide the tab away from the seat (to the right)
To lock, sit in the seat and slide the tab toward the seat (to the left).
2.Seat adjuster:Lift up to move the seat forward or backward. Release
the bar to lock the seat in position.
3.Seat height adjuster:Pull the control up to raise the seat, push it
down to lower the seat.
To reduce the risk of excess slack in the belt system, always
adjust the seat height before fastening the seat belt.
4.Power lumbar:Press the top of the forward control to inflate the
lower lumbar support; press the bottom of the forward control to deflate
the lower lumbar support.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
67

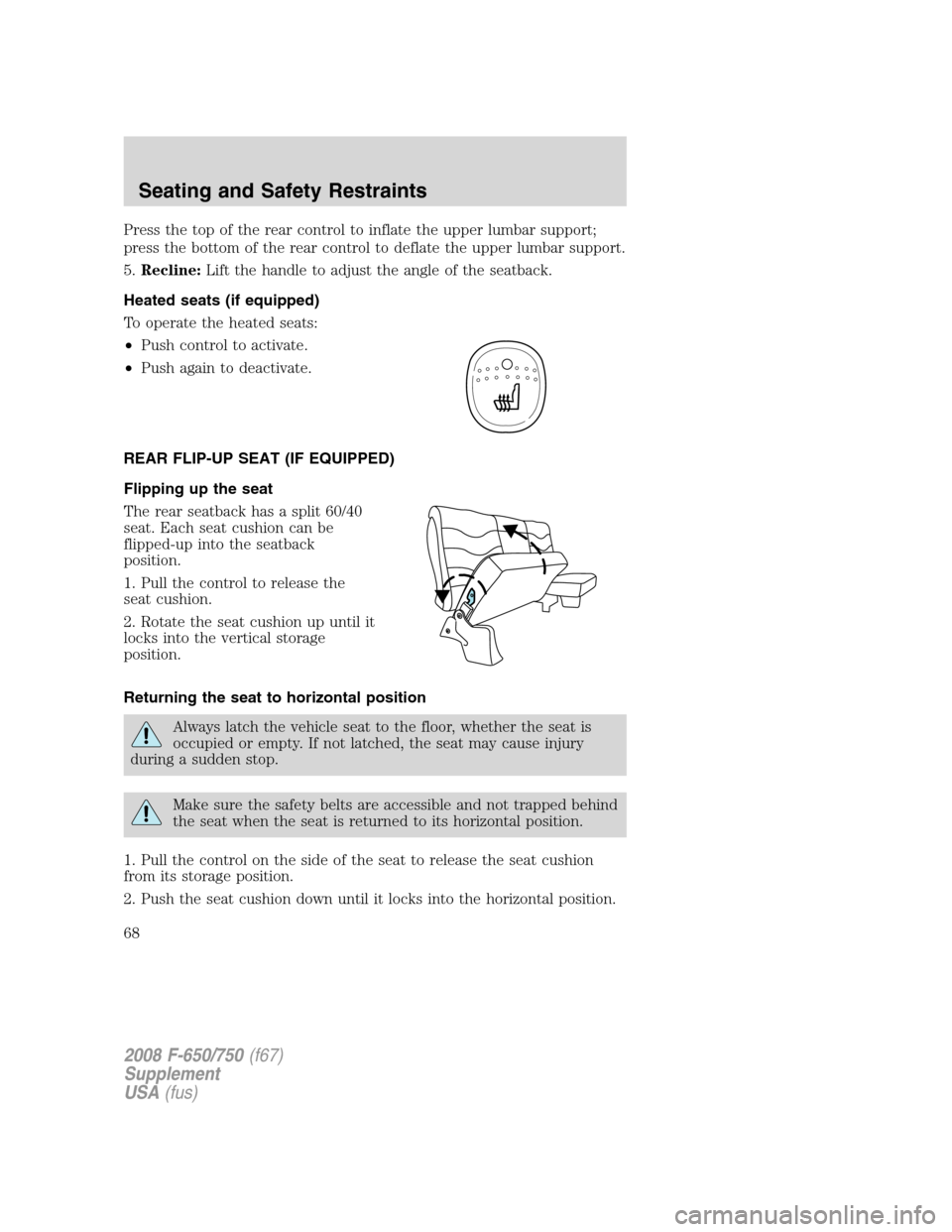

Page 69 of 273

Press the top of the rear control to inflate the upper lumbar support;
press the bottom of the rear control to deflate the upper lumbar support.
5.Recline:Lift the handle to adjust the angle of the seatback.
Heated seats (if equipped)
To operate the heated seats:
•Push control to activate.
•Push again to deactivate.
REAR FLIP-UP SEAT (IF EQUIPPED)
Flipping up the seat
The rear seatback has a split 60/40
seat. Each seat cushion can be
flipped-up into the seatback
position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the seat to horizontal position
Always latch the vehicle seat to the floor, whether the seat is
occupied or empty. If not latched, the seat may cause injury
during a sudden stop.
Make sure the safety belts are accessible and not trapped behind
the seat when the seat is returned to its horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
68
Page 70 of 273

SAFETY RESTRAINTS
Safety restraints precautions
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
To reduce the risk of injury, make sure children sit where they
can be properly restrained.
All occupants of the vehicle, including the driver, should always
properly wear their safety belts.
Never let a passenger hold a child on his or her lap while the
vehicle is moving. The passenger cannot protect the child from
injury in a collision.
It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these areas
are more likely to be seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not equipped with seats and
safety belts. Be sure everyone in your vehicle is in a seat and using a
safety belt properly.
In a rollover crash, an unbelted person is significantly more likely
to die than a person wearing a safety belt.
Each seating position in your vehicle has a specific safety belt
assembly which is made up of one buckle and one tongue that
are designed to be used as a pair. 1) Use the shoulder belt on the
outside shoulder only. Never wear the shoulder belt under the arm.
2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
69

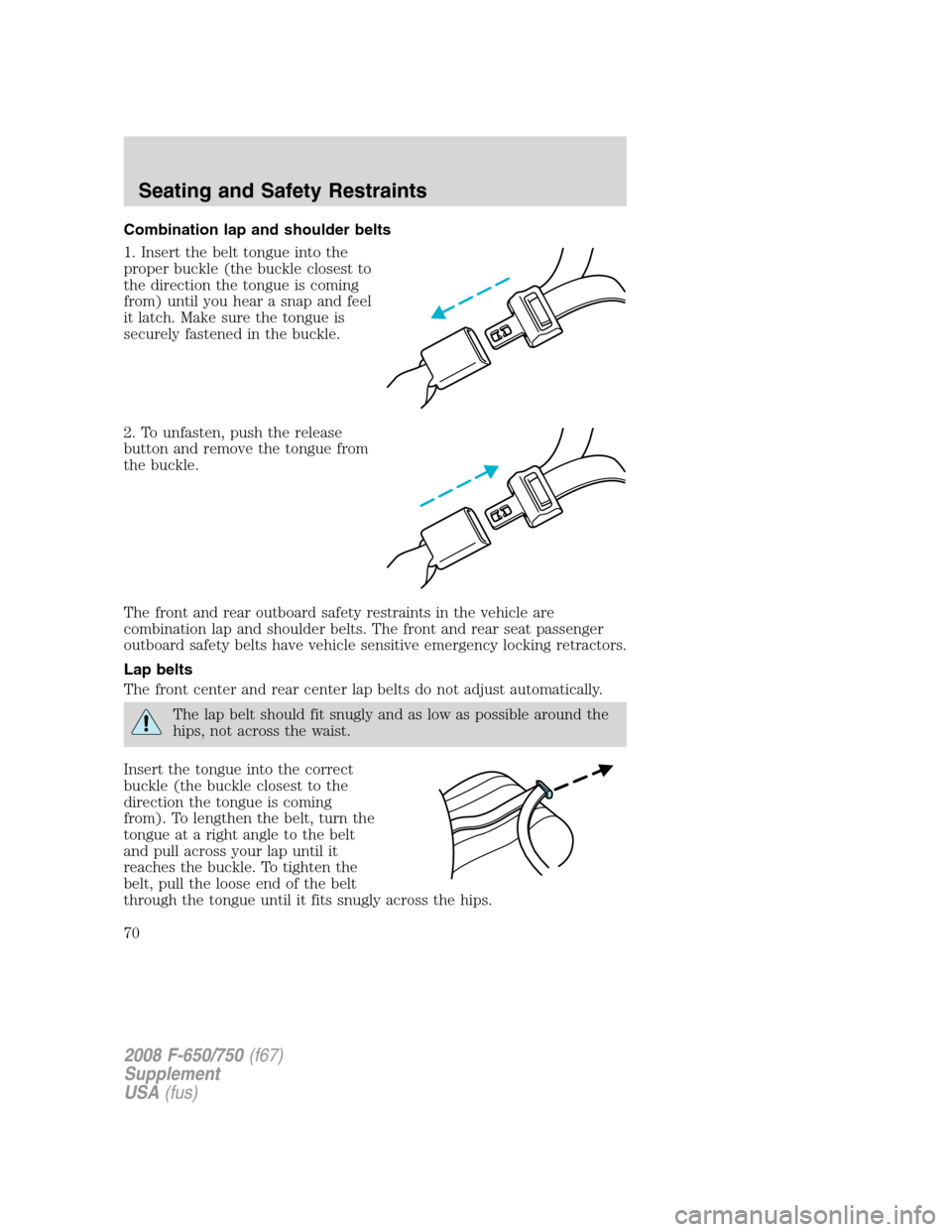

Page 71 of 273

Combination lap and shoulder belts
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front and rear seat passenger
outboard safety belts have vehicle sensitive emergency locking retractors.
Lap belts
The front center and rear center lap belts do not adjust automatically.
The lap belt should fit snugly and as low as possible around the
hips, not across the waist.
Insert the tongue into the correct
buckle (the buckle closest to the
direction the tongue is coming
from). To lengthen the belt, turn the
tongue at a right angle to the belt
and pull across your lap until it
reaches the buckle. To tighten the
belt, pull the loose end of the belt
through the tongue until it fits snugly across the hips.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
70

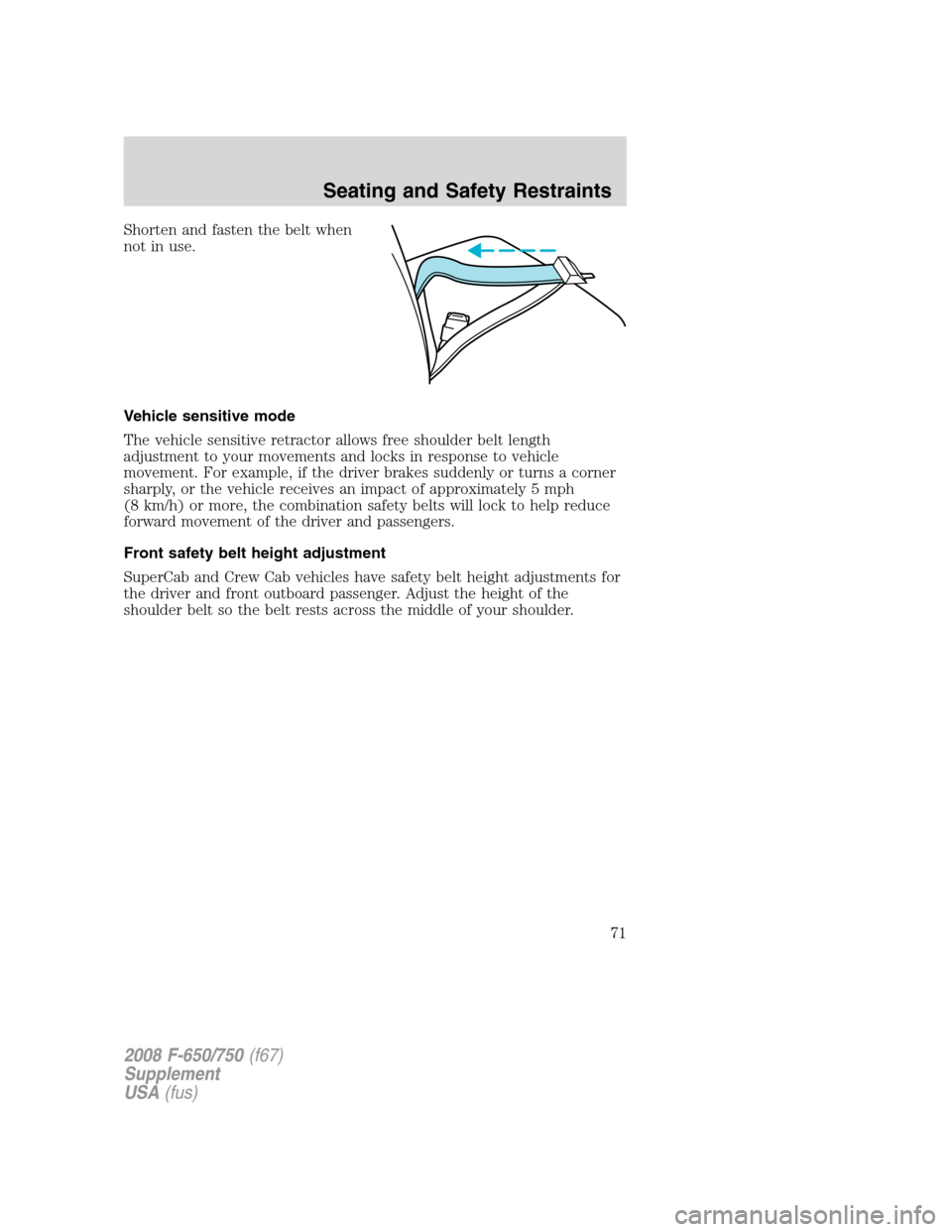

Page 72 of 273
Shorten and fasten the belt when
not in use.
Vehicle sensitive mode
The vehicle sensitive retractor allows free shoulder belt length
adjustment to your movements and locks in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Front safety belt height adjustment
SuperCab and Crew Cab vehicles have safety belt height adjustments for
the driver and front outboard passenger. Adjust the height of the
shoulder belt so the belt rests across the middle of your shoulder.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
71
