Page 257 of 273

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft SPL
Slip joint - inspect boot Every 25,000 miles (40,000 km) or six months, whichever comes
first
U-joint - lubricate
Driveshaft non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000–12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change•••
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
256
Page 258 of 273

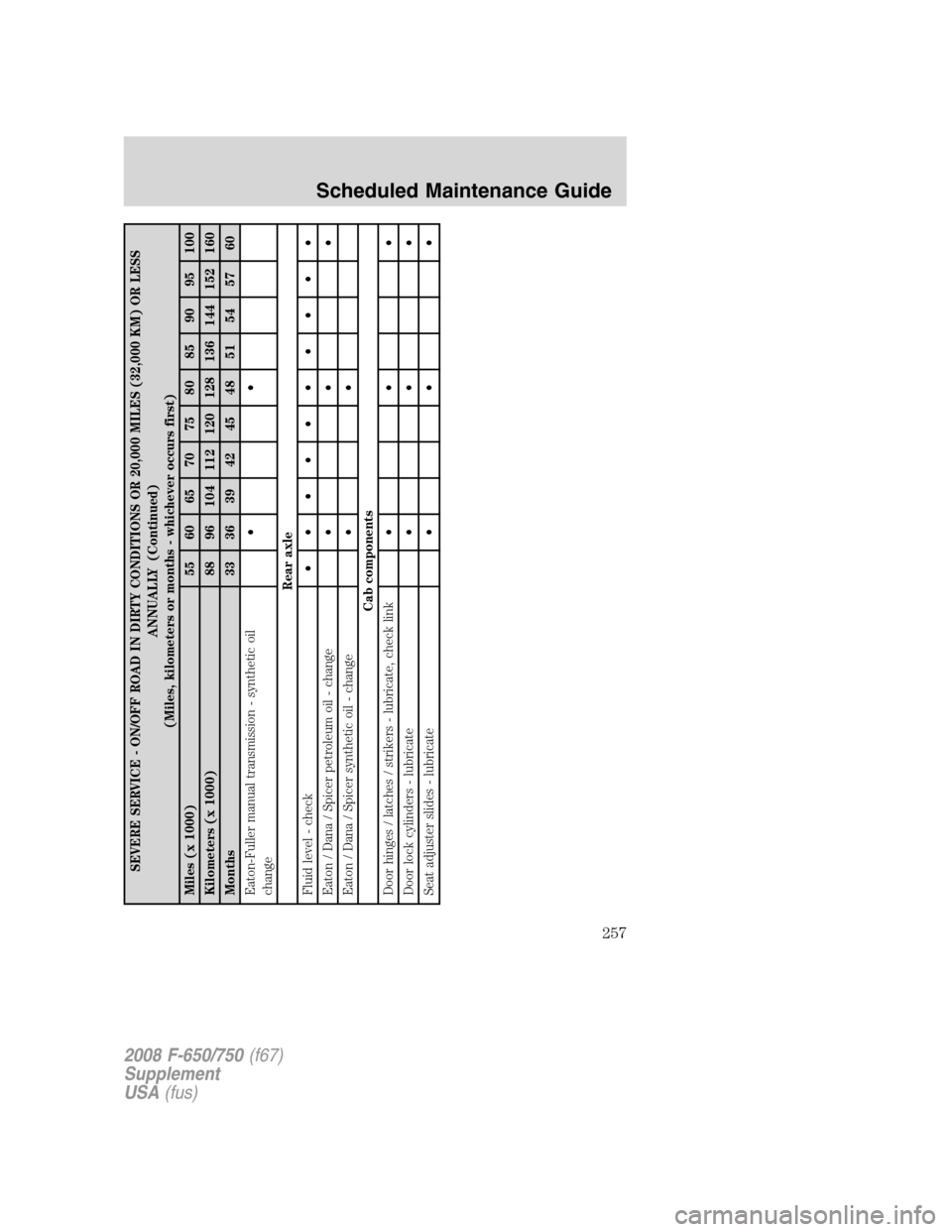

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Eaton-Fuller manual transmission - synthetic oil
change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change••
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
257
Page 259 of 273
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
258
Page 260 of 273
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
259
Page 261 of 273
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
260
Page 262 of 273
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2008 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
261
Page 263 of 273

A
Air conditioning ..........................45
manual heating and air
conditioning system .................45
Air suspension ...........................113
Anti-lock brake system
(see Brakes) ..............................111
Audio system
(see Radio) ......................32, 34, 38
Automatic transmission ............115
fluid, adding ............................190
fluid, checking ........................190
fluid, refill capacities ..............224
fluid, specification ..................209
Auxiliary power point .................53
Axle ............................123, 162, 195
lubricant specifications ..........209
refill capacities ........................222
B
Battery .......................................171
charging system warning
light ............................................21
jumping a disabled battery ....142
voltage gauge ............................27
Belt-Minder...............................74
Brakes ............................92, 97, 162
adjustment ..............................165
anti-lock ...................................111
anti-lock brake system (ABS)
warning light .....................21, 111
brake warning light ..................21
fluid, checking and
adding ..............................165, 188
fluid, specifications .................209
parking ......................93, 100, 166
Bulbs ............................................49C
Catalytic converter
(see Emission control) .............166
CD-single premium .....................32
Cell phone use ..............................7
Child safety restraints ................78
child safety belts ......................78
Child safety seats ........................81
attaching with tether straps ....84
in front seat ..............................82
in rear seat ................................82
tether anchorage hardware .....84
Child safety seats - booster
seats .............................................79
Cleaning your vehicle
chrome and aluminum
parts .........................................156
engine compartment ..............156
exterior ....................................158
instrument panel ....................157
interior .....................................157
interior trim ............................157
plastic parts ............................156
washing ....................................155
waxing .....................................155
wheels ......................................156
Climate control (see Air
conditioning or Heating) ......44–45
Clutch ................................117, 188
adjusting ..................................189
fluid ..........................................188
operation while driving ..........117
specifications ..........................209
Controls
power seat .................................65
Coolant ......................................173
refill capacities ........................224
specifications ..........................209
2008 F-650/750(f67)
Supplement
USA(fus)
Index
262
Page 264 of 273

temperature gauge ...................27
Cruise control
(see Speed control) ....................57
Customer Assistance ........134, 150
Ford accessories for your
vehicle .....................................158
Getting assistance outside
the U.S. and Canada ......150, 152
Getting roadside assistance ...134
Getting the service you
need .........................................150
Ordering additional owner’s
literature .................................153
D
Daytime running lamps
(see Lamps) ................................47
Defects, reporting .....................153
Defrost ...................................44–45
windshield ...........................44–45
with heating and air
conditioning system .................45
with standard heating
system .......................................44
Doors
lubricant specifications ..........209
Driving under special
conditions
through water ...........................90
E
Emergencies, roadside
jump-starting ..........................142
Emission control
system ................................185, 229
catalytic converter ..................166
Engine
cleaning ...................................156coolant .....................................173
lubrication specifications .......209
Engine fan .................................174
Engine oil ..................................171
oil pressure gauge ....................27
refill capacities ........................224
specifications ..........................209
Event data recording ....................6
F
Fan, Engine Cooling .................174
Flashers, hazard ........................135
Fuel ............................................175
calculating fuel
economy ..........................178–179
capacity ...................................225
choosing the right fuel ...........176
filling your vehicle with
fuel ...........................................175
filter, specifications ................174
gauge .........................................27
improving fuel
economy ..........................178–179
running out of fuel ...........88, 178
safety information relating to
automotive fuels .....................175
Fuses ..................................135, 141
G
Gas mileage
(see Fuel economy) .........178–179
Gauges .........................................27
battery voltage gauge ...............27
engine coolant temperature
gauge .........................................27
engine oil pressure gauge ........27
fuel gauge ..................................27
odometer ...................................27
2008 F-650/750(f67)
Supplement
USA(fus)
Index
263
