Page 57 of 273

Power side view mirrors (if equipped)
The ignition can be in any position to adjust the power side view mirrors.
To adjust your mirrors:
1. Select L to adjust the left mirror
or R to adjust the right mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
4. If your vehicle’s mirrors are equipped with spotter mirrors (located
below the main mirrors), they must be adjusted manually.
Heated mirrors (if equipped)
Both main mirrors are heated automatically to remove ice, mist and fog
and are automatically activated when the vehicle is started.
Note:The mirrors may behotto the touch but will not burn. This is a
normal condition.
Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions
could cause damage to the glass and mirrors.
The mirror heating elements are designed to operate regardless of the
geographic location of the vehicle. There is no switch to turn on, or
other operator involvement required other than to start the vehicle.
MIRRORS
L R
MIRRORS
L R
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
56
Page 58 of 273
The spotter mirror (if equipped) is not heated.
Fold-away mirrors
The mirrors can be manually folded forward or backwards for narrow
spaces like driving through an automatic car wash or backing out of a
garage with the trailer tow mirror.
The telescoping feature (if equipped) allows the mirror to extend
approximately three inches (76 mm). This feature is especially useful to
the driver when towing a trailer.
SPEED CONTROL (IF EQUIPPED)
To turn speed control on
Press CRUISE RPM. If the vehicle is
moving, speed control will be
enabled; if the vehicle is stationary,
engine RPM can be controlled.
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
Do not shift the gearshift lever into N (Neutral) with the speed
control on.
CRUISE
RPM
OFF
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
57
Page 59 of 273

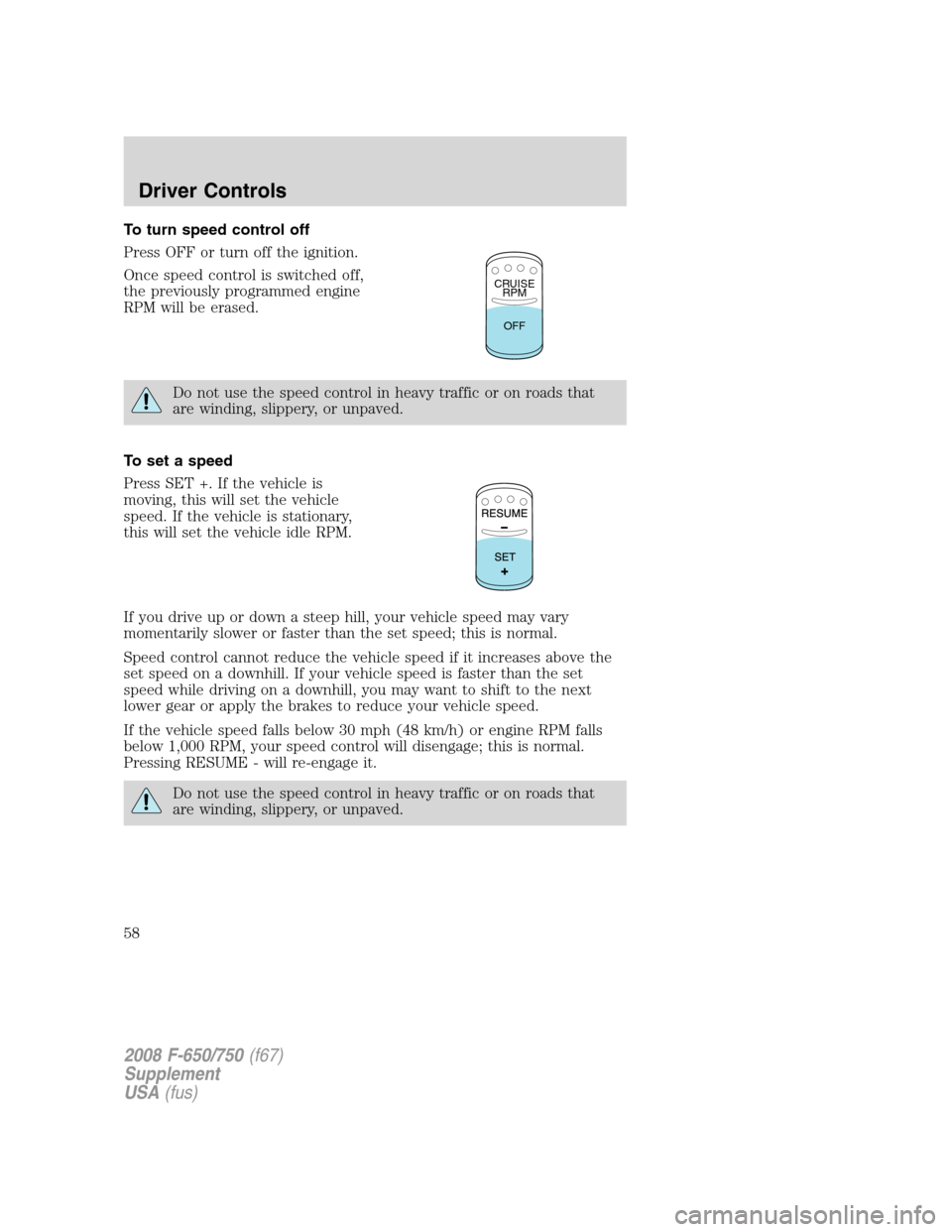

To turn speed control off
Press OFF or turn off the ignition.
Once speed control is switched off,
the previously programmed engine
RPM will be erased.
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
To set a speed
Press SET +. If the vehicle is
moving, this will set the vehicle
speed. If the vehicle is stationary,
this will set the vehicle idle RPM.
If you drive up or down a steep hill, your vehicle speed may vary
momentarily slower or faster than the set speed; this is normal.
Speed control cannot reduce the vehicle speed if it increases above the
set speed on a downhill. If your vehicle speed is faster than the set
speed while driving on a downhill, you may want to shift to the next
lower gear or apply the brakes to reduce your vehicle speed.
If the vehicle speed falls below 30 mph (48 km/h) or engine RPM falls
below 1,000 RPM, your speed control will disengage; this is normal.
Pressing RESUME - will re-engage it.
Do not use the speed control in heavy traffic or on roads that
are winding, slippery, or unpaved.
CRUISE
RPM
OFF
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
58
Page 60 of 273

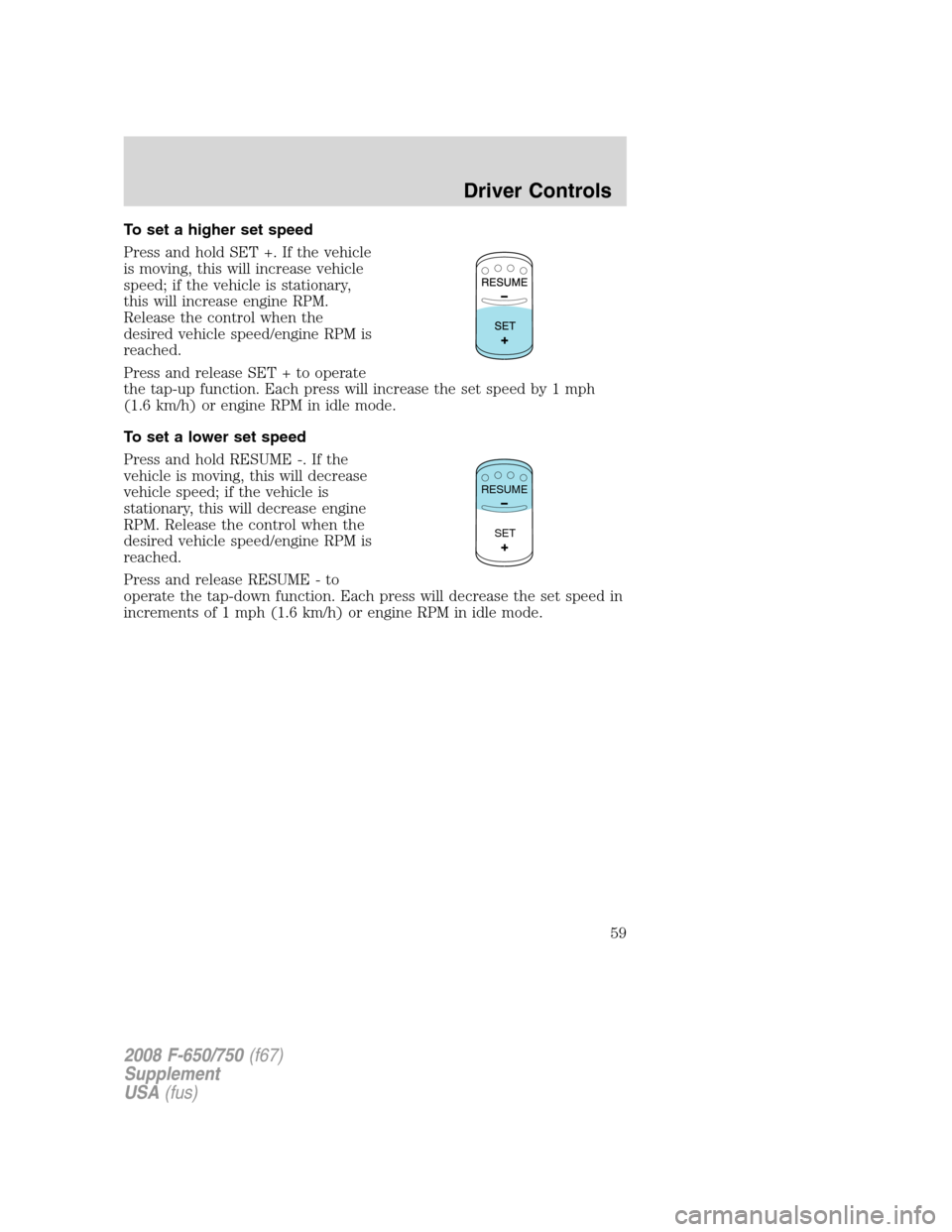

To set a higher set speed
Press and hold SET +. If the vehicle
is moving, this will increase vehicle
speed; if the vehicle is stationary,
this will increase engine RPM.
Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release SET + to operate
the tap-up function. Each press will increase the set speed by 1 mph
(1.6 km/h) or engine RPM in idle mode.
To set a lower set speed
Press and hold RESUME -. If the
vehicle is moving, this will decrease
vehicle speed; if the vehicle is
stationary, this will decrease engine
RPM. Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release RESUME - to
operate the tap-down function. Each press will decrease the set speed in
increments of 1 mph (1.6 km/h) or engine RPM in idle mode.
SET RESUME
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
59
Page 61 of 273

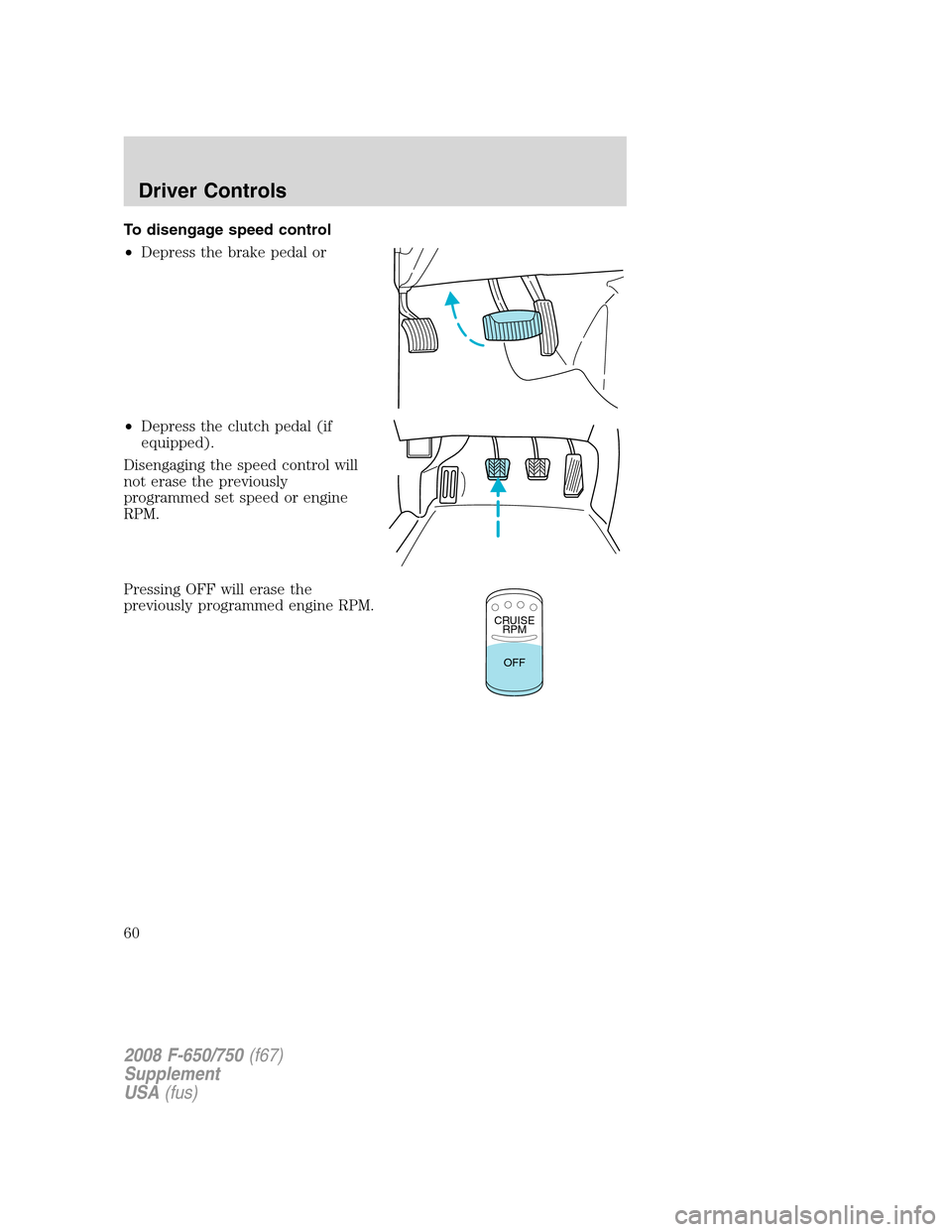

To disengage speed control
•Depress the brake pedal or
•Depress the clutch pedal (if
equipped).
Disengaging the speed control will
not erase the previously
programmed set speed or engine
RPM.
Pressing OFF will erase the
previously programmed engine RPM.
CRUISE
RPM
OFF
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
60
Page 62 of 273
To return to a previously set speed
Press RESUME -. For RESUME - to
operate, the vehicle speed must be
above 30 mph (48 km/h) or engine
speed must be above 1,000 RPM.
KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
SET RESUME
U L
2008 F-650/750(f67)
Supplement
USA(fus)
Locks and Security
61
Page 63 of 273

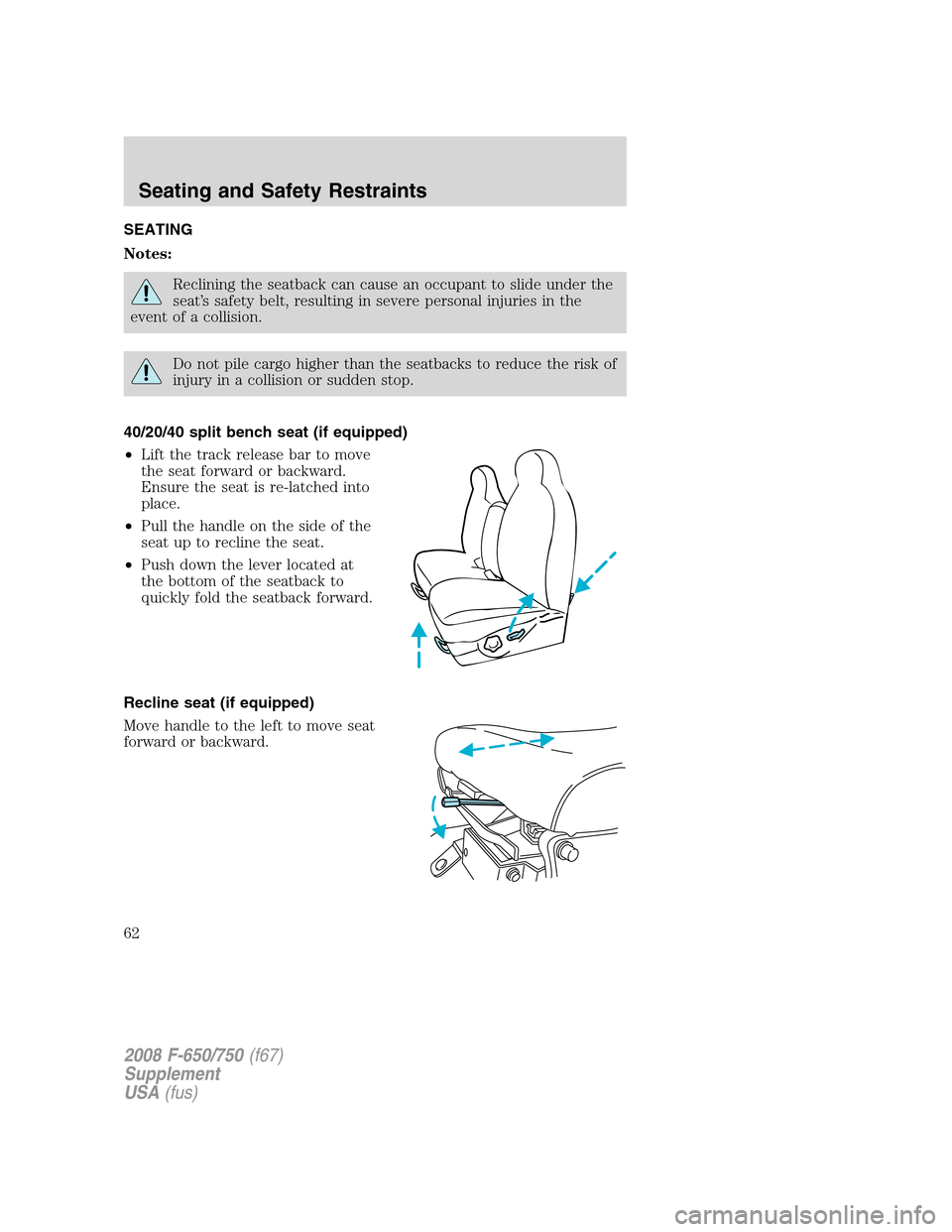

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
40/20/40 split bench seat (if equipped)
•Lift the track release bar to move
the seat forward or backward.
Ensure the seat is re-latched into
place.
•Pull the handle on the side of the
seat up to recline the seat.
•Push down the lever located at
the bottom of the seatback to
quickly fold the seatback forward.
Recline seat (if equipped)
Move handle to the left to move seat
forward or backward.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
62
Page 64 of 273
Rotate control to adjust seatback.
Using the manual lumbar support
For more lumbar support, turn the
lumbar support control toward the
front of the vehicle.
For less lumbar support, turn the
lumbar support control toward the
rear of the vehicle.
Easy-Aire seat (if equipped)
Move handle to the left to move seat
forward or backward.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
63
