2008 FORD F750 Owners Manual

Page 185 of 273

FORD F750 2008 11.G Owners Manual When these steps are performed successfully in the order outlined above,
the DPF lamp will begin flashing at a rate of once every 10 seconds. The
engine speed may also increase slightly. To allow park

Page 186 of 273

FORD F750 2008 11.G Owners Manual The exhaust outlet assembly on your vehicle is a uniquely functioning
device that accompanies the DPF assembly. It is designed to help control
the temperature of the exhaust during the DPF regeneratio

Page 187 of 273

FORD F750 2008 11.G Owners Manual •Check for proper operation of radiator shutters, if equipped. The
shutters should be open during normal operating temperatures.
Engine and Driveline System
•Transmission Enclosure:inspect for cra

Page 188 of 273

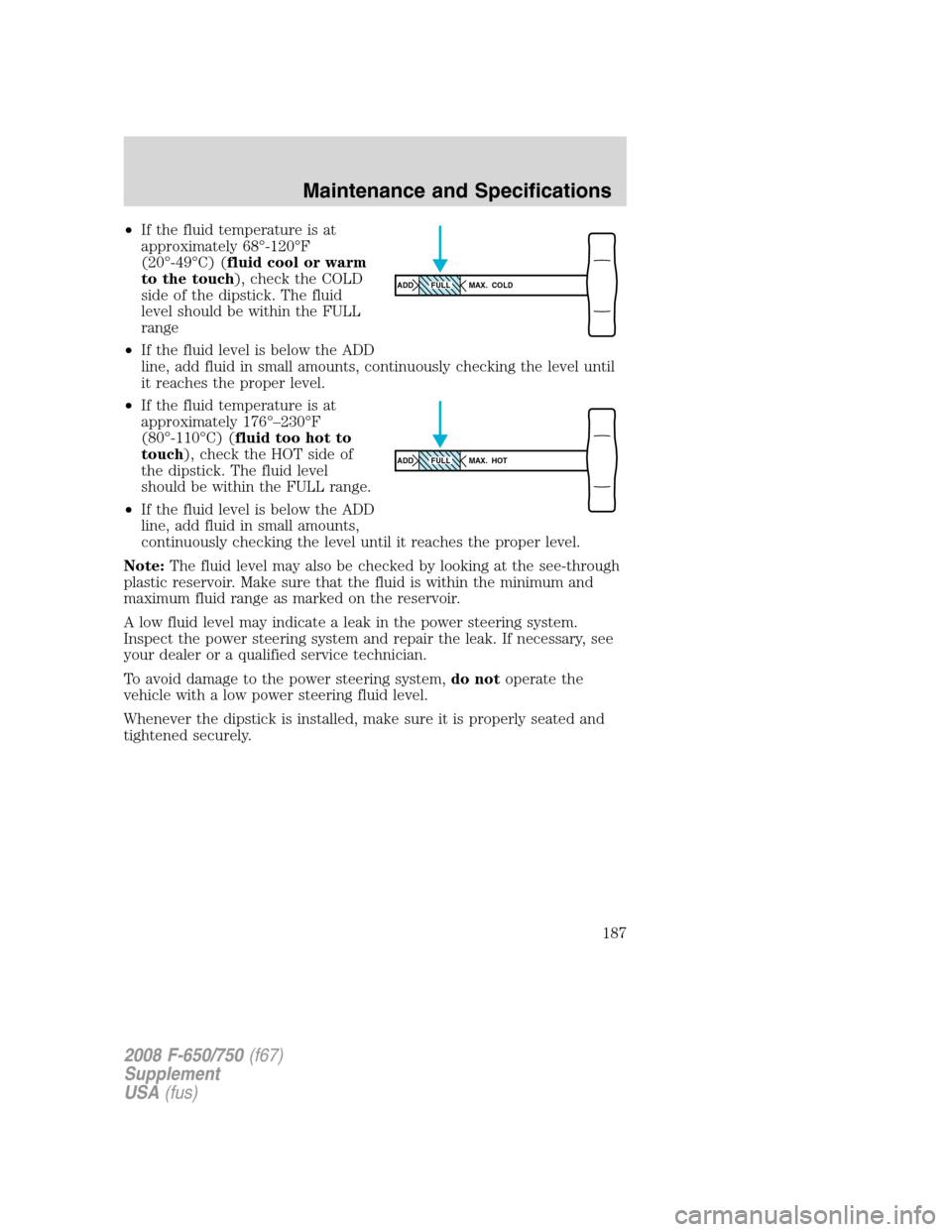

FORD F750 2008 11.G Owners Manual •If the fluid temperature is at
approximately 68°-120°F
(20°-49°C) (fluid cool or warm
to the touch), check the COLD
side of the dipstick. The fluid
level should be within the FULL
range
•If t

Page 189 of 273

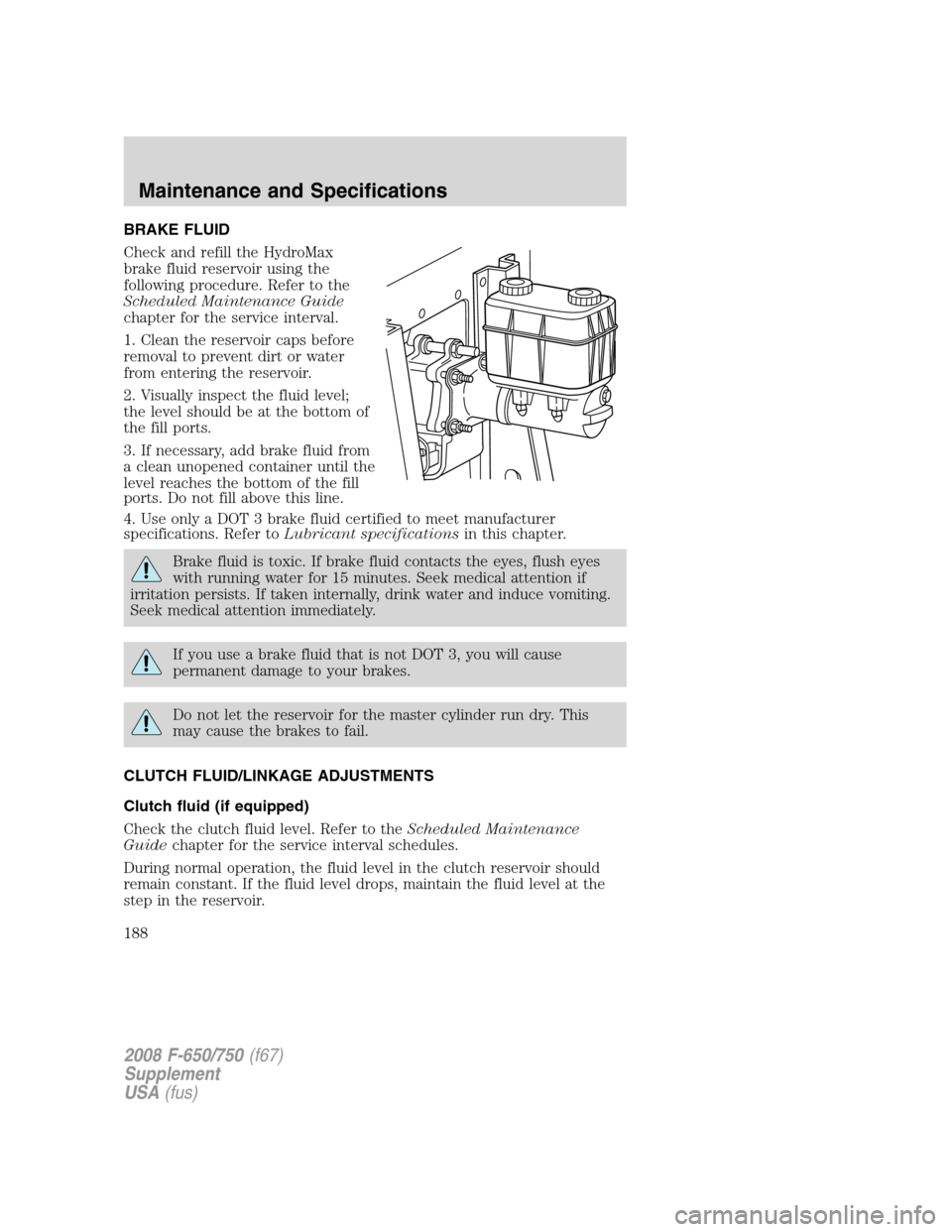

FORD F750 2008 11.G Owners Manual BRAKE FLUID
Check and refill the HydroMax
brake fluid reservoir using the
following procedure. Refer to the
Scheduled Maintenance Guide
chapter for the service interval.
1. Clean the reservoir caps be

Page 190 of 273

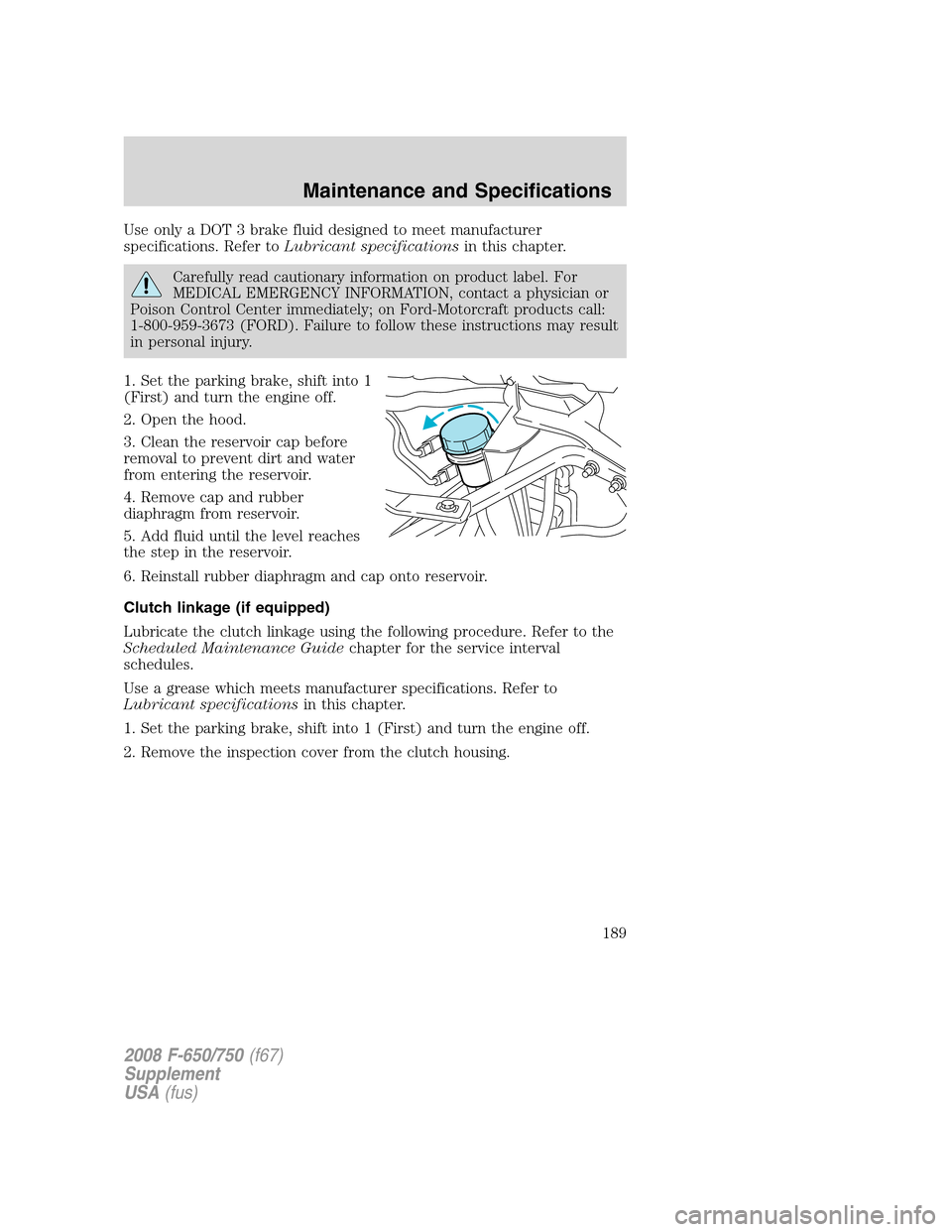

FORD F750 2008 11.G Owners Manual Use only a DOT 3 brake fluid designed to meet manufacturer
specifications. Refer toLubricant specificationsin this chapter.
Carefully read cautionary information on product label. For
MEDICAL EMERGENC

Page 191 of 273

FORD F750 2008 11.G Owners Manual •Transmission and clutch
removed for clarity.
3. With a grease gun, lubricate the clutch release bearing (at one
location) and the clutch release shaft (at two locations) using the grease
fittings p

Page 192 of 273

FORD F750 2008 11.G Owners Manual 3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Plac
