2008 FIAT DUCATO Owner handbook (in English)

120
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Group 0 0-10 kg in weight
Group 0+0-13 kg in
weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
WARNING
As it may be noted, the groups
overlap partly and in fact, in
commerce it is possible to find
devices that cover more than
one weight group.
All restraint devices must bear the cer-
tification data, together with the control
brand, on a solidly fixed label which must
absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally.
WARNING
fig. 7F0N0123m
the rear seat, as this is the most protected position in the case
of a crash.
WARNING
SERIOUS DANGER Should it be absolutely necessary to carry a
child on the front passenger’s seat with the cradle seat facing
backwards, passenger’s air bags (front and side bags, where provided),
shall be deactivated through the setup menu. Deactivation shall be checked
through the instrument panel warning light F. The front passenger’s
seat shall also be adjusted in the most backward position to prevent
WARNING
fig. 8F0N0124m
With front passenger’s air bag ac -
tive do not place cradle child’s seats
facing backwards on the front pas -
senger seat since the air bag acti -
vation could cause serious injuries,
even mortal regardless of the se -
riousness of the crash. You are ad -
vised to carry children always on
113-132 Ducato GB 6-11-2007 9:59 Pagina 120

121
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 9F0N0125m
any contact between child’s seat and
dashboard.
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the
vehicle seat belts fig. 7and in
turn it must restrain the child with its
own belts.
WARNING
GROUP 1
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the vehicle seat belt restrains both
child and seat fig. 8.
fig. 10F0N0126m
The figure is only an ex -
ample for mounting. At -
tain to the instructions for fas -
tening which must be enclosed
with the specific child restrain -
ing system you are using.
WARNING
Children taller than 1.50 m can wear seat
belts like adults.
113-132 Ducato GB 6-11-2007 9:59 Pagina 121

122
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Seats exist which are suitable for covering weight groups 0 and 1 with a rear connection to the vehicle belts and
their own belts to restrain the child. Due to their size, they can be dangerous if installed incorrectly fastened to the
vehicle belts with a cushion. Carefully follow the instructions for installation provided with the seat.
GROUP 2
Starting from 15 kg to 25 kg in weight, children may be restrained directly by the vehicle belts fig. 9. The only function of the seat
is to position the child correctly in relation to the belts, so that the diagonal part adheres to the chest and not to the neck and that
the horizontal part clings to the child’s pelvis and not the abdomen.
113-132 Ducato GB 6-11-2007 9:59 Pagina 122

123
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
The figure is only an example for
mounting. Attain to the instructions
for fastening which must be en -
closed with the specific child re -
straining system you are using.
GROUP 3
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
Fig. 10shows proper child seat posi-
tioning on the rear seat.The figure is only an example for
mounting. Attain to the instructions
for fastening which must be en -
closed with the specific child re -
straining system you are using.
PASSENGER SEAT COMPLIANCE
WITH REGULATIONS ON CHILD’S
SEAT USE
Your vehicle complies with the new Eu-
ropean Directive 2000/3/EC regulating
child’s seat assembling on the different ve-
hicle seats according to the following ta-
bles:
GroupRange
weightVAN, COMBI and
PANORAMA versions
CAB
1
STAND 2NDROW OF REAR
SEATS
Single or two-
Left side
Right side
Central
seater seat
rear
rear
passenger
WARNING
113-132 Ducato GB 6-11-2007 9:59 Pagina 123

124
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
(1 or 2 passengers)
passenger
passenger
Group 0, 0+ up to 13 kg
UU U
U
Group 1 9-18 kg
UU U
U
Group 2 15-25 kg
UU U
U
Group 3 22-36 kg
UU U
U
Key:
U = suitable for child restraint systems
of the “Universal” category, according to
European Standard EEC-R44 for the spec-
ified “Groups”.
fig. 11F0N0236m
fig. 12F0N0234m
fig. 13F0N0235m
To sum up the safety precautions
to follow when transporting
children:
1) The recommended position for in-
stalling child’s seat is on the rear seat, as
it is the most protected in the case of a
crash.
2) If the passenger’s air bag is deactivat-
ed always check the amber warning light
on the cluster to make sure
that it has actually been deac-
tivated.
3) Attain to the instructions for fasten-
ing the specific child restraint system
which you are using. These instructions
must be provided by the manufacturer.
Keep the child restraint system installa-
WARNING
113-132 Ducato GB 6-11-2007 9:59 Pagina 124

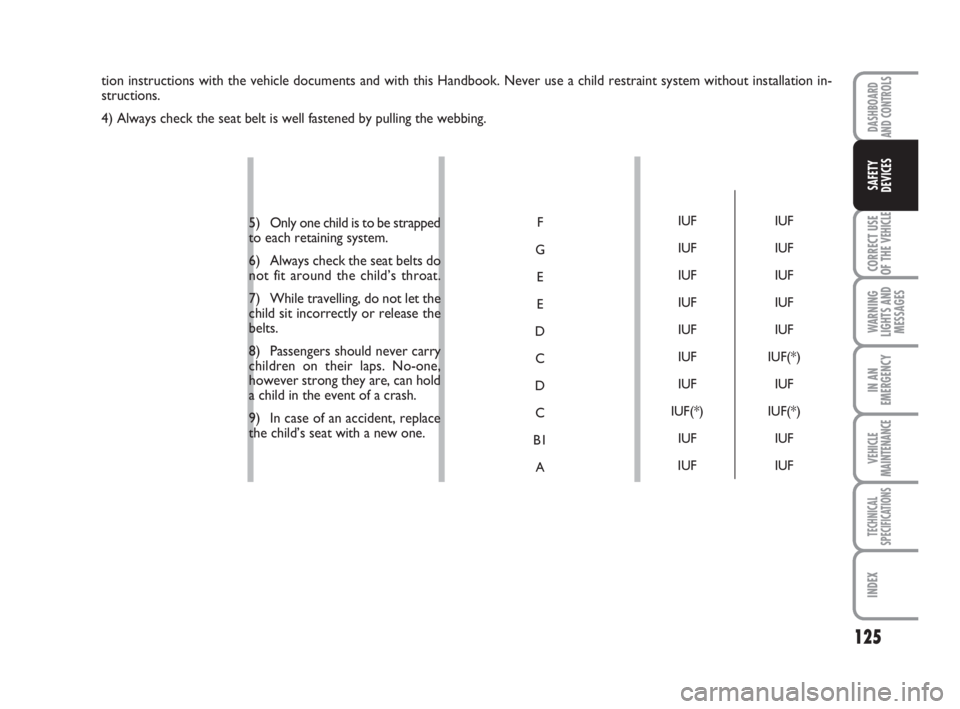

tion instructions with the vehicle documents and with this Handbook. Never use a child restraint system without installation in-
structions.
4) Always check the seat belt is well fastened by pulling the webbing.
125
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
F
G
E
E
D
C
D
C
B1
A5) Only one child is to be strapped
to each retaining system.
6) Always check the seat belts do
not fit around the child’s throat.
7) While travelling, do not let the
child sit incorrectly or release the
belts.
8) Passengers should never carry
children on their laps. No-one,
however strong they are, can hold
a child in the event of a crash.
9) In case of an accident, replace
the child’s seat with a new one. IUF
IUF
IUF
IUF
IUF
IUF
IUF
IUF(*)
IUF
IUFIUF
IUF
IUF
IUF
IUF
IUF(*)
IUF
IUF(*)
IUF
IUF
113-132 Ducato GB 6-11-2007 9:59 Pagina 125

With front passenger’s air bag ac -
tive do not place cradle child’s seats
facing backwards on the front pas -
senger seat since the air bag acti -
vation could cause serious injuries,
even mortal regardless of the se -
riousness of the crash. You are ad -
vised to carry children always on
the rear seat, as this is the most
protected position in the case of a
crash.
126
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
PRESETTING FOR
MOUNTING THE
“UNIVERSAL ISOFIX”
CHILD RESTRAINT
SYSTEM
This vehicle is preset for mounting the
Universal Isofix child restraint system, a
new European standardised system for
carrying children safely.
Fig. 11shows a child restraint system by
way of example.
Due to its different anchoring system, the
Universal Isofix child’s seat shall be an-
chored to the proper lower metal rings
A-fig. 12, set between rear seat back
and cushion. The upper belt (provided
with the child’s seat) shall be then secured
to ring B-fig. 13located in the rear part
of the seat.
It is possible to mount at the same time
both the traditional restraint system and
the “Universal Isofix” one.
Remember that in case of Universal Isofix
child’s seat, you can only use all those
seats approved with the marking ECE
R44/03 “Universal Isofix”.At Lineaccessori Fiat is available the “Uni-
versal Isofix” “Duo Plus” child’s seat.
For any further installation/use detail, re-
fer to the “Instructions Manual” that must
be provided by the child restraint system
Manufacturer.
113-132 Ducato GB 6-11-2007 9:59 Pagina 126

127
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Group 0+ to 13 kg
Group I - 9
to 18 kg
fig. 14F0N0324mfig. 15F0N0072m
Range of weight
Child’s seat
IsofixVehic
Isofix positions
orientation
class
side rear sid
rear 1
strow
PANORAMA
COMBI
Portable cradle
Group 0 to 10 kg
Mount the child restraint
system only with the ve -
hicle stationary. The Isofix child
restraint system is properly an -
chored to the mounting brackets
when clicks are heard. In any case,
keep to the installation instruc -
tions that must be provided by the
child restraint system Manufac -
turer.
WARNING
PASSENGER SEAT COMPLIANCE
WITH REGULATIONS ON
UNIVERSAL ISOFIX CHILD’S SEAT
USE
The table below, according to ECE 16 Eu-
ropean Directive, shows the different in-
stallation possibilities of Universal Isofix
restraint systems on seats fitted with Isofix
fasteners.
113-132 Ducato GB 6-11-2007 9:59 Pagina 127
