2008 FIAT BRAVO Radio CD MP3 Manual

8
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
TastoCD FUNCTIONS
Play previous/next track
CD track fast forward/backward
Eject CD
Select radio frequency band
Select next/previous CD (CD Changer mode)
Select next/previous folder (MP3 mode)
Fast CD track (or folder) selection (MP3 CD mode)
(function controlled by volume knob)
MP3 CD track info display (MP3 CD mode)
MP3 CD track info display setting (MP3 CD mode)
CD track repeat on/off (CD mode)
MP3 CD track/MP3 folder track repeat on/off/
Repeat whole MP3 CD (MP3 CD mode)
CD track/MP3 track random playback on/off
Mode
Short push on button
Long push on button
Short push on button
Short push on button
Short push on button
Short push on button
Short push on button
Short push on button
Long push on button
Short push on button
Short push on button
Short push on buttonÈÍ
˚
BAND
AS
CD/ *+
CD/ *–
F-TRK
RPT
RND DISP CD+/CD–

9
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
STEERING WHEEL CONTROLS
(where provided)
F0Q0735m
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (with sound system on)
Volume up
Volume down
Audio source (Radio - CD - MP3 - CD Changer)
selection button
Automatic tuning of the first receivable station
(upward)
CD player: select next track
CD Changer: select next track
Automatic tuning of the first receivable station
(downward)
CD player: select previous track
CD Changer: select previous trackMode
Short push on button
Press button
Press button
Press button
Press button
Press button

10
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
❒Manual storage of 42 stations: 24 in the
FM band (6 in FM1, 6 in FM2, 6 in FMT
and 6 in FMAST), 6 in the MW band, 6
in the LW band and 6 in the AM band
(MW+LW) that can be stored with Au-
toSTore in the AMAST band
❒Automatic storage (AutoSTore func-
tion) of 6 stations in the FM band and 6
in the AM band
❒SENS DX/LO function (sensitivity ad-
justing in searching radio stations)
❒Scan function (scanning stored stations),
about 10 seconds per station
❒Automatic Stereo/Mono switching.Compact Disc section
❒Disc select (disc no.)
❒Track select (forward/backward)
❒Fast forward/backward
❒Track Repeat function (repetition of the
last track)
❒Track Scan function (scanning the
tracks on the Compact Disc, about 10
seconds per track)
❒RaNDom function (random track play-
ing).
❒TPM function (CD playing sequence
storage)
❒CD Naming function (allocating a name
to a CD), for CD Changer only. Not
available on sound system with MP3
CD player.
❒CD Compression function (volume re-
duction according to input signal level

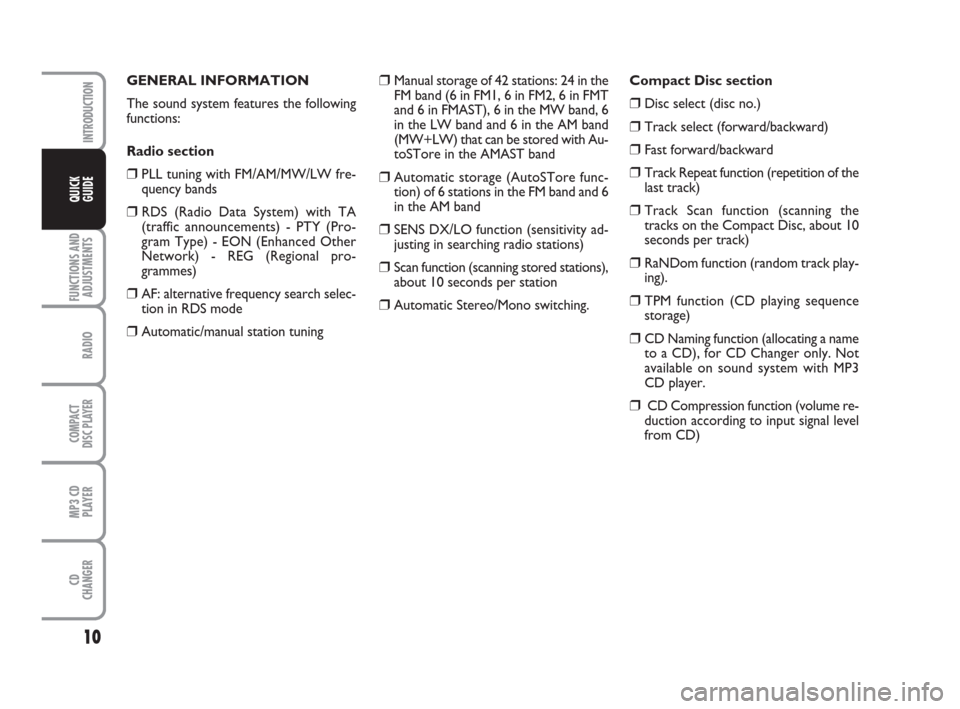

from CD) GENERAL INFORMATION
The sound system features the following
functions:
Radio section
❒PLL tuning with FM/AM/MW/LW fre-
quency bands
❒RDS (Radio Data System) with TA
(traffic announcements) - PTY (Pro-
gram Type) - EON (Enhanced Other
Network) - REG (Regional pro-
grammes)
❒AF: alternative frequency search selec-
tion in RDS mode
❒Automatic/manual station tuning

11
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function;
❒Audio Clip Detect function;
❒5-band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.
On multimedia CDs in addi-
tion to sound tracks also da-
ta tracks are recorded. Play-
ing one of these CDs may
cause rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages and
speakers. MP3 CD section
❒Folder selection (previous/next);
❒Track selection (forward/backward);
❒Fast forward/backward;
❒Disp function: MP3 CD data display:
folder name, ID3-TAG info, time
elapsed from start of track, file name);
❒Folder Repeat function: track repetition
selection;
❒RaNDom function: random folder
tracks playing;
❒Name Scroll function: tracks/folders
names scrolling.
❒Playing audio CDs and R/RW CDs.

QUICK
GUIDE
12
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
SELECTING RADIO/CD/
CD CHANGER
Pressing briefly and repeatedly button SRC
it is possible to select the following func-
tions in sequence:
– TUNER (Radio)
– CD (Compact Disc)
– CDC (CD Changer) (only if the CD
Changer is connected).
After changing sound source, the display
will show the current function selected:
TUNER (Radio), CD (Compact Disc),
CDC (CD Changer).
Functions not available (e.g. “CD” if a
Compact Disc is not inserted) are disabled
automatically.SOUND SOURCE MEMORY
FUNCTION
If while listening to a CD another function
is selected (e.g.: the radio), playing is
stopped and when the CD mode is re-
sumed, it starts again from the point in
which it was stopped.
If while listening to the radio another func-
tion is selected, when the Radio mode is
resumed, it is tuned to the last station se-
lected.
VOLUME ADJUSTMENT
Adjust volume through button/knob
ON/OFF.
Turn the knob clockwise to increase vol-
ume, turn the knob counter-clockwise to
lower the volume.
The display will show: “VOLUME 00” …
“VOLUME 12” TURNING THE
SOUND SYSTEM ON
The sound system is switched on pressing
the button/knob ON/OFF. The turning on
of the sound system radio can be con-
nected to the car ignition: turning the ig-
nition key to MAR, the radio turns on;
turning the key to STOP the radio turns
off (see paragraph “Setting the AUTO
function” is section “Radio”).
If the sound system is turned on with the
ignition key at STOP, it will turn off auto-
matically after about 20 minutes.
TURNING THE
SOUND SYSTEM OFF
To turn the sound system off keep but-
ton/knob ON/OFF pressed.
FF F
U U
N N
C C
T T
I I
O O
N N
S S
A A
N N
D D
A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S

13
QUICK
GUIDE
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
SOFT MUTE FUNCTION
When the Mute function is turned on/off
the volume will gradually increase or de-
crease (Soft Mute function).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
– briefly and repeatedly press button AU-
DIO
DSPuntil the display shows “BASS”
or “TREBLE”.
– turn the knob ON/OFF clockwise to in-
crease bass or treble tones or turn it
counter-clockwise to decrease.
The display will show for a few seconds
the bass/treble levels (–10 to +10).
A few seconds after the last setting the dis-
play will resume the radio main screen.BALANCE ADJUSTMENT
Proceed as follows:
– briefly and repeatedly press button AU-
DIO
DSPuntil the display shows “BAL-
ANCE”
– turn the button/knob ON/OFF clock-
wise to increase the sound from the right
speakers or turn it counter-clockwise to
increase the sound from the left speakers.
The display will show for a few seconds
the balance levels, from Í+10 to È+10
(È= right, Í= left). A few seconds af-
ter the last setting the display will resume
the radio main screen. MUTE FUNCTION
(turning off the volume
completely)
To switch the Mute function on, press
briefly the button MUTE. Volume will
gradually lower (Soft Mute function) and
the display will show the current sound
source selected followed by the Mute (e.g.
“TUNER MUTE” when the Radio is se-
lected).
To switch the Mute function off, press
briefly the button MUTE again. Volume
will gradually become louder (Soft Mute
function) returning to the value set before
switching on the Mute function.
Turning the button/knob ON/OFF the
sound level changes; the Mute function will
however stay on. Press the button MUTE
again to turn it off.
When the Mute function is on, all the oth-
er functions can be used. If a traffic an-
nouncement arrives with the TA function
on, the traffic message will ignore the
Mute function.

QUICK
GUIDE
14
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
FADER ADJUSTMENT
Proceed as follows:
– briefly and repeatedly press button AU-
DIO
DSPuntil the display shows “FADE”
– turn the button/knob ON/OFF clock-
wise to increase the sound from the front
speakers or counter-clockwise to increase
the sound from the rear speakers.
A few seconds after the last setting the dis-
play will resume the radio main screen.LOUDNESS FUNCTION
The Loudness function improves the
sound volume when listening at low lev-
el, increasing the basses and trebles. When
volume is at max. the Loundness function
is excluded.
To switch the function on/off, open the
MENU by pressing briefly button MENU
RDSand scroll it. Function condition (on
or off) is shown on the display by message
“LOUDNESS: ON” or “LOUDNESS:
OFF”, that can be selected by means of
buttons Èor Í.
TELEPHONE PROVISION
If the hands-free kit is installed on the car,
when a phone call is received the volume
set will be the one selected for the
PHONE function in the menu, if required
it can be muted OFF. PRESET/XX EQ SET*/ CLASSIC/
ROCK/JAZZ FUNCTION
(equalizer on/off)
To turn the equalizer on press for long
button AUDIO
DSPand turn the but-
ton/knob ON/OFF to select one of the
following settings:
– “PRESET” (predefined equalizer setting);
– “CLASSIC” (predefined equalizer setting
for best playing of classic music);
– “ROCK” (predefined equalizer setting
for best playing of rock music);
– “JAZZ” (predefined equalizer setting for
best playing of jazz music);
– “CUSTOMER” (setting of the 5 equal-
izer bands that can be changed by the
user)
Press repeatedly button Èor Íto select
the required band and then use the but-
ton/knob ON/OFF to increase/decrease
the level in the selected frequency band.

15
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO
The AM band is divided into sections:
MW, LW and AMAST. The AMAST band
is reserved to the stations stored auto-
matically with the AutoSTore function.
The radio is always preset for receiving
stations broadcasting with RDS (Radio Da-
ta System).
PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
– 24 in the FM band ( 6 in FM 1, 6 in FM
2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST band
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6). The display will show the
station name and frequency and also the
presetting number.STORING THE LAST
STATION HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed.
AUTOMATIC TUNING
Briefly press button Èor Íto start au-
tomatically searching the tuning for the
next station that it is possible to receive
in the direction chosen.
If the station on which the tuner stops is
one of the stations stored with the pre-
setting buttons (from 1 to 6), the display
will show the presetting number. When the sound system is turned on, the
last function selected before turning off
is played (Radio, Compact Disc or CD
Changer).
To select the Radio source while listening
to another audio source, press briefly and
repeatedly button SRC.
When the Radio source is selected, press
briefly and repeatedly button BAND
ASto
select the required reception band.
Each time the BAND
ASbutton is pressed
the bands: “FM1”, FM2”, “FM3”, “FMAST”,
“LW”, “MW” and “AMAST” are select-
ed in sequence
The FM band is divided into sections: FM1,
FM2, FM3 and FMAST. The FMAST band
is reserved to the stations stored auto-
matically with the AutoSTore function.
The “FMAST” reception band is reserved
to the stations stored automatically with
the AutoSTore function.
RR R
A A
D D
I I
O O
