2008 FIAT BRAVO audio

FADER adjustment................................................................... 14
LOUDNESS function .............................................................. 14
Telephone provision ............................................................... 14
RADIO (Tuner) ....................................................................... 15
Presetting buttons ................................................................... 15
Storing the last station heard................................................. 15
Automatic tuning ..................................................................... 15
Manual tuning ........................................................................... 16
SCAN function.......................................................................... 16
Scanning preset stations .......................................................... 16
Manual station storage ........................................................... 17
AUTOSTORE function........................................................... 17
Listening to stored stations ................................................... 17
AF function ............................................................................... 18
TA function ............................................................................... 18
PTY function ............................................................................. 19
Menu .......................................................................................... 20
Available settings ..................................................................... 21
COMPACT DISC PLAYER ................................................... 25
Introduction ............................................................................. 25
Selecting the CD player ......................................................... 25
Loading/ejecting a CD ............................................................ 25
Display information ................................................................. 25
Track selection ........................................................................ 25
Fast forward/backward .......................................................... 26
C C
O O
N N
T T
E E
N N
T T
S S
INTRODUCTION .................................................................. 3
Advice ........................................................................................ 3
- Road safety ............................................................................. 3
- Reception conditions ........................................................... 3
- Care and maintenance ......................................................... 4
- Compact Disc ....................................................................... 4
Technical data .......................................................................... 5
QUICK GUIDE ........................................................................ 6
Steering wheel controls ......................................................... 9
General information ............................................................... 10
- Radio section ......................................................................... 10
- Compact Disc section ......................................................... 10
- MP3 CD section ................................................................... 11
- Audio section ........................................................................ 11
FUNCTIONS AND ADJUSTMENTS ................................. 12
Turning the sound system on ................................................ 12
Turning the sound system off ................................................ 12
Selecting Radio/CD/CD Changer ........................................ 12
SOUND SOURCE MEMORY function .............................. 12
Volume adjustment ................................................................. 12
MUTE function.......................................................................... 13
SOFT MUTE function.............................................................. 13
Tone adjustment....................................................................... 13
Balance adjustment ................................................................. 13
PRESET/XX EQ SET*/ CLASSIC/ ROCK/JAZZ function .. 14

5
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
IMPORTANT The CD player can read
most of the compression systems cur-
rently on sale (e.g.: LAME, BLADE, XING,
FRAUNHOFER) however, due to the
evolution of these systems, reading of all
compression formats is not guaranteed.
IMPORTANT When loading a multi-ses-
sion CD, only the first session will be
played. IMPORTANT Should copy-protected
CDs be used, then, few seconds may be
required for playing them. Moreover, due
to the proliferation of always new and dif-
ferent protection methods, it is not guar-
anteed that the CD player can play what-
ever protected disc. Copy protection is
often indicated on the CD cover in small
letters or hard to read characters. Usu-
ally it is indicated by writings like: “COPY
CONTROL”, “COPY PROTECTED”,
“THIS CD CANNOT BE PLAYED ON A
PC/MAC”, or it is identified by symbols
like:TECHNICAL DATA
❒Power: 4 x 36 W
Standard HI-FI system
❒6 speakers (2 midwoofers + 2 front
tweeters, 2 rear full-range speakers)
Interscope Hi-Fi system
(where provided)
❒8 speakers (2 midwoofers + 2 front
tweeters, 2 midwoofers + 2 rear
tweeters), subwoofer and multi-chan-
nel amplifier with ASP (analog equaliz-
er)
❒CD Changer presetting
❒Anti-theft protection systemProtected discs (and their cover) very often
are not marked with the audio CD identi-
fication symbol:

6
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
QQ Q
U U
I I
C C
K K
G G
U U
I I
D D
E E
AUDIO SECTION
❒Mute/Pause function
❒Loudness function
❒Audio Clip Detect function
❒Soft Mute function
❒5-band graphic equalizer
❒Separate bass/treeble adjustment
❒Balance (LH/RH balance) and Fader
(front/rear balance)
F0Q0600m
CD / MP3 SECTION
❒Play / Pause
❒Select previous / next track
❒FF / FR
❒Select previous / next folderRADIO SECTION
❒Receiving traffic announcements (TA)
❒Automatic storing of 6 stations in the
FM band (AutoSTore function) and 6
stations in the AM band

7
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE
Button
Button
GENERAL FUNCTIONS
On
Off
Volume adjustment
Volume on/off (MUTE/PAUSE)
Frequency band selection
(FM 1, FM 2, FM 3, FM AST, LW, MW, AMAST)
Alternative frequency
Program type
Traffic announcements
Audio settings
Equalizer activation
Advanced functions setting
Audio source selection (Radio, CD, CD Changer)
Mode
Short push on button
Long push on button
Knob rotation left/right
Short push on button
Short cyclic push on button
Short push on button
Long push on button
Short push on button
Short push on button
Long push on button
Manual station tuning: short push on button
1st level menu activation: short push on button
2nd level menu activation: long push on button
Short push on button
RADIO FUNCTIONS
Automatic radio station tuning
Storing current radio station
Recalling stored station
Automatic station scanning
Mode
Short push on button
(long push for fast forward)
Long push on buttons respectively
for preset/storage 1 to 6
Short push on buttons respectively
for preset/storage 1 to 6
Short push on button
ON/OFF
MUTE
BAND
AS
AF PTY
TA
AUDIO
DSP
MENU
RDS
SRC
ÈÍ
1 2 3 4 5 6
SCAN

9
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE

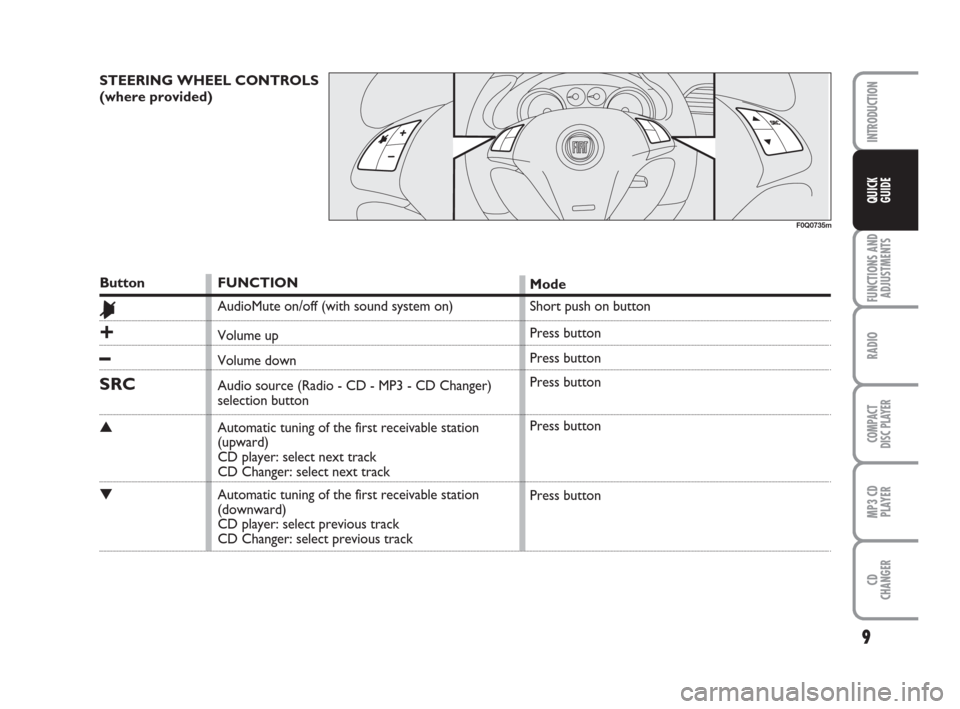

STEERING WHEEL CONTROLS
(where provided)
F0Q0735m
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (with sound system on)
Volume up
Volume down
Audio source (Radio - CD - MP3 - CD Changer)
selection button
Automatic tuning of the first receivable station
(upward)
CD player: select next track
CD Changer: select next track
Automatic tuning of the first receivable station
(downward)
CD player: select previous track
CD Changer: select previous trackMode
Short push on button
Press button
Press button
Press button
Press button
Press button

11
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
QUICK
GUIDE

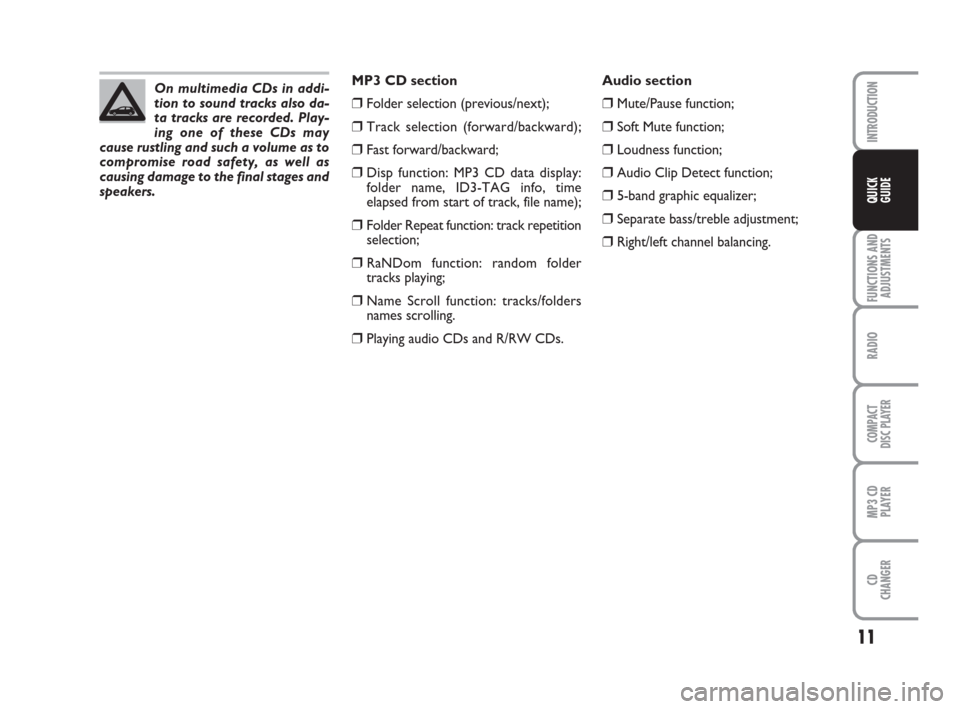

Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function;
❒Audio Clip Detect function;
❒5-band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.
On multimedia CDs in addi-
tion to sound tracks also da-
ta tracks are recorded. Play-
ing one of these CDs may
cause rustling and such a volume as to
compromise road safety, as well as
causing damage to the final stages and
speakers. MP3 CD section
❒Folder selection (previous/next);
❒Track selection (forward/backward);
❒Fast forward/backward;
❒Disp function: MP3 CD data display:
folder name, ID3-TAG info, time
elapsed from start of track, file name);
❒Folder Repeat function: track repetition
selection;
❒RaNDom function: random folder
tracks playing;
❒Name Scroll function: tracks/folders
names scrolling.
❒Playing audio CDs and R/RW CDs.

QUICK
GUIDE
14
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
FADER ADJUSTMENT
Proceed as follows:
– briefly and repeatedly press button AU-
DIO
DSPuntil the display shows “FADE”
– turn the button/knob ON/OFF clock-
wise to increase the sound from the front
speakers or counter-clockwise to increase
the sound from the rear speakers.
A few seconds after the last setting the dis-
play will resume the radio main screen.LOUDNESS FUNCTION
The Loudness function improves the
sound volume when listening at low lev-
el, increasing the basses and trebles. When
volume is at max. the Loundness function
is excluded.
To switch the function on/off, open the
MENU by pressing briefly button MENU
RDSand scroll it. Function condition (on
or off) is shown on the display by message
“LOUDNESS: ON” or “LOUDNESS:
OFF”, that can be selected by means of
buttons Èor Í.
TELEPHONE PROVISION
If the hands-free kit is installed on the car,
when a phone call is received the volume
set will be the one selected for the
PHONE function in the menu, if required
it can be muted OFF. PRESET/XX EQ SET*/ CLASSIC/
ROCK/JAZZ FUNCTION
(equalizer on/off)
To turn the equalizer on press for long
button AUDIO
DSPand turn the but-
ton/knob ON/OFF to select one of the
following settings:
– “PRESET” (predefined equalizer setting);
– “CLASSIC” (predefined equalizer setting
for best playing of classic music);
– “ROCK” (predefined equalizer setting
for best playing of rock music);
– “JAZZ” (predefined equalizer setting for
best playing of jazz music);
– “CUSTOMER” (setting of the 5 equal-
izer bands that can be changed by the
user)
Press repeatedly button Èor Íto select
the required band and then use the but-
ton/knob ON/OFF to increase/decrease
the level in the selected frequency band.

15
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
RADIO
The AM band is divided into sections:
MW, LW and AMAST. The AMAST band
is reserved to the stations stored auto-
matically with the AutoSTore function.
The radio is always preset for receiving
stations broadcasting with RDS (Radio Da-
ta System).
PRESETTING BUTTONS
The buttons with symbols from 1 to 6
make it possible to set the following pre-
settings:
– 24 in the FM band ( 6 in FM 1, 6 in FM
2, 6 in FM 3, 6 in FMAST)
– 6 in the LW band
– 6 in the MW band
– 6 in the AMAST band
To call a preset station, choose the re-
quired frequency band and then press
briefly the corresponding preset button
(from 1 to 6). The display will show the
station name and frequency and also the
presetting number.STORING THE LAST
STATION HEARD
The radio automatically keeps in storage
the last station heard for each reception
band, which is then tuned when the ra-
dio is turned on or the reception band is
changed.
AUTOMATIC TUNING
Briefly press button Èor Íto start au-
tomatically searching the tuning for the
next station that it is possible to receive
in the direction chosen.
If the station on which the tuner stops is
one of the stations stored with the pre-
setting buttons (from 1 to 6), the display
will show the presetting number. When the sound system is turned on, the
last function selected before turning off
is played (Radio, Compact Disc or CD
Changer).
To select the Radio source while listening
to another audio source, press briefly and
repeatedly button SRC.
When the Radio source is selected, press
briefly and repeatedly button BAND
ASto
select the required reception band.
Each time the BAND
ASbutton is pressed
the bands: “FM1”, FM2”, “FM3”, “FMAST”,
“LW”, “MW” and “AMAST” are select-
ed in sequence
The FM band is divided into sections: FM1,
FM2, FM3 and FMAST. The FMAST band
is reserved to the stations stored auto-
matically with the AutoSTore function.
The “FMAST” reception band is reserved
to the stations stored automatically with
the AutoSTore function.
RR R
A A
D D
I I
O O
