2008 Citroen C8 Owner's Manual

 III

E
B
A
C
D
101 III

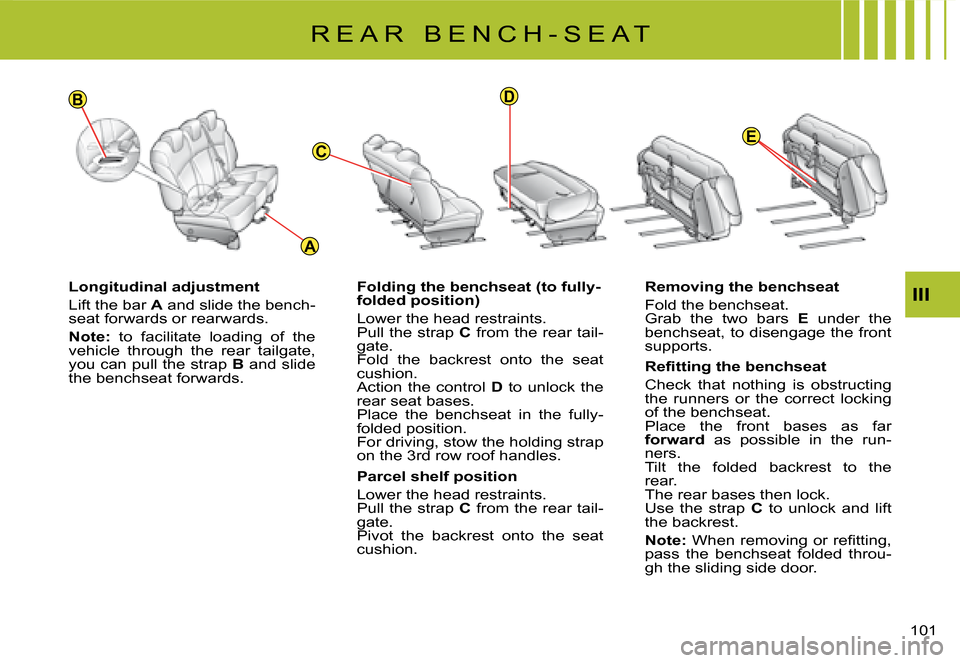

Longitudinal adjustment
Lift the bar
A and slide the bench -
seat forwards or rearwards.
Note: to facilitate loading of the
vehicle through the rear tailgate,
you can pull the strap B and slide
the benchseat forwards. Folding the benchseat (to fully-
folded position)
Lower the head restraints.
Pull the strap
C from the rear tail -
gate.
Fold the backrest onto the seat
cushion.
Action the control D to unlock the
rear seat bases.
Place the benchseat in the fully-
folded position.
For driving, stow the holding strap
on the 3rd row roof handles.
Parcel shelf position
Lower the head restraints.
Pull the strap C from the rear tail -
gate.
Pivot the backrest onto the seat
cushion. Removing the benchseat
Fold the benchseat.
Grab the two bars
E under the
benchseat, to disengage the front
supports.
Reitting the benchseat
Check that nothing is obstructing
the runners or the correct locking
of the benchseat.
Place the front bases as far
forward as possible in the run -
ners.
Tilt the folded backrest to the
rear.
The rear bases then lock.
Use the strap C to unlock and lift
the backrest.
Note: When removing or reitting,
pass the benchseat folded throu -
gh the sliding side door.
R E A R B E N C H - S E A T

102 III
Do not place rigid or heavy objects on the luggage screen or shelf.
They could damage the heating elements of
the rear screen or become dangerous projectiles
under heavy braking or in the event of an accident.
Rear shelf with umbrella slot
To remove the shelf, tailgate
open:
- pull it rearwards,
- carefully lift, then remove.
Luggage screen
To install:
- position one end of the luggage screen roller at the 2nd
row,
- compress the opposite end of the roller and put in place,
- release to engage,
- pull out the luggage screen as far as the boot pillars,
- insert the luggage screen guides into the pillar rails.
To remove:
- withdraw the luggage screen guides from the pillar rails,
- return the luggage screen into its roller,
- compress and remove the roller from its supports at the 2nd row.
R E A R P A R C E L S H E L F

103 III
Cargo net
Open the covers of the top ixings
of the 2nd row.
Attach the four hooks of the net
into their anchoring rings. Protective net
In vertical position:
Fold the net in two.
Attach the two middle hooks into the anchoring rings on the
loor.
Attach the four other hooks of the net on the rear tailgate pillars.
In horizontal position:
Attach the four other hooks of the net into their anchoring rings on the
loor. C A R G O N E T S

104 III
Your vehicle has a loor mat which
covers the entire space in front
of the driver and front passenger
seats.
Note :
this loor mat also covers
the lap that gives access to the
battery on the right hand side (see
“Battery”).
The loor mat is held in position on
each side by a ixing, in the middle
by the centre console pillar. F L O O R M A T
Floor mats that are not recommended by CITROËN run the ri sk
of sliding underneath the accelerator pedal, thus preven ting you
from using the full pedal travel (see “Speed limiter”).
It will then be impossible to exit from your programmed speed
without recourse to the switch module under the steering w heel.
Removing
- Slide the front seats as far as possible rearwards.
- Detach the ixings one by one, pulling on the corresponding
corner of the
loor mat.
- Remove the loor mat.
Reitting
- Position the loor mat correctly.
- Press the ixings back in place one by one.
- Check that the loor mat is properly secured.
Note : loor mats for the rear of the vehicle are available as accessories.
To obtain them, contact a CITROËN dealer.

105 III
Electric sun roofs
There are three sun roofs, each with its own independent con
trol.
However, the two rear sun roofs can also be controlled from the front seat
positions.
• To tilt open: keep part A of the switch pressed down.
• To slide open: press briely on part A of the switch.
• To close: press briely on part B of the switch to engage the slide mode,
then press again and keep pressed to close the sun roof fully.
Deactivation of the controls for rows 2 and 3: See “Electric windows”.
Interior blinds
The rear blind can be positioned manually. Carefully lift the blind and then
pull.
Note: It is recommended not to open the sun roof immediately after rain or
having washed the vehicle. Anti-pinch
If the roof encounters an obstacle
while it is sliding to close, it stops
its movement and partially opens
again.
In the event of a malfunction or
if there is random opening of the
roof when you are trying to close
it (for example if there is ice) and
the roof refuses to close, press
button
A on the remote control un -
til the roof is fully open.
Then press immediately on but -
ton B on the remote control to clo-
se the roof.
If the roof does not close, release
the button and then press several
times until the roof is fully closed.
Release the button again then
press again on B, keeping it
pressed for more than ive se -
conds after closing.
Warning: during these actions the
anti-pinch function does not ope -
rate.
IMPORTANT
Fitting an “Accessory” sunroof is prohibited.
Your vehicle is equipped with lateral airbags (the Manufa cturer
reserves the right to modify the safety features on vehicles ).
- Take care that children are not in danger when moving the su
n roof.
- If the driver is actioning the sun roof control, he should ma ke certain
that the passengers are not obstructing the sun roof from closing
properly.
- The driver should make sure that the passenger uses the sun roof control correctly.
- Should there be any risk of a person becoming trapped during t he
movement of the sun roof, you should immediately reverse the roof
movement. To do this, reverse the position of the control conce rned.
- Always remove the ignition key when leaving the vehicle, even for
short periods. S U N R O O F

10 IV O P E N I N G T H E B O N N E T
Bonnet
This should only be operated
when the vehicle is stationary.
Lift the cover located under the
dashboard close to the door pillar
and pull the lever upwards.
Bonnet open alert
This function is available in
conjunction with the alarm option.
When the engine is running or the
vehicle is moving, if the bonnet is
incorrectly closed, you are alerted
by a symbol on the multifunction
screen accompanied by an audible
signal. Lift latch
A, located under the
centre forward edge of the bonnet
and pull the bonnet up. Position the bonnet stay as shown
in the illustration.
Ensure that it is securely in place.
Closing
Reposition the bonnet stay in its
clip and press irmly in place.
Lower the bonnet and then allow it
to drop shut.
Make sure that the bonnet is securely locked

A
107 IV
2 . 0 i 1  V 1 4 5 h p E N G I N E
