2008 Citroen C6 DAG Owner's Manual

52
II
W I P E R S
CONTROL POSITIONS2: Rapid wipe.
1: Normal wipe.
I: Intermittent wipe.0: Off.
One press downwards:AUTO: Automatic wipe activated.Single wipe.

53
II
W I P E R S
CHANGING THE WIPER BLADES
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.Note: this action places the Piloted Defl ector in the maintenance position. See "Piloted Defl ector".
WINDSCREEN WASH
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen , the headlamp wash also activates if the dipped beams are on.
The display of a message indicates that there is only approx. one litre of screen wash fl uid remaining.
In freezing conditions, always check that the wiper blades are free to operate.
Remove any accumulation of snow at the base of the windscreen.

54
II
A
W I N D O W S
After a battery disconnection or if there has been a malfunction, you have to reinitialise the anti-pinch function for each window:Lower the window fully using the control, then close. It will rise only a few centimetres. Press repeatedly on the control until the window is fully closed.
Keep the control pressed for at least a few seconds after the window has fully closed.
WARNING
During this operation, the anti-pinch protection does not work.

55
II

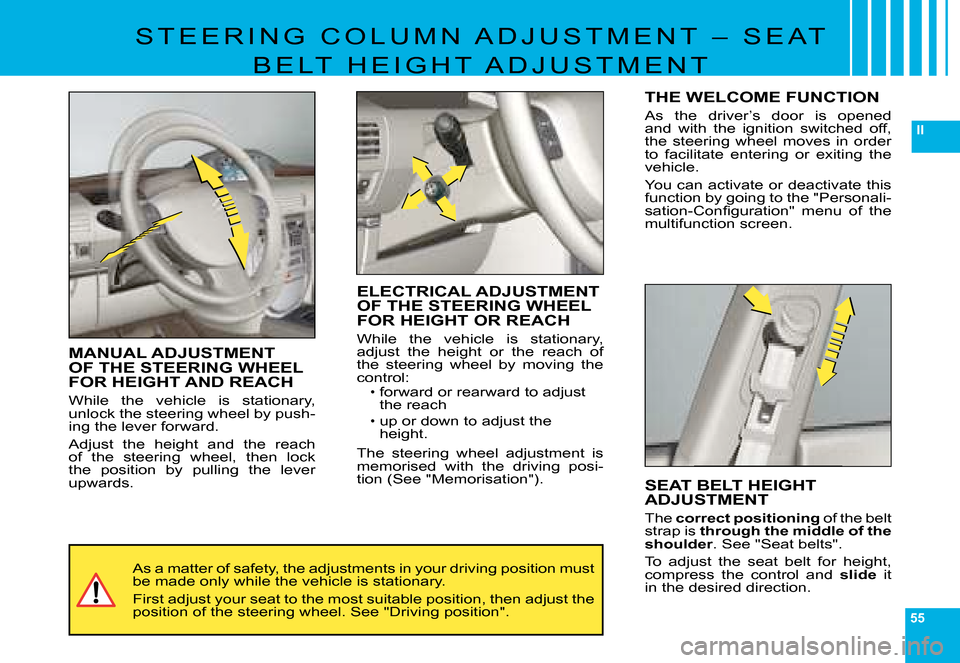

S T E E R I N G C O L U M N A D J U S T M E N T – S E A T
B E L T H E I G H T A D J U S T M E N T
MANUAL ADJUSTMENT OF THE STEERING WHEEL FOR HEIGHT AND REACH
While the vehicle is stationary, unlock the steering wheel by push-ing the lever forward.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
ELECTRICAL ADJUSTMENT OF THE STEERING WHEEL FOR HEIGHT OR REACH
While the vehicle is stationary, adjust the height or the reach of the steering wheel by moving the control:forward or rearward to adjust the reachup or down to adjust the height.
The steering wheel adjustment is memorised with the driving posi-tion (See "Memorisation").

56
II
1
3
2
F R O N T S E A T S
ADJUSTMENT OF THE BACKREST ANGLE
Action the control 1 and adjust the angle of the backrest.
It is possible to tilt the backrest 45° forwards until it locks. To unlock it, press control 1.
ADJUSTMENTS TO THE HEIGHT AND ANGLE OF THE HEAD RESTRAINT
To raise it, pull upwards.
To lower it, press on the control 2 to unlock it, and simultaneously on the head restraint itself.
To adjust the angle of the head restraint, tilt it forwards or rearwards at the bottom.
To raise it, press control 2 to unlock it, then pull it upwards.
CONTROLS FOR THE HEATED SEATS
The front seats can be heated independently of each other . On the con-trols for the heated seats 3 located on the outer side of the seats, rotate the knob to select any of three heat intensities:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
Note: The heated seats only operate when the engine is running.
SEAT HEIGHT AND SLIDE ADJUSTMENTS
See following page.

57
II
A
B
C
D
A
BCD
F R O N T S E A T S
Do not drive the vehicle with the head restraints removed; these must be in place, correctly adjusted.
ELECTRICAL ADJUSTMENTS
Adjustment of the backrest angle
To adjust the angle of the backrest, press button A.
Lumbar adjustment
To adjust the backrest lumbar support, press button B.
Seat height and slide adjustments
To slide the seat, press on the horizontal arrows on control C.
To adjust the seat for height, press on the vertical arrows on control C.
Adjustment of the seat cushion angle
To adjust the seat cushion angle, press on control D.
Note: These adustments remain available for a limited time:After you have opened a door
After you have switched off the ignition

58
II
21
M
M E M O R I S A T I O N
DRIVING POSITIONS MEMORISED VIA BUTTONS 1 AND 2
To memorise a driving position:a. Place the igntion key in "Drive" position (second position).b. Make your adjustments of the seat, the steering wheel, the rear view mirrors and the Head-up Display.c. Press successively on button M then on button 1(fi rst driving position) or 2(second driving position).
The memorisation is confi rmed by a sound signal.Note: The memorisation of a new driving position cancels and replaces the previous one.
The memorisation function allows to make the following dashboard adjustments:Driver's seat
Steering wheel
Exterior rear view mirrorsHead-up display.
See "Steering wheel adjustment", "Rear view mirrors" and "Head-up Display".
You have the possibility to memo-rise two driving positions using buttons 1 and 2.

59
II
23
1
S E A T B E L T S W A R N I N G L A M P
OPERATION
The driver's and the front and rear passengers' seats have sensors that detect non-fastening/unfas-tening of the seat belts.
The fastened/non-fastened status of the seat belts for each type of seat is indicated by the illumination or fl ashing of the warning lamps 1, 2 and 3.
FUNCTIONING OF THE SYSTEM OF DETECTION
Driver's and front passenger's seats
When you switch on the ignition:If the driver's seat belt is not fastened, the warning lamp 1 illuminates in the instrument panel.If the passenger's seat belt is not fastened, the warning lamp 3 lights up.
Above 20 km / h (12 mph), the warning lamp fl ashes for non-fasten ing/unfas-tening, accompanied by a message and a sound signal for around 2 min-utes. Then the warning lamp(s) 1 and/or 3 remain on.
Rear passengers'seats
When you switch on the ignition, warning lamp 2 lights up to make the driver and any passengers aware.
Once the doors are closed and the engine started, a message tells you the fastening status of the rear belts for 30 seconds.
After this time, if one or more of the rear belts are not fastened:Warning lamp 2 comes on, if your speed is less than around 20 km / h (12 mph).Warning lamp 2 fl ashes, accompanied by a message and a sound signal for about two minutes, if your speed is above around 2 0 km / h (12 mph).Note:The detection of non-fastening of rear seat belts is deactivated when you switch off the ignition or if one of the vehicle's doors is opened.
A child seat installed on the front passenger's seat may not b e detected.
