2008 Citroen C6 DAG Owner's Manual

99
M A I N M E N U
To keep the display clean, it is recommended to wipe with a soft, non-abrasive cloth (e.g. for spectacles) without any cleaning product added.
HOW TO ACCESS THE MAIN MENU ?
Press on the MENU button.
MAP: orientation, details, display, etc.
NAVIGATION - GUIDANCE: GPS, stages, options, etc.
AIR CONDITIONING: on/off, adjust-ments, etc. (see vehicle handbook).
VEHICLE DIAGNOSIS: log of alerts, etc.VIDEO: activation, parameters, etc.
CONFIGUR ATION: vehicle param-eters, display, time, languages, voice, auxiliary socket, etc.
T E L E M A T I C S : t e l e p h o n e , directory, SIM, services, etc.
AUDIO: radio, CD, Jukebox source , options, etc.
TR AFFIC INFORMATION: TMC in-formation, messages, etc.

101010
I
N A V I G A T I O N / G U I D A N C E
WHAT YOU NEED TO DO IN ORDER TO USE THE NAVIGATION SYSTEM ?
You have to initialise the navigation sys-tem:when you fi rst use the navigationfollowing a battery disconnection.Park the vehicle in the open air so that it can make contact with a satellite.Place the ignition key in the “Ignition” position for 15 minutes.If the navigation system has diffi culty in receiving its GPS positioning from satel-lites, this may be caused by the presence of bridges, underground carparks, etc., which may temporarily interfere with vehi-cle location or guidance calculation.

111111
Ij
e
abc
fgh
d
i
N A V I G A T I O N / G U I D A N C E
Head-up Display (according to model)This facility projects in the driver's fi eld of vision all the important types of information, notably the navigation instructions j.when navigation is in operation, direction arrows will fl ash.See vehicle handbook.
The Multifunction screenDuring a guidance, you have access to the following types of information:
a Manœuvre to be made, or direction to be taken.b Distance to the next manoeuvre.c Next manoeuvre to be made.d N ex t r o a d t o b e t a ke n a n d n a m e o f town.e Symbol concerning Traffi c information or the services that are in proximity.f Road you are currently on, name of the town.g Estimated time of arrival at destination (based on fl owing traffi c).h Distance to fi nal destination.i Altitude.
Apart from on the screen, the manœuvres t o b e m a d e a r e a n n o u n c e d by a vo i c e synthesiser.
Repeating the last piece of voice infor-mationA few seconds after enunciation of a guid-ance voice instruction, you have the pos-sibility of hearing it again.Keep the end of the lighting control stalk pressed.
How to adjust the volume for the voice instructions ?During enunciation of a voice instruction, press on the volume adjustment but tons either on the control panel or at the steer-ing wheel.Adjustment is also possible in the “Confi gu-ration” menu.
DESCRIPTION OF THE TYPES OF INFORMATION DISPLAYED DURING NAVIGATIONTHE VOICE SYNTHESIS
Depending on the situation of the vehicle and the reception of the GPS information, this information may temporarily be absent from the screen.

121212
I
B
C
D
E
F
A
CD
B
EF
HOW TO ACCESS THE NAVIGATION /GUIDANCE MENU ?
N A V I G A T I O N / G U I D A N C E
A C C E S S I N G T H E M E N U
HOW TO ACCESS THE NAVIGATION MENU SHORTCUTS ?
The shortcut options available allow you:
to resume or stop the guidance towards the last desti nation entered
to divert an itinerary according to the number of kilometres (or miles) that you will have indicated
to defi ne or modify the calculation criteria for the itinerary (shortest way, quickest way. etc.),
to access the list of Traffi c information messages,
to move the pointer on the Map.
Press button MENU.

131313
I
B1B2B3B4
C1C2C3C4C5
A1
A2
A3
A4
B1
B2
B3
B4
C1
C2
C3
C4
C5
D
A
B
C
ABCD
A1A2A3A4
N A V I G A T I O N / G U I D A N C E
M E N U S T R U C T U R E
WHAT ARE THE FUNCTIONS OF THE NAVIGATION /GUIDANCE MENU ?
CHOOSE A DESTINATION
Enter a city name, a street name, a street no. or inter -section.Enter the GPS coordinates for a location.
Select a location that is stored in the directory.
Select a location from among the last twenty destina-tions requested.
ENTER STAGES AND ITINERARY
Add a stage to an itinerary after starting a guidance .
Order or delete stages when creating an itinerary.
Divert an itinerary according to the number of kilome -tres (or miles) you will have indicated (for example to avoid a traffi c hold-up).
Alter the destination initially chosen.
SET PARAMETERS FOR THE GUIDANCE OPTIONS
Defi ning the route calculation criteria.
Adjust the volume of the voice synthesis.
Activate/Deactivate the pronunciation of a street n ame in the voice instructions.View the types of navigation information available o n the hard disc.Delete the last destinations automatically memorised.
STOP /RESUME THE CURRENT GUIDANCE

141414
IA
B
DEFG
C
HOW TO ENTER AN ADDRESS ?
N A V I G A T I O N / G U I D A N C E
E N T E R A N A D D R E S S ( 1 / 2 )
To go faster, enter the postcode instead of the name of the town.
In the Navigation/Guidance menu:Rotate the control to select the menu A.Press on the control to validate.

151515
I
I
H

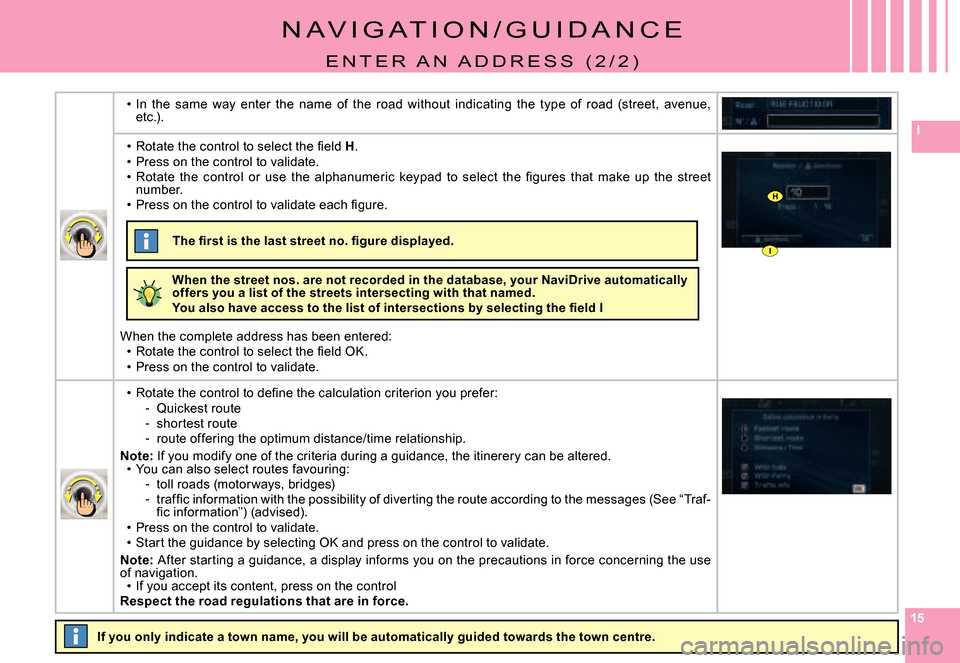

N A V I G A T I O N / G U I D A N C E
E N T E R A N A D D R E S S ( 2 / 2 )
If you only indicate a town name, you will be automatically guided towards the town centre.
In the same way enter the name of the road without indicating the type of road (street, avenue, etc.).

161616
I
A
A
B
C
DE
HOW TO ADD A STAGE TO AN ITINERARY ?
N A V I G A T I O N / G U I D A N C E
A D D I N G A S T A G E
HOW TO CHANGE THE SEQUENCE OF STAGES ?
During guidance, in the menu Navigation/Guidance:Rotate the control to select the menu A.Press on the control to validate.
