2008 Citroen C6 DAG Owner's Manual

4
IN BRIEF
E X T E R I O R
115
75
76
455178
Glass sun roof
The sun roof provides you with improved ventilation and brightness in the passenger compartment.
Piloted Defl ector
This defl ector enhances the aerodynamics and the braking oaf your vehicle.
Parking assistance (display and sound)
This function warns you, whilst manoeuvring, by detecting obstacles located in front of and behind the vehicle.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
The Xenon dual-function directional headlamps
This additional lighting automati-cally provides you with enhanced visibility on bends.
Tyre defl ation detection
This function monitors the pressure of each tyre and warns you of tyres that are punctured or defl ated.

I
55
BA
D
C
B
A
IN BRIEF
A. Key release/storage.
B. Locking of the vehicle.C. Unlocking of the vehicle.D. Guide-me-home lighting.

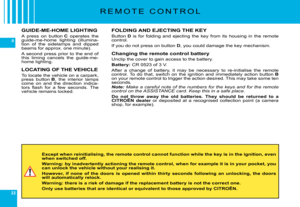

REMOTE CONTROL KEY
21
O P E N I N G
133
OPENING THE BONNET
Inside the vehicle:
Pull the lever A towards you.
Outside the vehicle:
Lift the lever B located under the front edge close to the centre of the bonnet then lift the bonnet.
Press on button A to the left of the dashboard to open the fuel fi ller fl ap.
Opening and attaching the fuel cap B.
FUEL TANK
149
Tank capacity:
approximately 72 litres

6
B
A
IN BRIEF
1. Lift the boot fl oor using the strap B.2. Anchor the strap on the roof of the boot.3. To remove the spare wheel, detach the belt then push the wheel forwards so as to be able to lift it.
SPARE WHEEL
Note: The tools are to be found in a protective holder inside the spare wheel.
157
O P E N I N G
This can be unlocked, vehicle stopped:With either the remote control or the key.Using the interior central unlocking button, or simply by opening a door.
From the outside, press on lever A.

I
77
IN BRIEF
63
116
69-67
73
8335
INTERIOR
Head-up display
This device projects a range of impor-tant information into the driver's fi eld of vision. In this way, the driver does not need to take his eyes off the road.
Speed limiter
This driving assistance device allows you to select a maximum speed that you do not wish to exceed.

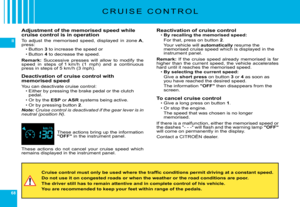

Cruise control
This system allows you to automati-cally maintain the vehicle speed at the value programmed by the driver, with-out the need to press the accelerator.
The automatic gearbox
This device provides you with optimum driving conditions by combining a fully automatic mode, along with two spe-cifi c programmes, as well as a manual mode.
Audio and communication systems
This equipment utilises the latest technology: MP3 compatible RD4 radio, Bluetooth®technology: technology: radio with navigation, JBL ®
audio system.
Electric parking brake
The electric parking brake combines automatic locking when the engine is stopped, and automatic unlocking when accelerating (devices activated by default).Note: Manual locking/unlocking is possible.
Automatic air conditioning
This air conditioning system ensures comfort and a suffi -cient circulation of air in the cabin.

8
1
12
6
8
14
13
2
3
5
7910
1515
16
1718
4
11
IN BRIEF
1. Controls - Windows/Rear view mirrors/Child safety
2. Driver's seat adjustment controls and memories
3. Controls - Lighting/Direction indicators/Rear
foglamps/Voice recognition
4. Horn
5. Instrument panel
6. Head-up display cavity
7. Ignition switch
8. Controls - Wipers
9. Controls - Radio controls under the steering wheel
10. Controls at the steering wheel - Speed limiter and
Cruise control
11. Driver's airbag
12. Gear lever
13. Electric parking brake
14. Automatic gearbox SPORT/SNOW mode controls
15. Steering column adjustment
16. Head-up display controls
17. Fuel fl ap control
18. Oddments tray/Fusebox access fl ap
D A S H B O A R D

I
99
23
24
25
33
27
28
29
32
20
30
26
22
19
2131
IN BRIEF
19. Suspension controls - Ground clearance
adjustment/Sport mode
20. Multifunction display
21. Hazard lamps button
22. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
23. Controls - Lane Departure Warning System/
Anti-intrusion alarm
24. Air conditioning controls
25. Cup-holder
26. RD4 radio or RT3 NaviDrive
27. Glovebox
28. Sunlight sensor
29. Lateral air vent
30. Central air vents
31. Ashtray
32. Passenger's airbag
33. Front passenger's airbag deactivation
D A S H B O A R D

10
A
B
C
EFD
G21
IN BRIEF
FRONT SEATS
C. Adjustment of the backrest angle.
D. Adjustment of the backrest lum-bar support.
E. Seat height and slide adjust-ments.
F. Adjustment of the seat cushion angle.
G. Memorisation of dashboard adjustments:
- Driver's seat.
- Steering wheel.
- Exterior rear view mirrors.
- Head-up display.
You have the possibility to mem-orise two driving positionsusing buttons 1 and 2.
ELECTRIC ADJUSTMENTS
A. Adjustment of the backrest angle.
B. Controls for the heated seats.
5657
G E T T I N G S T A R T E D
The correct positioning of the belt strap is through the middle of the shoulder. See "Seat belts".
To adjust the seat belt for height, compress the control and slide it in the desired direction.
SEAT BELT HEIGHT ADJUSTMENT
55
Manual adjustments

I
1111
12
IN BRIEF
While the vehicle is stationary, unlock the steering wheel by push-ing the lever forward.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
MANUAL STEERING COLUMN ADJUSTMENT
55
While the vehicle is stationary, adjust the height or the reach of the steering wheel by moving the control:forward or rearward to adjust the reach,
up or down to adjust the height.
