2008 Citroen C6 DAG Owner's Manual

148
VIA
A

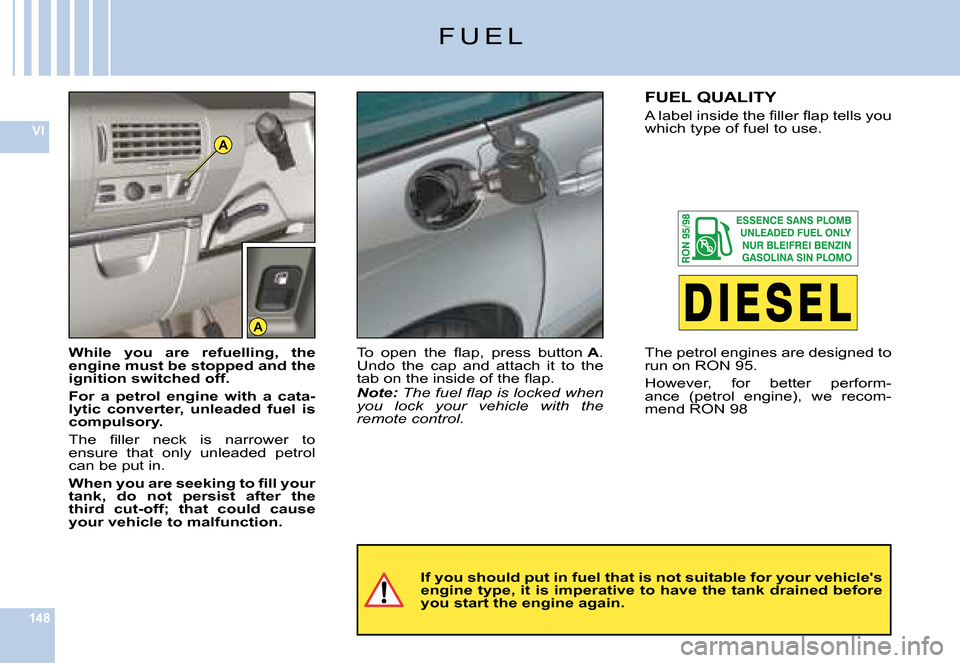

F U E L
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
While you are refuelling, the engine must be stopped and the ignition switched off.
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
The fi ller neck is narrower to ensure that only unleaded petrol can be put in.
When you are seeking to fi ll your tank, do not persist after the third cut-off; that could cause your vehicle to malfunction.
To open the fl ap, press button A. Undo the cap and attach it to the tab on the inside of the fl ap.Note: The fuel fl ap is locked when you lock your vehicle with the remote control.
FUEL QUALITY
A label inside the fi ller fl ap tells you which type of fuel to use.
The petrol engines are designed to run on RON 95.
However, for better perform-ance (petrol engine), we recom-mend RON 98

149
VI
DEF
ACB
UPPER FRONT LENSA Lateral lampB Dipped/main beamC SidelampNote: A light misting may appear on the headlamp surface in certain conditions of use.
For maintenance of the front lenses and for changing of bulbs, contact a CITROËN dealer. The bulbs for and for changing of bulbs, contact and for changing of bulbs, contact
lamps D and E have a common bulb-holder.
C H A N G I N G B U L B S
Your headlamps have Xenon bulbs.
Because of risks of electrocution, we advise you to contact a CITROËN dealer if there is any problem.Because of risks of electrocution, we advise Because
It is recommended to change both bulbs at the same time i f there is a failure of one of them.
Your vehicle is equipped with an active bonnet. To be sure that this safety feature is functioning correctly, contact a CITROËN dealer Your vehicle is equipped with an active bonnet.
for replacement of any of the components on the front panel.
LOWER FRONT LENSD Direction indicatorE Daytime-running lampF Front foglamp
SIDE REPEATER
To change the side repeater, push it forwards or rearwards to detach it and contact a CITROËN dealer.

150
VI
A
B
Use a tool to detach the bulb-hold-ers and change the bulbs.Note: The tool for undoing the screws is to be found in the toolbox in the spare wheel. See "Changing a wheel".
REAR CENTRAL LENSA Reversing lampB Foglamp
The bulbs for lamps A and B have a common bulb-holder. Contact a CITROËN dealer.
THIRD STOPLAMP
Contact a CITROËN dealer.
To gain access to the bulb-hold-ers, open the boot and undo the four screws on the bodywork. Then lower the boot lid in order to be able to pull out the two rear lamp units, without pulling on the electric cables.
NUMBER PLATE
Detach the transparent shield, then pull out the bulb. Bulb: W 5 W.
After each operation, check that the lamps work.
C H A N G I N G B U L B S

151
VI
A
BC
D
C H A N G I N G B U L B S
REAR LATERAL LENSA Parking lamp.Bulb: W 5 W.
B Stoplamp and parking lamp.Bulb: P21 W/5 W.C Direction indicator.Bulb: P21 W cristal.
D Lateral lamp.Bulb: W 5 W.
1. Open the rear LH fl ap or the two rear RH fl aps, by rotating the pins a 1/4 turn.

152
VI
B
C
D
A
C H A N G I N G B U L B S
2. Use a tool to detach the two lugs holding the lens.
3. Without touching the seal, disengage the lamp unit upwards and orient it so that the bulbs are pointing outwards.
5. Reposition the lens, fi rst inserting the pin furthest forward, then push.Make sure that the rear screen seals and the lamp units are correctly located.
6. Secure the two lugs.
4. Replace bulbs that are faulty.

153
VI
A
S A F E T Y R E C O M M E N D A T I O N S
It is recommended that you have your towbar installed and removed by a CITROËN dealer.It is recommended that you have recommended that
If you are towing another vehicle, the latter must be free-wheeling (gearbox in neutral).
Dimensions (in metres):
A: 0.971
TOWBAR
(Boat, caravan, etc.)
It is recommended that you have your towbar installed and removed by a CITROËN dealer.have your towbar installed and towbar installed
If you are climbing a steep gradient and the engine gets excessively hot, certain functions become una-vailable (e.g. sequential control of the automatic gearbox, the air con-ditioning).
If you are towing, it is necesaary to deactivate the parking assist-ance by pressing the control on the dashboard. See "Parking assist-ance".
It is recommended that you remove the towing ball, so that it does not interfere with the functioning of the proximity sensors, when you are not using a trailer.
MAINTENANCE
if cleaning the vehicle with a high pressure systemYour Piloted Defl ector has to be closed.
It is not advisable to clean the underside of the vehicle, for fear of damaging the electric parking brake.As water may penetrate into the vehicle interior via the door apertures, do not target these areas.

154
VI
R O O F B A R S
Do not exceed the maximum permitted load.
For the maximum distributed load on the roof bars: see the chapter "General".
Recommendations:Spread the load evenly, avoiding overloading on one side.
Position the heaviest weight as low down as possible.Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to side winds.
The stability of your vehicle may be altered.Remove the roof rack or roof bars when you are not using them.

155
VI
C O L D W E A T H E R S H I E L D
After fi ttingBefore fi tting
FITTING/REMOVAL OF THE SNOW-GUARD
Fitting
Clip the snow-guard onto the ribs of the bumper.
Removal
To detach the snow-guard, slide the tool 4 into the recesses in the snow-guard and lift.Note: The tool 4 is to be found 4in the protection box in the spare wheel. See "Changing a wheel".
The snow-guard delivered with the vehicle (according to destination) should be fi tted during the winter period, but removed for the remainder of the year.
It is essential to remove it whenever the temperature is above 10 °C.
