2008 Citroen C CROSSER DAG Owner's Manual

4
FAMILIARISATION
Sunroof
This roof improves the ventilation and
light in the passenger compartment.
 81

 80

 116
EXTERIOR
Audible rear parking
assistance
This equipment warns you if an ob-
stacle is detected behind the vehicle
when reversing. Reversing camera
T h i s e q u i p m e n t i s a c t i v a t e d
automatically when reverse gear is
engaged providing a visual return
on the colour display.
Lower tailgate
This lower tailgate provides remarkable
accessibility and makes the loading of
bulky objects easier.

 117

5
FAMILIARISATION
Fuel tank

A. Opening of the fuel fi ller fl ap.

B. Opening of the fuel tank cap.

 83

1. Locking of the vehicle.

2. Unlocking of the vehicle.
Remote control key

A. Unfolding/folding of the key.

B. Unlocking of the vehicle.

C. Locking of the vehicle.

 72 Manual centralised control

 78
OPENING
When refi tting the cap, insert the
upper part fi rst turning it to the right.
Capacity of the tank: approximately
60 litres.

6
FAMILIARISATION
Opening

 After unlocking the vehicle using the
remote control or the key, press the
handle A and raise the tailgate.
Tailgate Lower tailgate
Opening

 Push the handle C to the right and
tilt the tailgate D gently.
The maximum authorised
weight on the lower tailgate
when open is 200 kg . Spare wheel and tools

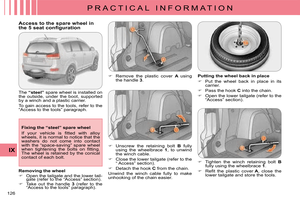

Access to the spare wheel

 Remove the plastic cover E to gain
access to the spare wheel fi xing
system.

 80
OPENING

 80  124
Closing

 Pull the handle B downwards. Closing

 Raise the tailgate D , push it to close
it, then check that it is secured
correctly. Access to the tools
The tools are stored in the storage
compartment
F in the boot right-hand
trim.

7
FAMILIARISATION
CONFIGURING
Rear seats (row 2) Forwards-backwards adjustment
Seat back angle adjustment
 51 Head restraint height adjustment

Access to the third row
(7-seat version)

 52 Rear bench seat (row 3)
The rear bench seat can be folded. It
retracts into a location in the fl oor of the
vehicle.

 56

 50

8
FAMILIARISATION
INTERIOR Automatic air conditioning
This automatic air conditioning system
guarantees comfort and a suffi cient
circulation of air in the passenger
compartment.
Cruise control
This system automatically maintains
the vehicle speed at the value
programmed by the driver, without the
accelerator pedal being pressed. Audio and communication
systems
This equipment benefi ts from the latest
technology: MP3 compatible audio
equipment, Bluetooth hands-free
telephone, colour display, Rockford
Fosgate audio system, auxiliary sockets.
Four wheel drive system with
electronic control
This system permits the selection of
a transmission mode in relation to the
driving conditions.

 44

 114
 154

 112

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.

2. Telephone controls.

3. Steering wheel adjustment control.

4. Lights and direction indicators
controls.
Headlamp wash control.

5. Instrument panel.

6. Driver’s air bag.
Horn.

7. Cruise control switches.

8. Gear lever.

9. Handbrake.

10. Bonnet release.

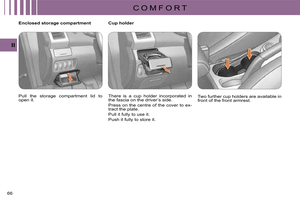

11. Enclosed storage compartment.
Fuse box.

12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.

13. Cup holder.

14. Side adjustable and closing vent.

15. Information button.

16. Window de-icing and demisting
vent.

17. Windscreen de-icing vent.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.

2. Exterior mirror controls.
Electric window and rear electric
window deactivation controls.

3. Front and rear wipers / wash-wipe
control.

4. Central adjustable and closing
vents.

5. Sunshine sensor.

6. Upper glove box with air
conditioning.

7. Lower glove box with lock.
Passenger air bag disarming.

8. Heated seat controls.

9. Armrest with storage compartments.
12 volt socket (120 W max).

10. Cup holder.

11. Four wheel drive system position
selector.

12. Removable ashtray / Lighter /
12 volt socket (120 W max).

13. Automatic air conditioning controls.

14. Temperature sensor.

15. Hazard warning lights switch.

16. Colour display / Audio equipment.

11
FAMILIARISATION
SITTING COMFORTABLY
 49
Front seats
Forwards-backwards Driver’s seat cushion height and angle Seat back angle
Manual adjustments
Electric adjustments (driver’s seat only)
Forwards-backwards Seat cushion height and angle Seat back ang le
 48
