18
FAMILIARISATION
Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1.
“ON/OFF” button: activation /
deactivation of the cruise control
mode.
2.
“COAST SET” button: storing of a
driving speed then decreasing of
the cruising speed.
3.
“ACC RES” button: increasing of
the cruising speed and recalling of
the stored speed.
4.
“CANCEL” button: switching off of
the cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged. This detects any obstacle (person, ve-
hicle, tree, gate,...) located behind the
vehicle.
T h e v e h i c l e i s fi t t e d w i t h f o u r s e n s o r s :
D. two side sensors.
E. two central sensors.
Audible rear parking assistance
114 116
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver in accordance with his re-
quirements:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK),
112
Also...
You can change transmission mode
when stationary or when driving at a
speed below 60 mph (100 km/h).
Page 57 of 216
C O M F O R T
II
60
INTERIOR MIRROR
Adjust the mirror by moving it up or
down and/or to the left or right.
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
MANUAL STEERING WHEEL
HEIGHT ADJUSTMENT
Pull the locking lever downwards
(position B ) while supporting the
steering wheel.
Adjust the steering wheel to the re-
quired height.
Lock the steering wheel by push-
ing the lever upwards (position A ). The sun visors fold forwards, and to the
side when they are unhooked.
T h e y a r e fi t t e d w i t h a c o u r t e s y m i r r o r
and a ticket holder.
As a safety precaution, it is
imperative that these opera-
tions are carried out while the
vehicle is stationary.
Page 98 of 216
S A F E T Y
99
DIRECTION INDICATORS
HAZARD WARNING LIGHTS
HORN
Lower the lights stalk when moving
to the left (position 1 ).
Raise the lights stalk when moving
to the right (position 1 ).
The indicator light on the instrument
p a n e l fl a s h e s .
As a safety precaution in a
t r a f fi c j a m , s w i t c h o n t h e h a z -
ard warning lights when you
are the last in the queue.
Press button A , the direction indicators
fl a s h .
They can operate with the ignition off.
Press one of the spokes of the
steering wheel.
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
The “motorway” function
System for indicating a change of lane
on a motorway.
Press up or down once (positions
2 ),
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident. Audible warning to alert other road
users to an imminent danger.
Certain direction indicator functions
c a n b e c o n fi g u r e d v i a t h e c o l o u r d i s -
play “Equipment” menu.
Page 108 of 216
D R I V I N G
VII
109
HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of
this screen indicates that
the handbrake is still on
or has not been properly
released.
Mechanical brake to hold the vehicle
when stationary.
“CVT” GEARBOX
T h e s i x - s p e e d a u t o m a t i c g e a r b o x
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
T h i s g e a r b o x e n a b l e s y o u t o a c c e s s
two driving modes:
- an automated mode for automatic c o n t r o l o f t h e g e a r s b y t h e g e a r b o x
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, re-
verse gear and neutral or for chang-
ing gear in sequential mode,
Page 109 of 216
D R I V I N G
VII
109
HANDBRAKE
Releasing
Pull on the handle and press the
button A to release the handbrake.
Applying
Pull the handbrake to immobilise
your vehicle.
When parking on a slope, direct your
wheels towards the pavement and ap-
ply the handbrake.
6-SPEED MANUAL GEARBOX
Reverse
To change to reverse gear, lift the ring
under the gear lever knob and push the
gear lever to the left then to the front.
Reverse gear can only be engaged
when the vehicle is stationary with
the engine idling.
When the vehicle is being
driven, the displaying of
this screen indicates that
the handbrake is still on
or has not been properly
released.
Mechanical brake to hold the vehicle
when stationary.
“CVT” GEARBOX
T h e s i x - s p e e d a u t o m a t i c g e a r b o x
offers a choice between the comfort of
automatic regulation or the pleasure of
manual gear changing.
T h i s g e a r b o x e n a b l e s y o u t o a c c e s s
two driving modes:
- an automated mode for automatic c o n t r o l o f t h e g e a r s b y t h e g e a r b o x
and therefore without any action on
the part of the driver,
- a sequential mode for manual changing of the gears by the driver
using the steering wheel controls or
the gear lever.
It consists of the following controls:
- a gear lever 1 on the centre console
for selecting the driving mode, re-
verse gear and neutral or for chang-
ing gear in sequential mode,
Page 110 of 216
D R I V I N G
VII
110
Gear lever positions
N : neutral.
With your foot on the brake, select this
position to start.
R : reverse gear.
With the vehicle stationary, keep your
foot on the brake pedal and push the
gear lever upwards.
D : automated mode.
Move the lever downwards to select
this mode.
+/-: sequential mode with manual gear
changing. Functions of the steering wheel
controls
+ : manual gear changing in sequential
mode.
Press behind the “+” steering wheel
control to change up.
- : manual gear changing in sequential
mode.
Press behind the “-” steering wheel
control to change down. Stopping - Starting on a slope
Do not use the accelerator pedal to
immobilise the vehicle on a slope,
apply the handbrake instead.
When starting on a slope, accelerate
gradually while releasing the handbrake.
Switching to sequential mode
Once you have moved off, you can
switch to sequential mode by selecting
position +/-.
“D” disappears and the gears engaged
appear in succession on the instrument
panel display.
The gear change requests are only car-
ried out if the engine speed permits it.
- a
“-” steering wheel control 2 for se-
quential downward gear changes,
- a “+” steering wheel control 3 for
sequential upward gear changes.
P r e s s t h e b r a k e p e d a l fi r m l y
while starting the engine.
Start the engine. “N” appears on the
instrument panel display.
S e l e c t fi r s t g e a r ( p o s i t i o n D or +/-) or
reverse (position R ).
Release the handbrake.
Release the brake pedal then accelerate.
“D” or
“1” or
“R” appear on the
instrument panel display.
Move the lever downwards, then to the
left to select this mode, then:
- push forward to change up,
- push rearward to change down.
Moving off
Select position
N .
Page 111 of 216
D R I V I N G
VII
111
Switching to automated mode
Automated mode
After using the sequential mode, you
can return to the automated mode by
selecting position D .
“D” appears on the instrument panel
display.
T h e g e a r b o x t h e n o p e r a t e s i n a u t o - a c -
tive mode, without any action on the
part of the driver.
It continuously selects the gear most
suited to the following parameters:
- driving style,
- road characteristics,
- vehicle load.
To optimise driving comfort and obtain
the most suitable gear, avoid sharp var-
iations in the pressure on the accelera-
tor pedal. “Auto sequential” mode
In the automated mode, you can
resume control temporarily at any time
using the steering wheel controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a faster changedown than
that offered in automated mode (arrival
a t a r o u n d a b o u t , e x i t f r o m a c a r p a r k
with a steep gradient, overtaking...).
T h e g e a r b o x e n g a g e s t h e g e a r r e -
quested if the engine speed permits it.
The gear engaged appears.
To return to the automated mode, press
the back of the
“+/OFF” control for ap-
p r o x i m a t e l y 2 s e c o n d s .
Stopping the vehicle
Before switching off the engine, you
can:
- move to position N to leave the
g e a r b o x i n n e u t r a l .
- l e a v e a g e a r e n g a g e d , s u c h a s fi r s t or reverse.
In both cases, it is imperative that you
apply the handbrake to immobilise the
vehicle. Operating anomaly
With the ignition on, if the message
“Slow down” or
“Maintenance
required” appears on the multifunction
d i s p l a y , t h i s i n d i c a t e s a g e a r b o x m a l -
function.
When a message is displayed, carry
out the following operations:
- slow down and stop your vehicle in a safe place,
- place the lever in position N and let
the engine run,
- open the bonnet to allow the engine to cool.
If the message disappears for a long
period, you can set off again.
If the message remains displayed or
appears frequently, contact a CITROËN
dealer without delay.
Take your foot off the accelerator pedal
gently to engage the gear.
At low speeds, when approaching a
s t o p o r t r a f fi c l i g h t s f o r e x a m p l e , t h e
g e a r b o x c h a n g e s d o w n t o fi r s t g e a r a u -
tomatically.
Page 112 of 216
D R I V I N G
VII
112

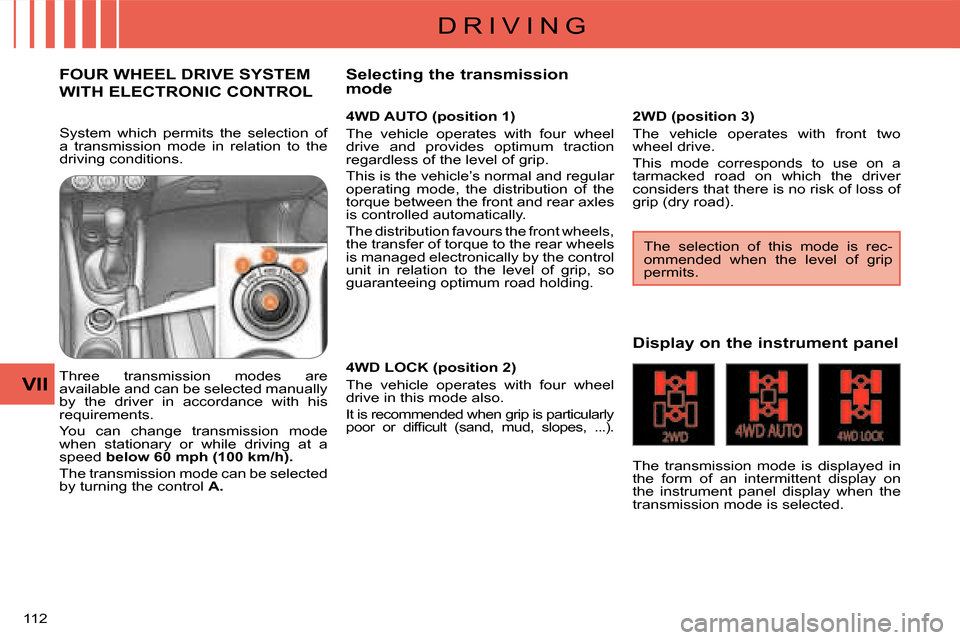

FOUR WHEEL DRIVE SYSTEM
WITH ELECTRONIC CONTROL
4WD AUTO (position 1)
The vehicle operates with four wheel
drive and provides optimum traction
regardless of the level of grip.
This is the vehicle’s normal and regular
operating mode, the distribution of the
t o r q u e b e t w e e n t h e f r o n t a n d r e a r a x l e s
is controlled automatically.
The distribution favours the front wheels,
the transfer of torque to the rear wheels
is managed electronically by the control
unit in relation to the level of grip, so
guaranteeing optimum road holding.
Three transmission modes are
available and can be selected manually
by the driver in accordance with his
requirements.
You can change transmission mode
when stationary or while driving at a
speed below 60 mph (100 km/h) .
The transmission mode can be selected
by turning the control A . Display on the instrument panel
The transmission mode is displayed in
the form of an intermittent display on
the instrument panel display when the
transmission mode is selected.
Selecting the transmission
mode
The selection of this mode is rec-
ommended when the level of grip
permits.
2WD (position 3)
The vehicle operates with front two
wheel drive.
This mode corresponds to use on a
tarmacked road on which the driver
considers that there is no risk of loss of
grip (dry road).
4WD LOCK (position 2)
The vehicle operates with four wheel
drive in this mode also.
It is recommended when grip is particularly
p o o r o r d i f fi c u l t ( s a n d , m u d , s l o p e s , . . . ) .
System which permits the selection of
a transmission mode in relation to the
driving conditions.
