I N S T R U M E N T S a n d C O N T R O L S
I
38
Set the time using the buttons as
indicated below:

 with the ignition on or in the ACC
(Accessories) position, press and
hold the CLOCK button until the
time display fl ashes.
 Press the appropriate button to set
the time:

Button H: setting of the hour
The hours digits scroll when you press
this button.

Button M: setting of the minutes
The minutes digits scroll when you
press this button.

Button :00: resetting of the minutes to
zero.
- from 1 to 29 min
: rounded down to
the previous hour,
- from 30 to 59 min: rounded up to
the next hour.
Manual mode
Automatic mode
In this mode, setting is automatic using
the signal from the RDS radio stations.
 After setting the time, press the

DISP button; the time display stops
fl ashing.
The digital clock does not display
seconds.
When the “minutes” display is set or
reset to zero, the clock starts at the
zero second of the minute selected.
The time setting is lost if the battery
is disconnected.

 Turn button B “TUNE” to the left or
to the right to select “CT ON” (auto-
matic mode) or “CT OFF” (manual
mode).

 After selecting the mode, you can
exit the “Functions setting mode”
menu by pressing button B “TUNE”
for approximately 2 seconds.
If no action is carried out within
10 seconds, the system will exit
the “functions setting mode” menu
automatically.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
155

Audio equipment On / Off.
Decreasing / Increasing of the volume.

Selection of the CD /
Changer / AUX mode.

Automatic search for a
lower radio frequency.
Search for the previous track.
Selection and setting of
the audio modes (BASS, TREBLE, ...).
Manual search for a lower
or higher radio frequency / PTY.
Functions setting mode (AF, REG, TP, SCV, ...).
Search for the previous or next MP3 folder.

Ejecting of one
or more CDs.

CD slot.

Loading of one or more
discs.
Control panel

Selection of the radio
mode.
Selection of the wavebands (FM, MW, LW).
Automatic station storing (autostore).
Automatic search for a
higher radio frequency.
Search for the next track.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
159

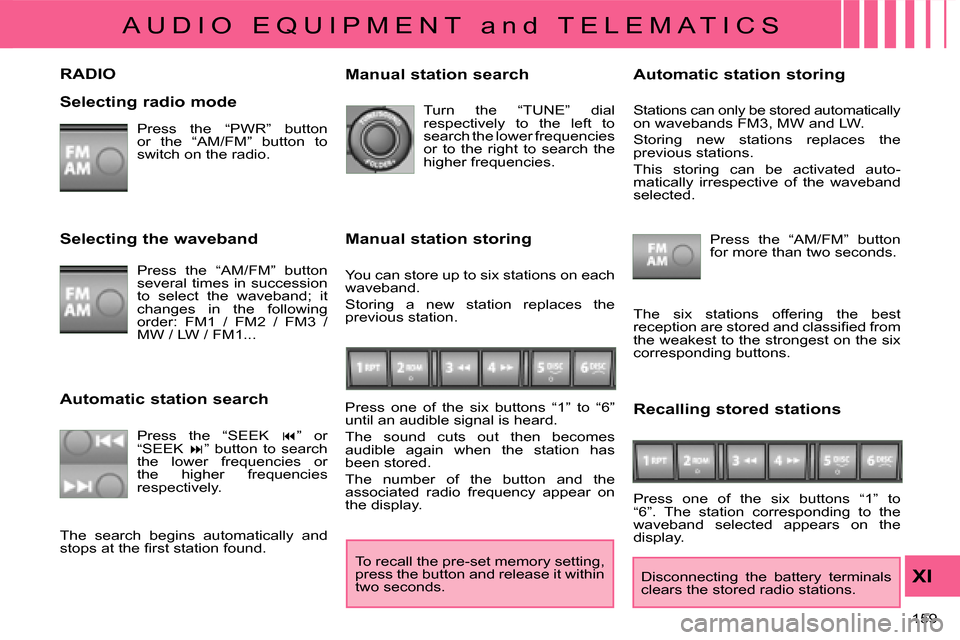

RADIO
Selecting radio mode Press the “PWR” button
or the “AM/FM” button to
switch on the radio.
Disconnecting the battery terminals
clears the stored radio stations.
Selecting the waveband
Press the “AM/FM” button
several times in succession
to select the waveband; it
changes in the following
order: FM1 / FM2 / FM3 /
MW / LW / FM1...
Automatic station search Press the “SEEK  ” or
“SEEK  ” button to search
the lower frequencies or
the higher frequencies
respectively. Manual station search
Turn the “TUNE” dial
respectively to the left to
search the lower frequencies
or to the right to search the
higher frequencies.
Manual station storing
Press one of the six buttons “1” to “6”
until an audible signal is heard.
The sound cuts out then becomes
audible again when the station has
been stored.
The number of the button and the
associated radio frequency appear on
the display. Automatic station storing
Press the “AM/FM” button
for more than two seconds.
Recalling stored stations
Press one of the six buttons “1” to
“6”. The station corresponding to the
waveband selected appears on the
display.
The search begins automatically and
stops at the fi rst station found. The six stations offering the best
reception are stored and classifi ed from
the weakest to the strongest on the six
corresponding buttons.
You can store up to six stations on each
waveband.
Storing a new station replaces the
previous station. Stations can only be stored automatically
on wavebands FM3, MW and LW.
Storing new stations replaces the
previous stations.
This storing can be activated auto-
matically irrespective of the waveband
selected.
To recall the pre-set memory setting,
press the button and release it within
two seconds.
