2008 CHEVROLET CORVETTE Owners Manual

Some top tether-equipped child restraints are designed
for use with or without the top tether being attached.
Others require the top tether always to be attached.
In Canada, the law requires that forward-facing
child restraints have a top tether, and that the tether
be attached. Be sure to read and follow the instructions
for your child restraint.
If the child restraint does not have a top tether, one can
be obtained, in kit form, for many child restraints. Ask
the child restraint manufacturer whether or not a kit
is available.
Top Tether Anchor Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.To assist you in locating
the top tether anchors,
the top tether anchor
symbol is located on
the trim cover.
The top tether anchor is located behind the
passenger seat.
1-37

Securing a Child Restraint with a Top Tether
{CAUTION:
If a LATCH-type child restraint is not attached
to anchors, the child restraint will not be able
to protect the child correctly. In a crash, the
child could be seriously injured or killed.
Install a LATCH-type child restraint properly
using the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with the child restraint
and the instructions in this manual.
1. Secure the child restraint using the vehicle’s safety
belt. SeeSecuring a Child Restraint in the Right
Front Seat Position on page 1-39.
2. If the child restraint manufacturer recommends that
the top tether be attached, attach and tighten the
top tether to the top tether anchor, if equipped.
Refer to the child restraint instructions and
the following steps:
2.1. Find the top tether anchor.
2.2. Press the ribbed area of the trim cover to
open the cover and expose the anchor.2.3. Route, attach and tighten the top tether
according to your child restraint instructions
and the following instructions:
If the position you are
using has a xed headrest
or head restraint and
you are using a single
tether, route the tether over
the headrest or head
restraint.
If the position you are
using has a xed headrest
or head restraint and
you are using a dual tether,
route the tether around
the headrest or head
restraint.
3. Push and pull the child restraint in different
directions to be sure it is secure.
1-38

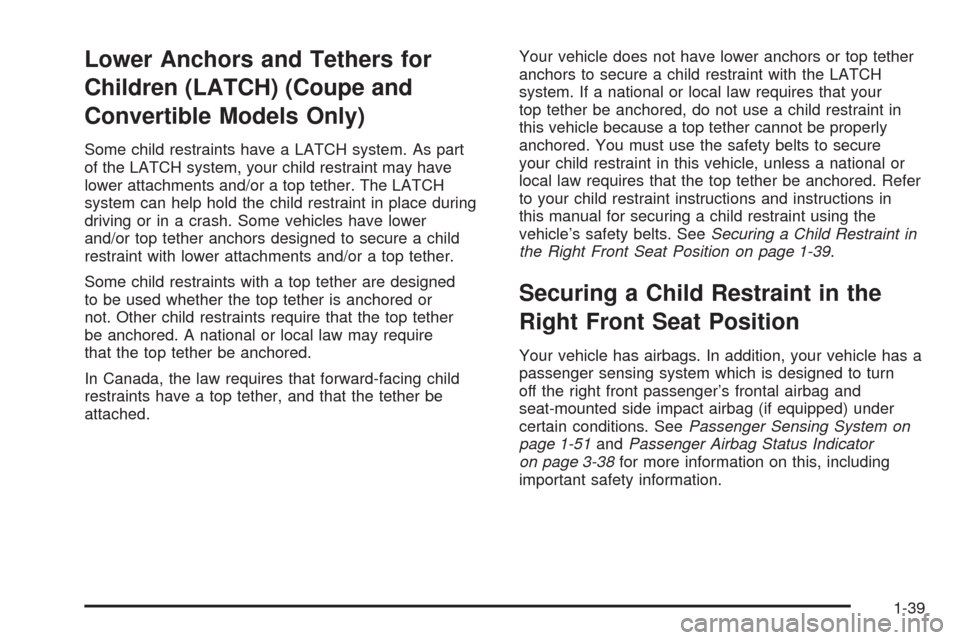

Lower Anchors and Tethers for
Children (LATCH) (Coupe and
Convertible Models Only)
Some child restraints have a LATCH system. As part
of the LATCH system, your child restraint may have
lower attachments and/or a top tether. The LATCH
system can help hold the child restraint in place during
driving or in a crash. Some vehicles have lower
and/or top tether anchors designed to secure a child
restraint with lower attachments and/or a top tether.
Some child restraints with a top tether are designed
to be used whether the top tether is anchored or
not. Other child restraints require that the top tether
be anchored. A national or local law may require
that the top tether be anchored.
In Canada, the law requires that forward-facing child
restraints have a top tether, and that the tether be
attached.Your vehicle does not have lower anchors or top tether
anchors to secure a child restraint with the LATCH
system. If a national or local law requires that your
top tether be anchored, do not use a child restraint in
this vehicle because a top tether cannot be properly
anchored. You must use the safety belts to secure
your child restraint in this vehicle, unless a national or
local law requires that the top tether be anchored. Refer
to your child restraint instructions and instructions in
this manual for securing a child restraint using the
vehicle’s safety belts. SeeSecuring a Child Restraint in
the Right Front Seat Position on page 1-39.
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has airbags. In addition, your vehicle has a
passenger sensing system which is designed to turn
off the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped) under
certain conditions. SeePassenger Sensing System on
page 1-51andPassenger Airbag Status Indicator
on page 3-38for more information on this, including
important safety information.
1-39

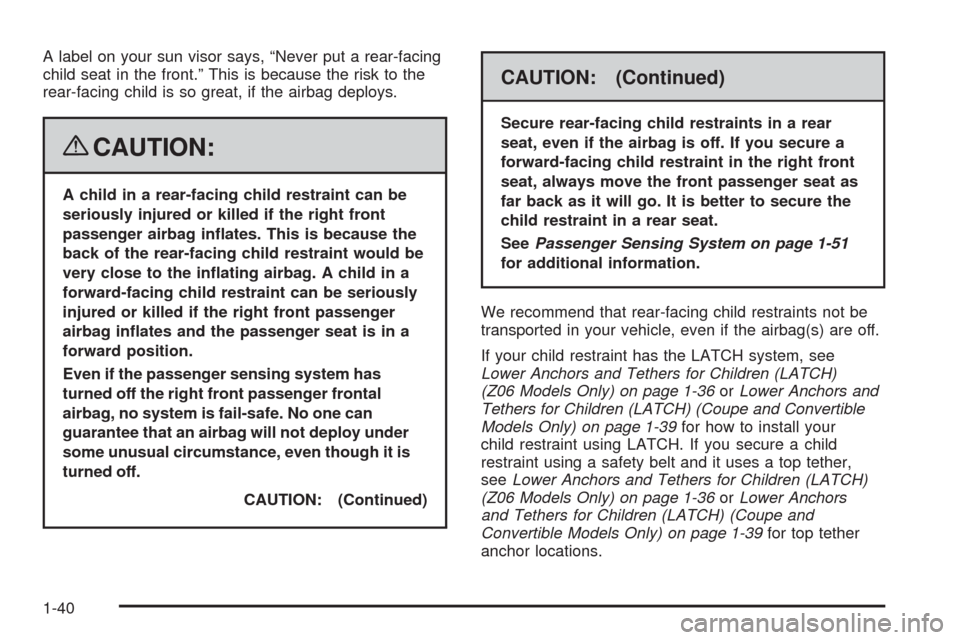

A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger airbag inates. This is because the
back of the rear-facing child restraint would be
very close to the inating airbag. A child in a
forward-facing child restraint can be seriously
injured or killed if the right front passenger
airbag inates and the passenger seat is in a
forward position.
Even if the passenger sensing system has
turned off the right front passenger frontal
airbag, no system is fail-safe. No one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off.
CAUTION: (Continued)
CAUTION: (Continued)
Secure rear-facing child restraints in a rear
seat, even if the airbag is off. If you secure a
forward-facing child restraint in the right front
seat, always move the front passenger seat as
far back as it will go. It is better to secure the
child restraint in a rear seat.
SeePassenger Sensing System on page 1-51
for additional information.
We recommend that rear-facing child restraints not be
transported in your vehicle, even if the airbag(s) are off.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH)
(Z06 Models Only) on page 1-36orLower Anchors and
Tethers for Children (LATCH) (Coupe and Convertible
Models Only) on page 1-39for how to install your
child restraint using LATCH. If you secure a child
restraint using a safety belt and it uses a top tether,
seeLower Anchors and Tethers for Children (LATCH)
(Z06 Models Only) on page 1-36orLower Anchors
and Tethers for Children (LATCH) (Coupe and
Convertible Models Only) on page 1-39for top tether
anchor locations.
1-40

Do not secure a child seat in a position without a top
tether anchor if a national or local law requires that
the top tether be anchored, or if the instructions
that come with the child restraint say that the top
strap must be anchored.
In Canada, the law requires that forward-facing child
restraints have a top tether, and that the tether be
attached.
You will be using the lap-shoulder belt to secure the
child restraint in this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back as it will go before
securing the forward-facing child restraint.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag
and seat-mounted side impact airbag (if equipped),
the off indicator on the passenger airbag status
indicator should light and stay lit when you start
the vehicle. SeePassenger Airbag Status Indicator
on page 3-38.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Push the latch plate into the buckle until it clicks.
Make sure the release button is positioned so you
would be able to unbuckle the safety belt quickly
if necessary.
1-41

5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
1-42

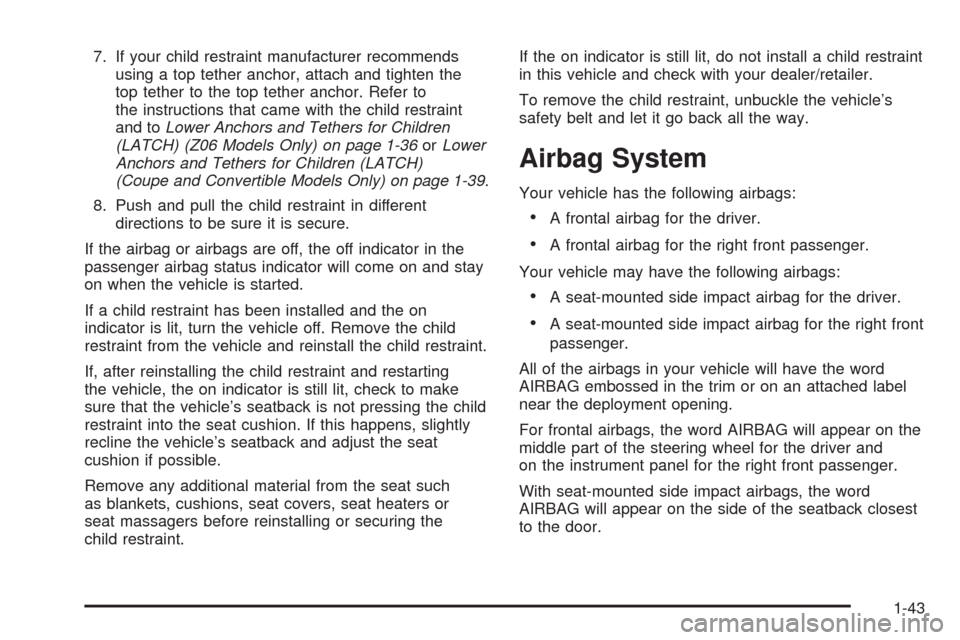

7. If your child restraint manufacturer recommends
using a top tether anchor, attach and tighten the
top tether to the top tether anchor. Refer to
the instructions that came with the child restraint
and toLower Anchors and Tethers for Children
(LATCH) (Z06 Models Only) on page 1-36orLower
Anchors and Tethers for Children (LATCH)
(Coupe and Convertible Models Only) on page 1-39.
8. Push and pull the child restraint in different
directions to be sure it is secure.
If the airbag or airbags are off, the off indicator in the
passenger airbag status indicator will come on and stay
on when the vehicle is started.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible.
Remove any additional material from the seat such
as blankets, cushions, seat covers, seat heaters or
seat massagers before reinstalling or securing the
child restraint.If the on indicator is still lit, do not install a child restraint
in this vehicle and check with your dealer/retailer.
To remove the child restraint, unbuckle the vehicle’s
safety belt and let it go back all the way.
Airbag System
Your vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
Your vehicle may have the following airbags:
A seat-mounted side impact airbag for the driver.
A seat-mounted side impact airbag for the right front
passenger.
All of the airbags in your vehicle will have the word
AIRBAG embossed in the trim or on an attached label
near the deployment opening.
For frontal airbags, the word AIRBAG will appear on the
middle part of the steering wheel for the driver and
on the instrument panel for the right front passenger.
With seat-mounted side impact airbags, the word
AIRBAG will appear on the side of the seatback closest
to the door.
1-43

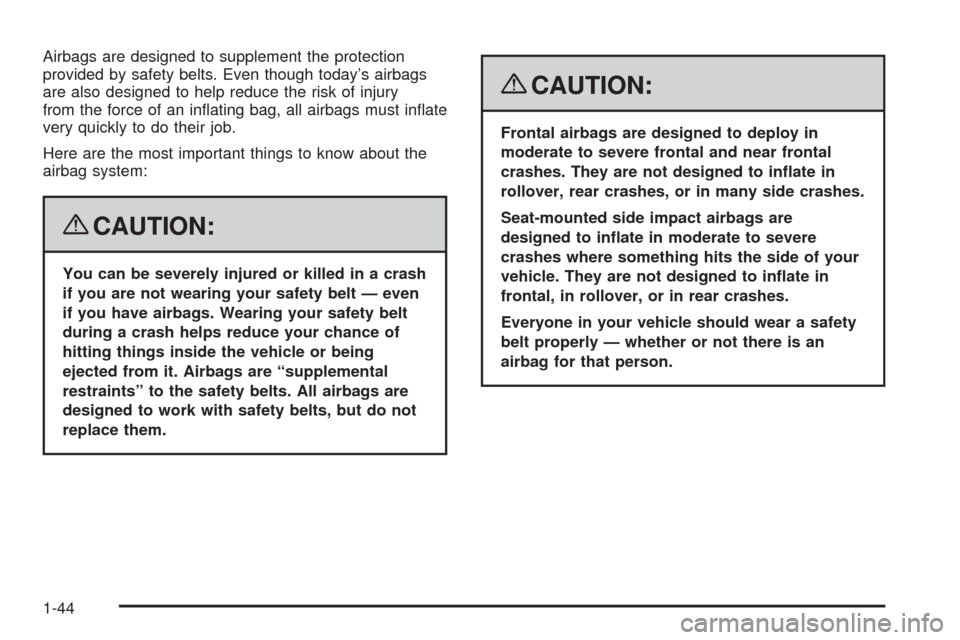

Airbags are designed to supplement the protection
provided by safety belts. Even though today’s airbags
are also designed to help reduce the risk of injury
from the force of an inating bag, all airbags must inate
very quickly to do their job.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts, but do not
replace them.
{CAUTION:
Frontal airbags are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear crashes, or in many side crashes.
Seat-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of your
vehicle. They are not designed to inate in
frontal, in rollover, or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-44
