2008 CHEVROLET CORVETTE Owners Manual

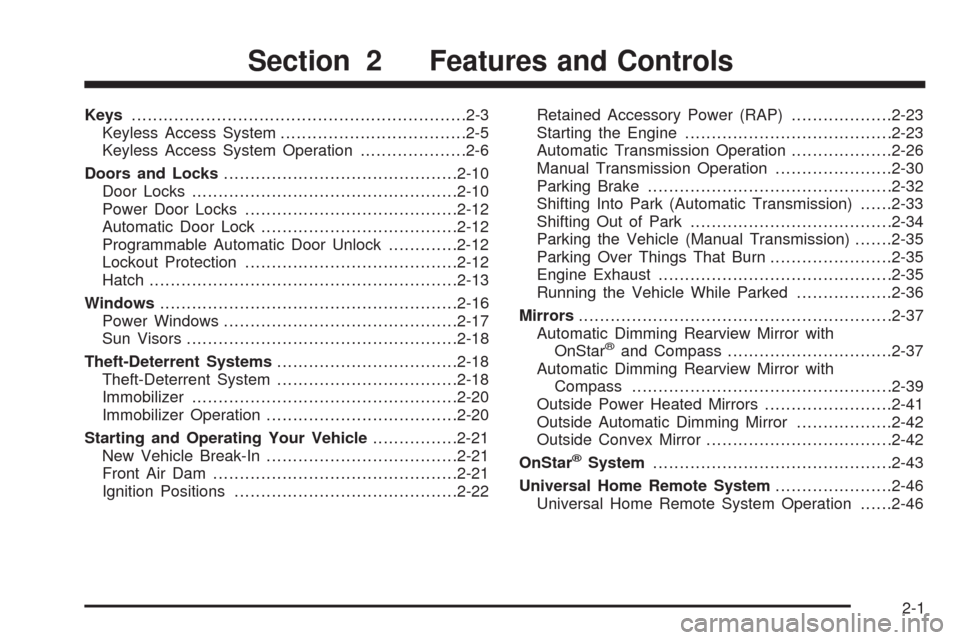

Keys...............................................................2-3
Keyless Access System...................................2-5
Keyless Access System Operation....................2-6
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-12
Automatic Door Lock.....................................2-12
Programmable Automatic Door Unlock.............2-12
Lockout Protection........................................2-12
Hatch..........................................................2-13
Windows........................................................2-16
Power Windows............................................2-17
Sun Visors...................................................2-18
Theft-Deterrent Systems..................................2-18
Theft-Deterrent System..................................2-18
Immobilizer..................................................2-20
Immobilizer Operation....................................2-20
Starting and Operating Your Vehicle................2-21
New Vehicle Break-In....................................2-21
Front Air Dam..............................................2-21
Ignition Positions..........................................2-22Retained Accessory Power (RAP)...................2-23
Starting the Engine.......................................2-23
Automatic Transmission Operation...................2-26
Manual Transmission Operation......................2-30
Parking Brake..............................................2-32
Shifting Into Park (Automatic Transmission)......2-33
Shifting Out of Park......................................2-34
Parking the Vehicle (Manual Transmission).......2-35
Parking Over Things That Burn.......................2-35
Engine Exhaust............................................2-35
Running the Vehicle While Parked..................2-36
Mirrors...........................................................2-37
Automatic Dimming Rearview Mirror with
OnStar
®and Compass...............................2-37
Automatic Dimming Rearview Mirror with
Compass.................................................2-39
Outside Power Heated Mirrors........................2-41
Outside Automatic Dimming Mirror..................2-42
Outside Convex Mirror...................................2-42
OnStar
®System.............................................2-43
Universal Home Remote System......................2-46
Universal Home Remote System Operation......2-46
Section 2 Features and Controls
2-1

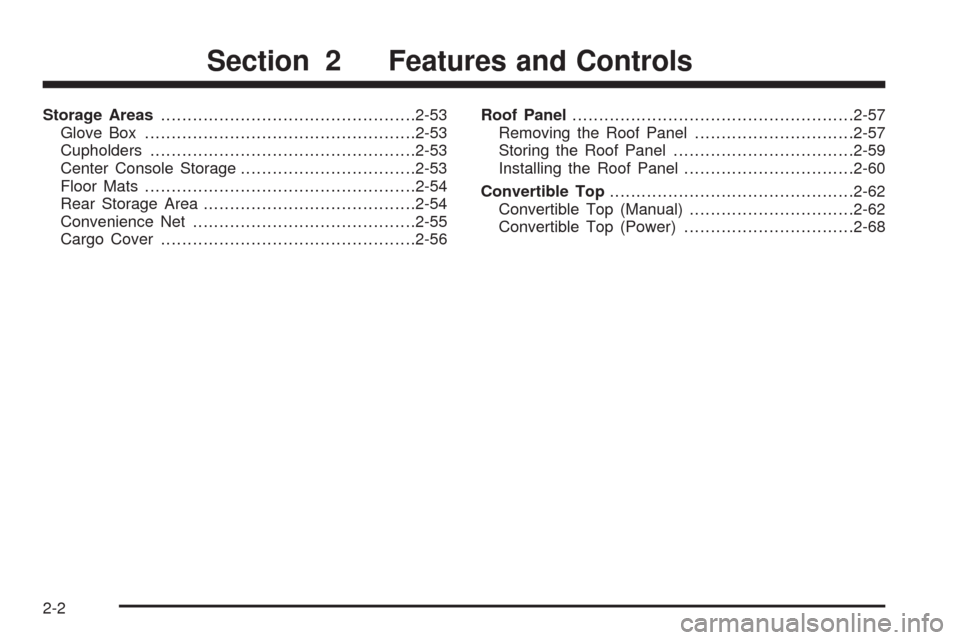

Storage Areas................................................2-53
Glove Box...................................................2-53
Cupholders..................................................2-53
Center Console Storage.................................2-53
Floor Mats...................................................2-54
Rear Storage Area........................................2-54
Convenience Net..........................................2-55
Cargo Cover................................................2-56Roof Panel.....................................................2-57
Removing the Roof Panel..............................2-57
Storing the Roof Panel..................................2-59
Installing the Roof Panel................................2-60
Convertible Top..............................................2-62
Convertible Top (Manual)...............................2-62
Convertible Top (Power)................................2-68
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the keyless
access transmitter is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate the
power windows or other controls or even make
the vehicle move. The windows will function
with the keyless access transmitter in the
vehicle and they could be seriously injured or
killed if caught in the path of a closing
window. Do not leave the keyless access
transmitter in a vehicle with children.
2-3

The key, located inside the
keyless access transmitter,
can be used to lock and
unlock the glove box
and to open the
hatch/trunk lid if power to
the vehicle is lost. See
Hatch on page 2-13
for more information.
Press the button (A) near
the bottom of the keyless
access transmitter to
remove the key. Never pull
the key out without
pressing the button.This vehicle has a keyless access system with
pushbutton start. SeeIgnition Positions on page 2-22
for information on starting the vehicle.
Notice:If you ever lose your transmitter(s) and/or
key, it could be difficult to get into your vehicle.
You may even have to damage your vehicle to get
in. Be sure you have a spare transmitter and/or key.
If you are locked out of the vehicle, contact Roadside
Assistance. SeeRoadside Assistance Program on
page 7-8.
2-4

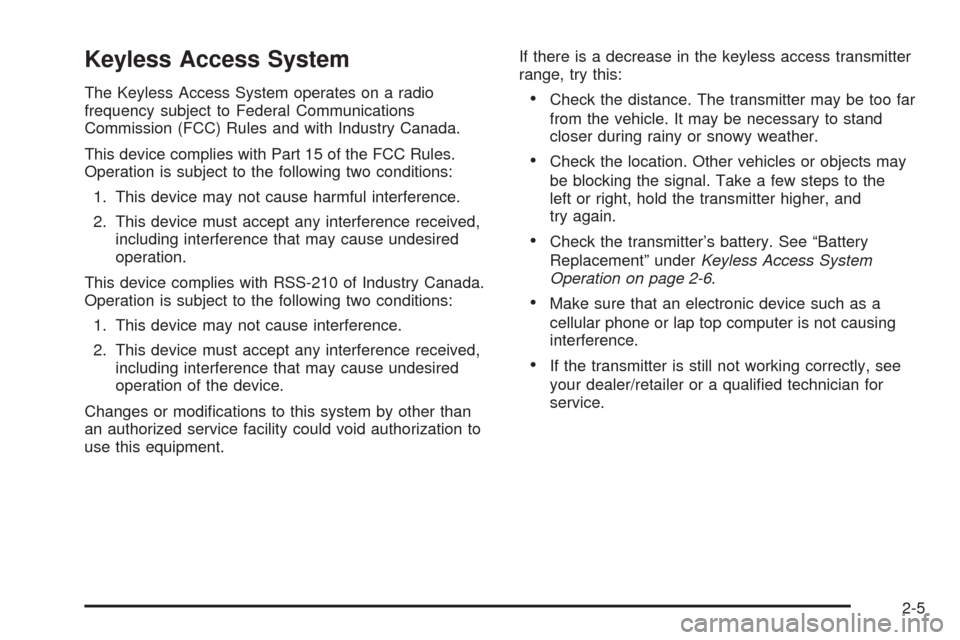

Keyless Access System
The Keyless Access System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.If there is a decrease in the keyless access transmitter
range, try this:Check the distance. The transmitter may be too far
from the vehicle. It may be necessary to stand
closer during rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” underKeyless Access System
Operation on page 2-6.
Make sure that an electronic device such as a
cellular phone or lap top computer is not causing
interference.
If the transmitter is still not working correctly, see
your dealer/retailer or a qualied technician for
service.
2-5

Keyless Access System Operation
The Keyless Access System transmitter functions
work up to 100 feet (30 m) away.
There are other conditions that can affect the
performance of the transmitter. SeeKeyless Access
System on page 2-5.
This vehicle comes with
two transmitters.
Q(Lock):Press to lock the doors. The light on the
door ashes once. If
Qis pressed two times, the
doors lock, the light ashes, and the horn sounds.
K(Unlock):Press to unlock the driver door. The light
on the door ashes two times. Press
Ktwo times
within ve seconds to unlock both doors. If it is dark
enough outside, the interior lamps come on.
Press
Kto recall the memory settings. SeeMemory
Seat, Mirrors and Steering Wheel on page 1-4for more
information.
}(Hatch/Trunk):Press and hold for about
one second to open the hatch/trunk lid while the engine
is off. If the engine is running, the shift lever must be
in PARK (P) for an automatic transmission or NEUTRAL
with the parking brake set for a manual transmission.
SeeParking Brake on page 2-32.
L(Panic):Press to sound the vehicle alarm. Press
any other button on the keyless access transmitter
to stop the vehicle alarm.
2-6

Matching Transmitter(s) to Your
Vehicle
Each keyless access transmitter is coded to allow only
transmitters programmed to the vehicle to work. If a
transmitter is lost or stolen, a replacement can be
purchased and programmed by your dealer/retailer.
Your dealer/retailer can reprogram the vehicle so lost
or stolen transmitters no longer work with the vehicle.
Each vehicle can have a maximum of four transmitters
matched to it.
To match a new transmitter to the vehicle when there is
a recognized transmitter (two recognized transmitters
are required for Canadian owners):
1. Turn the vehicle off.
2. Have the recognized and new, unrecognized
transmitters available.
3. Insert the key into the key cylinder located above
the license plate. SeeHatch on page 2-13for
more information.
4. Open the trunk.
5. Turn the key ve times within ve seconds.
6. The DIC displays READY FOR FOB #X, where X
can be 2, 3 or 4.7. Place the new, unrecognized transmitter in the
glove box transmitter pocket with the buttons
facing towards the passenger side.
8. Once the transmitter is programmed, a beep
sounds. The DIC displays READY FOR #X,
where X can be 3 or 4, or MAXIMUM NUMBER
OF FOBS LEARNED.
9. Press the Acc. button (ignition switch).
2-7

The Canadian immobilizer standard requires Canadian
owners to see their dealer/retailer for matching new
transmitters when two recognized transmitters are not
available. United States owners are permitted to match
a new transmitter to their vehicle when a recognized
transmitter is not available. The procedure requires
three ten minutes cycles to complete the matching
process.
1. Turn the vehicle off.
2. Place the new, unrecognized transmitter in the
glove box transmitter pocket with the buttons
facing towards the passenger side.3. Insert the vehicle key into the key cylinder located
above the license plate. SeeHatch on page 2-13
for more information.
4. Open the trunk.
5. Turn the key ve times within ve seconds.
6. The DIC message displays OFF-ACCESSORY
TO LEARN.
7. Press the Acc. button (ignition switch).
8. The DIC reads WAIT 10 MINUTES and counts
down to zero, one minute at a time.
9. The DIC displays OFF-ACCESSORY TO
LEARN again.
10. Press the Acc. button (ignition switch).
11. The DIC reads WAIT 10 MINUTES and counts
down to zero, one minute at a time.
12. The DIC displays OFF-ACCESSORY TO
LEARN again.
13. Press the Acc. button (ignition switch).
14. The DIC reads WAIT 10 MINUTES and counts
down to zero, one minute at a time.
15. A beep sounds and the DIC reads READY FOR
FOB #1. At this time, all previously known
transmitters have been erased.
16. Once the transmitter is recognized and
programmed, a beep sounds and the DIC displays
READY FOR FOB #2.
2-8
