2008 CHEVROLET AVEO Owners Manual

3. Remove the headlamp assembly.
4. Disconnect the wiring harness connector from the
rear of the bulb.
5. Remove the headlamp cap.
6. Release the spring that retains the bulb.
7. Remove the old bulb.
8. Install the new bulb.
9. Install the bulb retaining spring.
10. Reverse Steps 1 through 6 to install the headlamp
assembly.Front Turn Signal and Parking
Lamps (Hatchback)
To replace a front turn signal or parking lamp bulb:
1. Remove the radiator grille and the headlamp
assembly. See Steps 2 through 5 underHeadlamps
(Hatchback) on page 5-41orHeadlamps (Sedan)
on page 5-42for instructions on how to remove the
headlamp assembly.
2. Turn the front turn signal bulb socket
counterclockwise.
5-43

3. Pull the front turn signal bulb socket out of the lamp
housing.
4. Press the bulb inward and turn it counterclockwise
to remove it from the bulb socket.
5. Install the new bulb into the socket by pressing it in
and turning it clockwise.
6. Install the socket into the lamp housing by turning it
clockwise.
7. Reverse Steps 1 through 4 to install the assembly.
Front Turn Signal and Parking
Lamps (Sedan)
To replace a front turn signal or parking lamp bulb:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. Remove the headlamp assembly. See Steps 2
through 4 underHeadlamps (Hatchback) on
page 5-41orHeadlamps (Sedan) on page 5-42for
instructions on how to remove the headlamp
assembly.3. Turn the front turn signal bulb socket
counterclockwise.
4. Pull the front turn signal bulb socket out of the lamp
housing.
5. Press the bulb inward and turn it counterclockwise
to remove it from the bulb socket.
5-44

6. Install the new bulb into the socket by pressing it in
and turning it clockwise.
7. Install the socket into the lamp housing by turning it
clockwise.
8. Reverse Steps 1 through 2 underHeadlamps
(Hatchback) on page 5-41orHeadlamps (Sedan)
on page 5-42to install the assembly.
Turn Signal Lamps (Side)
To replace a side turn signal bulb:
1. Open the hood. SeeHood Release on page 5-10
for more information.
2. See Steps 2 through 5 underHeadlamps
(Hatchback) on page 5-41orHeadlamps (Sedan)
on page 5-42to access the side turn signal lamps.
3. Remove the side turn signal lamp assembly
by pulling it forward.
4. Turn the bulb socket counterclockwise.5. Remove the bulb from the lamp housing by pulling
the bulb straight out of the socket.
6. Install the new bulb into the bulb socket by pushing
it in and rotating the bulb socket clockwise.
7. Push the side turn signal lamp assembly back into
its original position.
5-45

Center High-Mounted Stoplamp
(CHMSL) (Sedan)
To replace a CHMSL bulb on the hatchback, contact
your dealer/retailer.
To replace a CHMSL bulb on the sedan:
1. Open the trunk. SeeTrunk on page 2-9for more
information.
2. Remove the two screws and the lamp housing.
Disconnect the wiring harness connector before
removing the lamp housing.
3. Remove the five screws and the reflector assembly.
4. Remove the bulb by pulling it straight out of the
bulb holder.
5. Install the new bulb.
6. Reverse Steps 1 through 3 to reinstall.
5-46

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
To replace a taillamp, turn signal lamp, stoplamp, or
back-up bulb:
1. Open the trunk or liftgate. SeeTrunk on page 2-9
orLiftgate (Hatchback) on page 2-11for more
information.
2. Remove the two screws and the lamp assembly.
3. Remove the bulb socket by turning it
counterclockwise.
4. Remove the bulb from the socket by pressing the
bulb and turning it counterclockwise.
5. Install the appropriate bulb into the socket.
6. Replace the bulb socket into the lamp housing.
Turn the bulb socket clockwise to secure.
7. Reverse Step 2 to reinstall the lamp housing. Hatchback
Sedan
5-47

License Plate Lamp
To replace one of these bulbs:
1. Remove the two screws holding each of the license
plate lamps.
2. Turn and pull the license plate lamp toward you
through the opening.
3. Turn the bulb socket counterclockwise and pull the
bulb straight out of the socket.
4. Install the new bulb.
5. Reverse Steps 1 through 3 to reinstall the license
plate lamp.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up 94535571
Center High-Mounted
Stoplamp (CHMSL)94535587
Headlamps 94535548
Front Parking/Turn Signal
(Hatchback)94535574
Front Parking/Turn Signal
(Sedan)94535574
Side Turn Signal (Hatchback) 94535587
Side Turn Signal (Sedan) 94535587
Stoplamp/Taillamps 94535574
Turn Signal Lamps 94535572
For replacement bulbs not listed here, contact your
dealer/retailer.
5-48

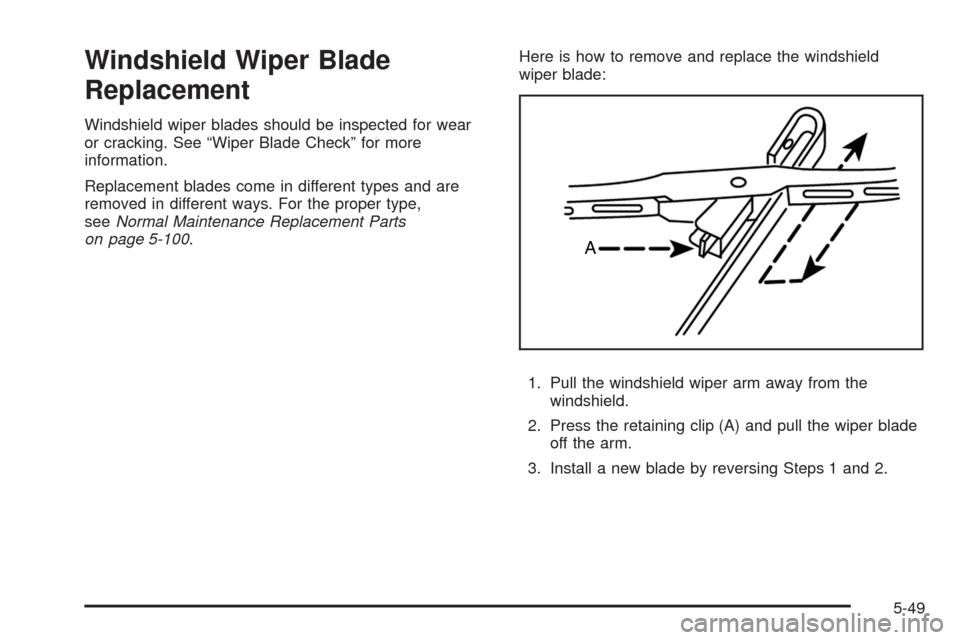

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. See “Wiper Blade Check” for more
information.
Replacement blades come in different types and are
removed in different ways. For the proper type,
seeNormal Maintenance Replacement Parts
on page 5-100.Here is how to remove and replace the windshield
wiper blade:
1. Pull the windshield wiper arm away from the
windshield.
2. Press the retaining clip (A) and pull the wiper blade
off the arm.
3. Install a new blade by reversing Steps 1 and 2.
5-49

Tires
Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you
ever have questions about your tire warranty
and where to obtain service, see your vehicle
Warranty booklet for details.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much exing. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 4-18.
CAUTION: (Continued)
CAUTION: (Continued)

Underinated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked when
your vehicle’s tires are cold. See
Inflation - Tire Pressure on page 5-57.
Overinated tires are more likely to
be cut, punctured, or broken by a
sudden impact — such as when you
hit a pothole. Keep tires at the
recommended pressure.
Worn, old tires can cause accidents.
If the tire’s tread is badly worn, or
if your vehicle’s tires have been
damaged, replace them.
5-50
