2008 CHEVROLET AVALANCHE Owners Manual

Page 33 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual 4. If equipped with a shoulder belt height adjuster,
move it to the height that is right for you. Improper
shoulder belt height adjustment could reduce
the effectiveness of the safety belt in a crash.

Page 34 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Shoulder Belt Height Adjuster
Your vehicle has a shoulder belt height adjuster for the
driver and right front passenger position.
Adjust the height so that the shoulder portion of the belt
is centered

Page 35 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Rear Safety Belt Comfort Guides
Rear shoulder belt comfort guides may provide added
safety belt comfort for older children who have outgrown
booster seats and for some adults. When installed on
a shou

Page 36 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual 3. Be sure that the belt is not twisted and it lies �at.
The elastic cord must be under the belt and the
guide on top.
{CAUTION:
A safety belt that is not properly worn may not
provide the protection

Page 37 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual 4. Buckle, position, and release the safety belt as
described previously in this section. Make sure
that the shoulder belt crosses the shoulder.
To remove and store the comfort guide, squeeze the
belt

Page 38 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Lap Belt
This part is only for the lap belt. To learn how to wear a
lap-shoulder belt, seeLap-Shoulder Belt on page 1-28.
You vehicle may have a center seating position.
When you sit in the center fro

Page 39 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Safety Belt Extender
If the safety belt will fasten around you, you should
use it.
But if a safety belt is not long enough, your
dealer/retailer will order you an extender. When you go
in to order it,

Page 40 of 528

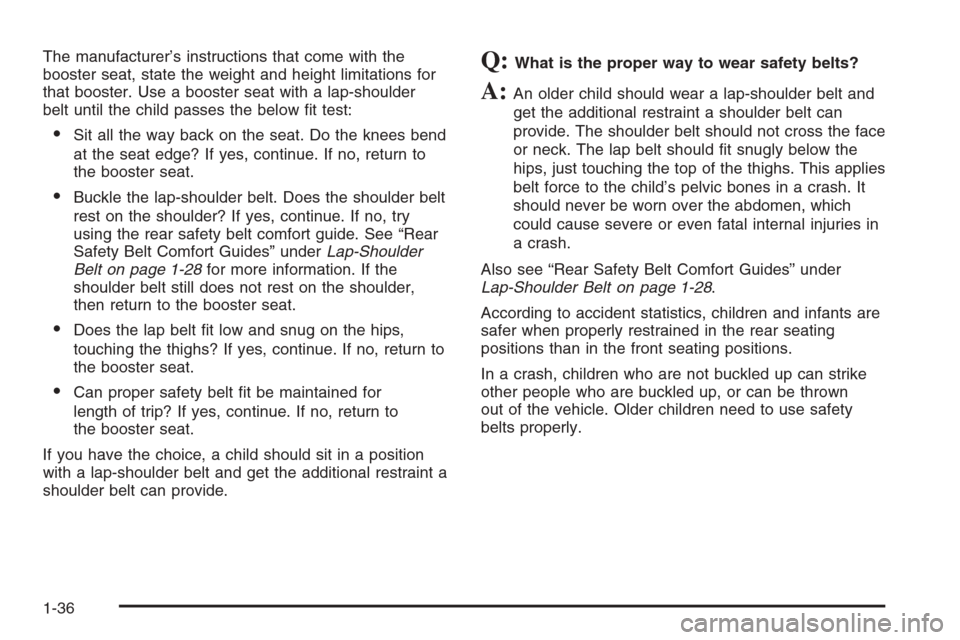

CHEVROLET AVALANCHE 2008 2.G Owners Manual The manufacturer’s instructions that come with the
booster seat, state the weight and height limitations for
that booster. Use a booster seat with a lap-shoulder
belt until the child passes the belo
