2008 CHEVROLET AVALANCHE Owners Manual

Page 337 of 528

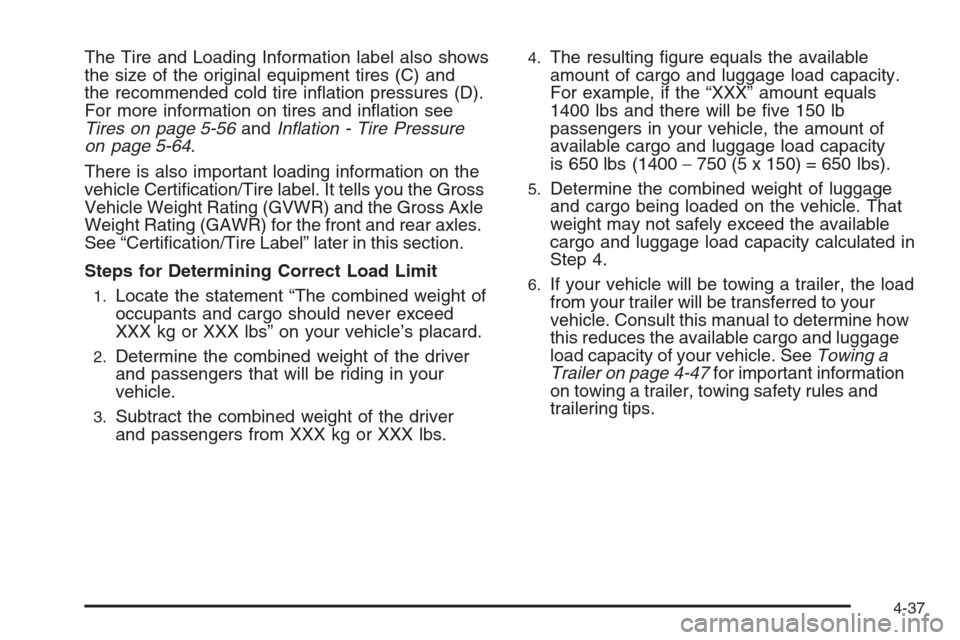

CHEVROLET AVALANCHE 2008 2.G Owners Manual The Tire and Loading Information label also shows
the size of the original equipment tires (C) and
the recommended cold tire in�ation pressures (D).
For more information on tires and in�ation see
Tire

Page 338 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Item Description Total
AVehicle Capacity
Weight for
Example 1=1,000 lbs
(453 kg)
BSubtract Occupant
Weight 150 lbs
(68 kg)×2=300 lbs (136 kg)
CAvailable Occupant
and Cargo Weight=700 lbs (317 kg)Item

Page 339 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Item Description Total
AVehicle Capacity
Weight for
Example 3=1,000 lbs
(453 kg)
BSubtract Occupant
Weight 200 lbs
(91 kg)×5=1,000 lbs
(453 kg)
CAvailable Cargo
Weight=0 lbs (0 kg)
Refer to your vehi

Page 340 of 528

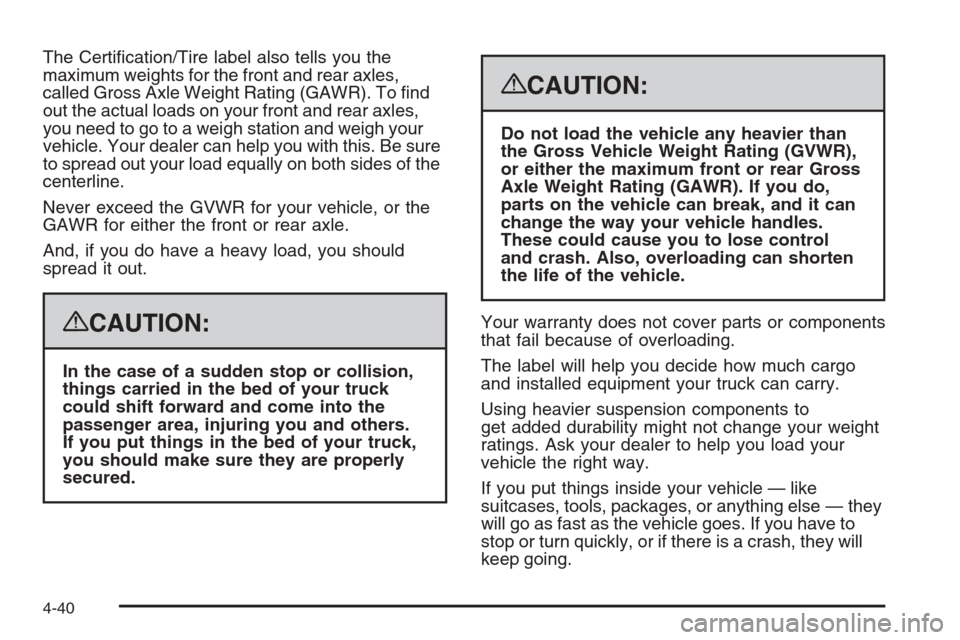

CHEVROLET AVALANCHE 2008 2.G Owners Manual The Certi�cation/Tire label also tells you the
maximum weights for the front and rear axles,
called Gross Axle Weight Rating (GAWR). To �nd
out the actual loads on your front and rear axles,
you need

Page 341 of 528

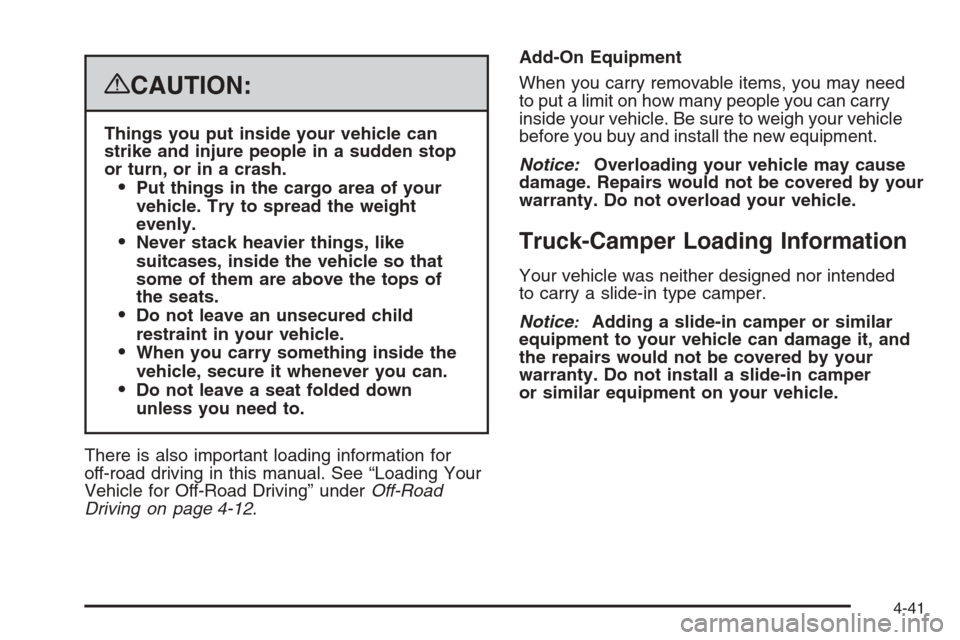

CHEVROLET AVALANCHE 2008 2.G Owners Manual {CAUTION:
Things you put inside your vehicle can
strike and injure people in a sudden stop
or turn, or in a crash.
Put things in the cargo area of your
vehicle. Try to spread the weight
evenly.
Neve

Page 342 of 528

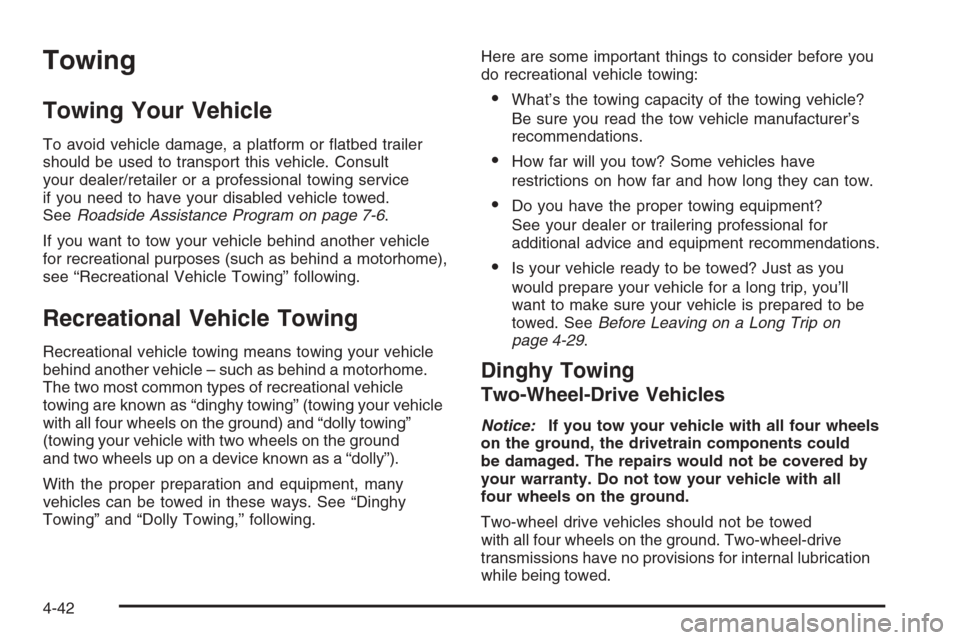

CHEVROLET AVALANCHE 2008 2.G Owners Manual Towing
Towing Your Vehicle
To avoid vehicle damage, a platform or �atbed trailer
should be used to transport this vehicle. Consult
your dealer/retailer or a professional towing service
if you need to

Page 343 of 528

CHEVROLET AVALANCHE 2008 2.G Owners Manual Four-Wheel-Drive Vehicles
Use the following procedure to tow your vehicle:
1. Shift the transmission to PARK (P).
2. Turn the engine off, but leave the ignition on.
3. Firmly set the parking brake.
4.

Page 344 of 528

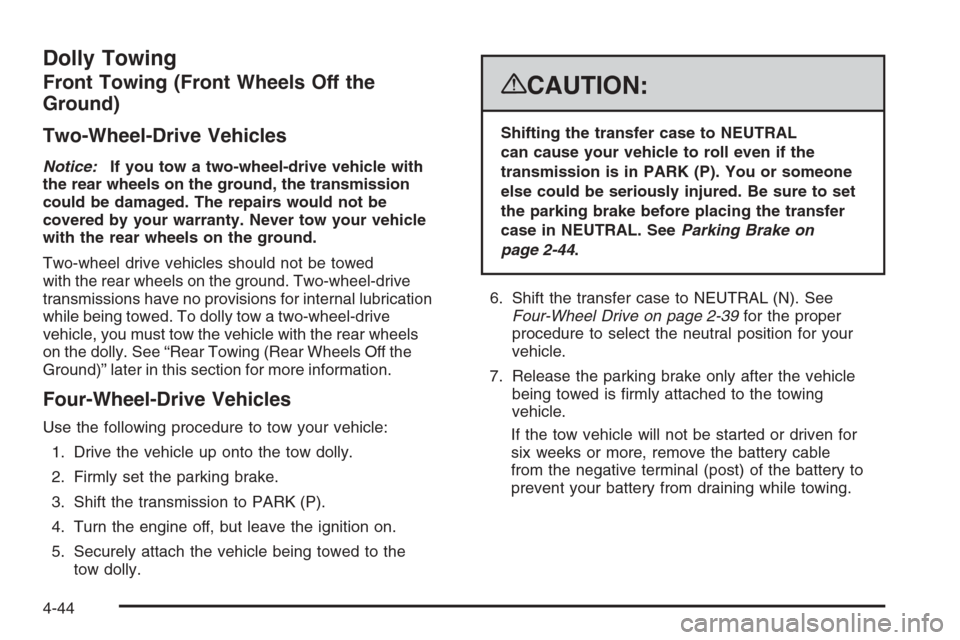

CHEVROLET AVALANCHE 2008 2.G Owners Manual Dolly Towing
Front Towing (Front Wheels Off the
Ground)
Two-Wheel-Drive Vehicles
Notice:If you tow a two-wheel-drive vehicle with
the rear wheels on the ground, the transmission
could be damaged. The
