2008.5 Peugeot 1007 Dag Owner's Manual

1
28
- the current information tab with:

1
29
Distance remaining to be travelled
(km or miles)
This is the distance remaining to be travelled to the fi nal destination. It is either calculated instantly by the navigation system if guidance is acti-vated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed cal-culated since the last trip com-puter zero reset (ignition on).
Range
(km or miles)
This indicates the number of miles (or kilometres) which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) travelled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip compu-ter zero reset.
Distance travelled
(km or miles)
This indicates the distance travelled since the last trip computer zero reset.
A few definitions…
When the range falls below 20 miles (30 km), dashes are displayed. After fi lling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
If dashes are displayed con-tinuously while driving in place of the digits, contact a PEUGEOT dealer.
This function is only displayed from 20 mph (30km/h).
This fi gure may increase fol-lowing a change of driving style or relief, resulting in a signifi cant change in the cur-rent consumption.

1
30
Display C
 Press the "MENU" button to gain access to the general menu.
 Press the arrows, then the "OK"button to select the "Trip com-puter" menu.
 On the "Trip computer" menu, select one of the following appli-cations:
Warnings log
This summarises the active warning messages, displaying them in suc-cession on the multifunction display.
Status of the functions
This summarises the active or inactive status of the functions present on the vehicle.
Enter the distance to the destination
This enables you to enter an approxi-mate value for the distance to the fi nal destination.
"TRIP COMPUTER" MENU
System which provides general infor-mation concerning the status of certain equipment with which your vehicle is equipped, such as the warnings log, the status of the functions...
"DIAGNOSTICS" MENU
 On the "Diagnostics" menu, select one of the following appli-cations:
Colour display
 Press the "MENU" button to gain access to the general menu.
 Turn the dial and press it to select the "Diagnostics" menu.

2
31

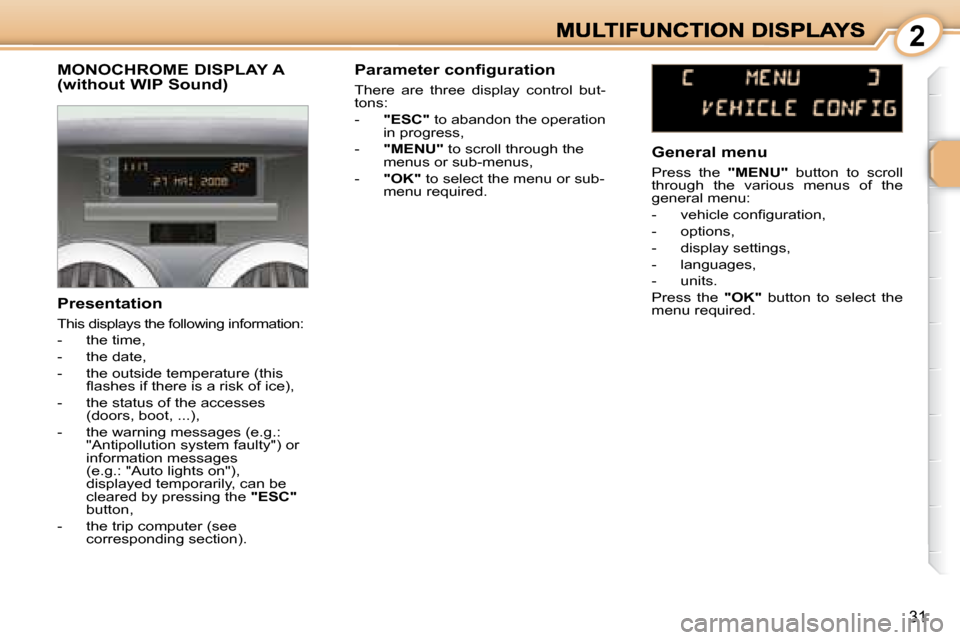

MONOCHROME DISPLAY A (without WIP Sound)
Presentation
This displays the following information:
- the time,
- the date,
- the outside temperature (this fl ashes if there is a risk of ice),
- the status of the accesses (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system faulty") or
information messages
(e.g.: "Auto lights on"),
displayed temporarily, can be
cleared by pressing the "ESC"
button,
- the trip computer (see corresponding section). Parameter configuration
There are three display control but-
tons:
-
"ESC" to abandon the operation
in progress,
- "MENU" to scroll through the
menus or sub-menus,
- "OK" to select the menu or sub-
menu required. General menu
Press the
"MENU" button to scroll
through the various menus of the
general menu:
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.

2
32
Vehicle confi guration
Once the "Vehicle confi guration"
menu has been selected, you can
activate or deactivate the following
equipment:
- wiper linked with reverse gear,
- "follow-me-home" lighting. Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu
has been selected, you can gain ac-
cess to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active,
not active, faulty). Once you have selected a setting,
press the
"OK" button to change its
value.
Wait for approximately ten sec-
onds without any action to allow the
changed data to be recorded or press
the "ESC" button to cancel.
The display then returns to the normal
display. Units
Once the "Units" menu has been se-
lected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100, mpg or
km/l).
For safety reasons, it is im-
perative that confi guration of
the multifunction displays by
the driver takes place when
stationary.

2
33
General menu
Press the "MENU" button to gain ac-
cess to the general menu, then press
the "

" or "

" buttons to scroll
through the following items:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required. Vehicle confi guration
Once the "Vehicle confi guration"
menu has been selected, you can
activate or deactivate the following
equipment:
- rear wiper linked with reverse
gear,
- "follow-me-home" lighting.
Presentation
This displays the following information,
via the WIP Sound control keypad:
- the time,
- the date,
- the outside temperature (this fl ashes if there is a risk of ice),
- the audio source displays (radio, CD, ...),
- the status of the accesses (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system
faulty") or information messages
(e.g.: "Auto lights on"),
displayed temporarily, can be
cleared by pressing the "ESC"
button,
- the trip computer (see corresponding section).
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active,
not active, faulty).
Radio-CD
With the WIP Sound switched on,
once the "Radio-CD" menu has been
selected, you can activate or deacti-
vate the functions linked with the use
of the radio (RDS following, REG
mode), the CD or the CD changer
(introscan, random play, CD repeat).

2
34
Display settings
Once the "Display settings" menu
has been selected, you can gain ac-
cess to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Languages

Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of
the following parameters:
- temperature (°C or °F),
- fuel consumption (l/100, mpg or km/l).
Once you have selected a setting,
press the
"" or "" buttons to
change its value.
Press the
"" or "" buttons to
move to the previous or next setting
respectively.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel. For safety reasons, it is im-
perative that confi guration of
the multifunction displays by
the driver takes place when
stationary.

2
35
MONOCHROME DISPLAY C (without WIP Sound)
General menu
Press the "MENU" button to access
the general menu:
- trip computer (see corresponding section),
- personalisation-confi guration.
Turn the navigator to select the menu
required, then confi rm by pressing
the navigator.
Presentation
It displays the following information:
- the time,
- the date,
- the exterior temperature (this fl ashes if there is a risk of ice),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Antipollution system
faulty") or information messages
(e.g.: "Automatic headlamp
lighting activated"), displayed
temporarily, can be cleared by
pressing the "ESC" button,
- the trip computer (see corresponding section), Parameter configuration
There are three buttons and a navi-
gator to enable you to control the
screen:
-
"MENU" to display the general
menu,
- "MODE" to change the
permanent application (trip
computer, date,...),
- "ESC" to abandon the operation
in progress,
- Rotation of the navigator:
movement on the display or
changing of a setting,
- Press on the navigator:
confi rmation of the selection. "Personalisation-
Configuration" menu
Once this menu has been selected,
you can access the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- selection of the language.
