2008.5 Citroen C3 PICASSO DAG Owner's Manual

179
11
04
33
44
66
55
USB READER
USING THE USB SOCKET
Press LIST to display the list of Folders/Genres/Artists/Playlists on the USB equipment.
The lists available are Artist, Genre and Playlist (as defi ned on the iPod ® ). ®
The operation is identical to that of a convention al USB peripheral device.
Do not connect a hard disc or USB devices other t han audio equipment to the USB socket. This could damage your installation.
CONNECTING AN IPOD ® CONNECTING AN IPOD CONNECTING AN IPOD VIA THE USB SOCKET ®
Press one of these buttons to gain access to the previous/next track on the classifi cation list currently being played. Press and hold one of the buttons for fast forward or rewind play.
Press one of these buttons to gain access to the previous/next Genre, Folder, Artist or Playlist on the classifi cation list currently being played.
Navigate through the list using the left/right and up/down buttons. Confi rm the selection by pressing OK.

180
11
22
22
11
The controls are displayed and managed via the portable equipment.
First adjust the volume of your portable equipment.
Then adjust the volume of your audio equipment.
The auxiliary input, JACK and RCA, permits the con nection of portable equipment (MP3 player...).
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA CABLE NOT SUPPLIED
ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
Do not connect a single piece of equipment via the USB socket and the JACK socket at the same time.

181
11
22
33
11
22
44
11
HANDS-FREE KIT *
For safety reasons and because they require prolonged attention on the part of the driver, the operations for matching of the Bluetooth mobile telephone with your Audio system hands-free kit must be carried out with the vehicle stationary and the ignition on.
Select the accessory which corresponds to the name of the vehicle, a superimposed confi guration display appears on the multifunction display.
Activate the telephone’s Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using the buttons then confi rm by pressing OK.
Enter the vehicle’s authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed confi guration display appears.
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone’s manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consul t a CITROËN dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the end of the steering wheel stalk to accept the call.
Press the end of the steering wheel stalk for more than two seconds to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
MATCHING A TELEPHONE
DISPLAY C
The TELEPHONE menu permits access to the following functions in particular: Phone book, Call list, Matching management. * according to availability on the vehicle.

182
06
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. USB: selection of the next genre/artist/directory from the classifi cation list. Selection of the next item on a menu.
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. USB: selection of the previous genre/artist/directory from the classifi cation list. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3/USB: selection of the next track. CD/CD CHANGER/USB: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3/USB: selection of the previous track. CD/CD CHANGER/USB: continuous press: rewind play. Selection of the next item.
Volume increase.
Volume decrease.
CONTROL SHORT-CUTS
Mute: by pressing the volume increase and decrease buttons simultaneously. The sound is restored by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
STEERING WHEEL CONTROLS

183
11
22
33
44
55
66
77
88
07 CONFIGURATION
Press the MENU button.
Using the arrows, select the PERSONALISATION CONFIGURATION function.
Press to confi rm the selection.
Using the arrows, select the DISPLAY CONFIGURATION function.
Press to confi rm the selection.
Press to confi rm the selection.
Using the arrows, select the ADJUST DATE AND TIME function.
Adjust the parameters one by one confi rming by pressing the OK button. Next select the OK tab on the display then confi rm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
ADJUSTING THE DATE AND TIME
DISPLAY C

184
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
08
RADIO-CD DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE

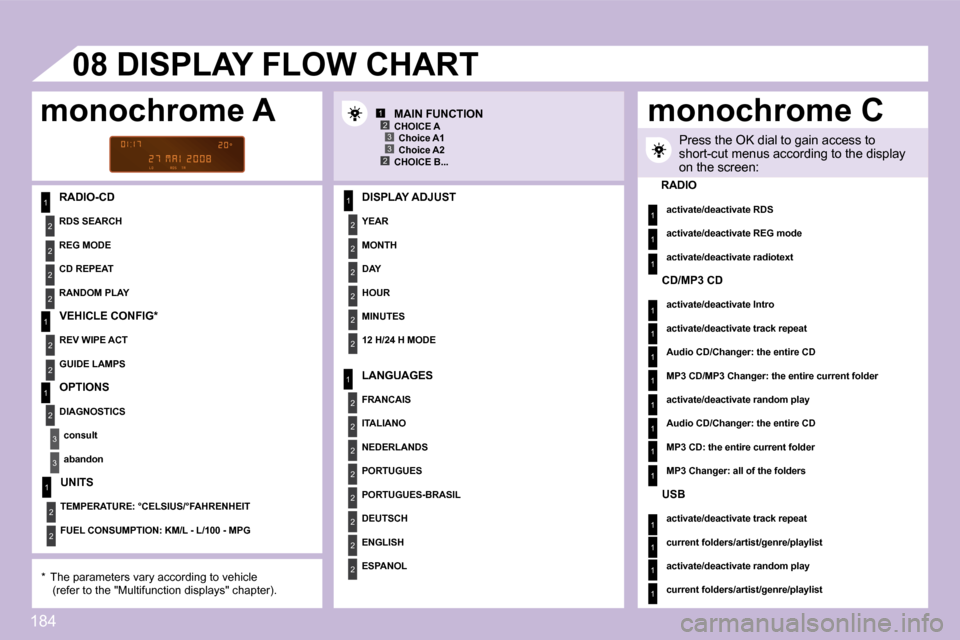

DISPLAY FLOW CHART
MAIN FUNCTION
* The parameters vary according to vehicle (refer to the "Multifunction displays" chapter).
CHOICE A Choice A1 Choice A2 CHOICE B...
LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
Press the OK dial to gain access to short-cut menus according to the display on the screen:
monochrome A monochrome C
RADIO
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext
RDS SEARCH
REG MODE
CD REPEAT
RANDOM PLAY
VEHICLE CONFIG *
REV WIPE ACT
GUIDE LAMPS
OPTIONS
DIAGNOSTICS
consult
abandon
UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG
CD/MP3 CD
activate/deactivate Intro
activate/deactivate track repeat
Audio CD/Changer: the entire CD
MP3 CD/MP3 Changer: the entire current folder
activate/deactivate random play
Audio CD/Changer: the entire CD
MP3 CD: the entire current folder
MP3 Changer: all of the folders
USB
activate/deactivate track repeat
current folders/artist/genre/playlist
activate/deactivate random play
current folders/artist/genre/playlist

184
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
08
RADIO-CD DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE
DISPLAY FLOW CHART
MAIN FUNCTION
* The parameters vary according to vehicle (refer to the "Multifunction displays" chapter).
CHOICE A Choice A1 Choice A2 CHOICE B...
LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
Press the OK dial to gain access to short-cut menus according to the display on the screen:
monochrome A monochrome C
RADIO
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext
RDS SEARCH
REG MODE
CD REPEAT
RANDOM PLAY
VEHICLE CONFIG *
REV WIPE ACT
GUIDE LAMPS
OPTIONS
DIAGNOSTICS
consult
abandon
UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG
CD/MP3 CD
activate/deactivate Intro
activate/deactivate track repeat
Audio CD/Changer: the entire CD
MP3 CD/MP3 Changer: the entire current folder
activate/deactivate random play
Audio CD/Changer: the entire CD
MP3 CD: the entire current folder
MP3 Changer: all of the folders
USB
activate/deactivate track repeat
current folders/artist/genre/playlist
activate/deactivate random play
current folders/artist/genre/playlist

185
11
2
3
4
3
4
3
2
3
4
3
4
2
3
4
2
4
4
3
3
4
4
1
2
2
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
2
2
08
4
3
4
4
DISPLAY FLOW CHART monochrome C
* The parameters vary according to vehicle refer to the "Instruments and controls" chapter).
** According to compatibility of Bluetooth telephone and service contract.
TELEPHONE AUDIO FUNCTIONS
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)
activate/deactivate
TRIP COMPUTER
PERSONALISATION-CONFIGURATION
MANAGEMENT OF A COMMUNICATION
switch **
terminate the current call
secret mode
activate/deactivate
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
ENTER DISTANCE TO DESTINATION
WARNING LOG
STATUS OF FUNCTIONS
DEFINE THE VEHICLE PARAMETERS *
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles
