INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU41261
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting bolt. Adjust the distance
between the brake lever and the han-
dlebar grip as follows.
1. Loosen the locknut.2. While holding the lever pushed
away from the handlebar grip, turn
the adjusting bolt in direction (a) to
increase the distance, and in direc-
tion (b) to decrease it.
3. Tighten the locknut.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever
2. Locknut
3. Adjusting bolt
4. Distance between brake lever and handlebar
grip
Distance between the brake lever
and the handlebar grip:
Minimum (shortest):
76 mm (2.99 in)
Standard:
95 mm (3.74 in)
Maximum (longest):
97 mm (3.82 in)
1. Brake pedal
U5PA85E0.book Page 2 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU13180
Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU41831
Fuel This motorcycle has been designed to
use a premixed fuel of gasoline and 2-
stroke engine oil. Always mix the gaso-
line and oil in a clean container before
filling the fuel tank.CAUTION:
ECA15601
Always use fresh gasoline, and fill
the fuel tank with a fresh mix just be-
fore riding. Do not use premixed fuelthat is more than a few hours old.
Mixing gasoline and 2-stroke engine
oil
Pour 2-stroke engine oil into a clean
container, and then add gasoline. To
mix the fuel thoroughly, shake the con-
tainer from side to side.
CAUTION:
ECA15590
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the piston rings as well as tothe exhaust system.
1. Fuel tank cap
1. 2-stroke engine oil
2. Gasoline
3. ContainerRecommended fuel:
Premium unleaded gasoline only
Recommended 2-stroke engine oil:
See page 8-1.
Fuel tank capacity:
5.0 L (1.32 US gal) (1.10 Imp.gal)
Mixing ratios (gasoline to oil):
Break-in period: 15:1
After break-in: 30:1
U5PA85E0.book Page 3 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a pump octane number
[(R+M)/2] of 91 or higher, or a research
octane number of 95 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand.
If the recommended 2-stroke engine oil
is not available, use an equivalent oil.
CAUTION:
ECA15551
Never mix two brands of 2-stroke en-
gine oil in the same batch. Always
use the same type of oil to ensure
maximum engine performance.
Should it be necessary to use a dif-
ferent oil brand, be sure to drain the
fuel tank and the carburetor float
chamber of the old premixed fuelprior to filling with the new type.Filling the fuel tank

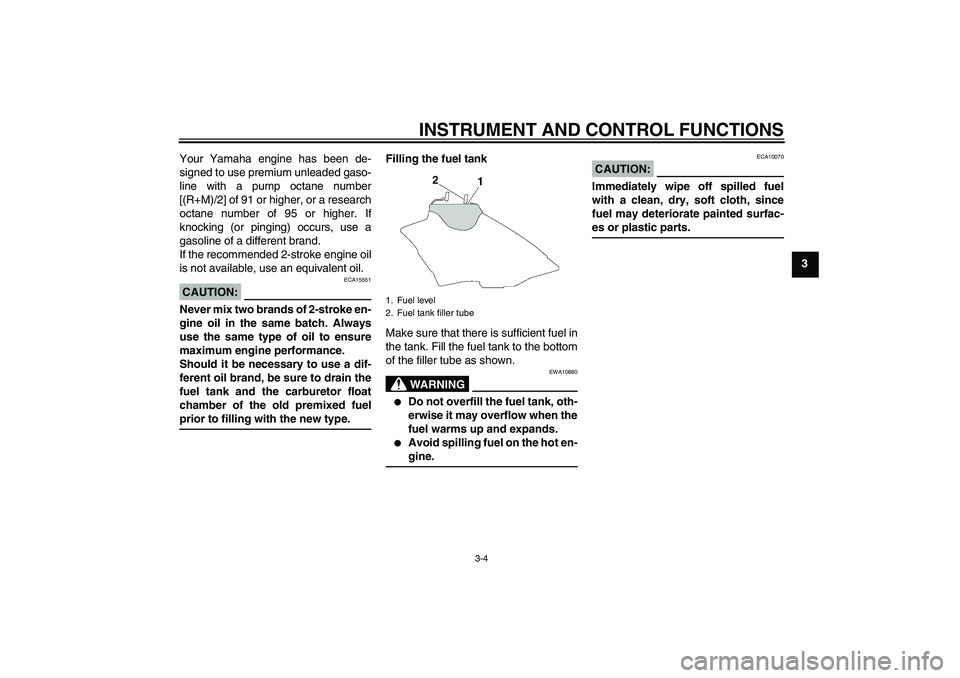

Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880


Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
1. Fuel level
2. Fuel tank filler tube
U5PA85E0.book Page 4 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU41360
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
NOTE:If the fuel tank breather hose falls out,
reinstall it on the fuel tank cap with the
arrow mark on the one-way valve point-ed downward as shown.
EAU41280
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has two positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
1. Fuel tank breather hose
2. One-way valve
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
U5PA85E0.book Page 5 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU13640
Starter (choke) knob Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).
EAU13650
Kickstarter To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully. This model is equipped with a pri-
mary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Starter (choke) knob
1. Kickstarter lever
1. Bolt
U5PA85E0.book Page 6 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
2. Place the seat in the original posi-
tion, and then tighten the bolts.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU41470

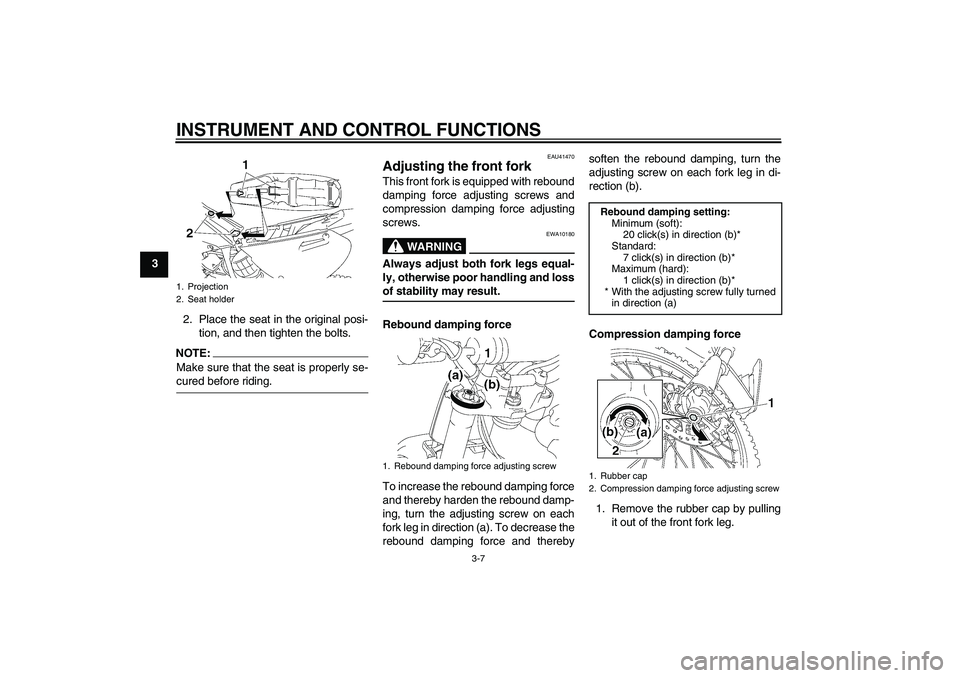

Adjusting the front fork This front fork is equipped with rebound
damping force adjusting screws and
compression damping force adjusting
screws.
WARNING
EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and lossof stability may result.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and therebysoften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).
Compression damping force
1. Remove the rubber cap by pulling
it out of the front fork leg.
1. Projection
2. Seat holder
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
7 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)1. Rubber cap
2. Compression damping force adjusting screw
U5PA85E0.book Page 7 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3 2. To increase the compression
damping force and thereby harden
the compression damping, turn the
adjusting screw on each fork leg in
direction (a). To decrease the
compression damping force and
thereby soften the compression
damping, turn the adjusting screw
on each fork leg in direction (b).
3. Install the rubber cap.
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
NOTE:Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify thespecifications as necessary.
EAU14790
Front fork bleeding When riding in extremely rough condi-
tions, the air temperature and pressure
in the front fork will rise. This will in-
crease the spring preload and harden
the front suspension. If this occurs,
bleed the front fork as follows.
1. Elevate the front wheel by placing
a suitable stand under the engine.NOTE:When bleeding the front fork, there
should be no weight on the front end ofthe vehicle.
2. Remove the bleed screws and al-
low all of the air to escape from
each fork leg.
Compression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
YZ85(W)/YZ85W1: 10 click(s) in
direction (b)*
YZ85LW(W): 9 click(s) in direction
(b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1. Bleed screw
U5PA85E0.book Page 8 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
WARNING
EWA10200
Always bleed both fork legs, other-
wise poor handling and loss of sta-bility may result.
3. Install the bleed screws.
EAU41330
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing screw and a compression
damping force adjusting screw.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Spring preload
Adjust the spring preload as follows.
1. Loosen the locknut.2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting nut in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting nut in
direction (b).
NOTE:

A special wrench can be obtained
at a Yamaha dealer to make this
adjustment.


The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The long-
er distance A is, the lower the
spring preload; the shorter dis-
tance A is, the higher the spring
preload. With each complete turn
of the adjusting nut, distance A ischanged by 1.5 mm (0.06 in).
1. Locknut
2. Spring preload adjusting nut
