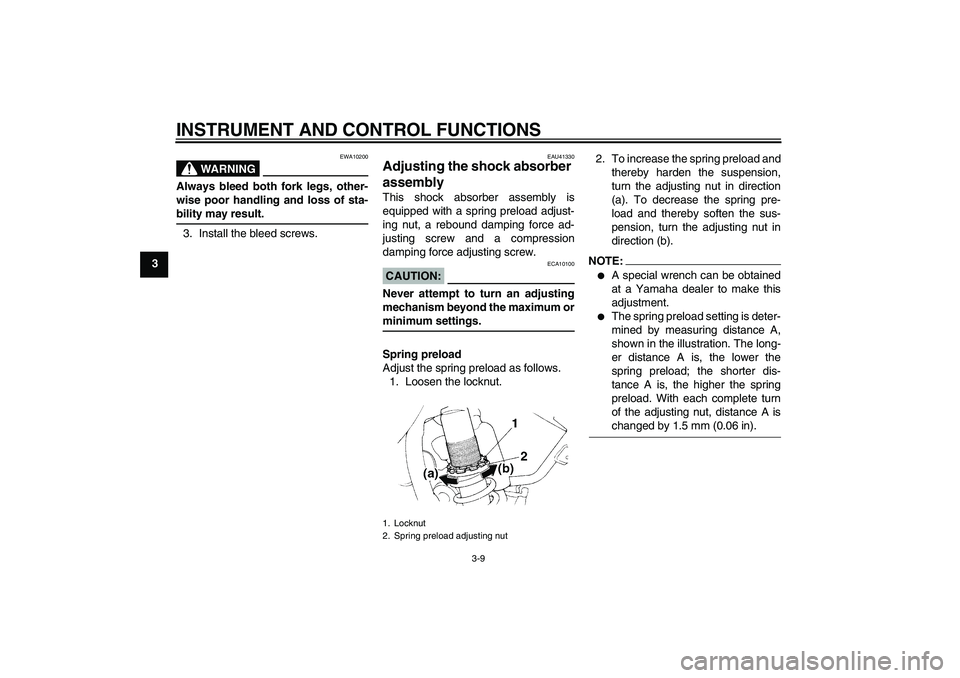

Page 32 of 82
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
WARNING
EWA10200
Always bleed both fork legs, other-
wise poor handling and loss of sta-bility may result.
3. Install the bleed screws.
EAU41330
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing screw and a compression
damping force adjusting screw.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
Spring preload
Adjust the spring preload as follows.
1. Loosen the locknut.2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting nut in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting nut in
direction (b).
NOTE:
A special wrench can be obtained
at a Yamaha dealer to make this
adjustment.
The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The long-
er distance A is, the lower the
spring preload; the shorter dis-
tance A is, the higher the spring
preload. With each complete turn
of the adjusting nut, distance A ischanged by 1.5 mm (0.06 in).
1. Locknut
2. Spring preload adjusting nut
U5PA85E0.book Page 9 Thursday, April 13, 2006 3:06 PM
Page 71 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
EAU25870
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
Tightening torque:
Axle nut:
90 Nm (9.0 m·kgf, 65 ft·lbf)
U5PA85E0.book Page 29 Thursday, April 13, 2006 3:06 PM
Page 77 of 82
SPECIFICATIONS
8-1
8
Dimensions:Overall length:
YZ85 1818 mm (71.6 in)
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85 1821 mm (71.7 in) (ZAF)
YZ85LW 1903 mm (74.9 in)
YZ85LWW 1903 mm (74.9 in)
YZ85W 1818 mm (71.6 in)
YZ85W1 1818 mm (71.6 in)
Overall width:
758 mm (29.8 in)
Overall height:
YZ85 1161 mm (45.7 in)
YZ85LW 1205 mm (47.4 in)
YZ85LWW 1205 mm (47.4 in)
YZ85W 1161 mm (45.7 in)
YZ85W1 1161 mm (45.7 in)
Seat height:
YZ85 864 mm (34.0 in)
YZ85LW 904 mm (35.6 in)
YZ85LWW 904 mm (35.6 in)
YZ85W 864 mm (34.0 in)
YZ85W1 864 mm (34.0 in)
Wheelbase:
YZ85 1255 mm (49.4 in)
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85 1258 mm (49.5 in) (ZAF)
YZ85LW 1286 mm (50.6 in)YZ85LWW 1286 mm (50.6 in)
YZ85W 1255 mm (49.4 in)
YZ85W1 1255 mm (49.4 in)
Ground clearance:
YZ85 351 mm (13.82 in)
YZ85LW 393 mm (15.47 in)
YZ85LWW 393 mm (15.47 in)
YZ85W 351 mm (13.82 in)
YZ85W1 351 mm (13.82 in)
Weight:With oil and fuel:
YZ85 71.0 kg (157 lb)
YZ85LW 73.9 kg (163 lb)
YZ85LWW 73.9 kg (163 lb)
YZ85W 71.0 kg (157 lb)
YZ85W1 71.0 kg (157 lb)Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
84.7 cm³ (5.17 cu.in)
Bore × stroke:
47.5 × 47.8 mm (1.87 × 1.88 in)
Compression ratio:
8.20 :1
Starting system:
Kickstarter
Lubrication system:
PremixEngine oil:Type:
YAMALUBE 2-R
Transmission oil:Type:
YAMALUBE 4 (10W30) or SAE10W30 type
SE motor oil
Oil change quantity:
0.50 L (0.53 US qt) (0.44 Imp.qt)Cooling system:Radiator capacity (including all routes):
0.54 L (0.57 US qt) (0.48 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
5.0 L (1.32 US gal) (1.10 Imp.gal)Carburetor:Manufacturer:
KEIHIN
Type × quantity:
PWK28 x 1Spark plug (s):Manufacturer/model:
NGK/BR10EG
Spark plug gap:
0.5–0.6 mm (0.020–0.024 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM
