2007 YAMAHA YZ85 ECO mode

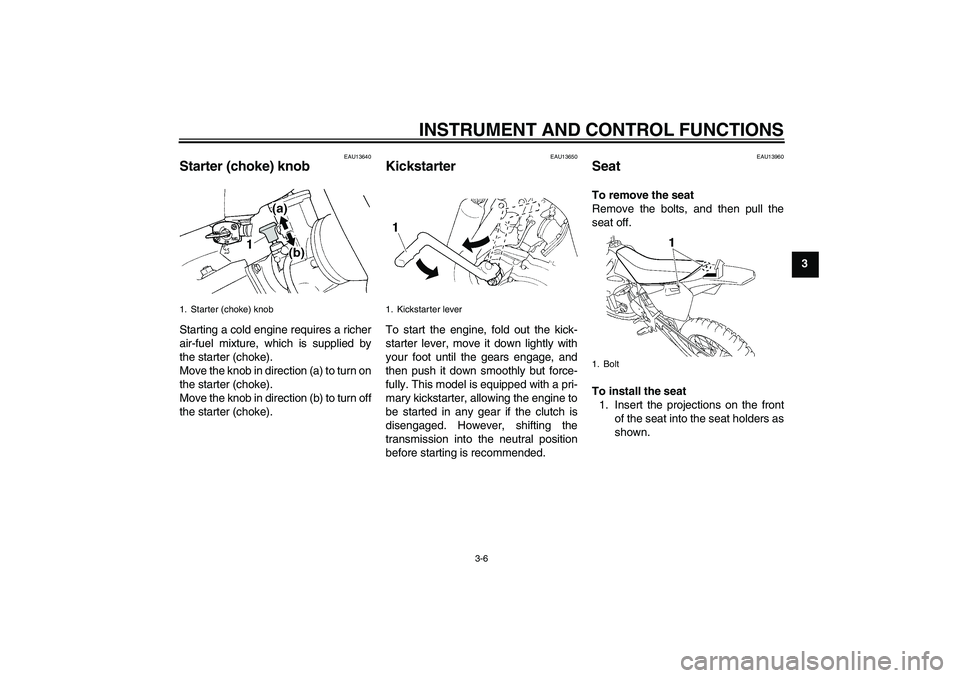

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU13640
Starter (choke) knob Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).
EAU13650
Kickstarter To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully. This model is equipped with a pri-
mary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Starter (choke) knob
1. Kickstarter lever
1. Bolt
U5PA85E0.book Page 6 Thursday, April 13, 2006 3:06 PM

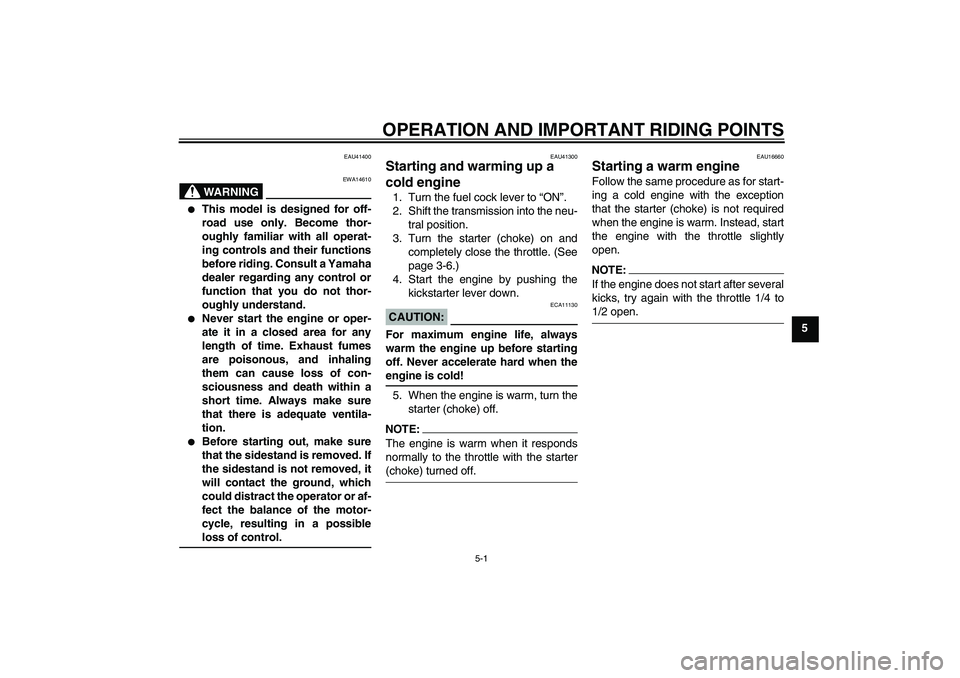

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU41400
WARNING
EWA14610


This model is designed for off-
road use only. Become thor-
oughly familiar with all operat-
ing controls and their functions
before riding. Consult a Yamaha
dealer regarding any control or
function that you do not thor-
oughly understand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is removed. If
the sidestand is not removed, it
will contact the ground, which
could distract the operator or af-
fect the balance of the motor-
cycle, resulting in a possibleloss of control.
EAU41300
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Shift the transmission into the neu-
tral position.
3. Turn the starter (choke) on and
completely close the throttle. (See
page 3-6.)
4. Start the engine by pushing the
kickstarter lever down.CAUTION:
ECA11130
For maximum engine life, always
warm the engine up before starting
off. Never accelerate hard when theengine is cold!
5. When the engine is warm, turn the
starter (choke) off.NOTE:The engine is warm when it responds
normally to the throttle with the starter(choke) turned off.
EAU16660
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm. Instead, start
the engine with the throttle slightly
open.NOTE:If the engine does not start after several
kicks, try again with the throttle 1/4 to1/2 open.
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU41502
Engine break-in 1. Before starting the engine, fill the
fuel tank with a break-in oil-fuel
mixture as follows.
2. Start and warm up the engine.
Check the operation of the controls
and the engine stop button. (See
page 3-1.)
3. Operate the motorcycle in the low-
er gears at moderate throttle open-
ings for five to eight minutes. Stop
the engine and check the spark
plug condition (see page 6-8); it
will show a rich condition during
break-in.
4. Allow the engine to cool. Restart
the engine and operate the motor-
cycle as in the step above for five
minutes. Then, very briefly shift to
the higher gears and check the
full-throttle response. Stop the en-
gine and check the spark plug.5. After again allowing the engine to
cool, restart and run the motor-
cycle for five more minutes. Full
throttle and the higher gears may
be used, but sustained full-throttle
operation should be avoided. Stop
the engine and check the spark
plug again.
6. Allow the engine to cool, remove
the cylinder head and cylinder, and
inspect the piston and cylinder.
Remove any high spots on the pis-
ton with #600-grit wet sandpaper.
Clean all components and careful-
ly reassemble the cylinder head
and cylinder.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
7. Drain the break-in oil-fuel mixture
from the fuel tank and refill with the
specified mix. (See page 3-3.)
8. Start the engine and check the op-
eration of the motorcycle through-
out its entire operating range. Stop
the engine and check the sparkplug condition. Restart the motor-
cycle and ride it for about 10 to 15
more minutes. The motorcycle will
now be ready to ride normally.
After the engine break-in period, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-
justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
CAUTION:
ECA15560


When any of the following parts
have been replaced, they must
be broken in.
Cylinder or crankshaft:
About one hour of break-in op-
eration is necessary.
Piston, rings or transmission
gears:
These parts require about 30
minutes of break-in operation at
half-throttle or less. Observe the
condition of the engine carefully
during operation.
Recommended 2-stroke engine oil:
See page 8-1.
Mixing ratio (gasoline to oil):
15:1
U5PA85E0.book Page 3 Thursday, April 13, 2006 3:06 PM

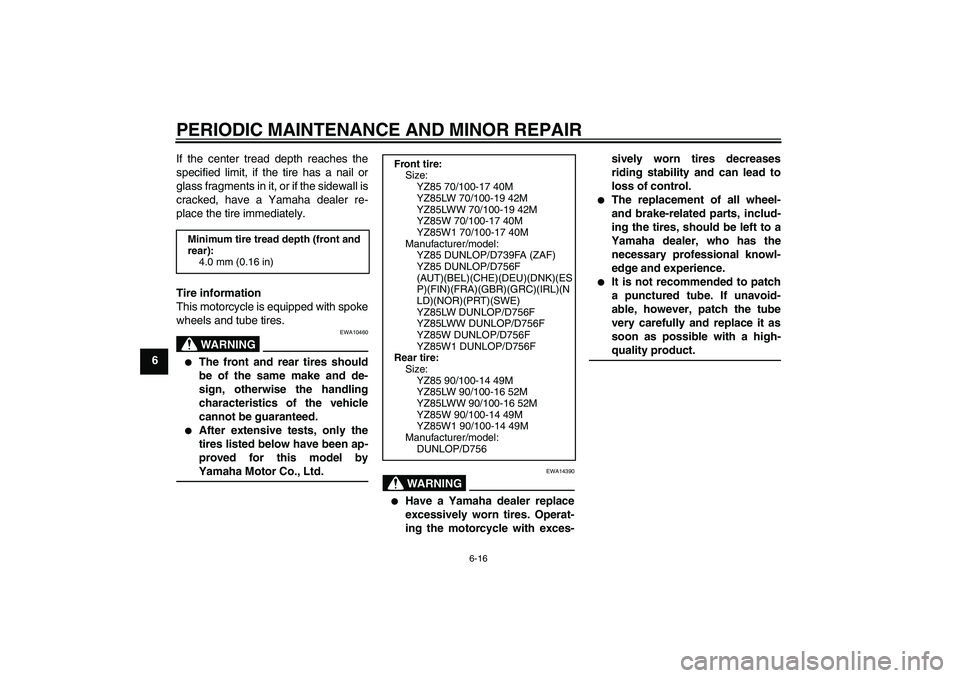

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6If the center tread depth reaches the
specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING
EWA10460


The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.


After extensive tests, only the
tires listed below have been ap-
proved for this model byYamaha Motor Co., Ltd.
WARNING
EWA14390


Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-sively worn tires decreases
riding stability and can lead to
loss of control.


The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.


It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-quality product.
Minimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
Front tire:
Size:
YZ85 70/100-17 40M
YZ85LW 70/100-19 42M
YZ85LWW 70/100-19 42M
YZ85W 70/100-17 40M
YZ85W1 70/100-17 40M
Manufacturer/model:
YZ85 DUNLOP/D739FA (ZAF)
YZ85 DUNLOP/D756F
(AUT)(BEL)(CHE)(DEU)(DNK)(ES
P)(FIN)(FRA)(GBR)(GRC)(IRL)(N
LD)(NOR)(PRT)(SWE)
YZ85LW DUNLOP/D756F
YZ85LWW DUNLOP/D756F
YZ85W DUNLOP/D756F
YZ85W1 DUNLOP/D756F
Rear tire:
Size:
YZ85 90/100-14 49M
YZ85LW 90/100-16 52M
YZ85LWW 90/100-16 52M
YZ85W 90/100-14 49M
YZ85W1 90/100-14 49M
Manufacturer/model:
DUNLOP/D756
U5PA85E0.book Page 16 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU21940
Spoke wheels To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.

The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.


The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.


Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU40431
Accessories and replacement
parts
WARNING
EWA14481
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se-
curely mounted to maintain the in-
herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test-
ed to be compatible with your vehi-
cle. Yamaha recommends the use of
Genuine Yamaha Parts and Acces-
sories before making a purchase.
Use of non-Yamaha-approved ac-
cessories or replacement parts may
cause loss of handling stability and
riding safety. Since Yamaha cannot
control the quality of accessories or
parts manufactured by other compa-
nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have notbeen approved by Yamaha.
EAU22031
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
bolt in direction (b).1. Clutch lever free play
2. Locknut (clutch lever)
3. Adjusting bolt
U5PA85E0.book Page 17 Thursday, April 13, 2006 3:06 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
YZ85 1818 mm (71.6 in)
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85 1821 mm (71.7 in) (ZAF)
YZ85LW 1903 mm (74.9 in)
YZ85LWW 1903 mm (74.9 in)
YZ85W 1818 mm (71.6 in)
YZ85W1 1818 mm (71.6 in)
Overall width:
758 mm (29.8 in)
Overall height:
YZ85 1161 mm (45.7 in)
YZ85LW 1205 mm (47.4 in)
YZ85LWW 1205 mm (47.4 in)
YZ85W 1161 mm (45.7 in)
YZ85W1 1161 mm (45.7 in)
Seat height:
YZ85 864 mm (34.0 in)
YZ85LW 904 mm (35.6 in)
YZ85LWW 904 mm (35.6 in)
YZ85W 864 mm (34.0 in)
YZ85W1 864 mm (34.0 in)
Wheelbase:
YZ85 1255 mm (49.4 in)
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85 1258 mm (49.5 in) (ZAF)
YZ85LW 1286 mm (50.6 in)YZ85LWW 1286 mm (50.6 in)
YZ85W 1255 mm (49.4 in)
YZ85W1 1255 mm (49.4 in)
Ground clearance:
YZ85 351 mm (13.82 in)
YZ85LW 393 mm (15.47 in)
YZ85LWW 393 mm (15.47 in)
YZ85W 351 mm (13.82 in)
YZ85W1 351 mm (13.82 in)
Weight:With oil and fuel:
YZ85 71.0 kg (157 lb)
YZ85LW 73.9 kg (163 lb)
YZ85LWW 73.9 kg (163 lb)
YZ85W 71.0 kg (157 lb)
YZ85W1 71.0 kg (157 lb)Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
84.7 cm³ (5.17 cu.in)
Bore × stroke:
47.5 × 47.8 mm (1.87 × 1.88 in)
Compression ratio:
8.20 :1
Starting system:
Kickstarter
Lubrication system:
PremixEngine oil:Type:
YAMALUBE 2-R
Transmission oil:Type:
YAMALUBE 4 (10W30) or SAE10W30 type
SE motor oil
Oil change quantity:
0.50 L (0.53 US qt) (0.44 Imp.qt)Cooling system:Radiator capacity (including all routes):
0.54 L (0.57 US qt) (0.48 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
5.0 L (1.32 US gal) (1.10 Imp.gal)Carburetor:Manufacturer:
KEIHIN
Type × quantity:
PWK28 x 1Spark plug (s):Manufacturer/model:
NGK/BR10EG
Spark plug gap:
0.5–0.6 mm (0.020–0.024 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM

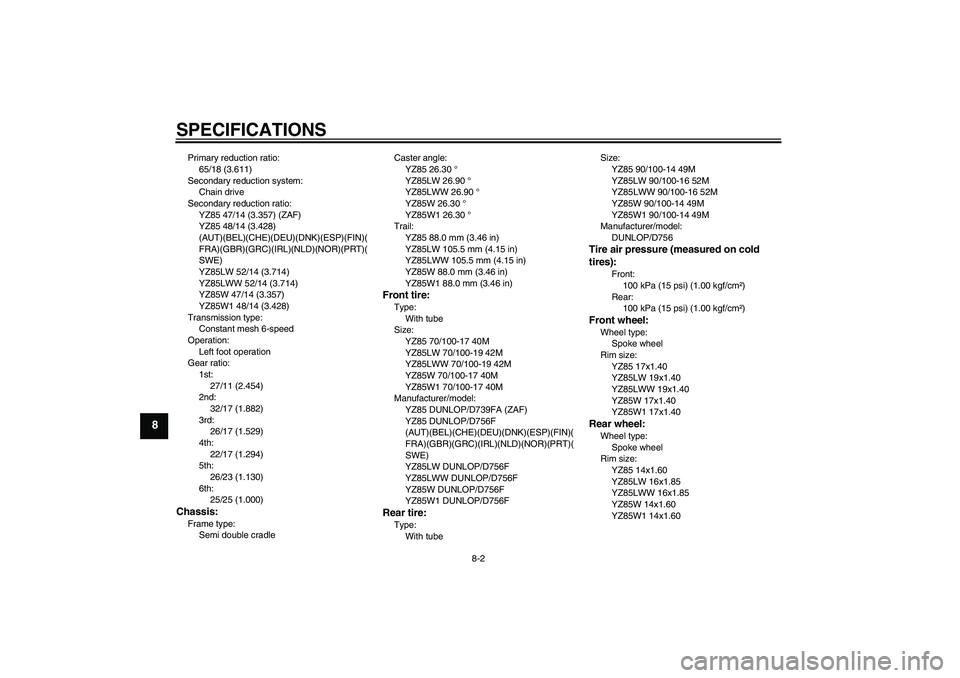

SPECIFICATIONS
8-2
8
Primary reduction ratio:
65/18 (3.611)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
YZ85 47/14 (3.357) (ZAF)
YZ85 48/14 (3.428)
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85LW 52/14 (3.714)
YZ85LWW 52/14 (3.714)
YZ85W 47/14 (3.357)
YZ85W1 48/14 (3.428)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:
1st:
27/11 (2.454)
2nd:
32/17 (1.882)
3rd:
26/17 (1.529)
4th:
22/17 (1.294)
5th:
26/23 (1.130)
6th:
25/25 (1.000)Chassis:Frame type:
Semi double cradleCaster angle:
YZ85 26.30 °
YZ85LW 26.90 °
YZ85LWW 26.90 °
YZ85W 26.30 °
YZ85W1 26.30 °
Trail:
YZ85 88.0 mm (3.46 in)
YZ85LW 105.5 mm (4.15 in)
YZ85LWW 105.5 mm (4.15 in)
YZ85W 88.0 mm (3.46 in)
YZ85W1 88.0 mm (3.46 in)
Front tire:Type:
With tube
Size:
YZ85 70/100-17 40M
YZ85LW 70/100-19 42M
YZ85LWW 70/100-19 42M
YZ85W 70/100-17 40M
YZ85W1 70/100-17 40M
Manufacturer/model:
YZ85 DUNLOP/D739FA (ZAF)
YZ85 DUNLOP/D756F
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)(
FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)(
SWE)
YZ85LW DUNLOP/D756F
YZ85LWW DUNLOP/D756F
YZ85W DUNLOP/D756F
YZ85W1 DUNLOP/D756FRear tire:Type:
With tubeSize:
YZ85 90/100-14 49M
YZ85LW 90/100-16 52M
YZ85LWW 90/100-16 52M
YZ85W 90/100-14 49M
YZ85W1 90/100-14 49M
Manufacturer/model:
DUNLOP/D756
Tire air pressure (measured on cold
tires):
Front:
100 kPa (15 psi) (1.00 kgf/cm²)
Rear:
100 kPa (15 psi) (1.00 kgf/cm²)
Front wheel:Wheel type:
Spoke wheel
Rim size:
YZ85 17x1.40
YZ85LW 19x1.40
YZ85LWW 19x1.40
YZ85W 17x1.40
YZ85W1 17x1.40Rear wheel:Wheel type:
Spoke wheel
Rim size:
YZ85 14x1.60
YZ85LW 16x1.85
YZ85LWW 16x1.85
YZ85W 14x1.60
YZ85W1 14x1.60
U5PA85E0.book Page 2 Thursday, April 13, 2006 3:06 PM

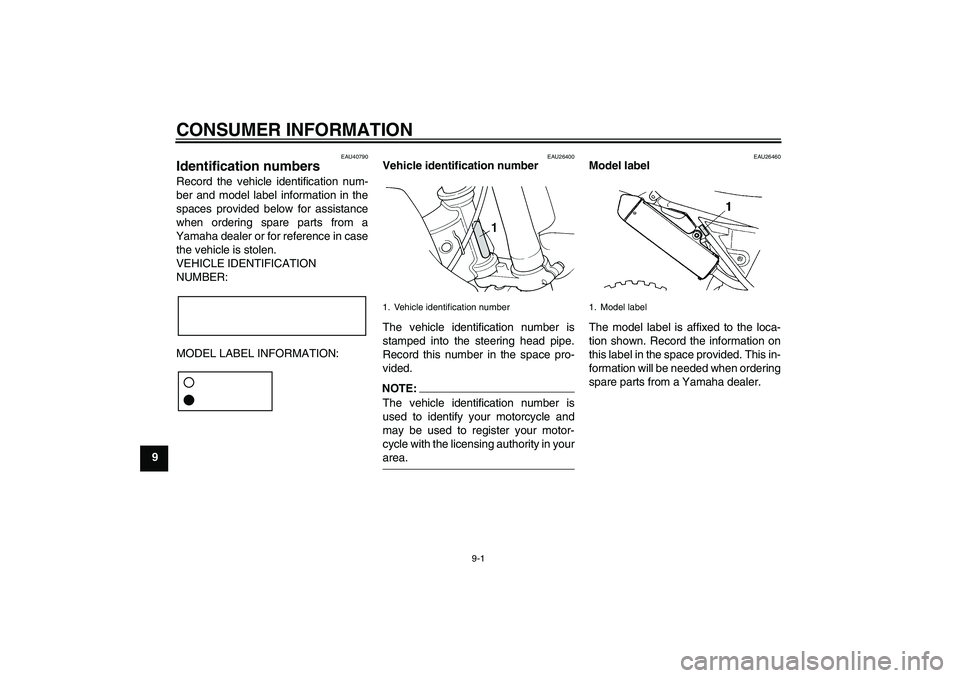

CONSUMER INFORMATION
9-1
9
EAU40790
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
EAU26460
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM
