Page 59 of 384
Keys.............................................................. 60
Remote Keyless Entry (RKE) System.......... 62
Remote Keyless Entry (RKE)
System Operation.................................... 63
Doors and Locks.......................................... 66
Manual Door Locks..................................... 66
Power Door Locks....................................... 67
Delayed Locking.......................................... 67
Automatic Door Lock................................... 68
Automatic Door Unlock................................ 68
Trunk.......................................................... 68
Windows....................................................... 71
Power Windows.......................................... 72
Sun Visors.................................................. 72
Theft-Deterrent Systems............................... 73
Content Theft-Deterrent............................... 73
PASS-Key
®III+........................................... 75
PASS-Key®III+ Operation........................... 75
Starting and Operating Your Vehicle........... 77
New Vehicle Break-In.................................. 77
Ignition Positions......................................... 78
Retained Accessory Power (RAP)............... 79Starting the Engine..................................... 80
Automatic Transmission Operation............... 82
Manual Transmission Operation................... 85
Parking Brake............................................. 86
Shifting Into Park (P)
(Automatic Transmission)......................... 87
Shifting Out of Park (P)............................... 89
Parking Your Vehicle
(Manual Transmission)............................. 89
Parking Over Things That Burn................... 90
Engine Exhaust........................................... 91
Running the Engine While Parked............... 92
Mirrors........................................................... 93
Manual Rearview Mirror.............................. 93
Manual Rearview Mirror with OnStar
®......... 93
Outside Power Mirrors................................. 93
OnStar
®System............................................ 94
Storage Areas............................................... 99
Glove Box................................................... 99
Cupholder(s)............................................... 99
Center Console Storage Area.................... 100
Convertible Top.......................................... 100
Section 2 Features and Controls
59
ProCarManuals.com
Page 69 of 384

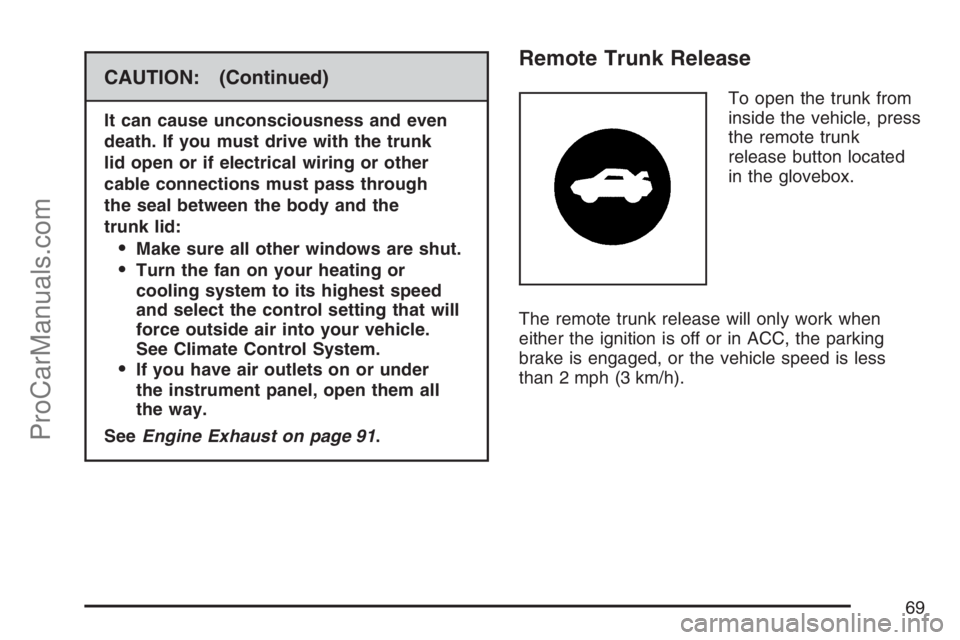

CAUTION: (Continued)
It can cause unconsciousness and even
death. If you must drive with the trunk
lid open or if electrical wiring or other
cable connections must pass through
the seal between the body and the
trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle.
See Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 91.
Remote Trunk Release
To open the trunk from
inside the vehicle, press
the remote trunk
release button located
in the glovebox.
The remote trunk release will only work when
either the ignition is off or in ACC, the parking
brake is engaged, or the vehicle speed is less
than 2 mph (3 km/h).
69
ProCarManuals.com
Page 94 of 384
OnStar®System
OnStar®uses several innovative technologies and
live advisors to provide you with a wide range
of safety, security, information, and convenience
services. If your airbags deploy, the system is
designed to make an automatic call to OnStar
®
Emergency advisors who can request emergency
services be sent to your location. If you lock
your keys in the vehicle, call OnStar
®at
1-888-4-ONSTAR and they can send a signal
to unlock your doors. If you need roadside
assistance, press the OnStar
®button and they
can contact Roadside Service for you.OnStar
®service is provided to you subject to the
OnStar®Terms and Conditions. You may cancel
your OnStar®service at any time by contacting
OnStar®as provided below. A complete OnStar®
Owners Guide and the OnStar®Terms and
Conditions are included in the vehicle’s OnStar®
Subscriber glove box literature. For more
information, visit onstar.com or onstar.ca, contact
OnStar
®at 1-888-4-ONSTAR (1-888-466-7827)
or TTY 1-877-248-2080, or press the OnStar®
button to speak with an OnStar®advisor
24 hours a day, 7 days a week.
Not all OnStar
®features are available on all
vehicles. To check if your vehicle is equipped to
provide the services described below, or for a
full description of OnStar
®services and system
limitations, see the OnStar®Owner’s Guide in
your glove box or visit onstar.com.
94
ProCarManuals.com
Page 96 of 384

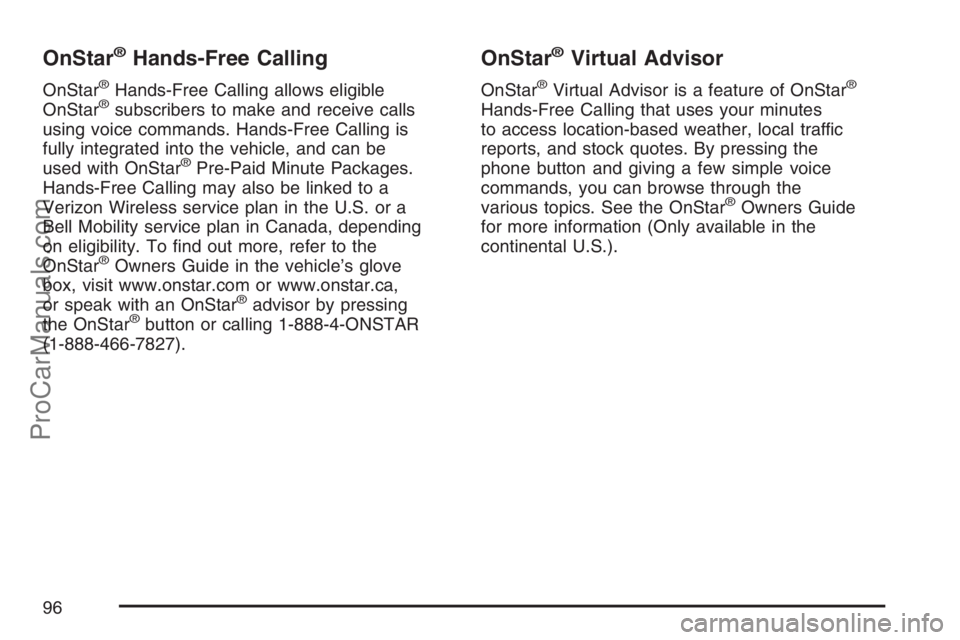

OnStar®Hands-Free Calling
OnStar®Hands-Free Calling allows eligible
OnStar®subscribers to make and receive calls
using voice commands. Hands-Free Calling is
fully integrated into the vehicle, and can be
used with OnStar
®Pre-Paid Minute Packages.
Hands-Free Calling may also be linked to a
Verizon Wireless service plan in the U.S. or a
Bell Mobility service plan in Canada, depending
on eligibility. To nd out more, refer to the
OnStar
®Owners Guide in the vehicle’s glove
box, visit www.onstar.com or www.onstar.ca,
or speak with an OnStar
®advisor by pressing
the OnStar®button or calling 1-888-4-ONSTAR
(1-888-466-7827).
OnStar®Virtual Advisor
OnStar®Virtual Advisor is a feature of OnStar®
Hands-Free Calling that uses your minutes
to access location-based weather, local traffic
reports, and stock quotes. By pressing the
phone button and giving a few simple voice
commands, you can browse through the
various topics. See the OnStar
®Owners Guide
for more information (Only available in the
continental U.S.).
96
ProCarManuals.com
Page 99 of 384
Storage Areas
Glove Box
To open the glove box, lift up on the lever.
Use the key to lock and unlock.
Cupholder(s)
There are two cupholders located in the center
console, press and release to extend forward.Your vehicle has a cupholder on the passenger
side of the center console. To access it, press
and release the forward section of the cupholder.
99
ProCarManuals.com
Page 102 of 384
Lowering the Manual Convertible Top
1. Park on a level surface and set the parking
brake. Shift an automatic transmission into
PARK (P). Shift a manual transmission
into FIRST (1) or REVERSE (R).
2. Make sure the ignition is turned off.
3. Push the trunk release button located in
the glove box, or on the remote keyless
entry, if equipped.
4. Lift the trunk.
5. The convertible top front latch, located above
the inside rearview mirror, must be unlatched.
Pull the latch down and turn it counterclockwise
to unlatch it.
Leave the latch open and turned to prevent
damage.
6. Pull rearward on the side edge (B) of the
convertible top and pull it off of the windshield
frame.
7. Push the convertible top down into the
trunk (D).
102
ProCarManuals.com
Page 103 of 384
8. After the top is stored, apply one even push,
as shown, on the convertible top to ensure that
the top is fully retracted and securely stored.
9. Close the trunk (D) by pressing down on it
with a swift, rm motion.
Do not operate rear defogger when convertible
top is down.A clear Mylar
®protective lm has been installed
at the factory on the trunk lid surface under the
convertible top buttresses. This lm is designed
to help prevent paint damage to the trunk lid.
Do not remove this protective lm. It is intended to
remain permanently affixed to the trunk lid surface.
Raising the Manual Convertible Top
1. Park on a level surface, set the parking brake
rmly and shift an automatic transmission into
PARK (P). Shift a manual transmission into
FIRST (1) or REVERSE (R).
2. Make sure the ignition is turned off, and lower
the windows.
3. Push the trunk release button located in the
glove box, or on the remote keyless entry,
if equipped.
4. Lift the trunk.
103
ProCarManuals.com
Page 109 of 384
The main components of your instrument panel are the following:
A. Side Window Outlets. SeeClimate Control
System on page 122.
B. Air Outlets. SeeOutlet Adjustment on page 126.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 111.
D. Cruise Control Buttons (If Equipped).
SeeCruise Control on page 115.
E. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 128.
F. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 188.
G. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 110.
H. Fog Lamp Button. SeeFog Lamps on page 120.
I. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 120.
J. Driver Information Center (DIC) Controls. See
Driver Information Center (DIC) on page 144.
K. Horn. SeeHorn on page 110.
L. Windshield Wiper/Washer Controls. See
Windshield Wipers on page 113and
Windshield Washer on page 114.M. Climate Controls. SeeClimate Control System
on page 122.
N. Passenger Air Bag Status Indicator. See
Passenger Airbag Status Indicator on page 131.
O. Shift Lever. SeeManual Transmission
Operation on page 85. SeeAutomatic
Transmission Operation on page 82
(If Equipped).
P. Parking Brake Lever. SeeParking Brake
on page 86.
Q. Audio System. SeeAudio System(s) on
page 158.
R. Electronic Stability Control/Traction Control
System Button. SeeElectronic Stability Control
on page 201.
S. Cigarette Lighter (If Equipped). Accessory
Power Outlet (If Equipped). SeeAshtray(s) and
Cigarette Lighter on page 122andAccessory
Power Outlet(s) on page 121.
T. Cupholder. SeeCupholder(s) on page 99.
U. Trunk Release. SeeTrunk on page 68.
V. Glove Box. SeeGlove Box on page 99.
109
