2007 SATURN SKY Owners Manual

Speedometer and Odometer
The speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
The vehicle’s odometer works together with the
Driver Information Center (DIC). A Trip A and
Trip B odometer can be set. See “Trip Information”
underDIC Operation and Displays on page 144.
The odometer mileage can be checked without the
vehicle running. Open the driver’s door and the
mileage will be displayed briey.
If your vehicle ever needs a new odometer
installed, the new one will be set to the correct
mileage total of the old odometer.
Tachometer
The tachometer displays the engine speed in
revolutions per minute (rpm).
Notice:If you operate the engine with the
tachometer in the shaded warning area, your
vehicle could be damaged, and the damages
would not be covered by your warranty.
Do not operate the engine with the tachometer
in the shaded warning area.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime
will be provided for several seconds to remind
people to buckle their safety belts. The driver safety
belt light will also be provided and stay on for
several seconds, then it will ash for several more.
You should buckle your seat belt.
This chime and light
will be repeated if the
driver remains
unbuckled and the
vehicle is in motion.
If the driver’s belt is buckled, neither the chime
nor the light will be provided.
129
ProCarManuals.com

Passenger Safety Belt
Reminder Light
Several seconds after the key is turned to RUN or
START, a chime will sound for several seconds to
remind the front passenger to buckle their safety
belt. This would only occur if the passenger airbag
is enabled. SeePassenger Sensing System on
page 50for more information. The passenger
safety belt light will also come on and stay on for
several seconds, then it will ash for several more.
This chime and light will
be repeated if the
passenger remains
unbuckled and
the vehicle is in motion.
If the passenger’s safety belt is buckled, neither
the chime nor the light will come on.
Airbag Readiness Light
There is an airbag readiness light on the
instrument panel cluster, which shows the airbag
symbol. The system checks the airbag’s
electrical system for malfunctions. The light tells
you if there is an electrical problem. The
system check includes the airbag sensor, the
airbag modules, the wiring and the crash sensing
and diagnostic module. For more information
on the airbag system, seeAirbag System
on page 43.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds.
Then the light should go
out. This means the
system is ready.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.
130
ProCarManuals.com

{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not inate in
a crash, or they could even inate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays
on after you start your vehicle.
The airbag readiness light should ash for a
few seconds when you turn the ignition key to
RUN or START. If the light does not come on then,
have it xed so it will be ready to warn you if
there is a problem.
Passenger Airbag Status Indicator
Your vehicle has a passenger sensing system.
There is a passenger airbag status indicator on the
instrument panel.
The indicator next to the passenger airbag status
indicator lights is the passenger safety belt
reminder light. SeePassenger Safety Belt
Reminder Light on page 130for more information
on that indicator.
When the ignition key is turned to RUN or START,
the passenger airbag status indicator will light
ON and OFF, or the symbol for on and off,
for several seconds as a system check. Then,
after several more seconds, the status indicator
will light either ON or OFF, or either the on
or off symbol to let you know the status of the
right front passenger’s frontal airbag.
United StatesCanada
131
ProCarManuals.com

If the word ON or the on symbol is lit on the
passenger airbag status indicator, it means that
the right front passenger’s frontal airbag is enabled
(may inate).
{CAUTION:
If the on indicator comes on when you have
a rear-facing child restraint installed in the
right front passenger’s seat, it means that
the passenger sensing system has not
turned off the passenger’s frontal airbag. A
child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat if the airbag is turned on.
{CAUTION:
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be
transported in vehicles with a rear seat
that will accommodate a rear-facing child
restraint, whenever possible.
If the word OFF or the off symbol is lit on the
airbag status indicator, it means that the
passenger sensing system has turned off the right
front passenger’s frontal airbag. SeePassenger
Sensing System on page 50for more on this,
including important safety information.
132
ProCarManuals.com

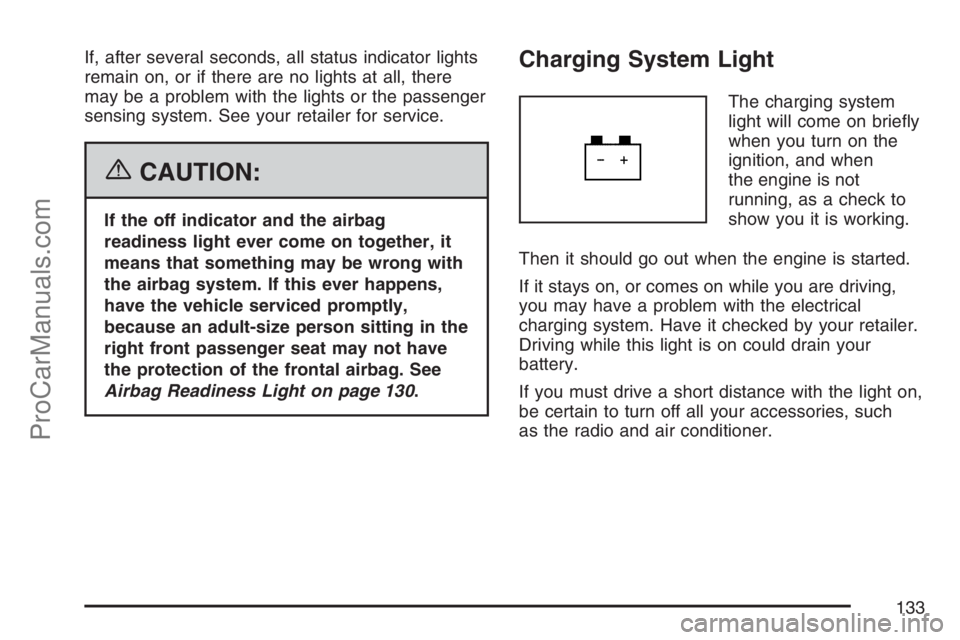

If, after several seconds, all status indicator lights
remain on, or if there are no lights at all, there
may be a problem with the lights or the passenger
sensing system. See your retailer for service.
{CAUTION:
If the off indicator and the airbag
readiness light ever come on together, it
means that something may be wrong with
the airbag system. If this ever happens,
have the vehicle serviced promptly,
because an adult-size person sitting in the
right front passenger seat may not have
the protection of the frontal airbag. See
Airbag Readiness Light on page 130.
Charging System Light
The charging system
light will come on briey
when you turn on the
ignition, and when
the engine is not
running, as a check to
show you it is working.
Then it should go out when the engine is started.
If it stays on, or comes on while you are driving,
you may have a problem with the electrical
charging system. Have it checked by your retailer.
Driving while this light is on could drain your
battery.
If you must drive a short distance with the light on,
be certain to turn off all your accessories, such
as the radio and air conditioner.
133
ProCarManuals.com

Brake System Warning Light
Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the other
part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes on, there is a brake
problem. Have your brake system inspected
right away.
This light should come on briey when you turn
the ignition key to RUN. If it does not come
on then, have it xed so it will be ready to warn
you if there is a problem.When the ignition is on, the brake system warning
light will also come on when you set your
parking brake. The light will stay on if your parking
brake does not release fully. If it stays on after
your parking brake is fully released, it means you
have a brake problem.
If the light comes on while you are driving, pull off
the road and stop carefully. Make sure the parking
brake is fully released. You may notice that the
pedal is harder to push or, the pedal may go closer
to the oor. It may take longer to stop. If the light is
still on, have the vehicle towed for service. See
Towing Your Vehicle on page 230.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
United StatesCanada
134
ProCarManuals.com

Anti-Lock Brake System
Warning Light
Your vehicle may have
the Anti-Lock Brake
System (ABS).
This light will come on when your engine is
started and may stay on for several seconds.
That is normal.
If the light stays on, turn the ignition off. If the
light comes on when you are driving, stop as soon
as possible and turn the ignition off. Then start
the engine again to reset the system. If the
light still stays on after driving at a speed of at
least 13 mph (20 km/h), or comes on again
while you are driving, your vehicle needs service.If the regular brake system warning light is not
on, you still have brakes, but you do not have
anti-lock brakes. If the regular brake system
warning light
is also on, you do not have anti-lock brakes and
there is a problem with your regular brakes.
SeeBrake System Warning Light on page 134.
The ABS warning light will come on briey
when you turn the ignition key to RUN. This is
normal. If the light does not come on then, have
it xed so it will be ready to warn you if there
is a problem.
135
ProCarManuals.com

Electronic Stability Control (ESC)/
Traction Control System (TCS)
Indicator/Warning Light
(2.0L Engine Only)
This light is located in
the center of the
instrument panel cluster.
For vehicles that have the Electronic Stability
Control (ESC) system or the Traction Control
System (TCS), this warning light should come on
briey when the engine is started.If the warning light does not come on then, have it
xed so it will be ready to warn you if there is a
problem. This light, along with the appropriate
Driver Information Center (DIC) messages,
indicates when the ESC system and the TCS are
working or are disabled.
If this light is on and not ashing, the TCS and
potentially the ESC system have been disabled.
Check your DIC messaging to determine
which feature(s) is no longer functioning and
whether it is because of the driver turning off the
feature(s), or the system may not be working
properly and your vehicle requires service. If the
TCS is disabled, wheel spin will not be limited.
If the ESC system is disabled, the system will not
aid in maintaining vehicle directional control. In
either case, adjust your driving accordingly.
136
